Technical Data Sheet
Chelworth Wall Hung Vanity Unit 450 One Door
5952

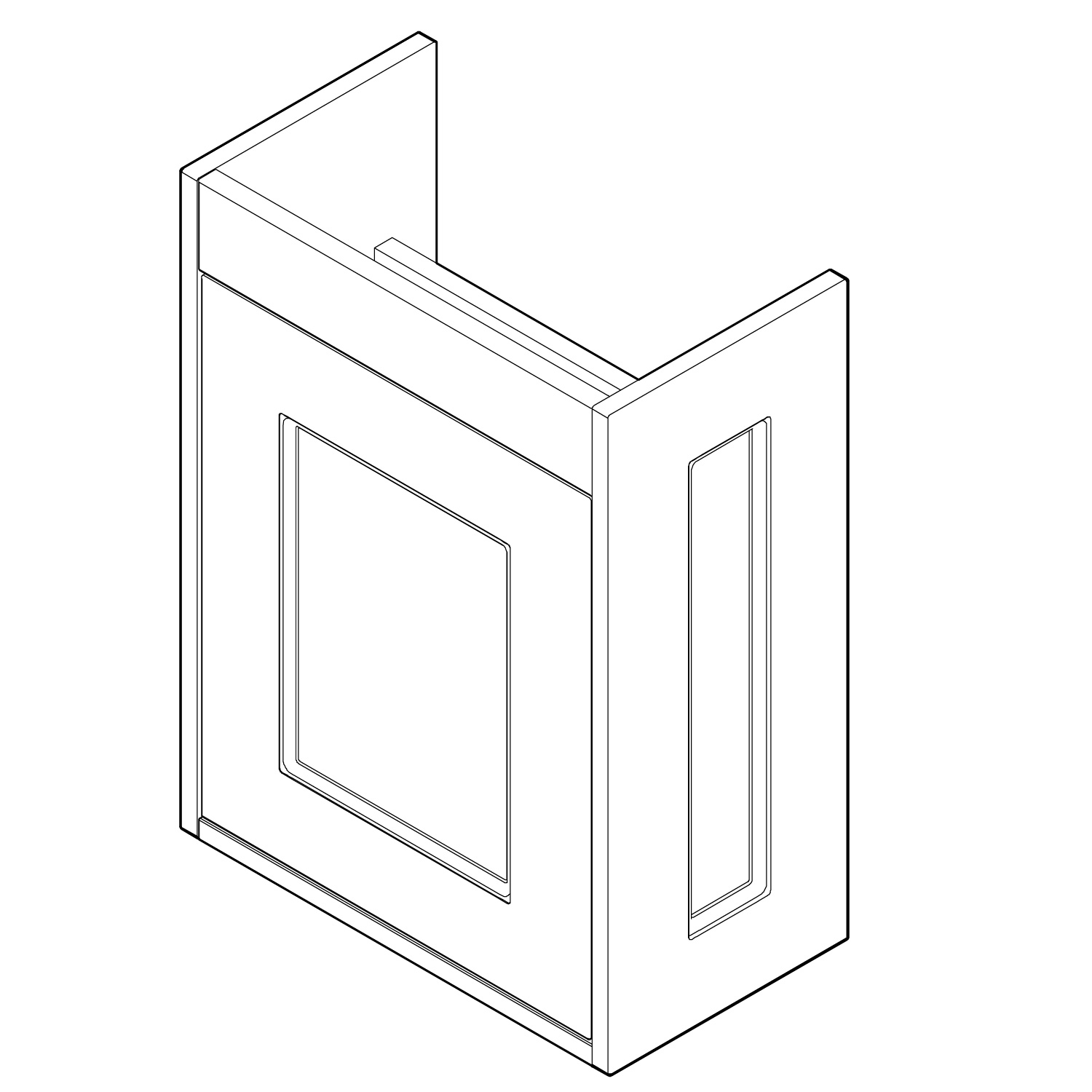

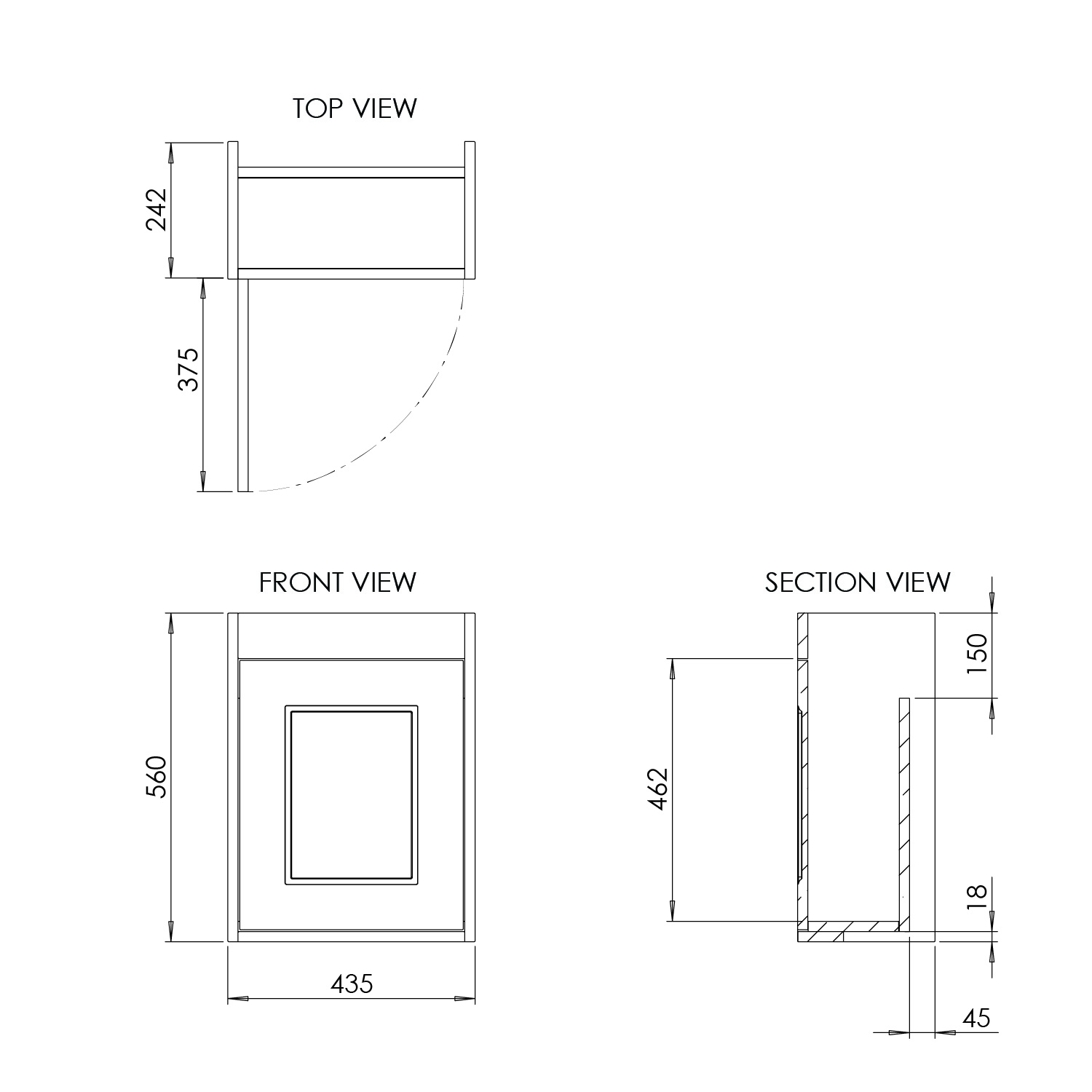

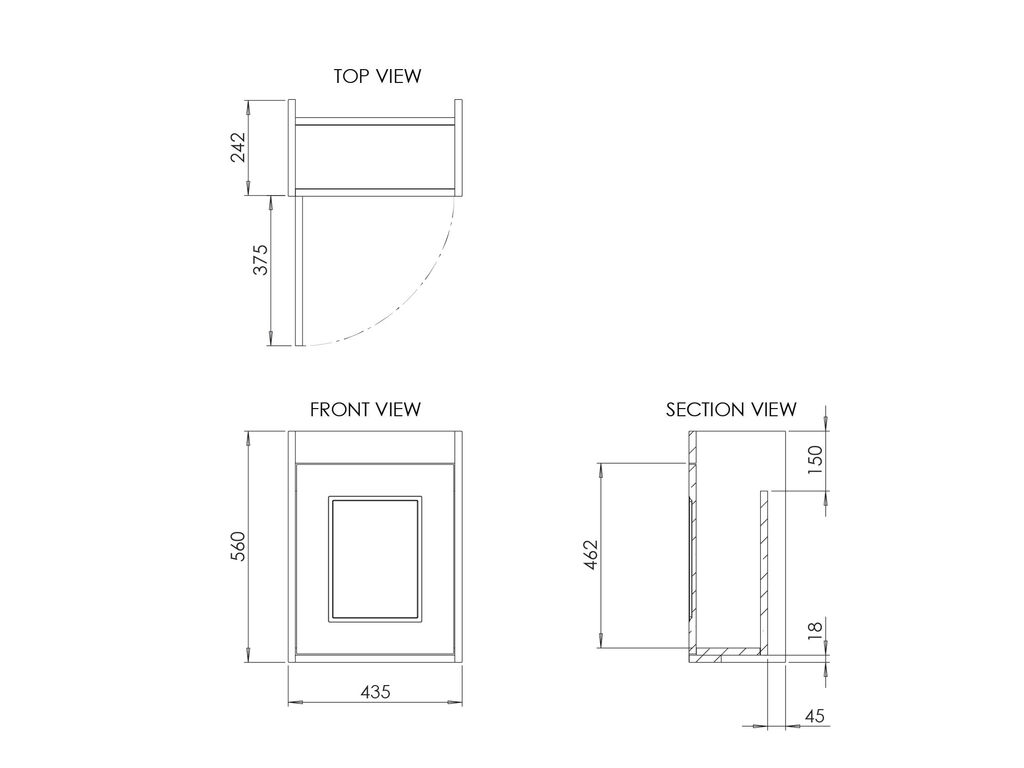

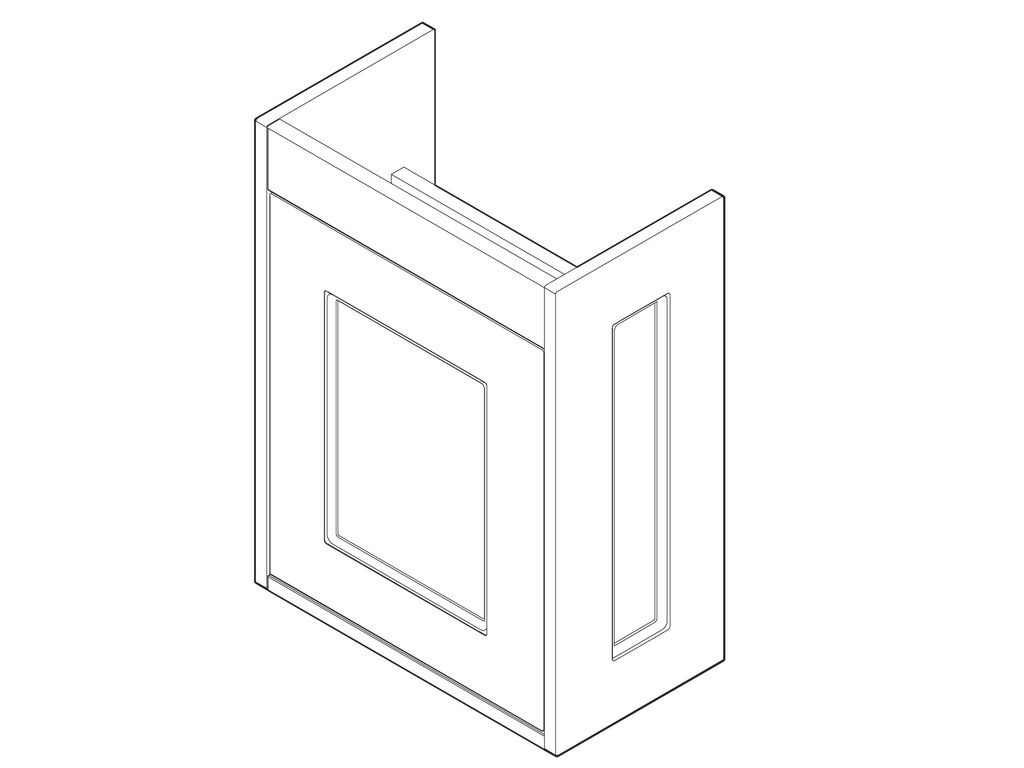

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
435 x 242 x 560mm
Weight:
9.42 kg
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open back
Fascia Style:
MDF 18mm Shaker
Fascia Detail:
Shaker Frame
End Panel Material:
MDF 18mm
End Panel Detail:
Shaker
Door Openings:
1
Door(s) Hinge Side:
Both
Hinges Detail:
Soft Close,Inset
Hinge Bracket Cover Plates:
Yes
Handle Type:
Handle Not Included
Shelves:
1 removable - MFC 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Adjustable Metal Wall Brackets, 180mm from top @ 385mm centres
Door Open Unit Depth:
677mm
Service Void Depth:
48mm
Compatible Basins:
In The Box:
Chelworth Wall Hung Vanity Unit 450 One Door
