Technical Data Sheet
Addison Ceramic Vanity Basin 450 Left Bowl White
9358

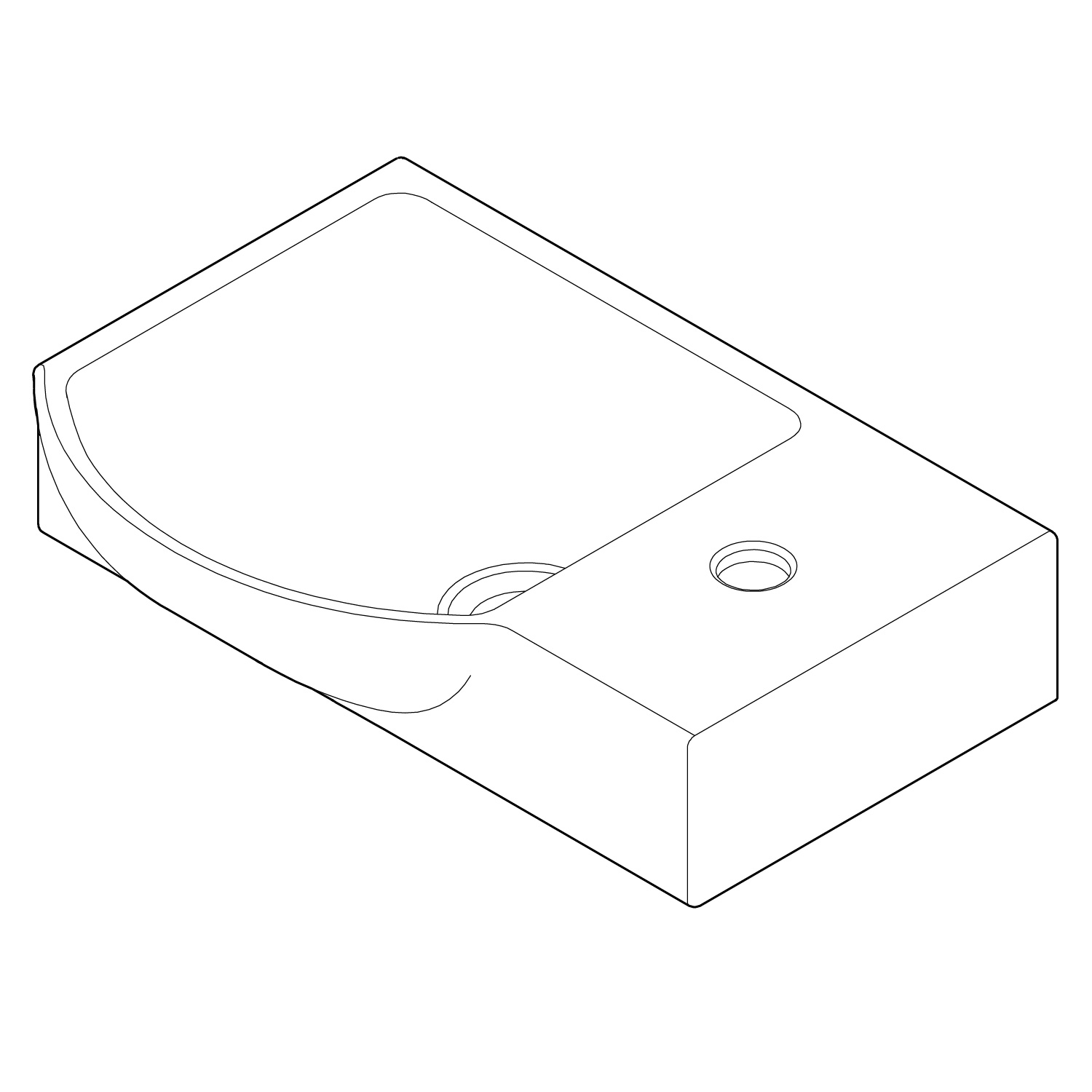

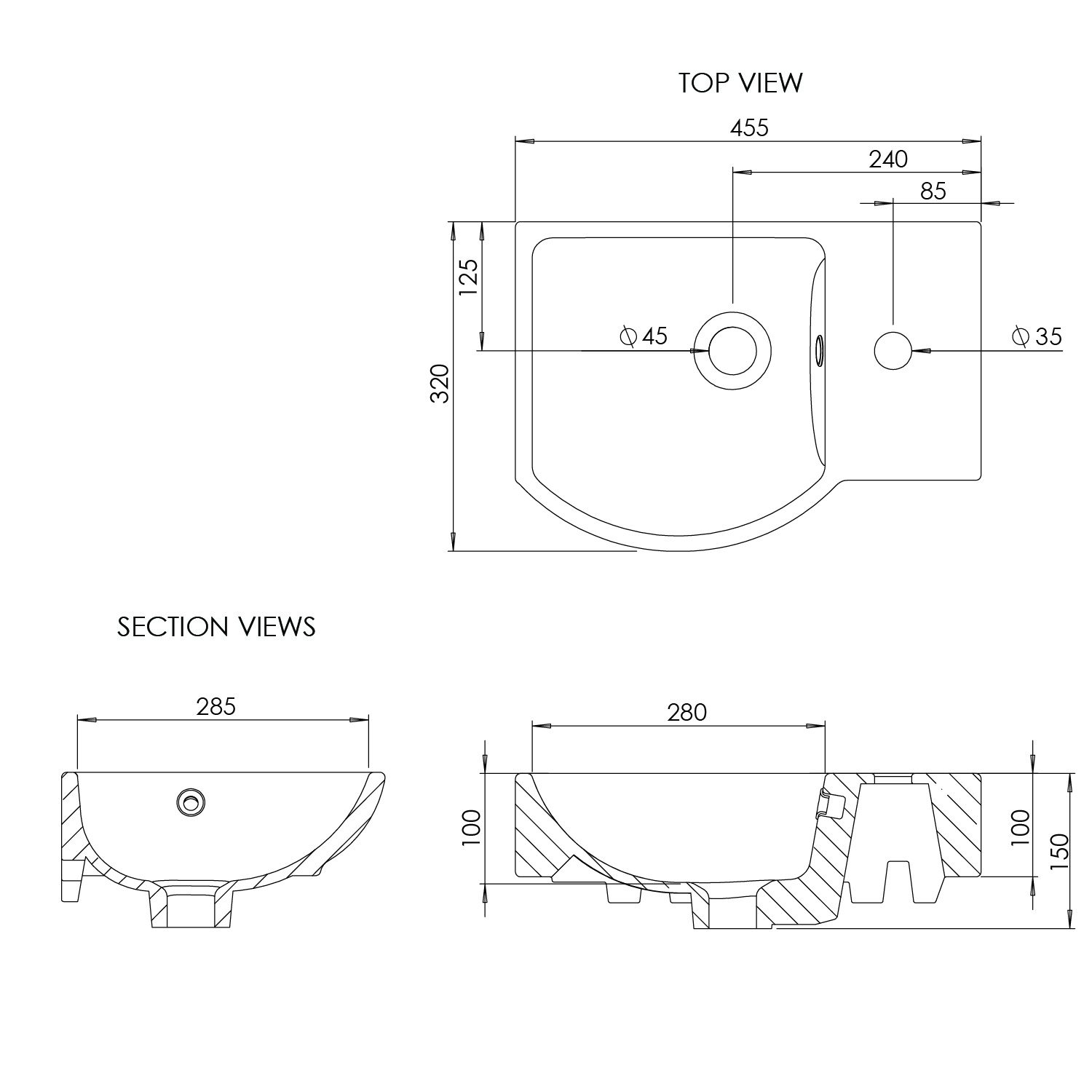

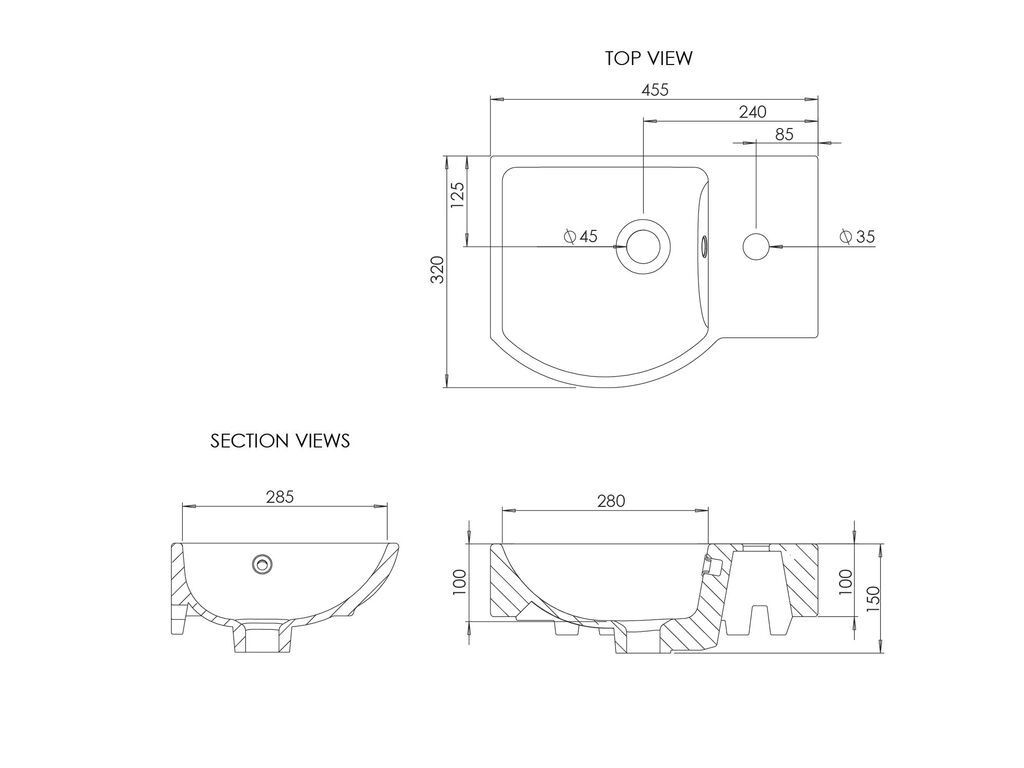

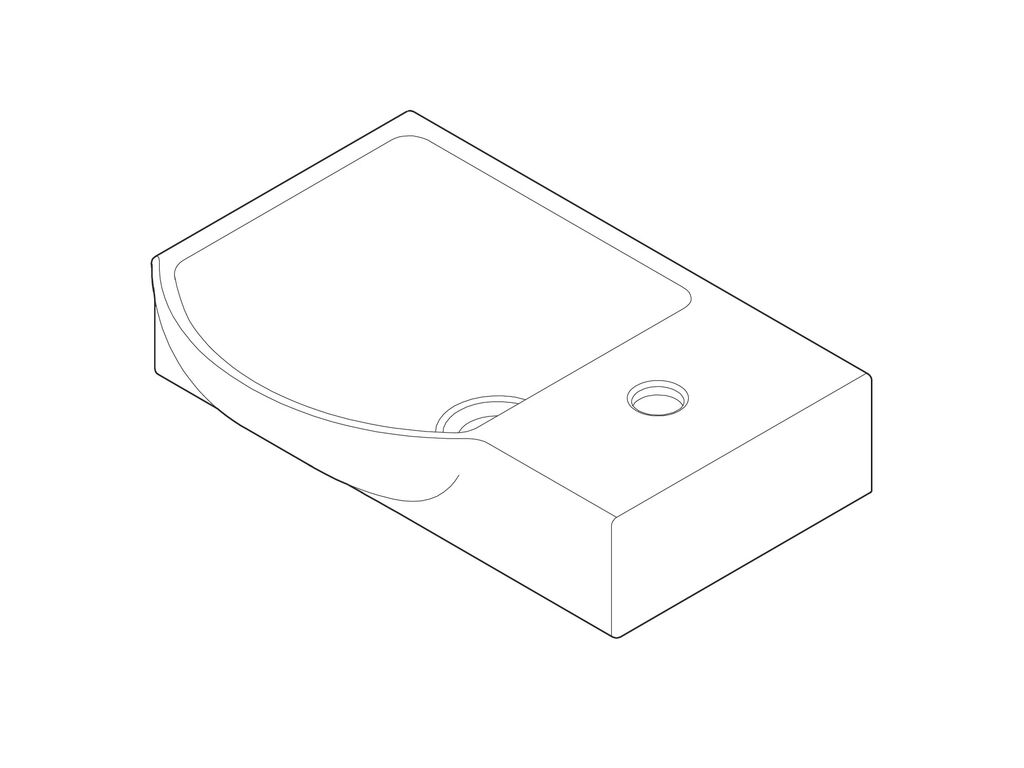

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
450 x 320 x 148mm
Weight:
8.90 kg
Basin Type:
Vanity Basin
Basin Construction Material:
Ceramic
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Rectangular with Convex Front
Bowl Shape:
Rectangular with Convex Front
Configuration:
Left Hand Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
280 x 285 x 100mm
Depth at Centre:
320mm
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Tap Hole Position:
RIght Rear of Top Surface
Max Water Temperature:
100°C
Overflow Type:
Integrated Overflow
Supplied Overflow Ring Colour:
Chrome
Interchangeable Overflow Ring Type:
Type 2,Type 3
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, EN 14688
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Addison Ceramic Vanity Basin 450 Left Bowl White
