Technical Data Sheet

Charlbury Floor Standing Vanity Unit 962 Three Door Right Hand Curve

5916

Calypso Logo

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

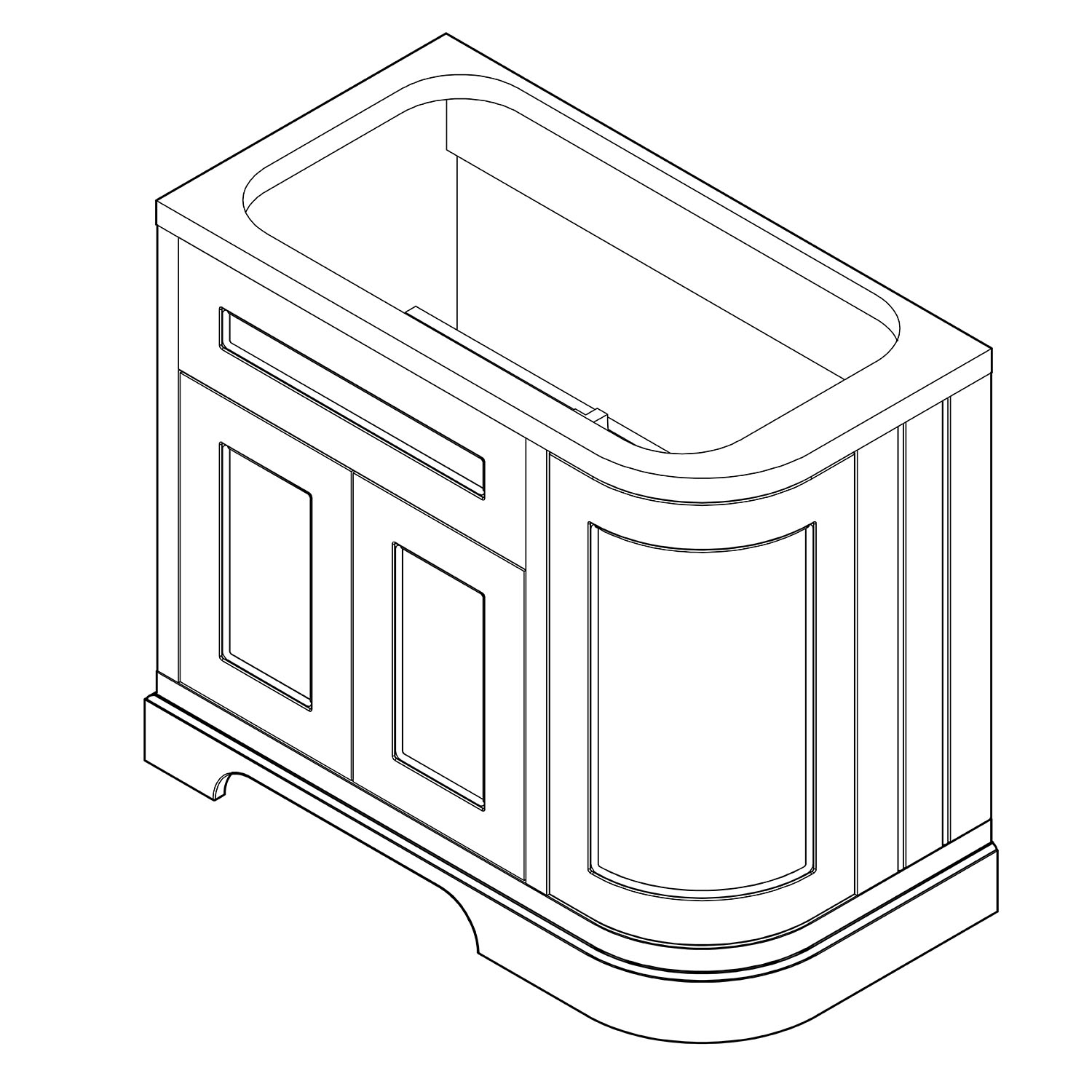

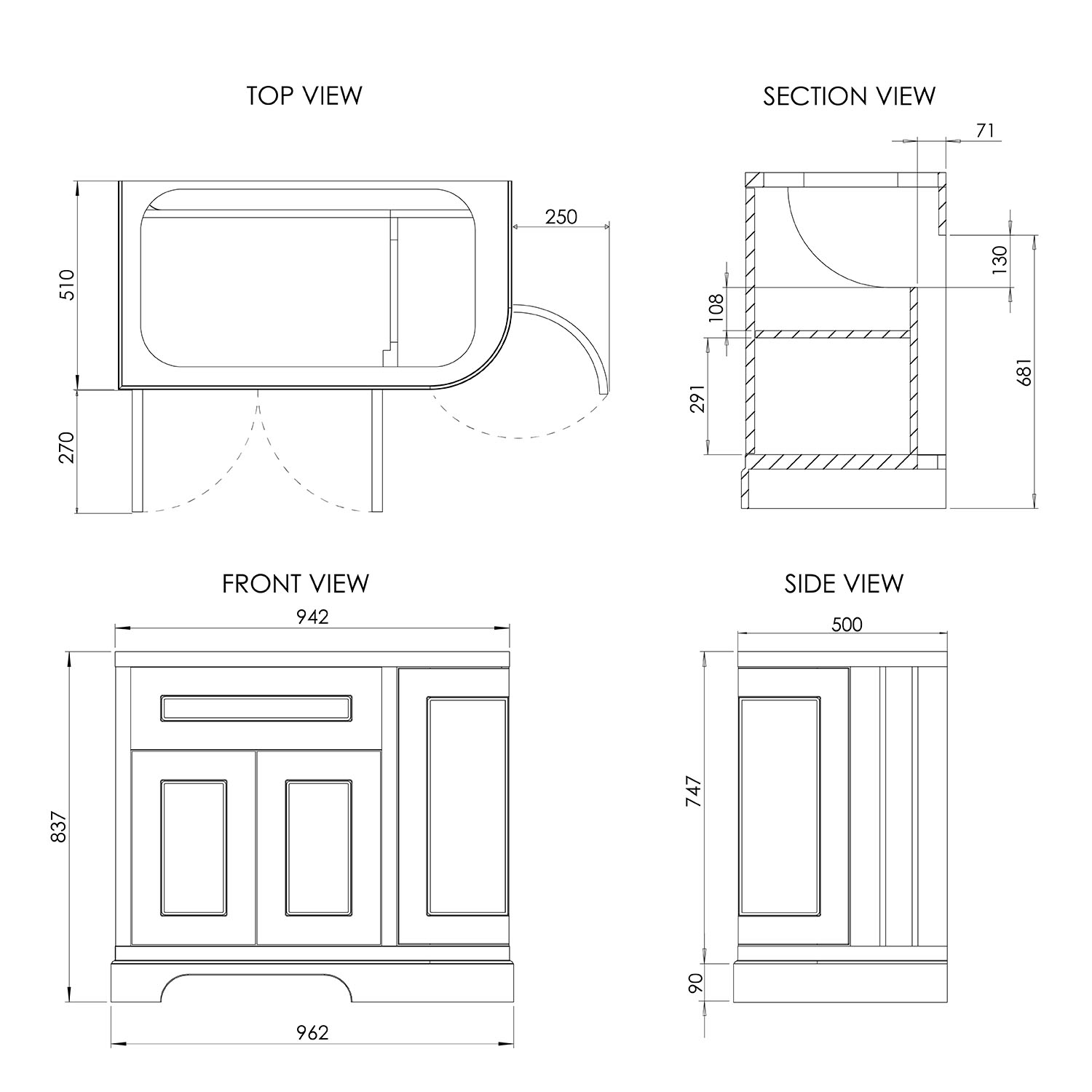

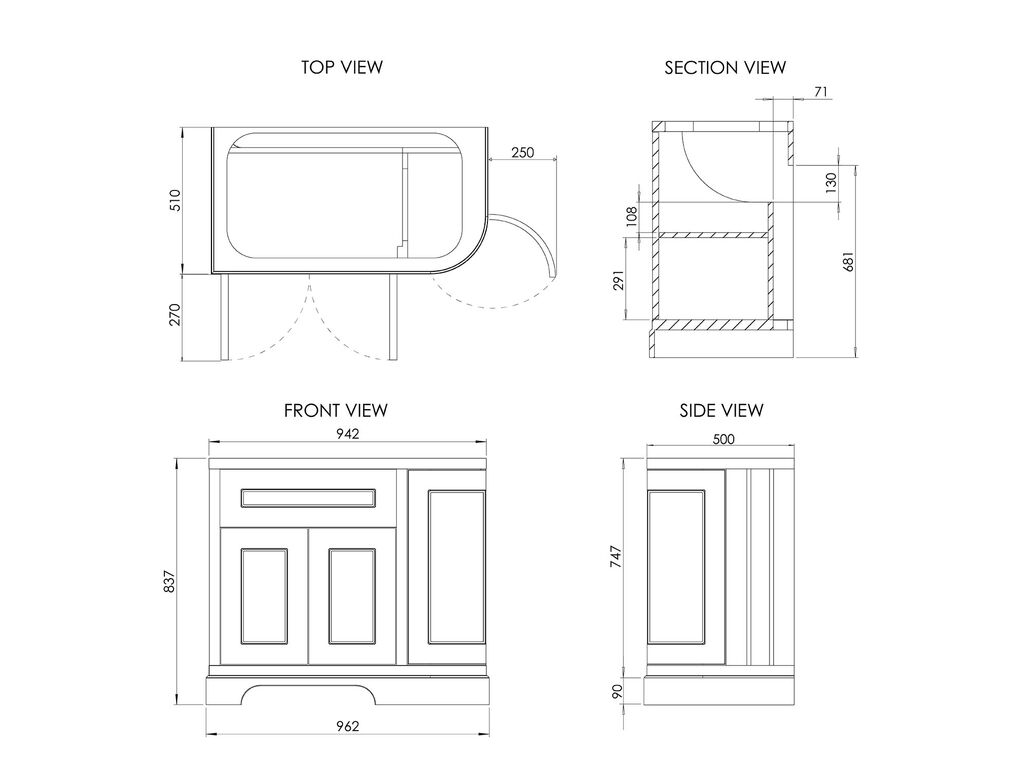

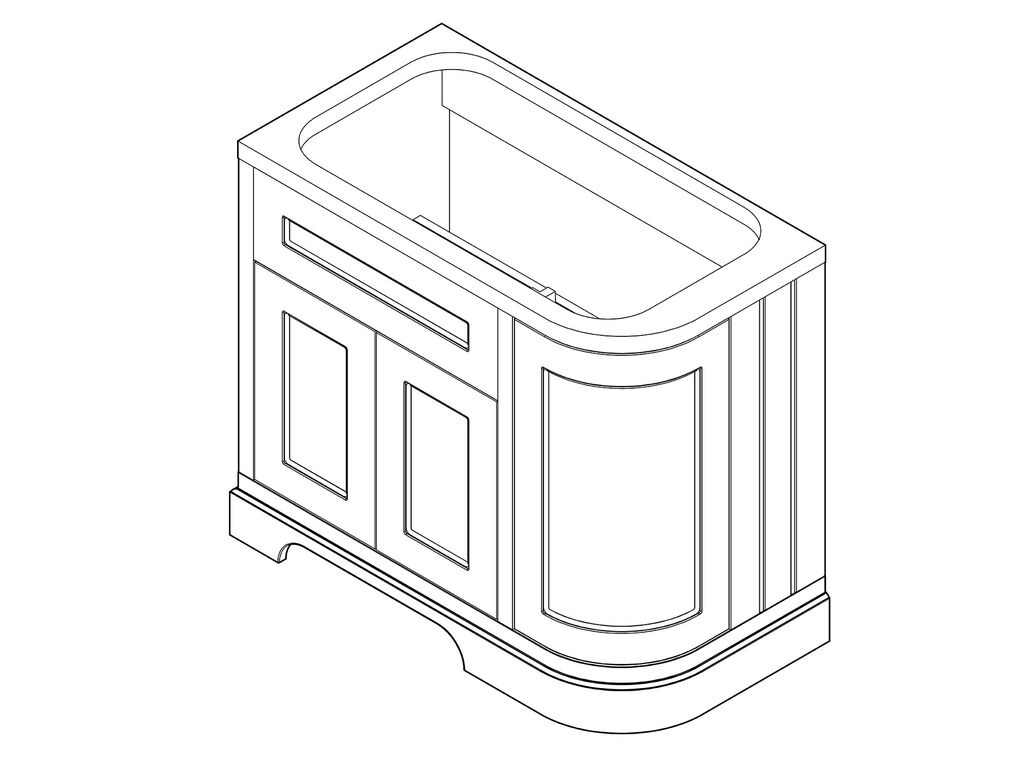

3D Line Drawing2D Line Drawing

Technical Details

Furniture Type:

Floor Standing Vanity Unit

Dimensions (WxDxH):

962 x 510 x 837mm

Weight:

55.29 kg

Carcass Material:

MDF 18mm

Carcass Colour:

Matched to Fascia

Fascia Style:

MDF 22mm Shaker

Door Openings:

3

Door(s) Hinge Side:

Both

Shelves:

1 fixed - MDF 18mm, 1 removable - MDF 18mm

Leg / Foot Type:

Pre-attached, Feet Included

Guarantee Period:

5 Years

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 2mm.

In The Box:

Charlbury Floor Standing Vanity Unit 962 Three Door Right Hand Curve
Instructions
Fitting kit
