Technical Data Sheet
Solid Surface Worktop with Undermount Basin 972 x 515mm Right Curve White Stone
5924WN

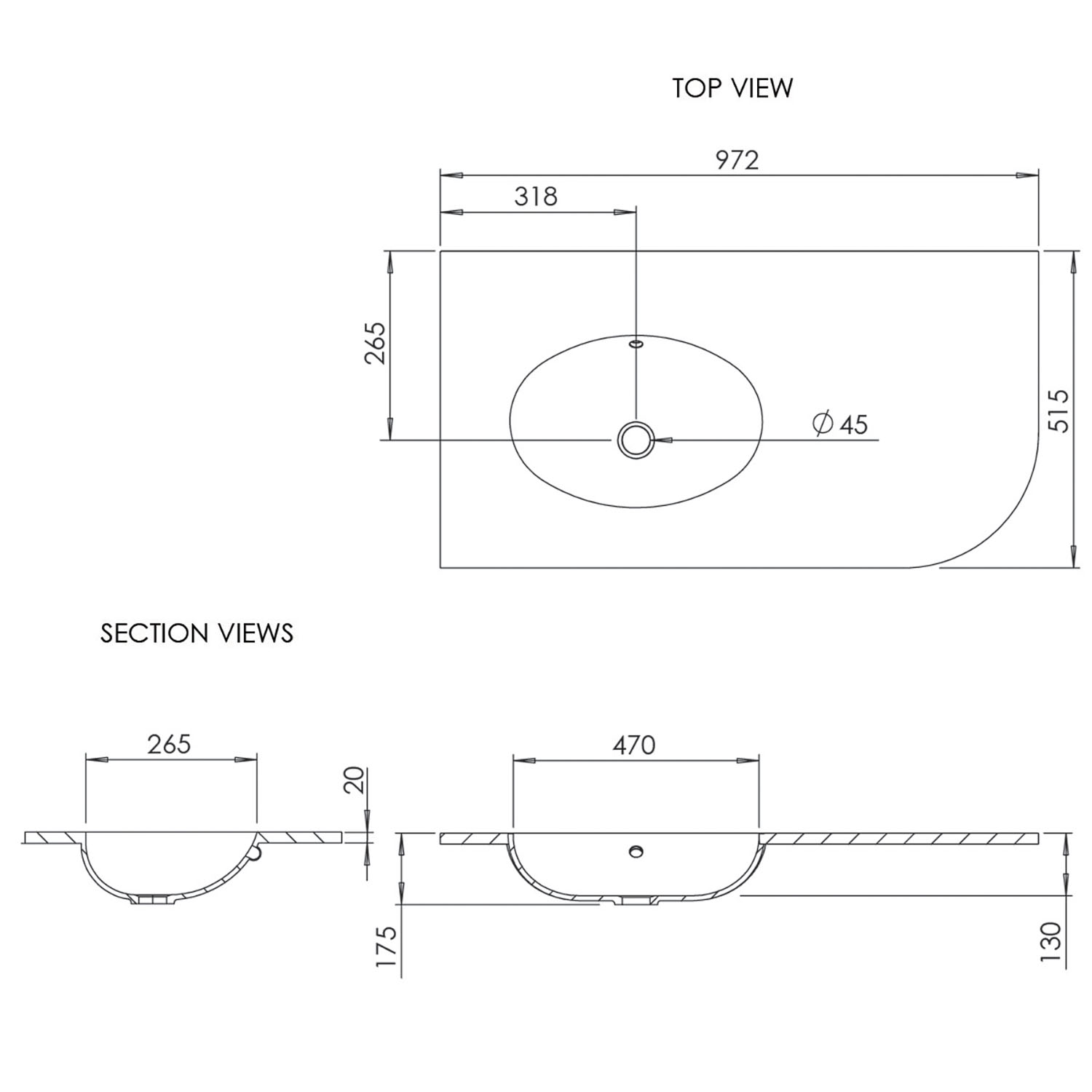

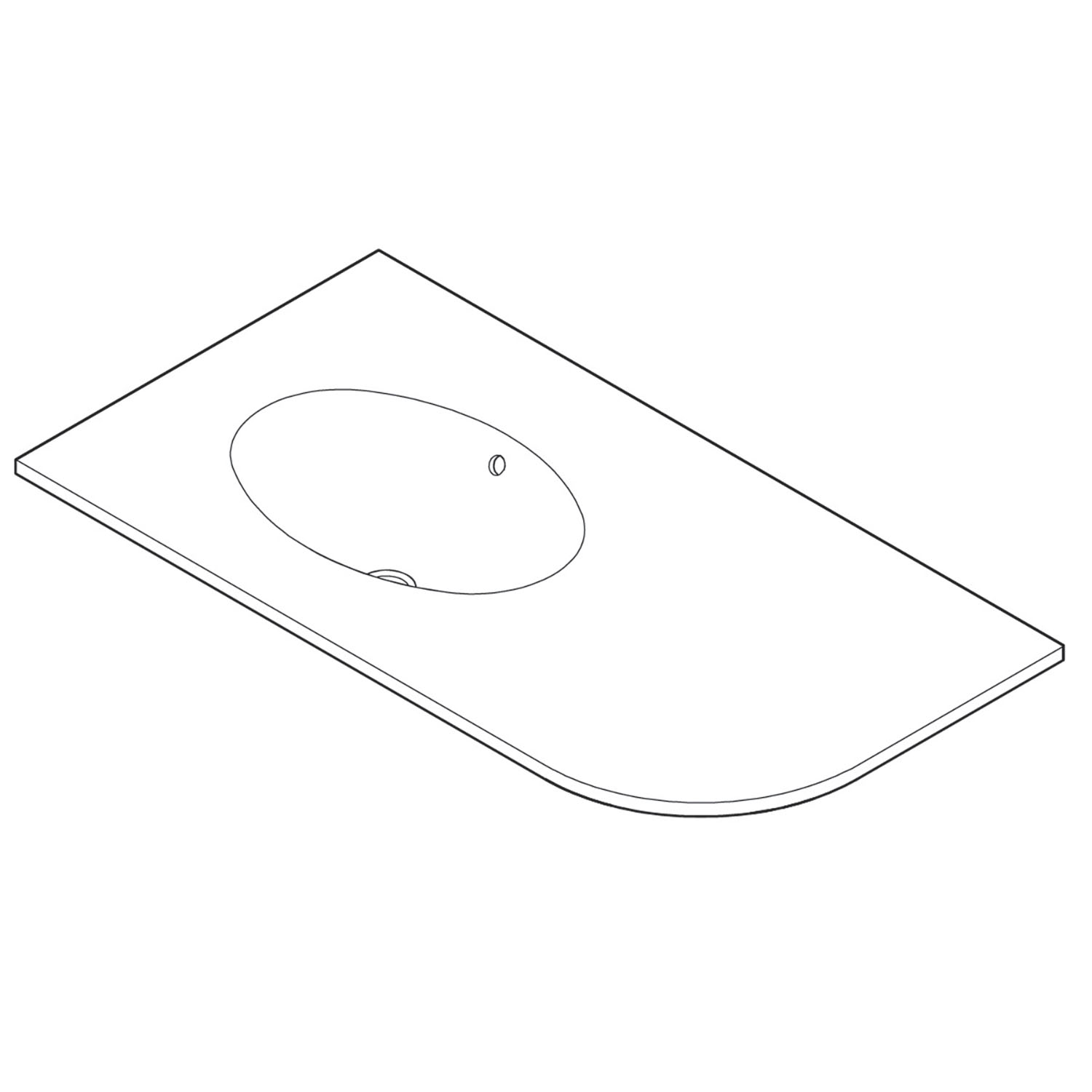

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
972 x 515 x 175mm
Weight:
26.18 kg
Basin Type:
Worktop with Undermount Basin
Basin Construction Material:
Ceramic
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Worktop:
Natural Aglomerate Marble White Stone
Number of Bowls:
1
Number of Tap Holes:
0
Max Water Temperature (°C):
100
Overflow Type:
Integrated Overflow
Supplied Overflow Ring Colour:
Chrome
Interchangeable Overflow Ring Type:
Type 3
Waste Hole Diameter:
45 mm
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Solid Surface Worktop with Undermount Basin 972 x 515mm Right Curve White Stone
Instructions
Fitting kit
