Technical Data Sheet
Pentland Floor Standing Vanity Unit 1246 Two Drawer Two Door Curved
4461PD

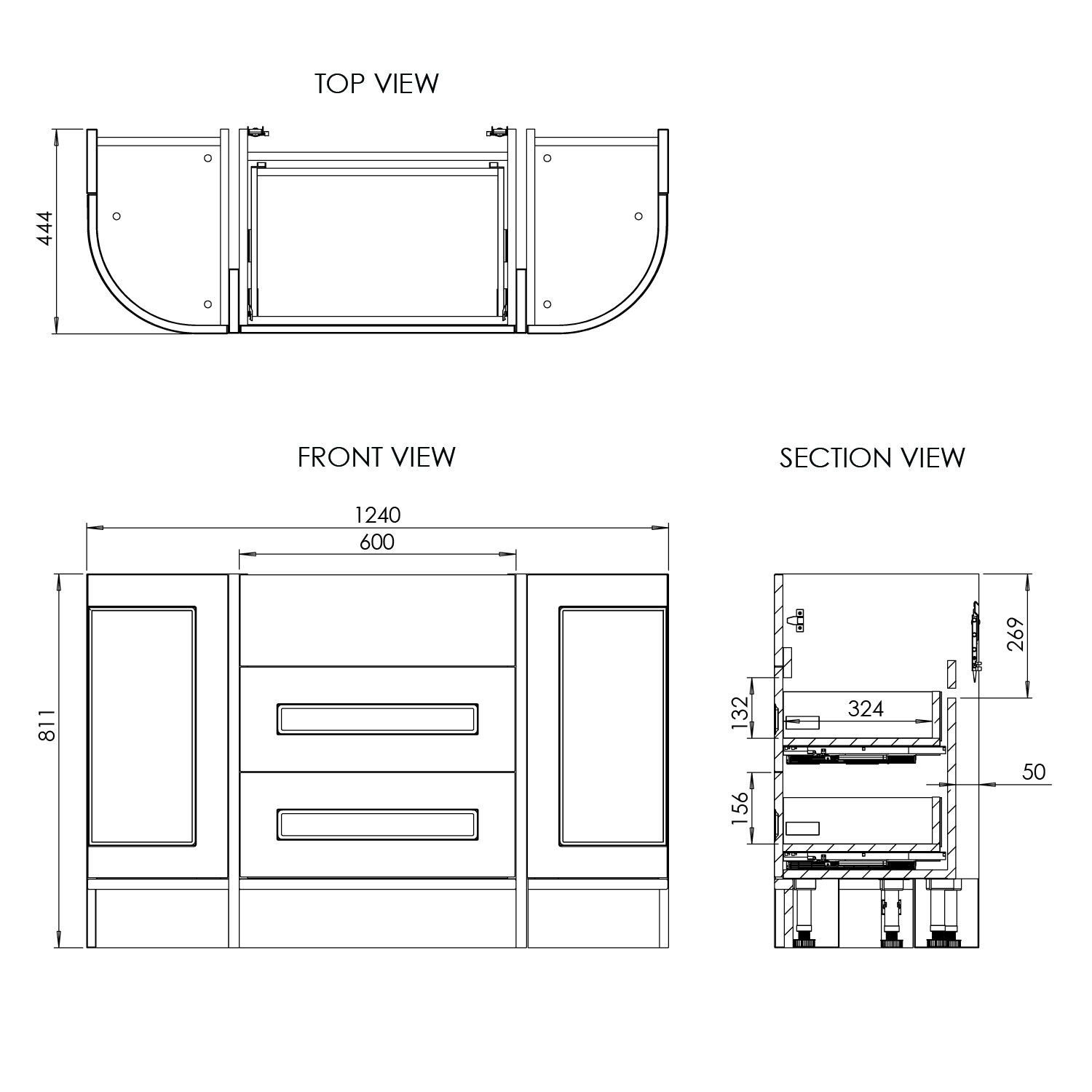

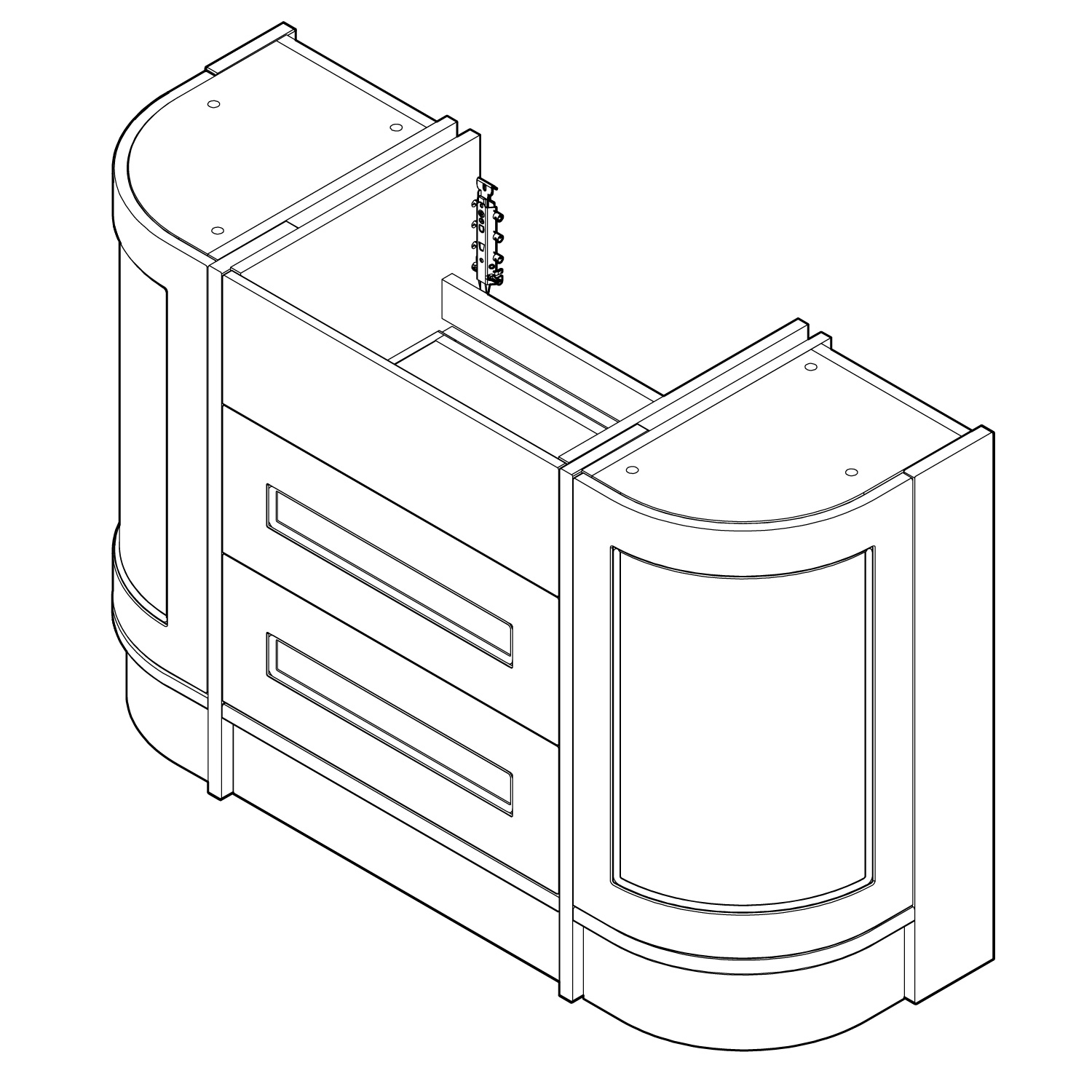

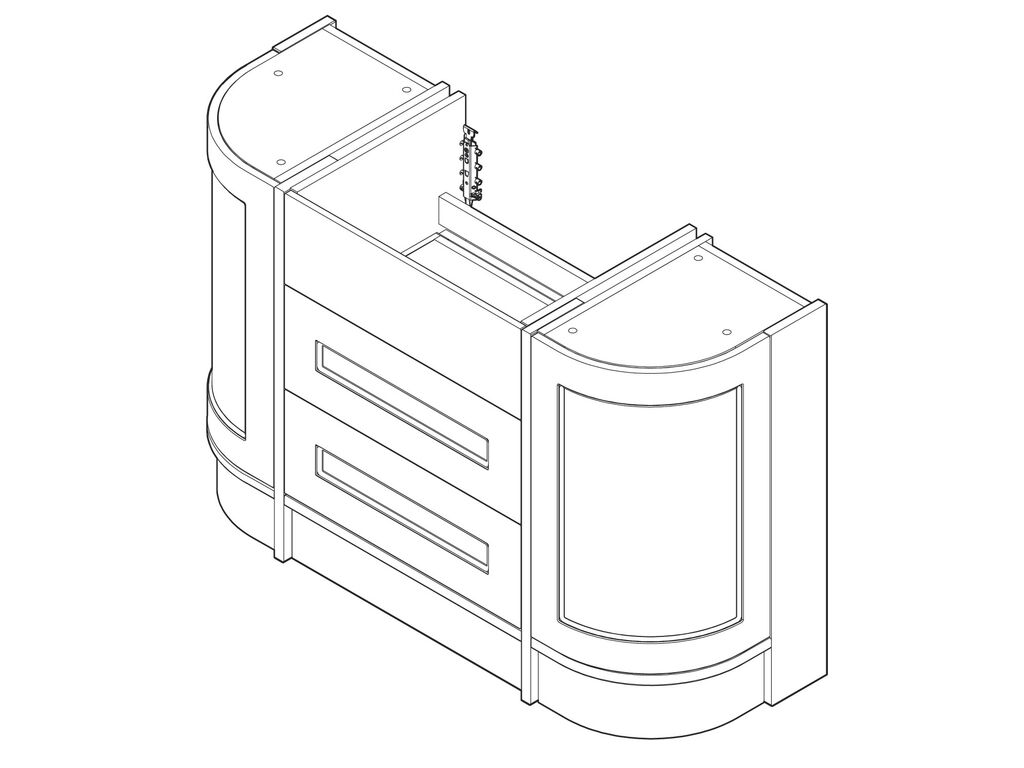

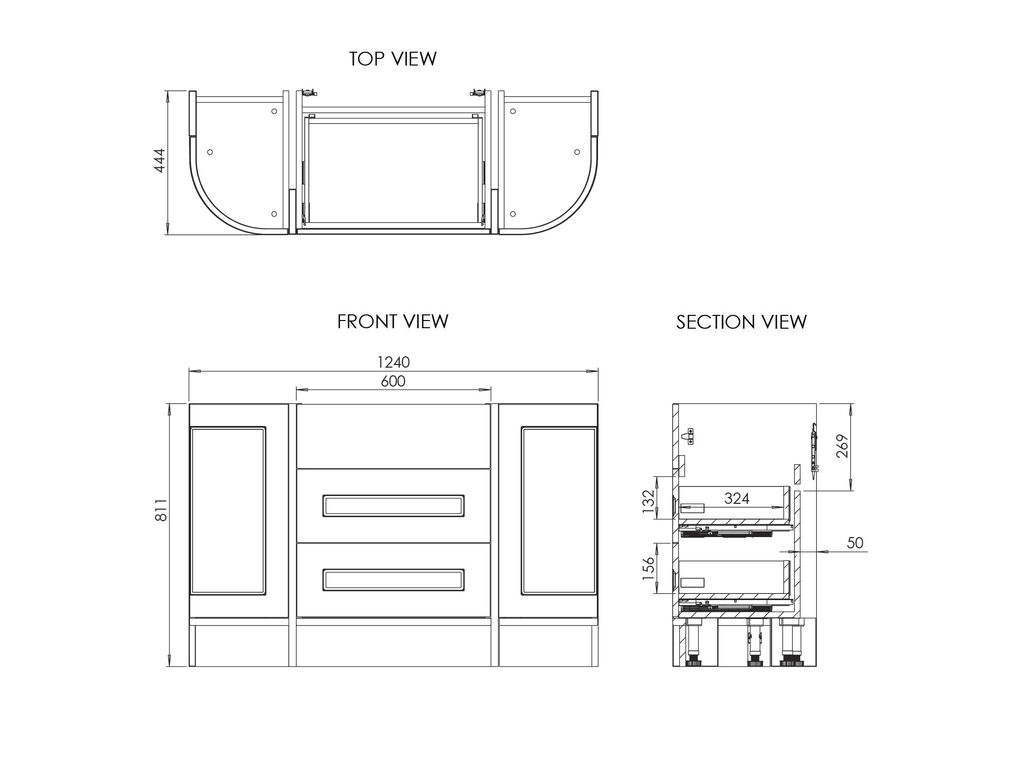

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Floor Standing Vanity Unit
Dimensions (WxDxH):
1240 x 444 x 811mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open Back
Fascia Style:
MDF 19mm Shaker
Fascia Detail:
Beaded Frame
End Panel Material:
MDF 20mm
End Panel Detail:
Tongue & Groove
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Yes
Handle Type:
Handle Not Included
Drawers:
2 drawers, Emuca Soft Close, 350mm runners
Shelves:
2 removable - MFC 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Adjustable Metal Wall Brackets, 80mm from top @ 535mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Service Void Depth:
50mm
Compatible Basins:
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Pentland Floor Standing Vanity Unit 1246 Two Drawer Two Door Curved
Instructions
Fitting kit
