Technical Data Sheet
Solid Surface Worktop with Undermount Basin 1286 x 465mm Double Curve
5905

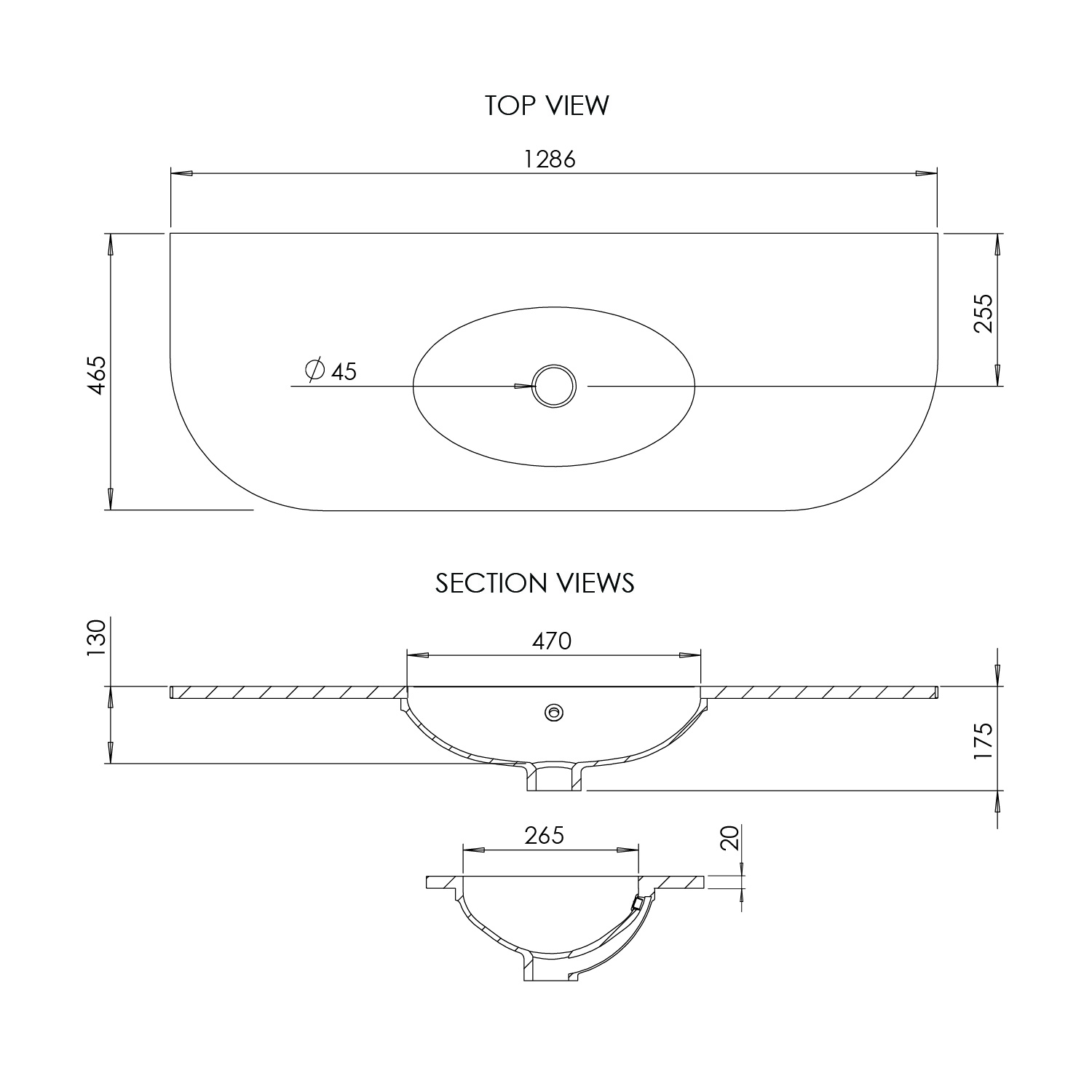

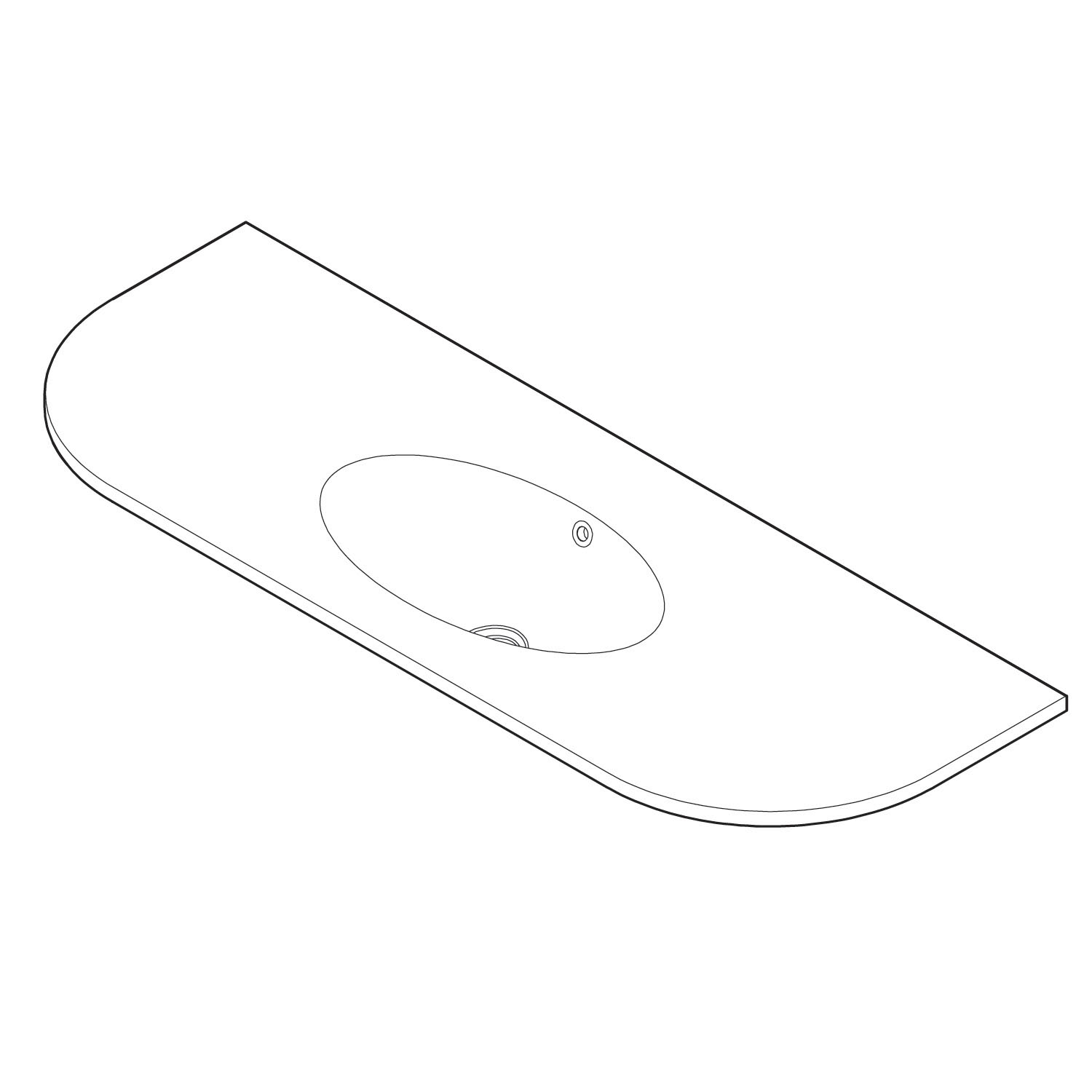

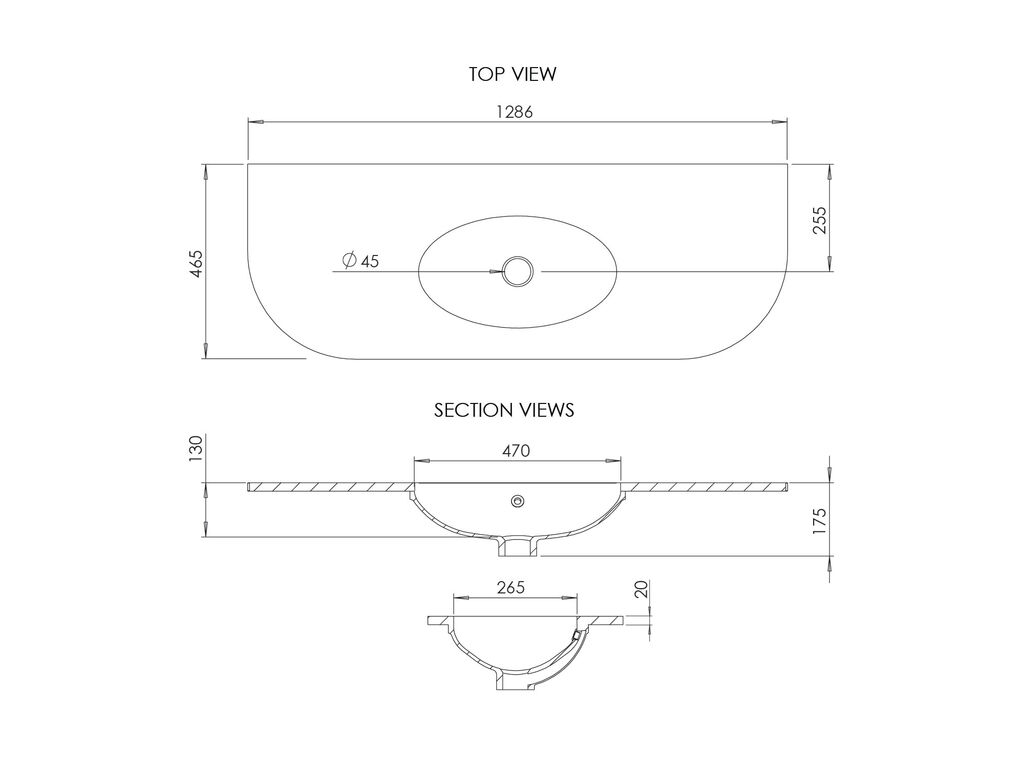

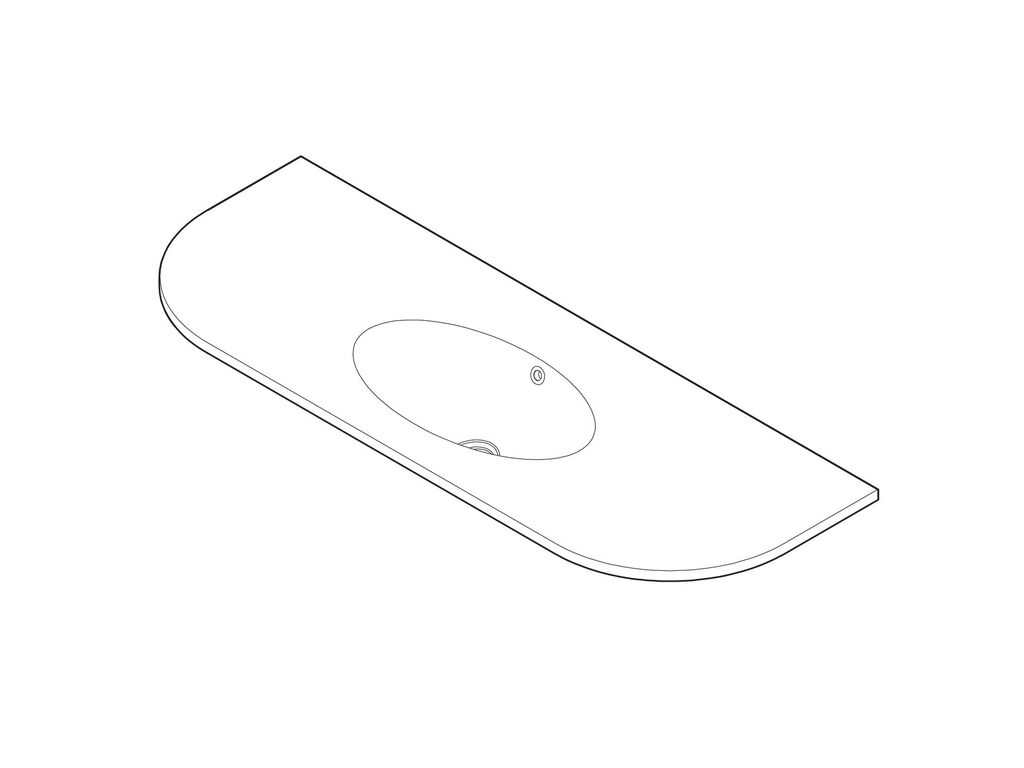

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1286 x 465 x 175mm
Weight:
30.46 kg
Basin Type:
Worktop with Undermount Basin
Basin Construction Material:
Ceramic
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Worktop:
Natural Aglomerate Marble
Overall Shape:
Rectangular with Rounded Front Corners
Bowl Shape:
Oval
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
470 x 265 x 130mm
Depth at Centre:
465mm
Number of Tap Holes:
0
Max Water Temperature:
100°C
Overflow Type:
Integrated Overflow
Supplied Overflow Ring Colour:
Chrome
Interchangeable Overflow Ring Type:
Type 3
Waste Hole Diameter:
45 mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Solid Surface Worktop with Undermount Basin 1286 x 465mm Double Curve
