Technical Data Sheet
Kentmere Floor Standing Vanity Unit 500 Two Drawer Slim
4411KM

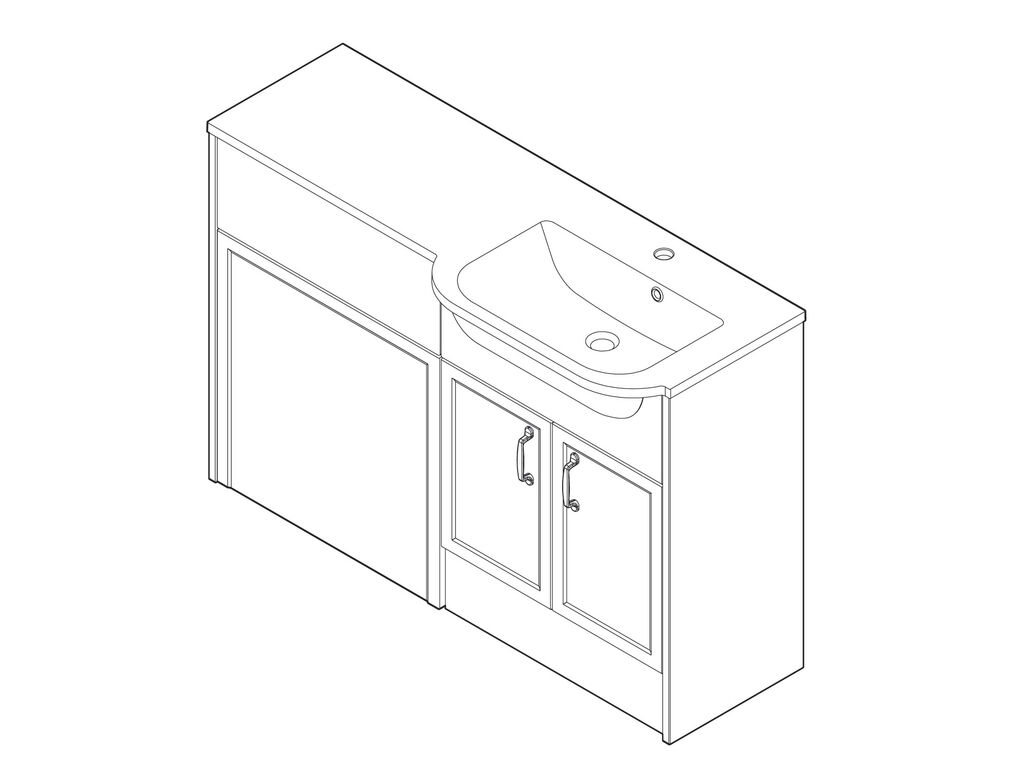

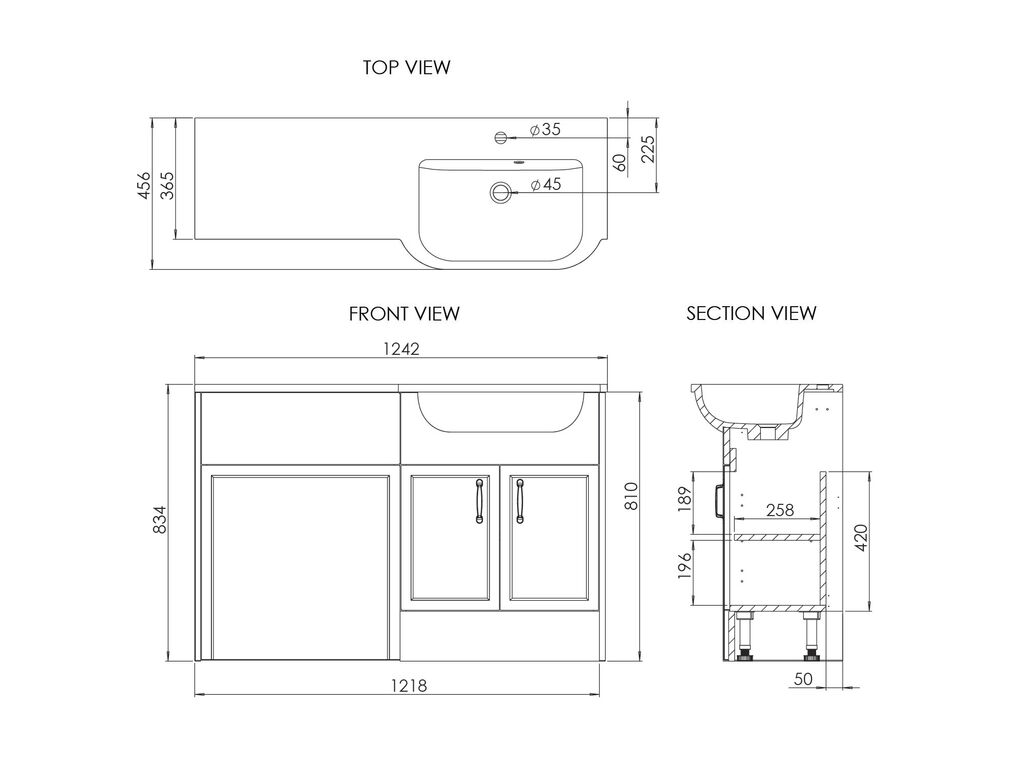

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Floor Standing Vanity Unit
Dimensions (WxDxH):
500 x 387 x 811mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open Back
Fascia Style:
MDF 19mm Shaker
Fascia Detail:
Shaker Frame
End Panel Material:
MDF 19mm
End Panel Detail:
Slab
Handle Type:
Integrated Handle
Drawers:
2 drawers, Emuca Soft Close, 350mm runners
Fixation Method:
Adjustable Metal Wall Brackets, 142mm from top @ 398mm centres
Leg / Foot Type:
Glides Included
Service Void Depth:
40mm
Compatible Basins:
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Kentmere Floor Standing Vanity Unit 500 Two Drawer Slim
Instructions
Fitting kit
