Technical Data Sheet
Selter Basin Unit 600 Two Door Slim
4204ST

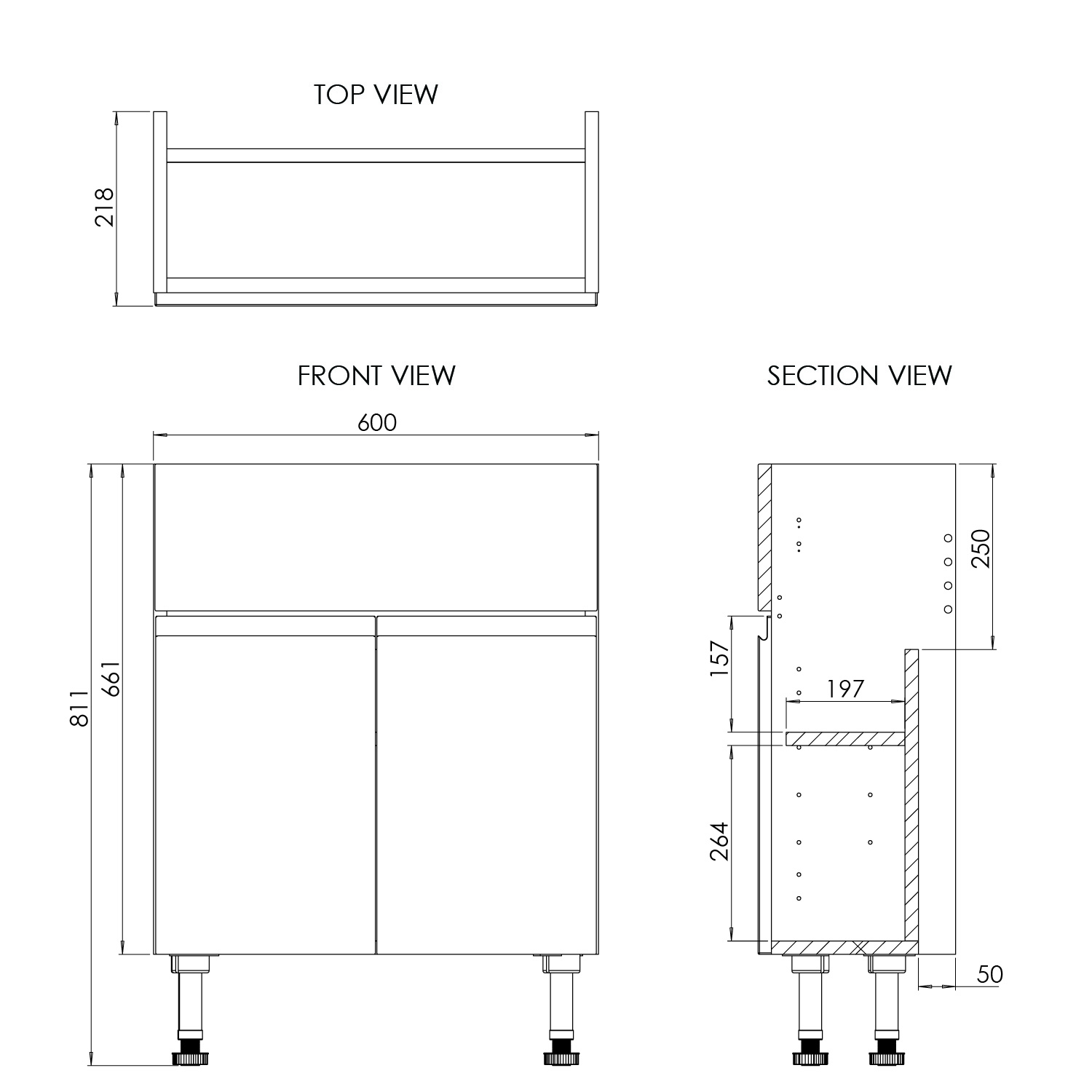

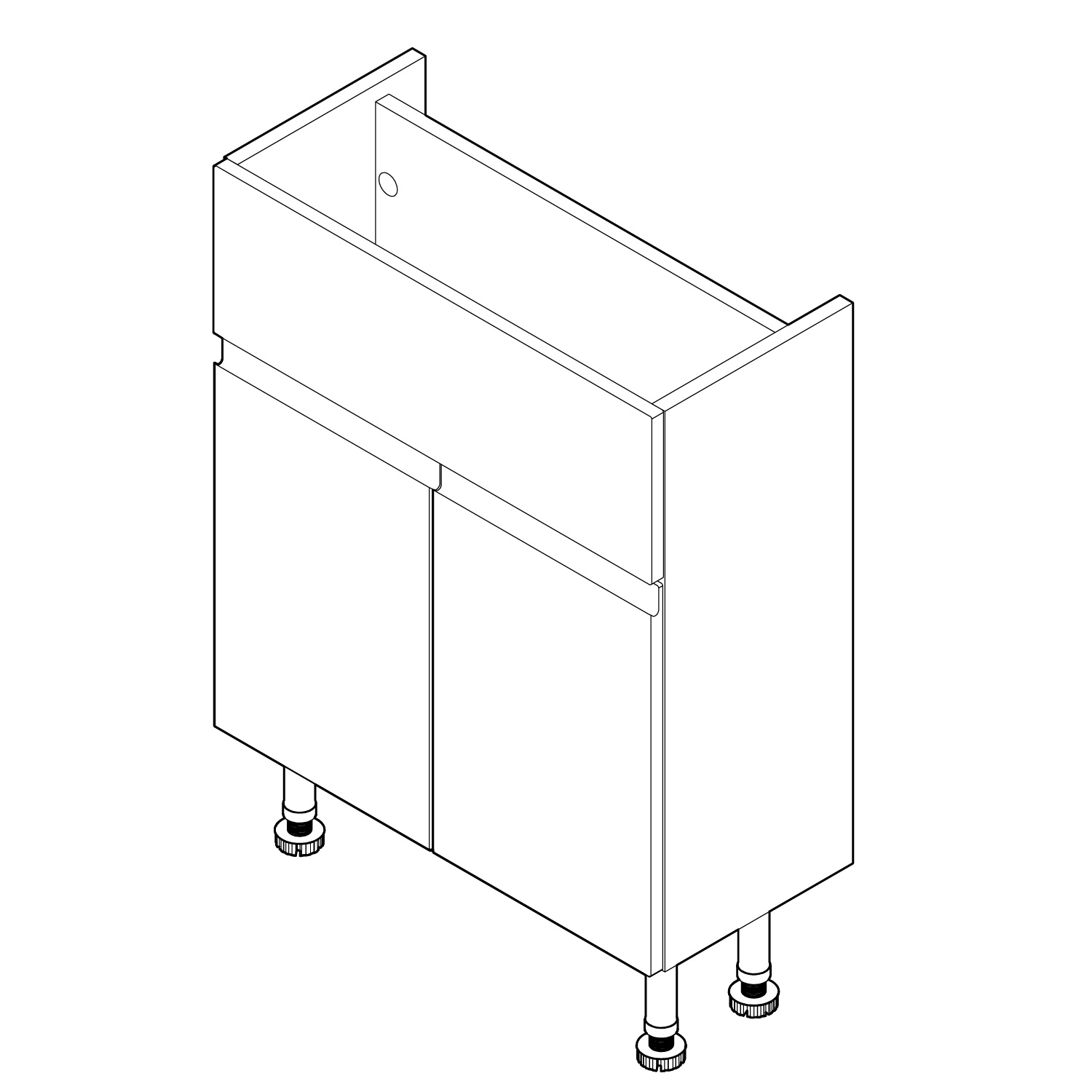

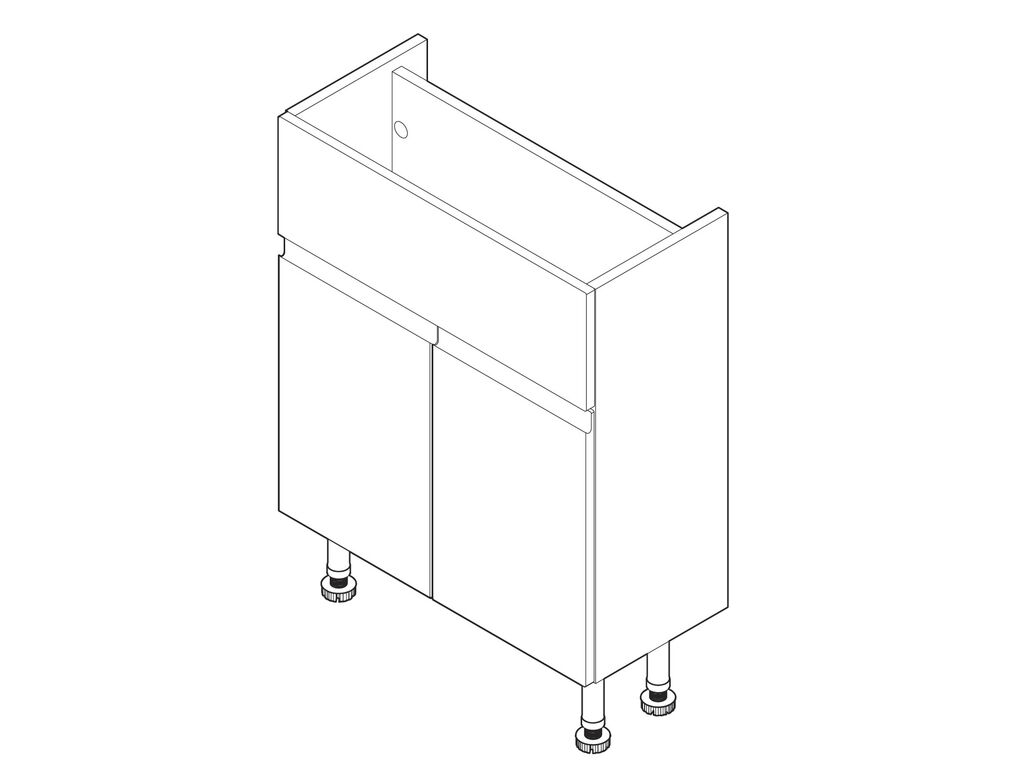

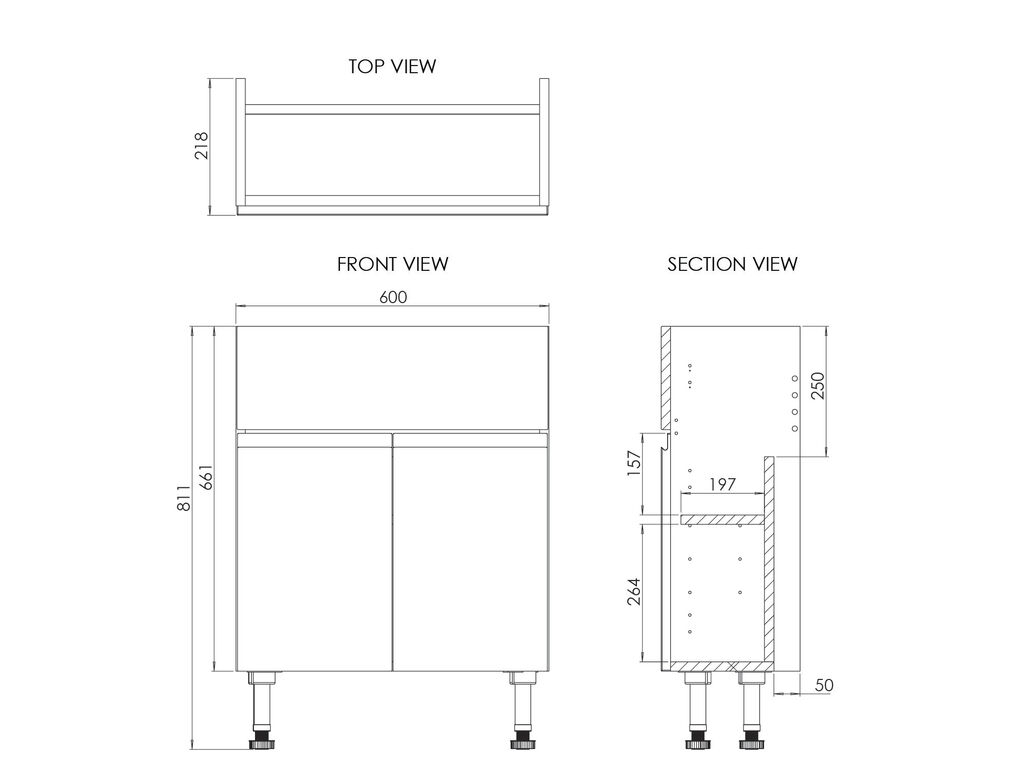

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Basin Unit
Dimensions (WxDxH):
600 x 218 x 811mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 18mm Slab
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Yes
Handle Type:
Integrated Handle
Shelves:
1 removable - MFC 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Adjustable Metal Wall Brackets, 80mm from top @ 535mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Door Open Unit Depth:
500mm
Service Void Depth:
50mm
Compatible Basins:
37.3174, 37.3114, 37.3096, 37.3243, 37.9075, 37.3849, 37.3848, 37.3847, 37.3204, 37.3545, 37.3546, 37.3547, 37.3548, 3090
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Selter Basin Unit 600 Two Door Slim
Instructions
Fitting kit
