Technical Data Sheet

Sora Floor Standing Vanity Unit 600 Two Door

4125

Calypso Logo

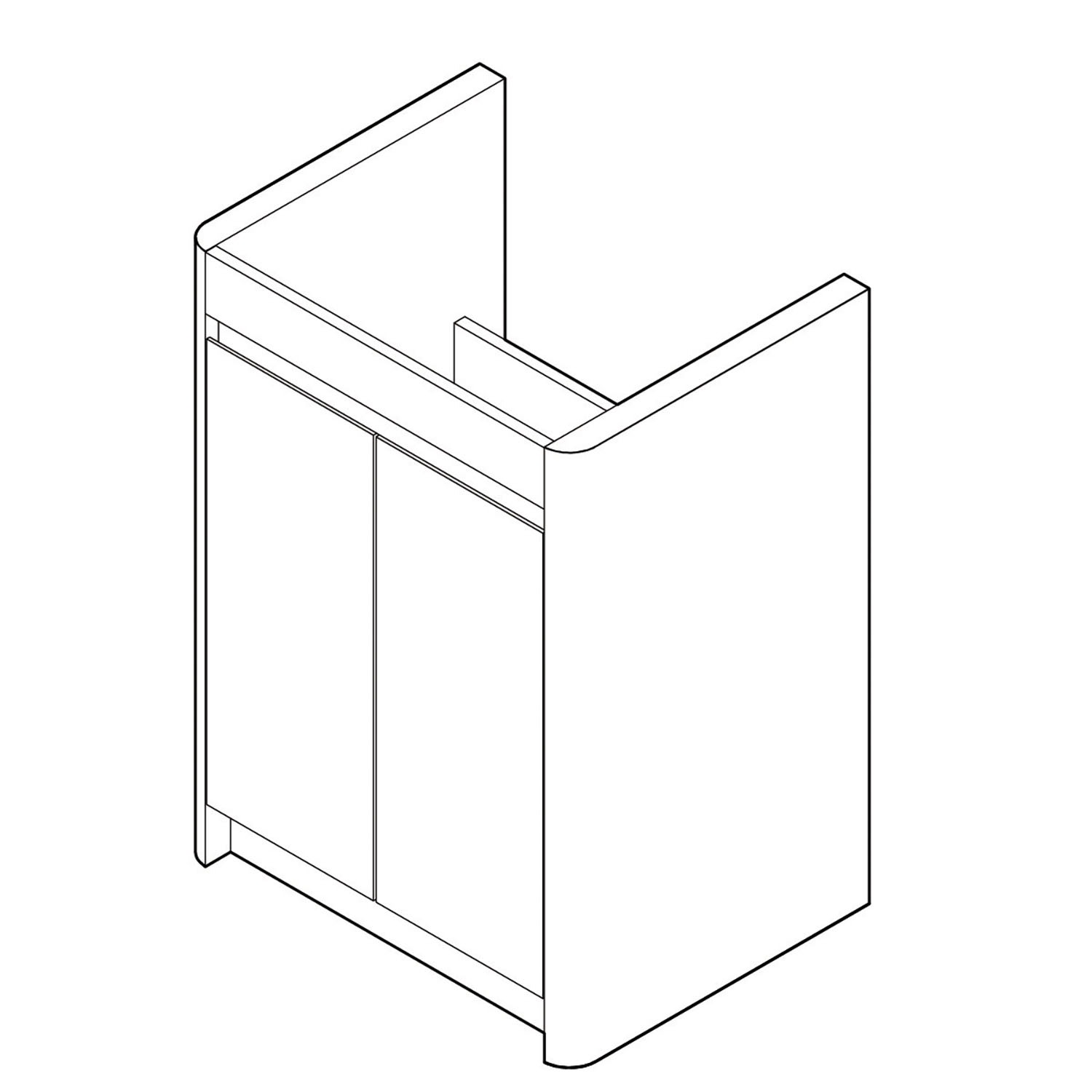

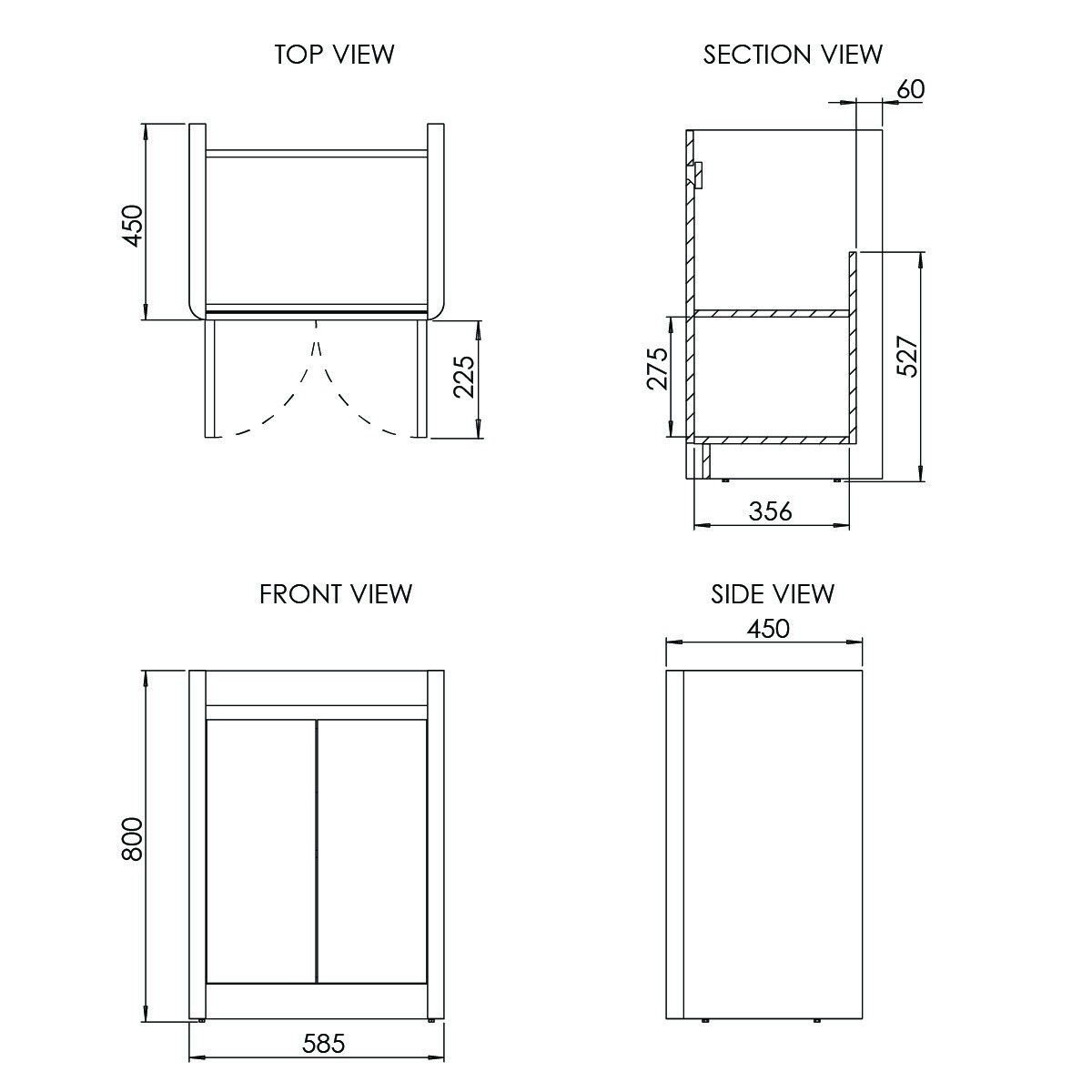

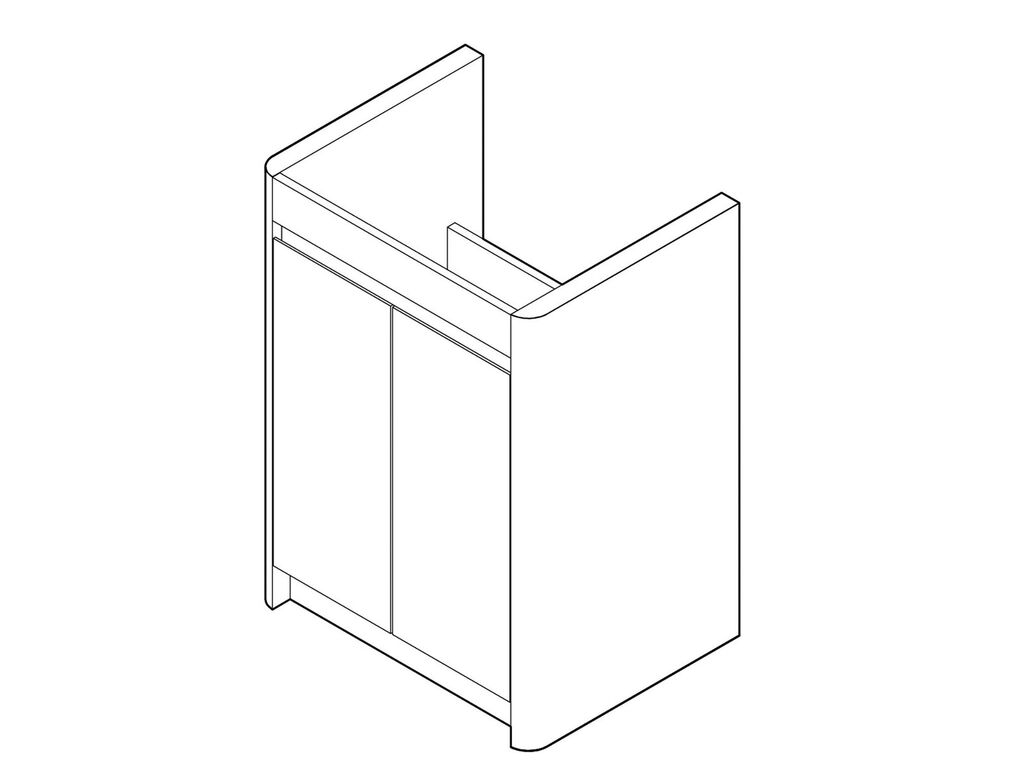

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

3D Line Drawing2D Line Drawing

Technical Details

Furniture Type:

Floor Standing Vanity Unit

Dimensions (WxDxH):

585 x 450 x 800mm

Weight:

32.28 kg

Carcass Material:

MFC 16mm

Carcass Colour:

Dark Grey

Fascia Style:

MDF 19mm Slab

Door Openings:

2

Door(s) Hinge Side:

Both

Shelves:

1 fixed - MFC 16mm

Leg / Foot Type:

Pre-attached, Feet Included

Guarantee Period:

5 Years

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 2mm.

In The Box:

Sora Floor Standing Vanity Unit 600 Two Door
Instructions
Fitting kit
