Technical Data Sheet
Averno Ceramic Vanity Basin 610 White
9301

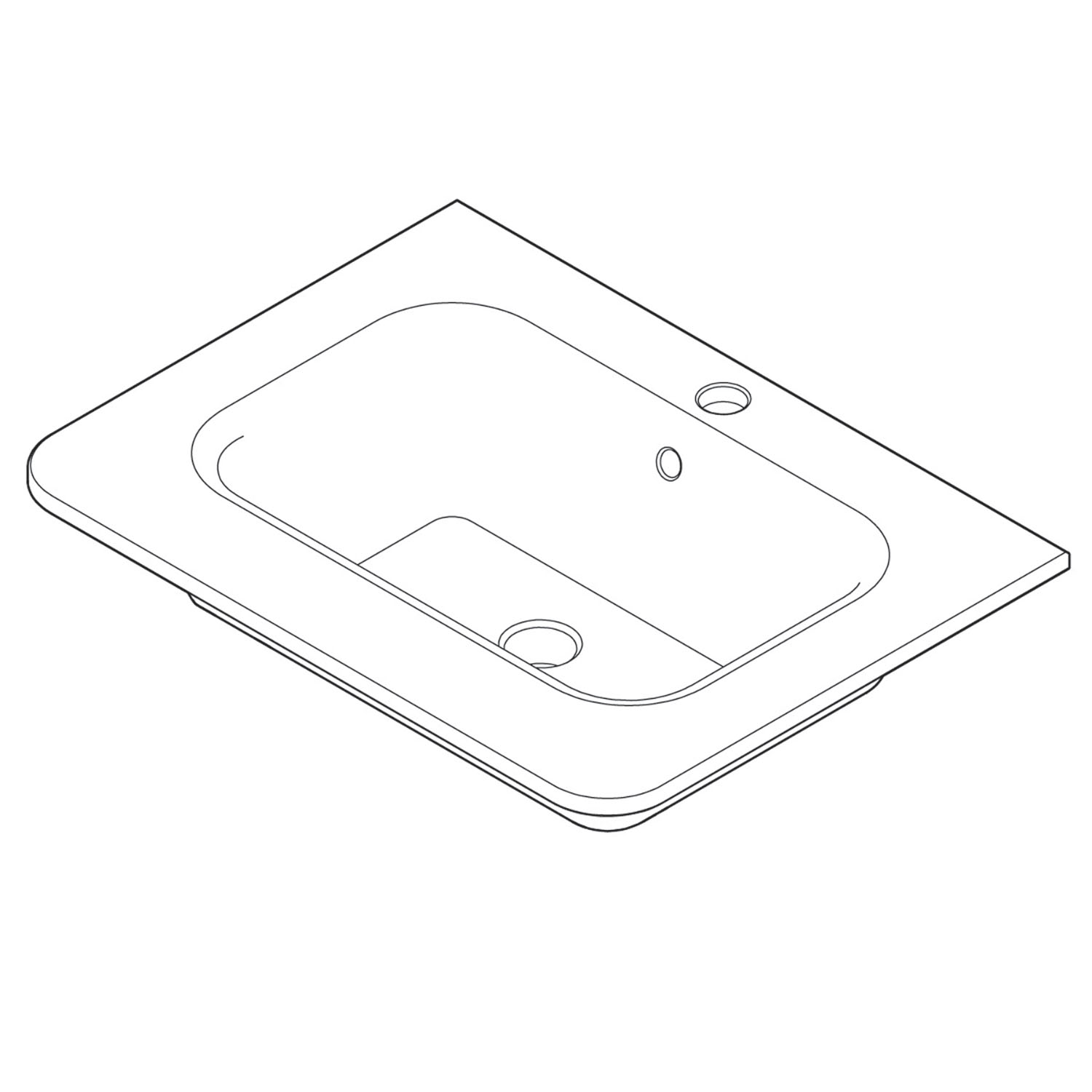

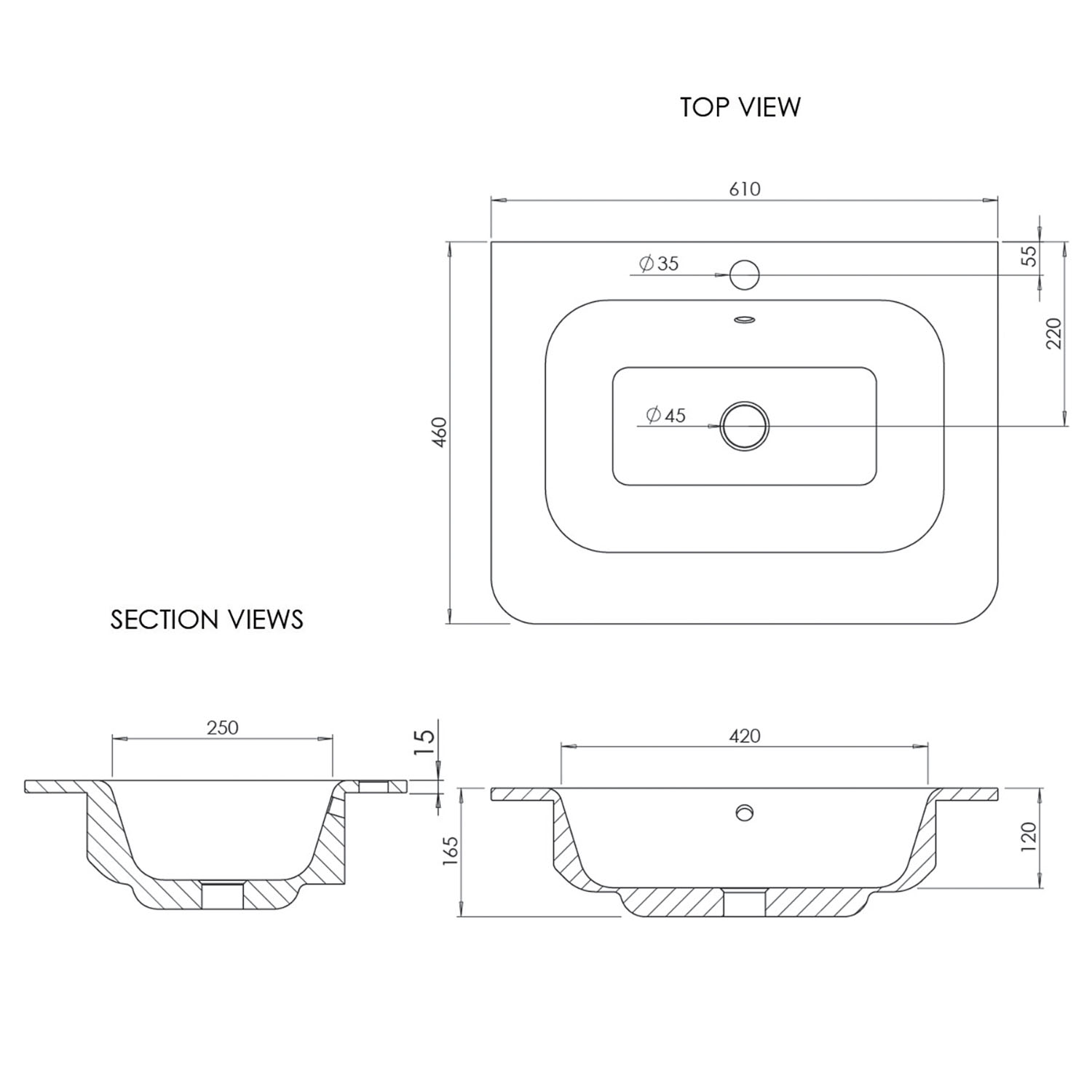

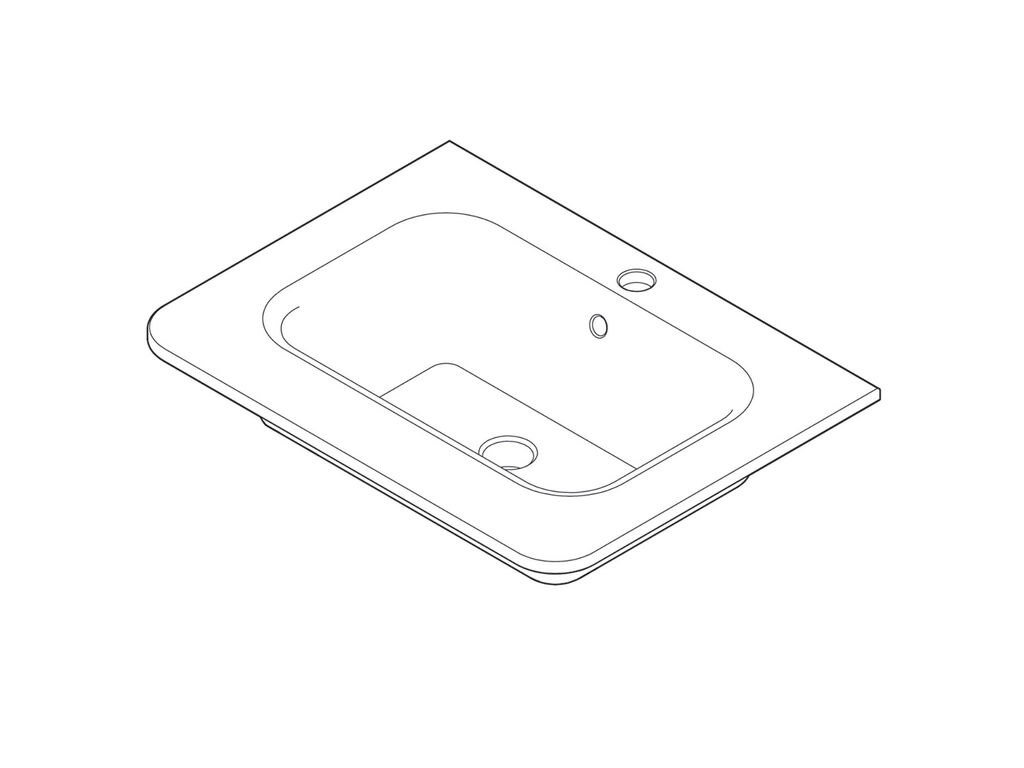

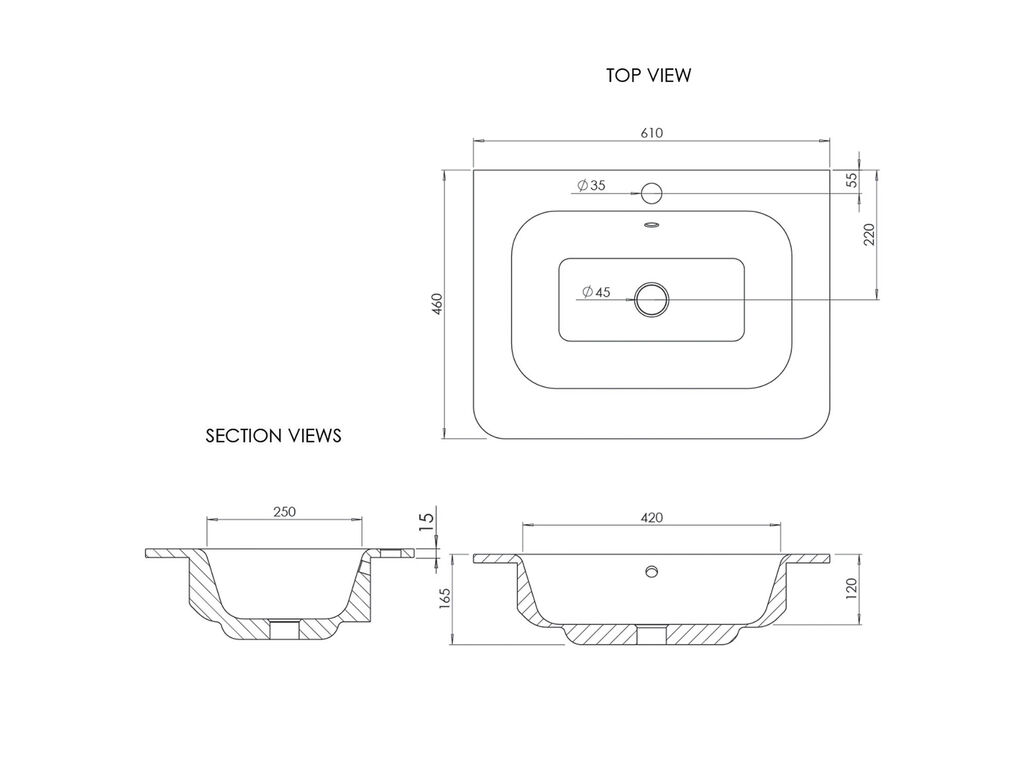

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
610 x 460 x 165mm
Weight:
13.58 kg
Basin Type:
Vanity Basin
Basin Construction Material:
Ceramic
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Number of Bowls:
1
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Max Water Temperature (°C):
100
Overflow Type:
Integrated Overflow
Supplied Overflow Ring Colour:
Chrome
Interchangeable Overflow Ring Type:
Type 3
Waste Hole Diameter:
45 mm
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Averno Ceramic Vanity Basin 610 White
Instructions
Fitting kit
