Technical Data Sheet
Sora Wall Hung Vanity Unit 600 Two Drawer
4123

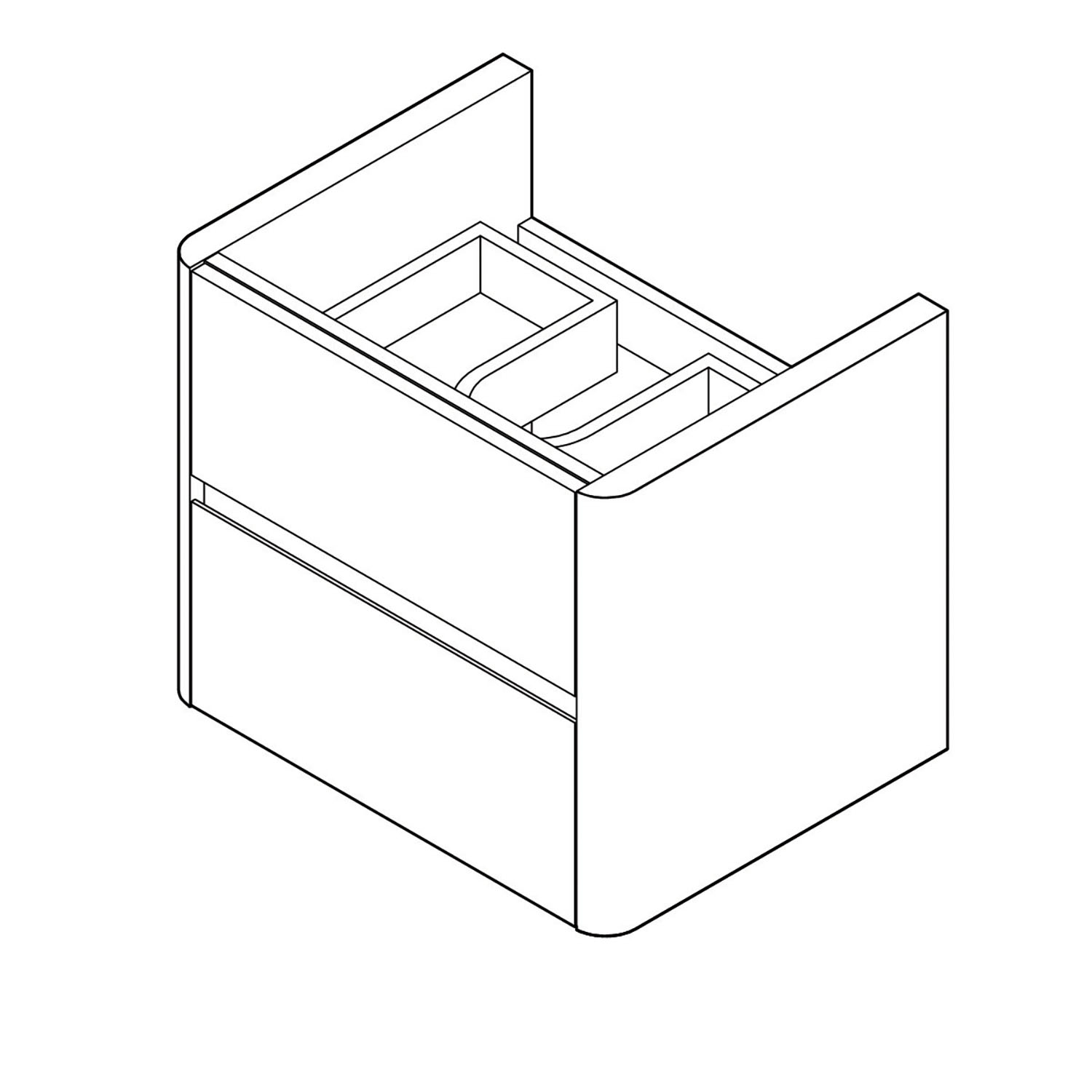

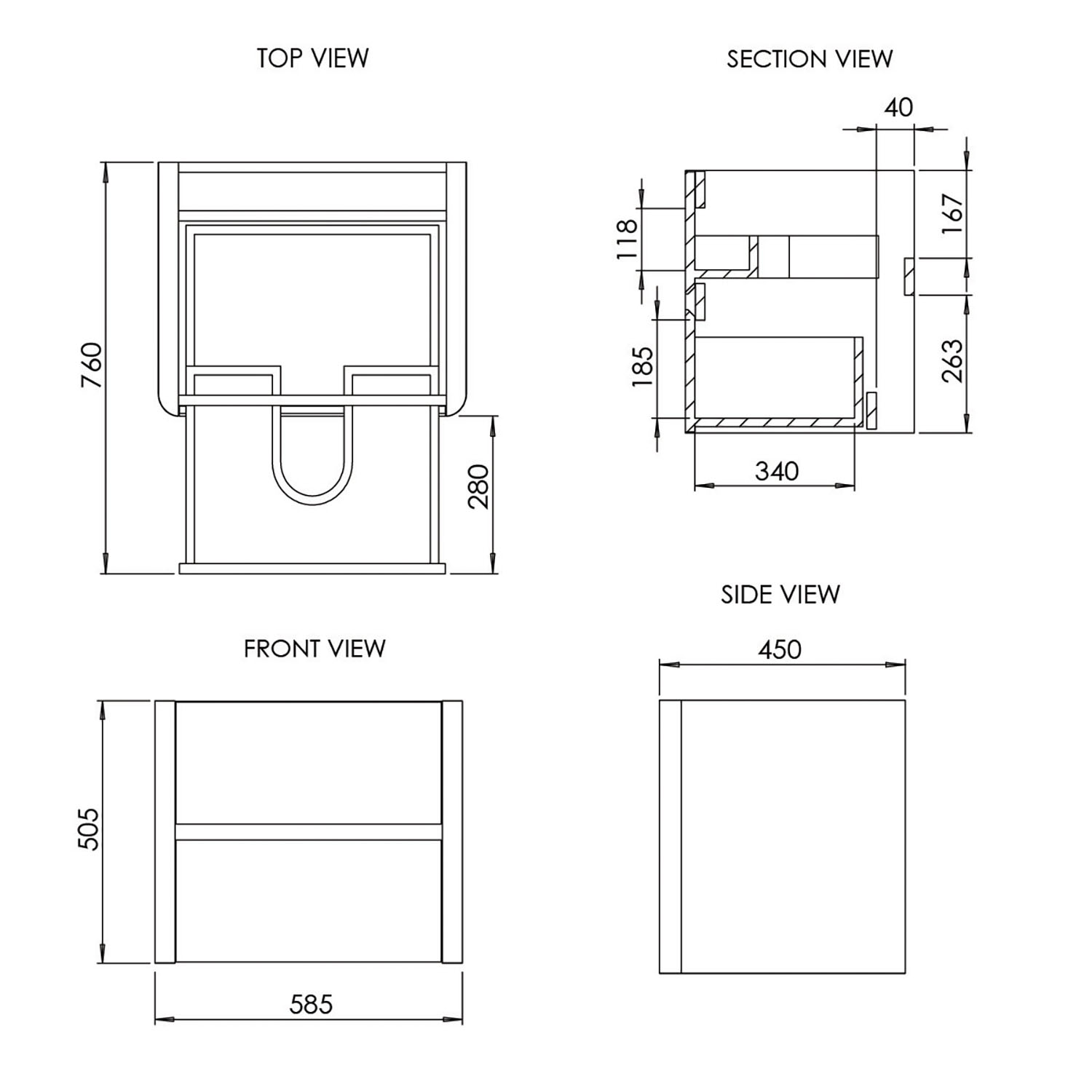

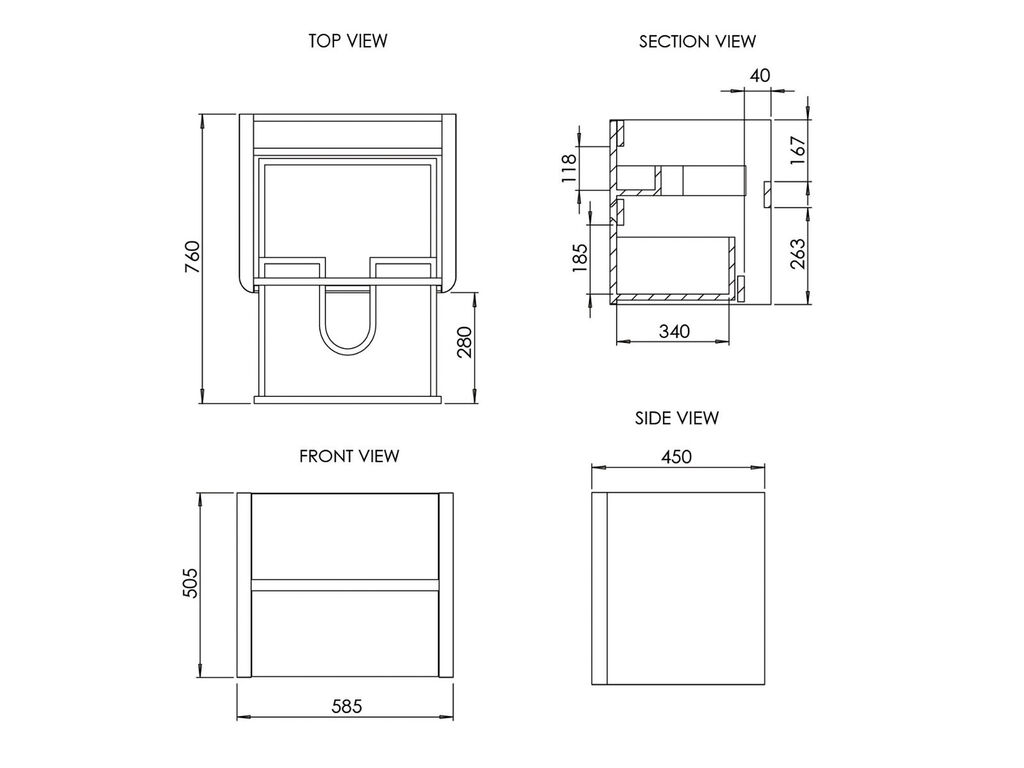

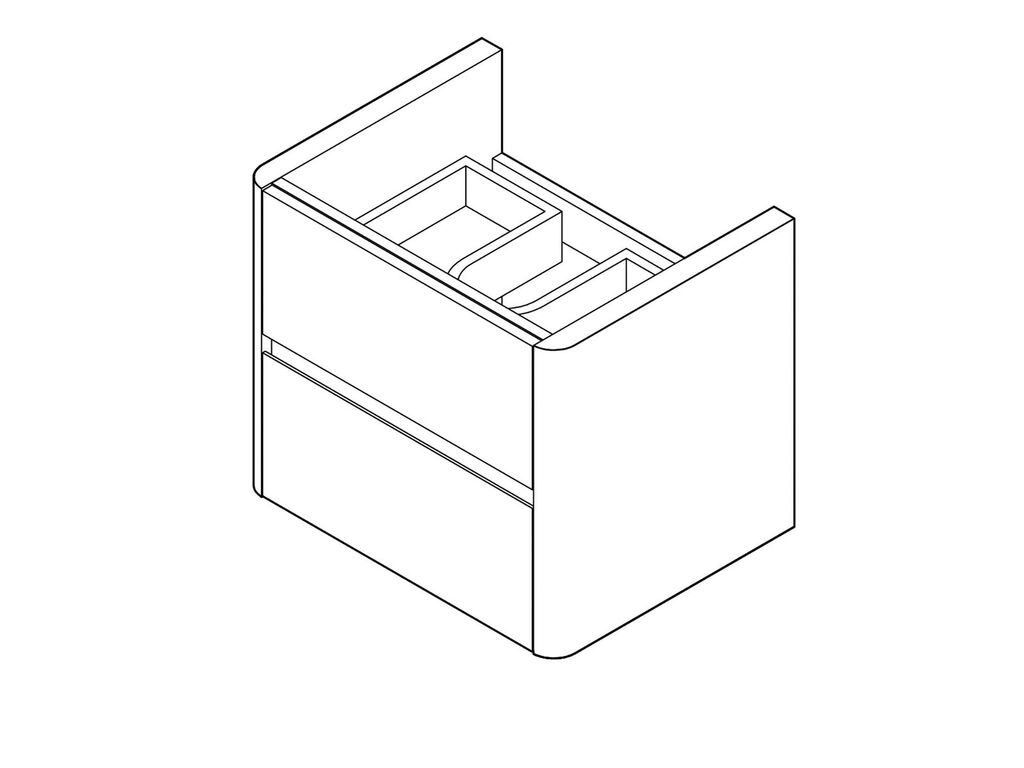

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
585 x 450 x 505mm
Weight:
28.86 kg
Carcass Material:
MFC 16mm
Carcass Edging:
PVC Edging
Carcass Colour:
Dark Grey
Carcass Service Area:
Open Back
Fascia Style:
MDF 19mm Slab
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Handle Type:
Integrated Handle
Drawers:
2 drawers, Emuca Soft Close, 350mm runners
Fixation Method:
Adjustable Metal Wall Brackets, 100mm from top
Service Void Depth:
46mm
Compatible Basins:
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Sora Wall Hung Vanity Unit 600 Two Drawer
Fitting kit
