Technical Data Sheet
Sora Floor Standing Cloakroom Vanity 500 Two Door
4118

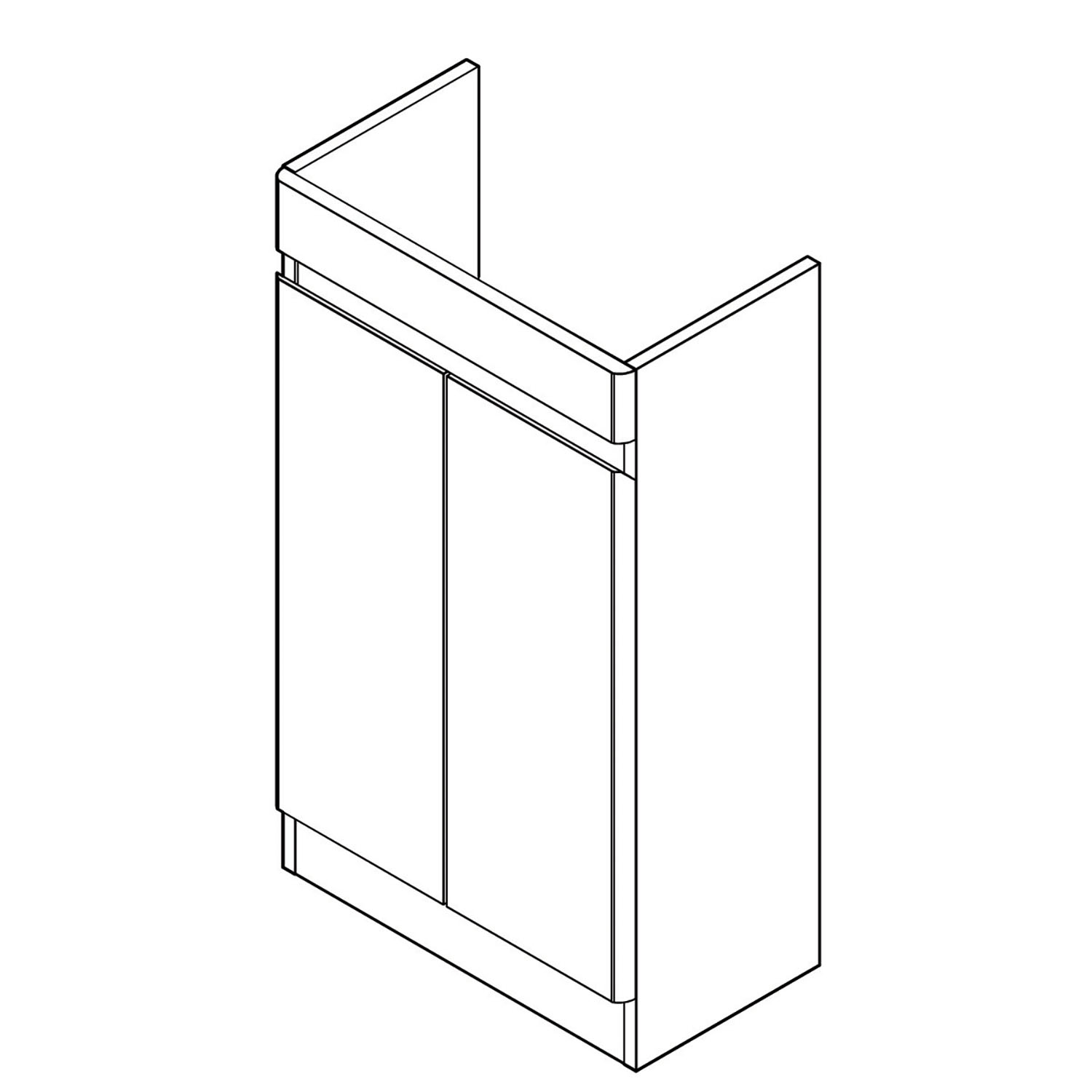

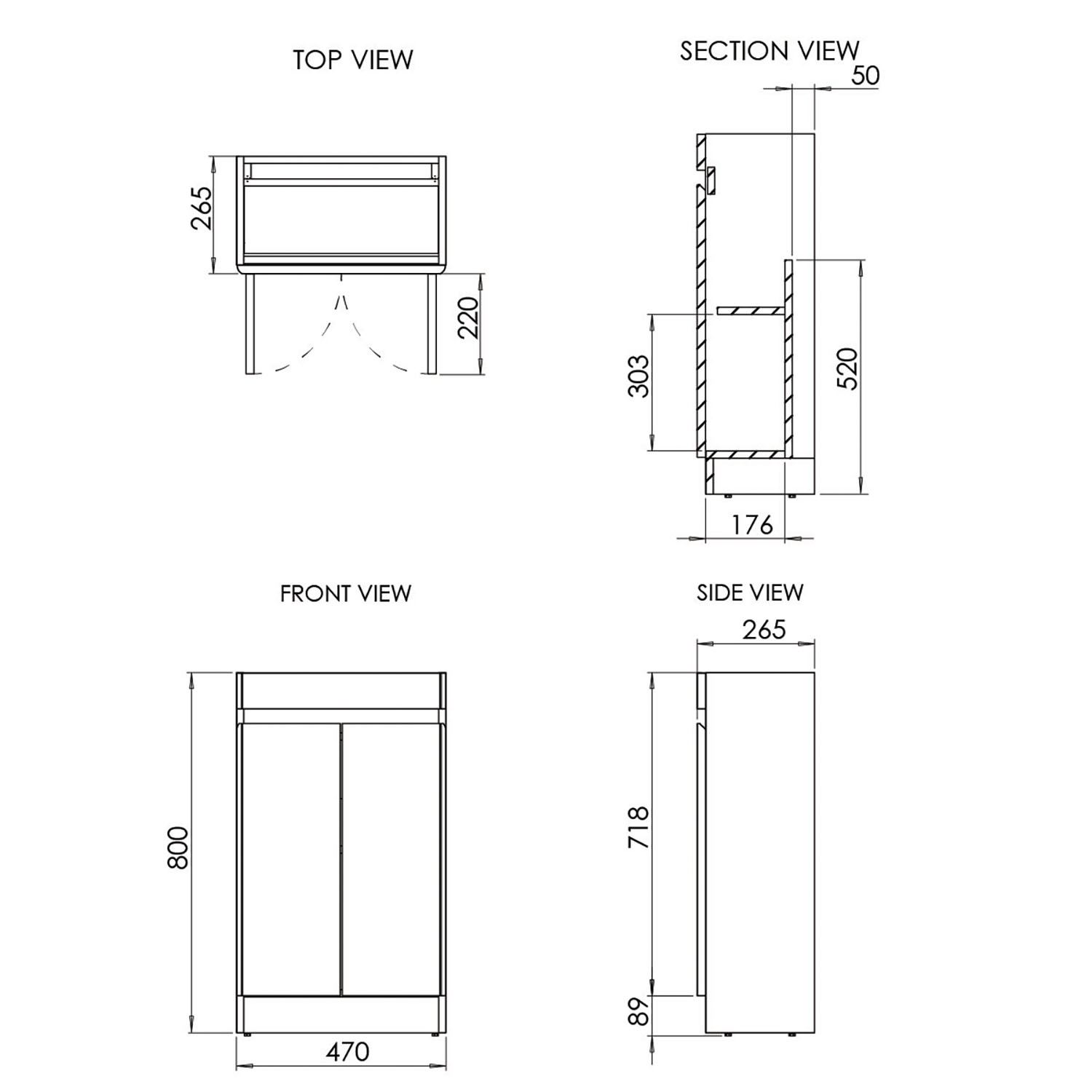

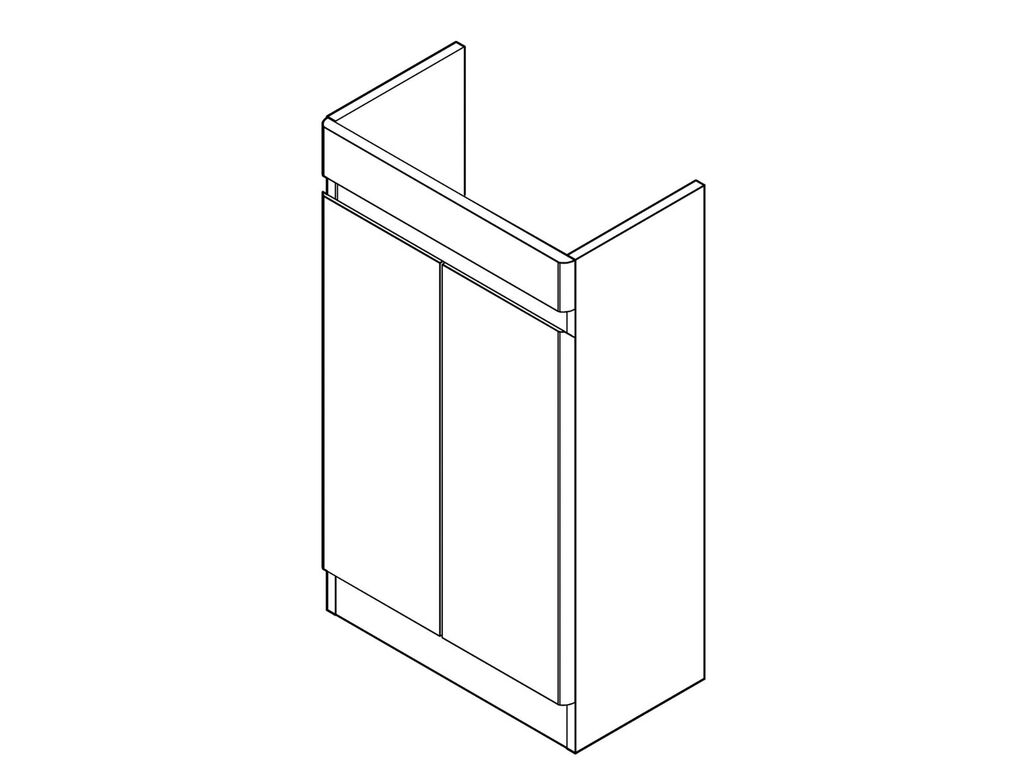

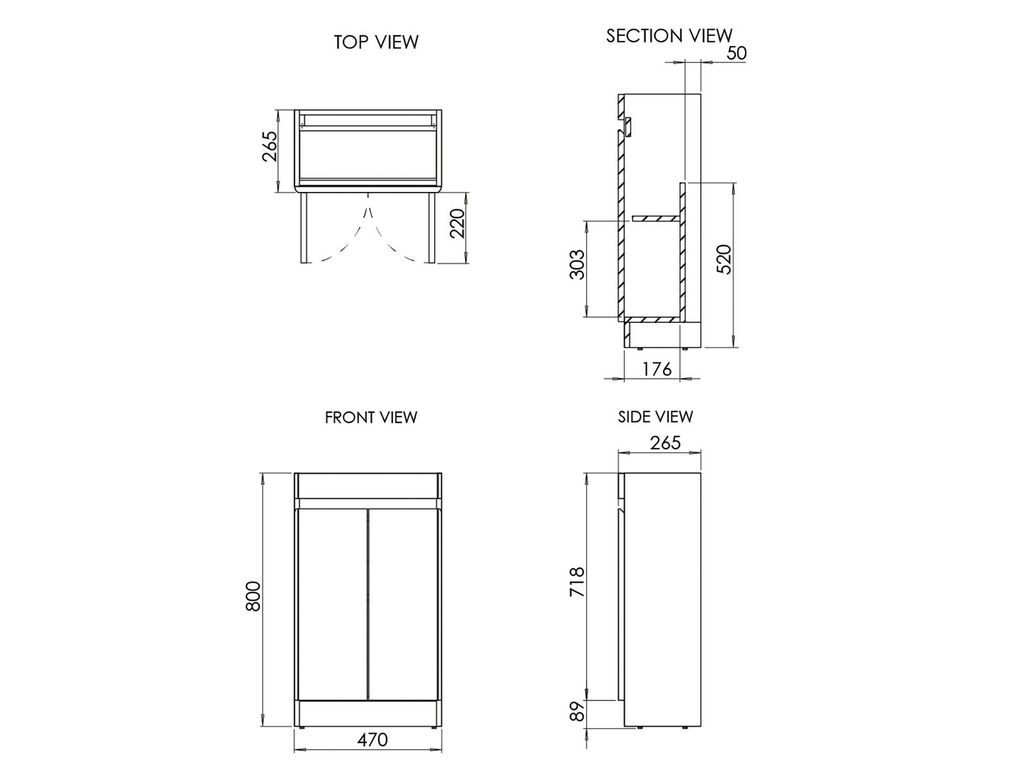

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Floor Standing Vanity Unit
Dimensions (WxDxH):
470 x 265 x 800mm
Weight:
14.72 kg
Carcass Material:
MFC 16mm
Carcass Edging:
PVC Edging
Carcass Colour:
Dark Grey
Carcass Service Area:
Part Open back
Fascia Style:
MDF 18mm Slab
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Integrated Handle
Shelves:
1 fixed - MFC 16mm
Fixation Method:
Fixed Metal Brackets, 40mm from top
Leg / Foot Type:
Pre-attached, Feet Included
Door Open Unit Depth:
485mm
Service Void Depth:
50mm
Compatible Basins:
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Sora Floor Standing Cloakroom Vanity 500 Two Door
Fitting kit
