Technical Data Sheet
Farra Cast Vanity Basin 1375 Centre Bowl White NTH
9364

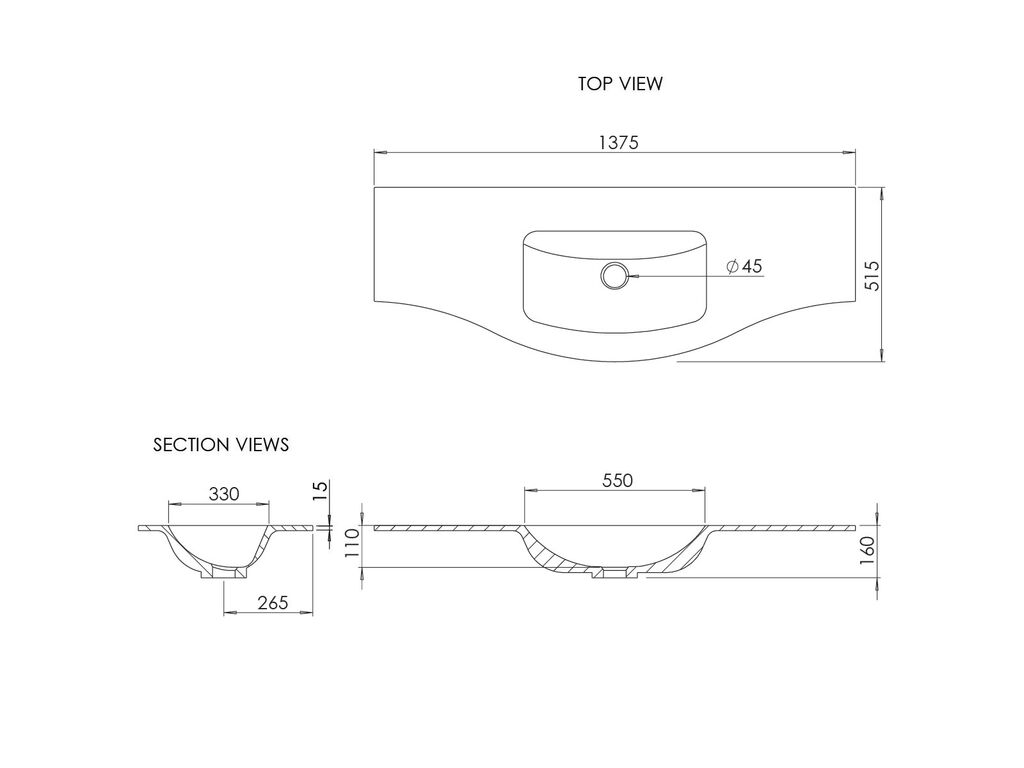

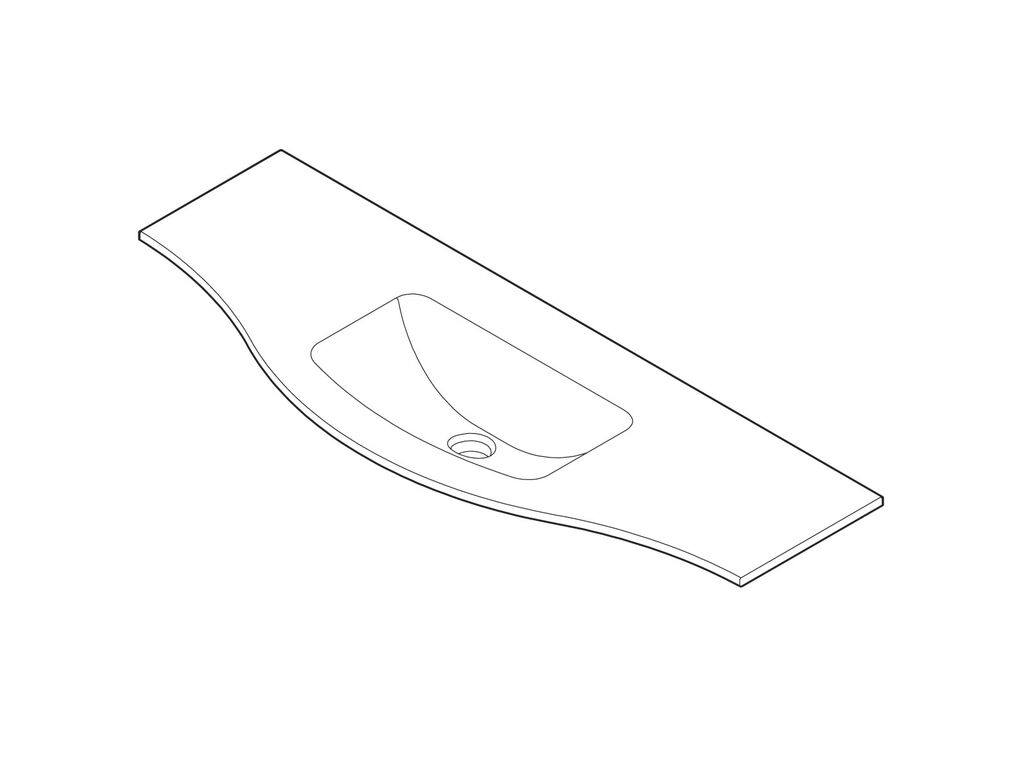

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1375 x 515 x 160mm
Weight:
19.56 kg
Basin Type:
Vanity Wing Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Convex Double Wing
Bowl Shape:
Rectangular
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
550 x 330 x 110mm
Depth at Centre:
515mm
Max Water Temperature:
65°C
Overflow Type:
Integrated Overflow
Supplied Overflow Ring Colour:
Chrome
Interchangeable Overflow Ring Type:
Type 2,Type 3
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, EN 14688
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Farra Cast Vanity Basin 1375 Centre Bowl White NTH
