Technical Data Sheet
Idro Cast Vanity Wing Basin 1000 Left Bowl NTH Matt White
9337

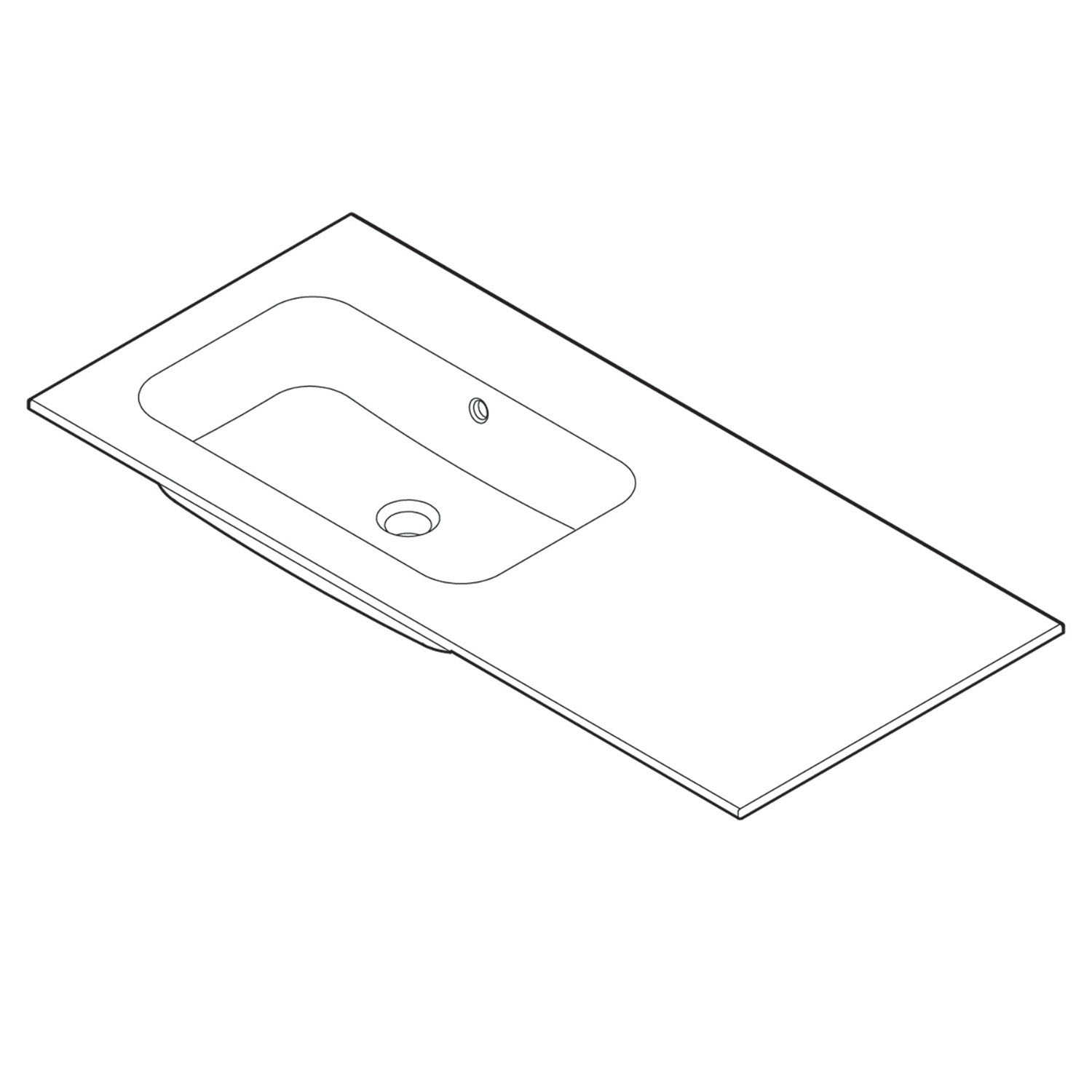

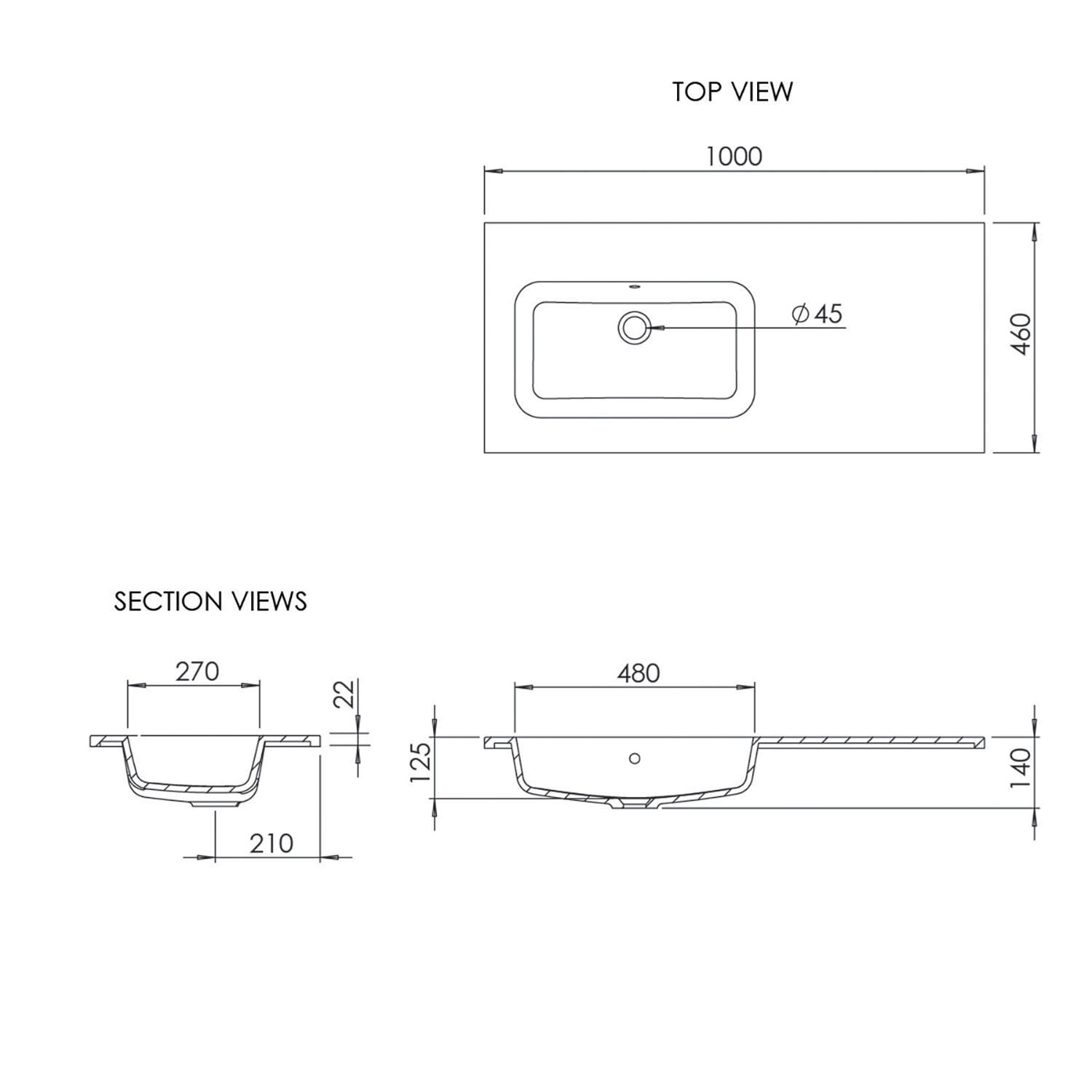

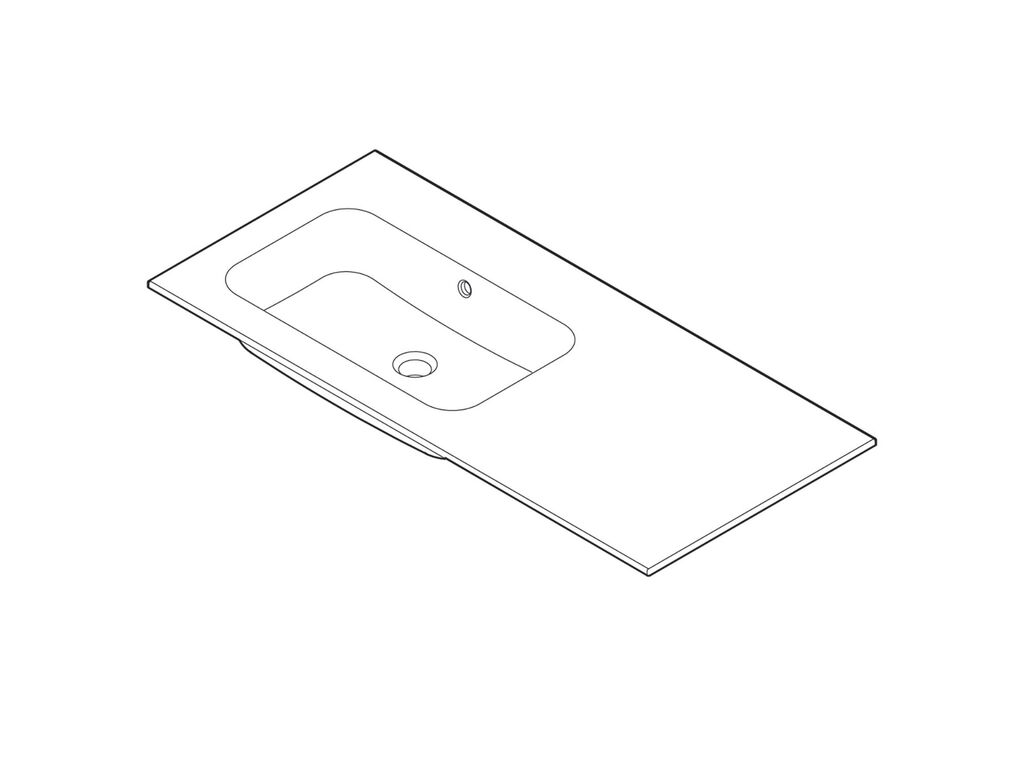

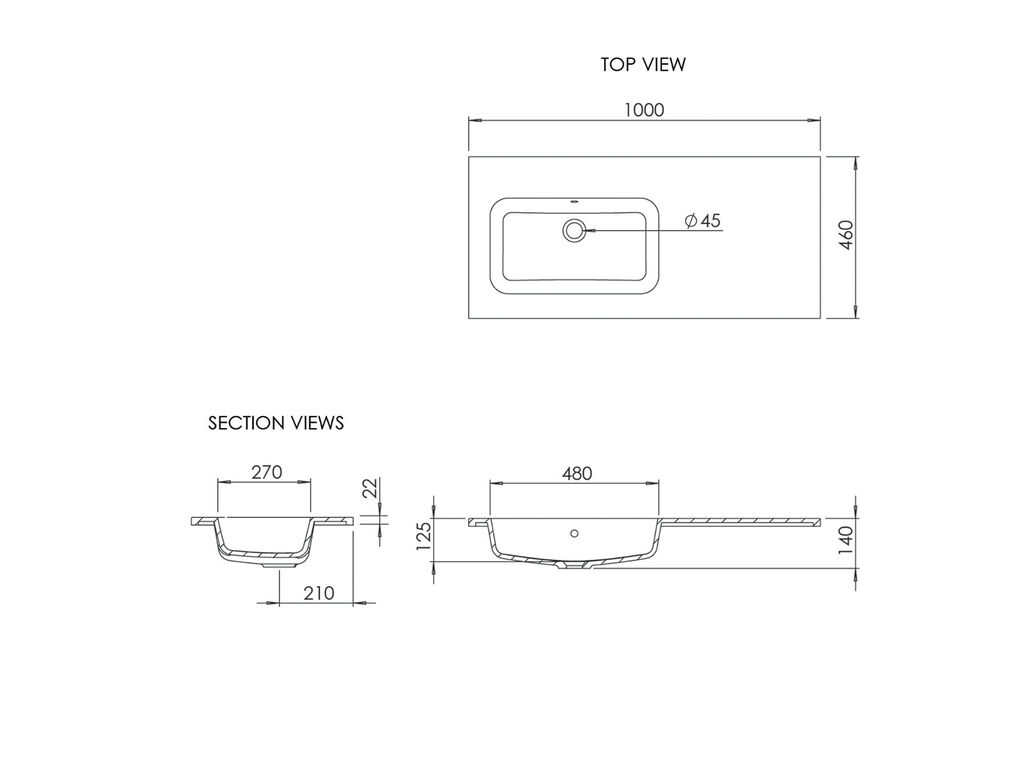

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1000 x 460 x 140mm
Weight:
17.12 kg
Basin Type:
Vanity Wing Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Matt
Basin Exterior:
White Matt
Overall Shape:
Rectangular
Bowl Shape:
Rectangular with Rounded Corners
Configuration:
Left Hand Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
480 x 270 x 125mm
Depth at Centre:
460mm
Number of Tap Holes:
0
Max Water Temperature:
65°C
Overflow Type:
External Overflow
Supplied Overflow Ring Colour:
Chrome,White
Interchangeable Overflow Ring Type:
Type 1
Waste Hole Diameter:
45 mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Idro Cast Vanity Wing Basin 1000 Left Bowl NTH Matt White
Instructions
Fitting kit
