Technical Data Sheet
Chandler Ceramic Vanity Basin 600 White
9290

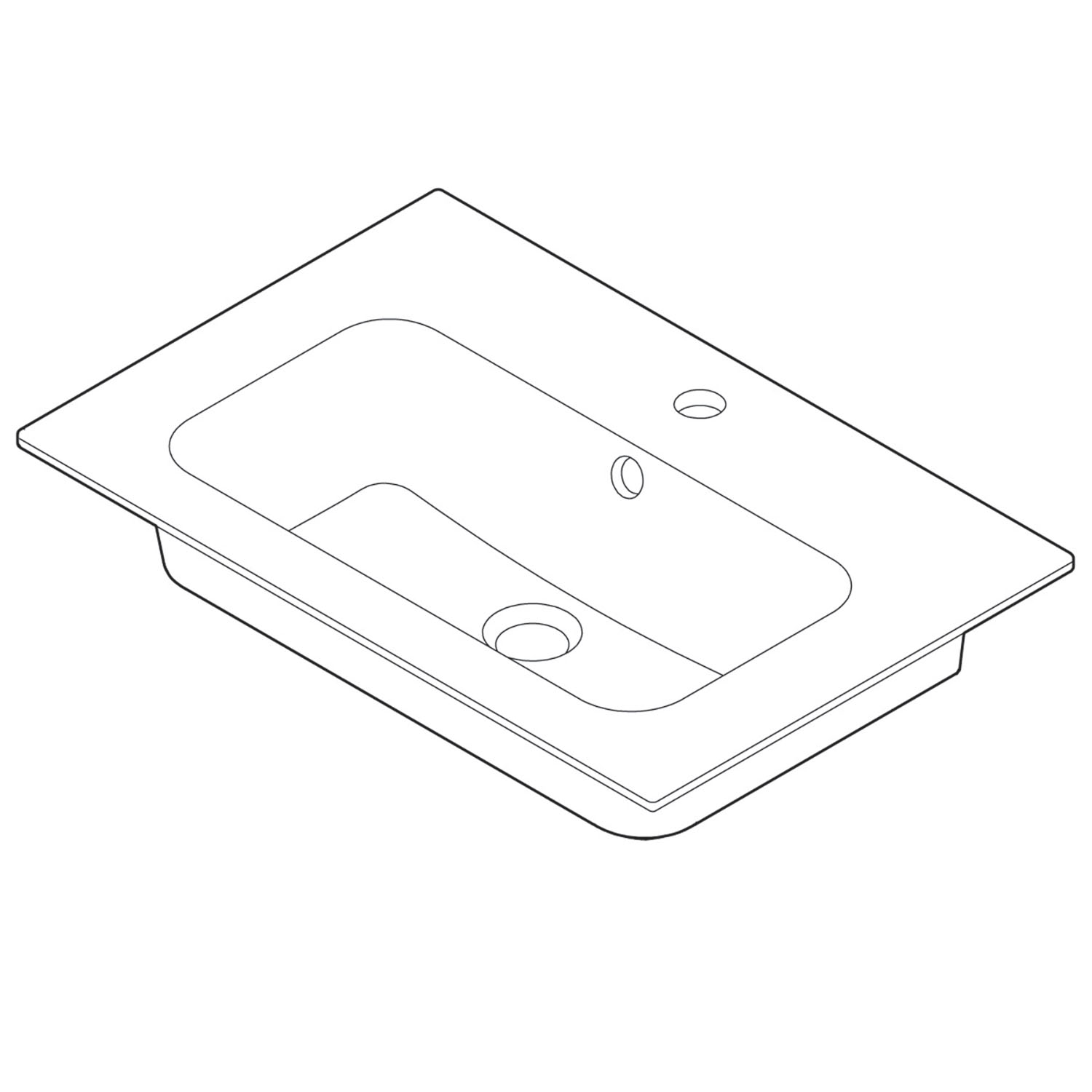

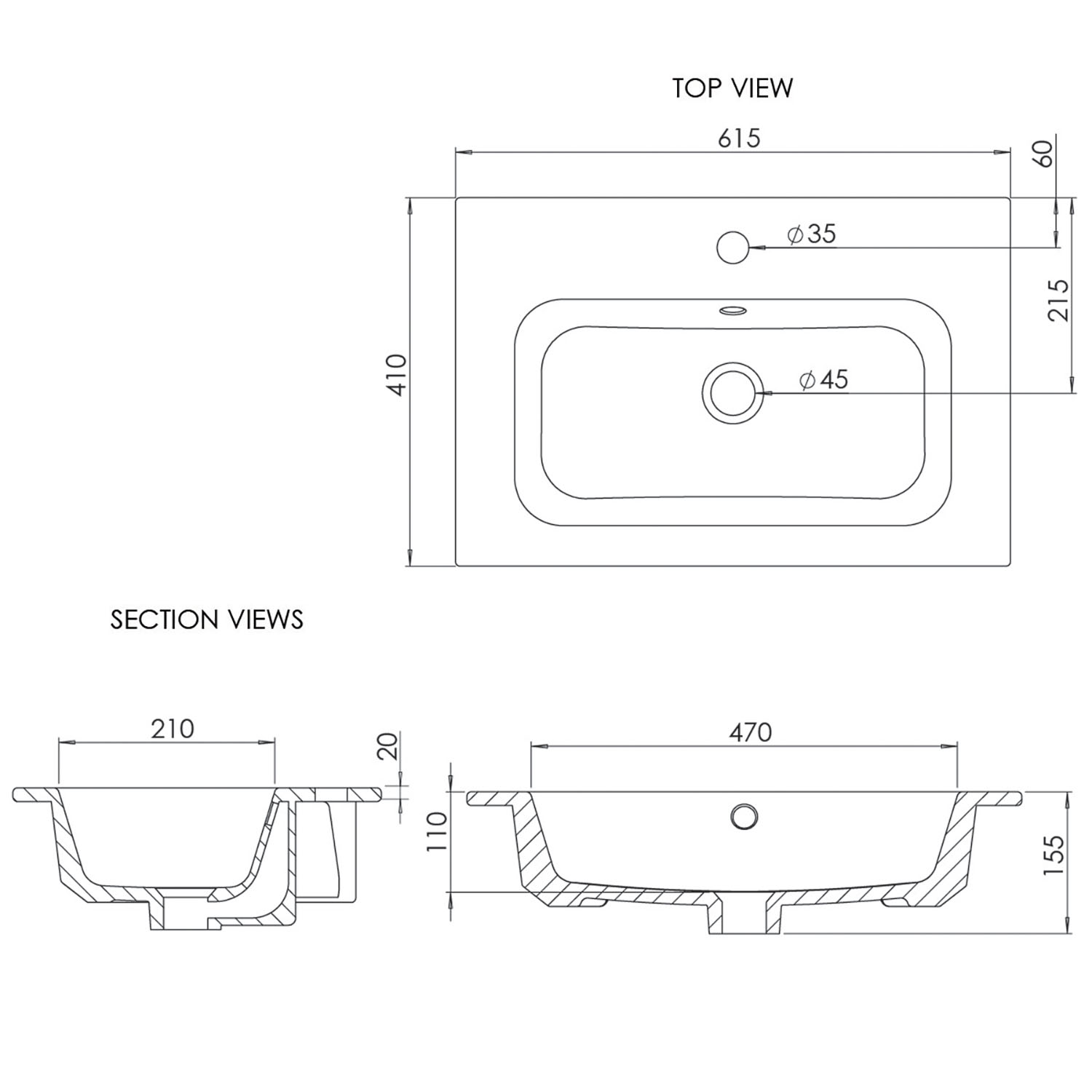

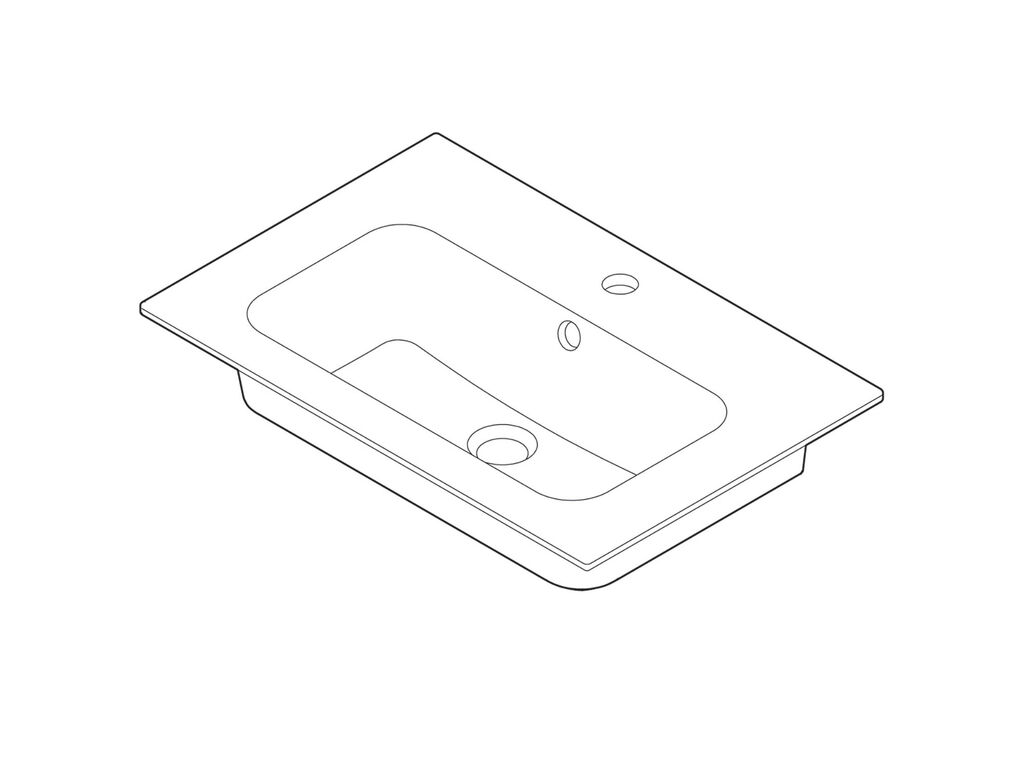

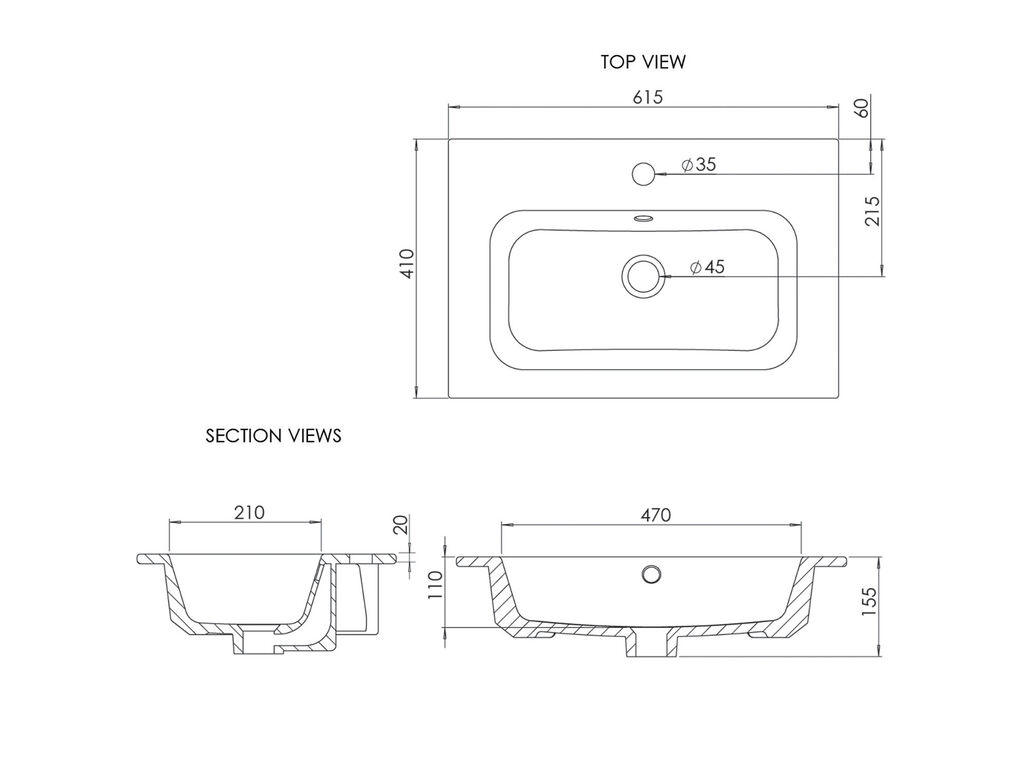

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
615 x 410 x 155mm
Weight:
14.02 kg
Basin Type:
Vanity Basin
Basin Construction Material:
Ceramic
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Rectangular
Bowl Shape:
Rectangular with Rounded Corners
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
470 x 210 x 110mm
Depth at Centre:
410mm
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Tap Hole Position:
Centre Rear of Top Surface
Max Water Temperature:
100°C
Overflow Type:
Integrated Overflow
Supplied Overflow Ring Colour:
Chrome
Interchangeable Overflow Ring Type:
Type 3
Waste Hole Diameter:
45 mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Chandler Ceramic Vanity Basin 600 White
