Technical Data Sheet
Idro Cast Vanity Wing Basin 1000 Left Bowl 1TH Gloss White
9236

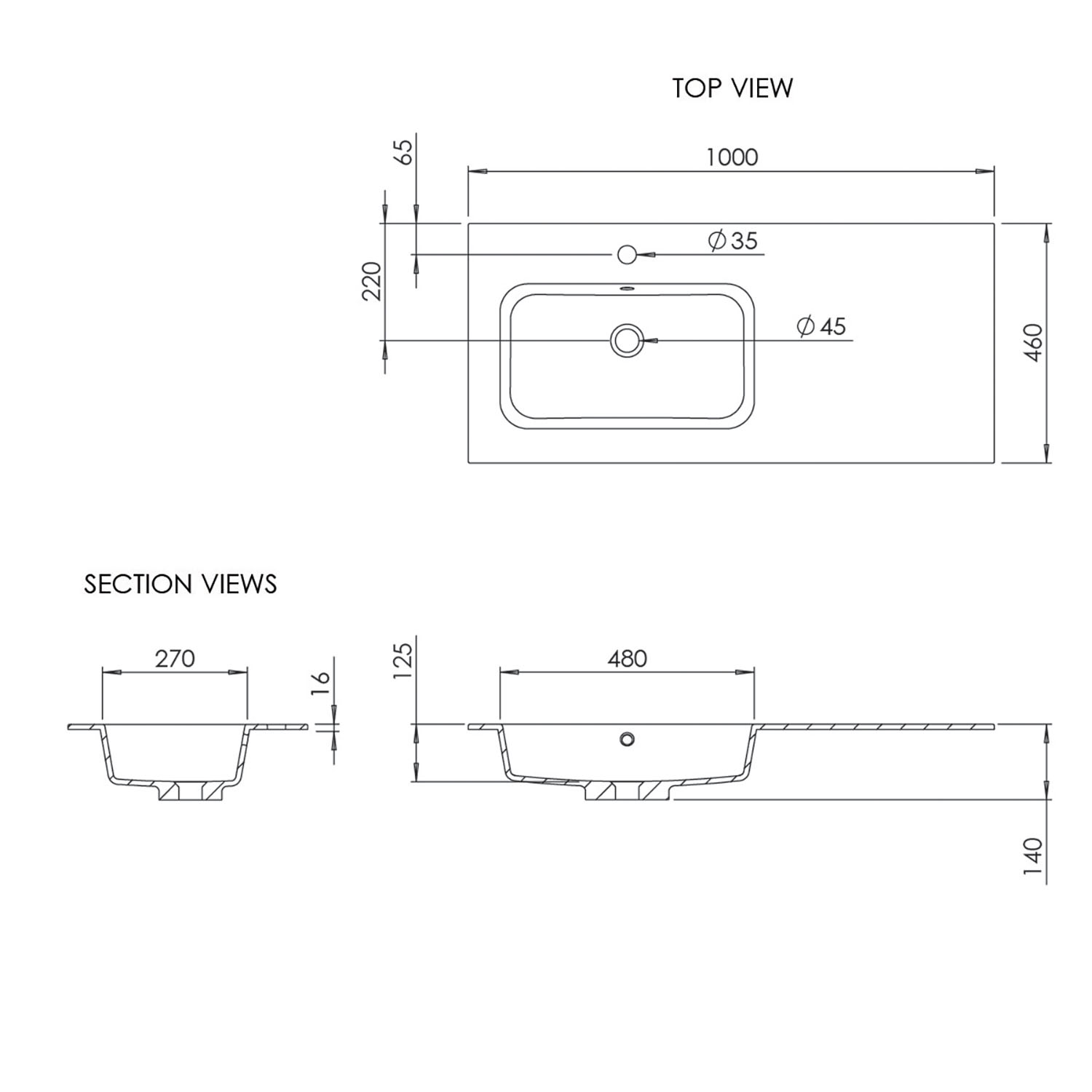

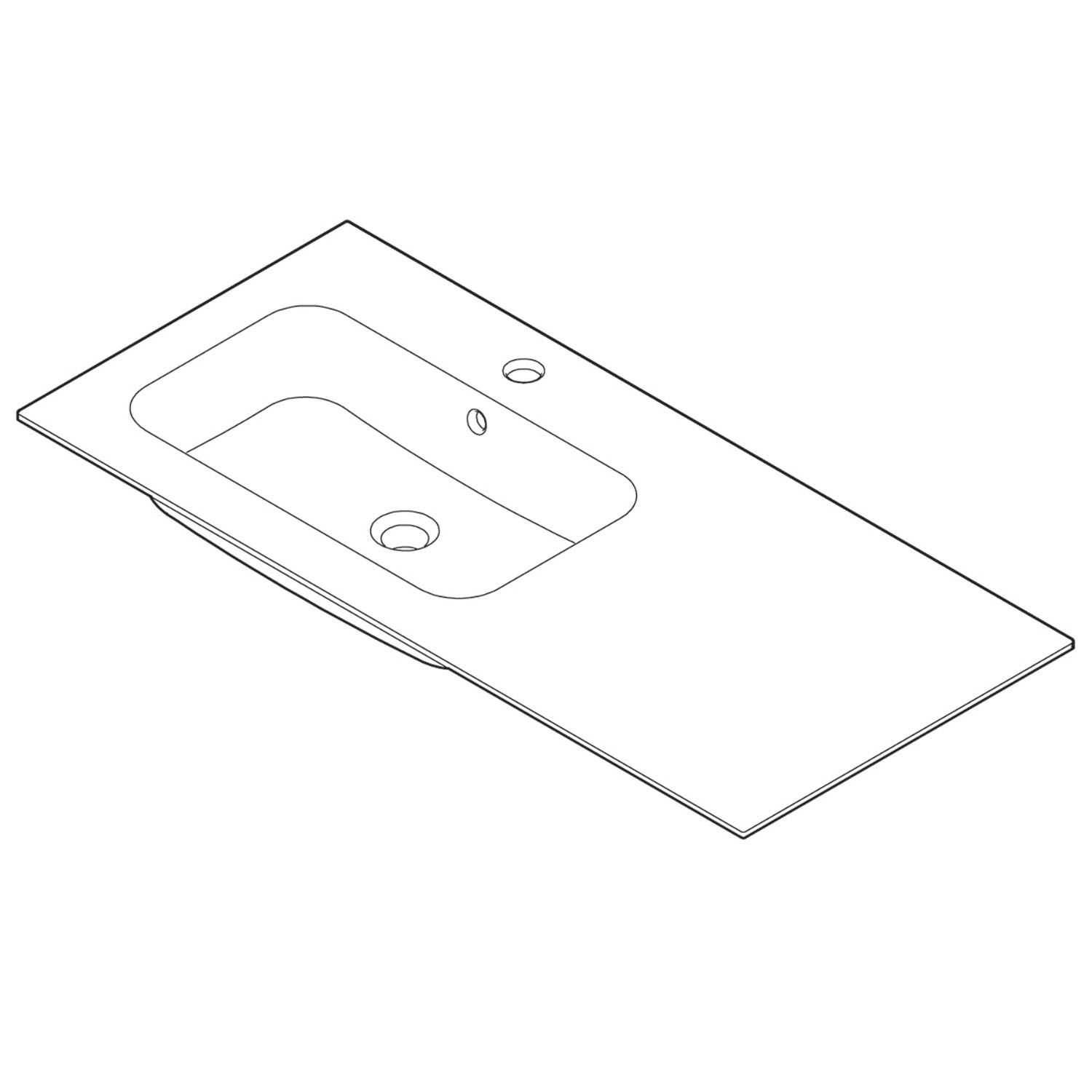

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1000 x 460 x 140mm
Weight:
17.60 kg
Basin Type:
Vanity Wing Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Number of Bowls:
1
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Max Water Temperature (°C):
65
Overflow Type:
External Overflow
Supplied Overflow Ring Colour:
Chrome, White
Interchangeable Overflow Ring Type:
Type 1
Waste Hole Diameter:
45 mm
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Idro Cast Vanity Wing Basin 1000 Left Bowl 1TH Gloss White
Instructions
Fitting kit
External Overflow Kit
