Technical Data Sheet
Idro Cast Vanity Wing Basin 800 Left Bowl 1TH Gloss White
9234

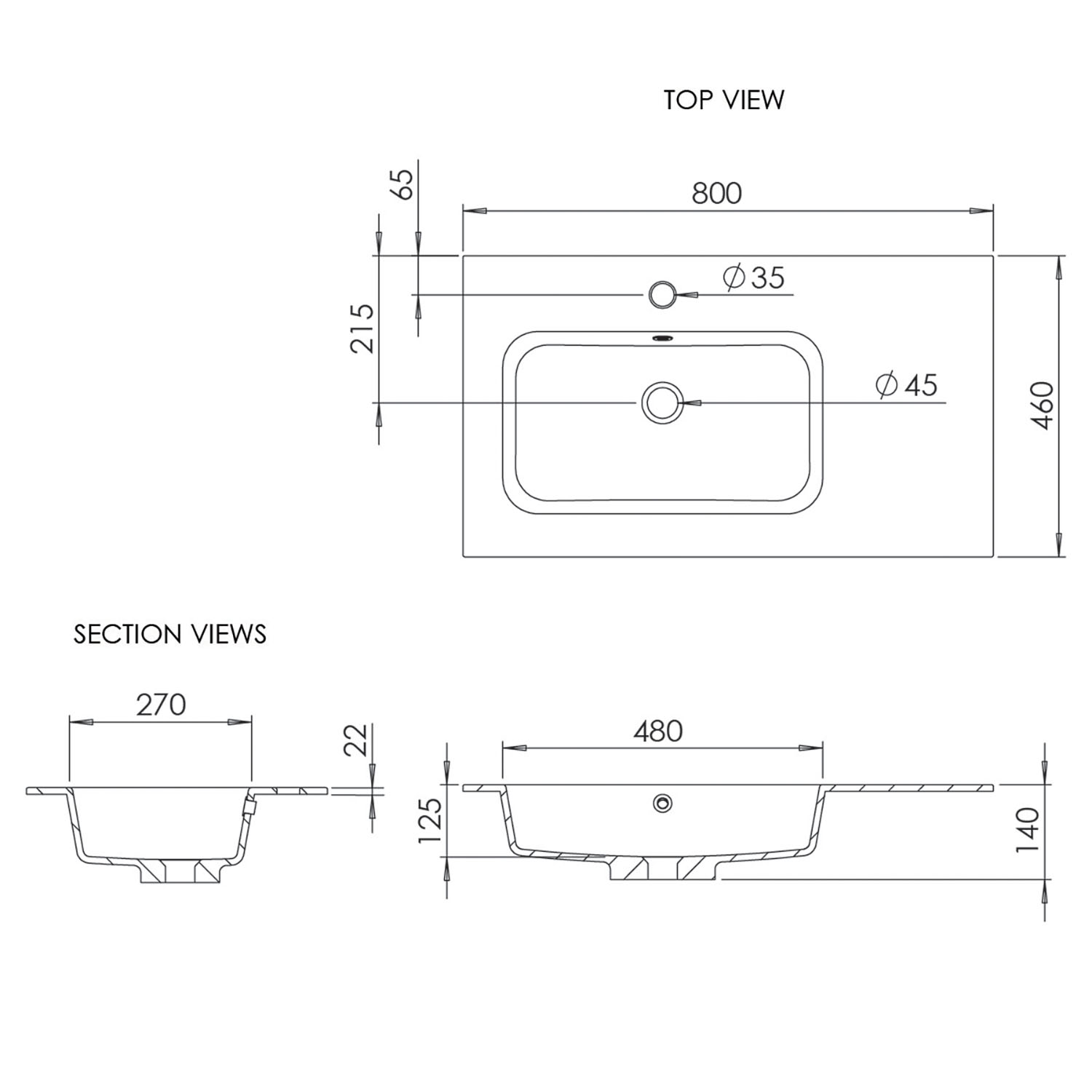

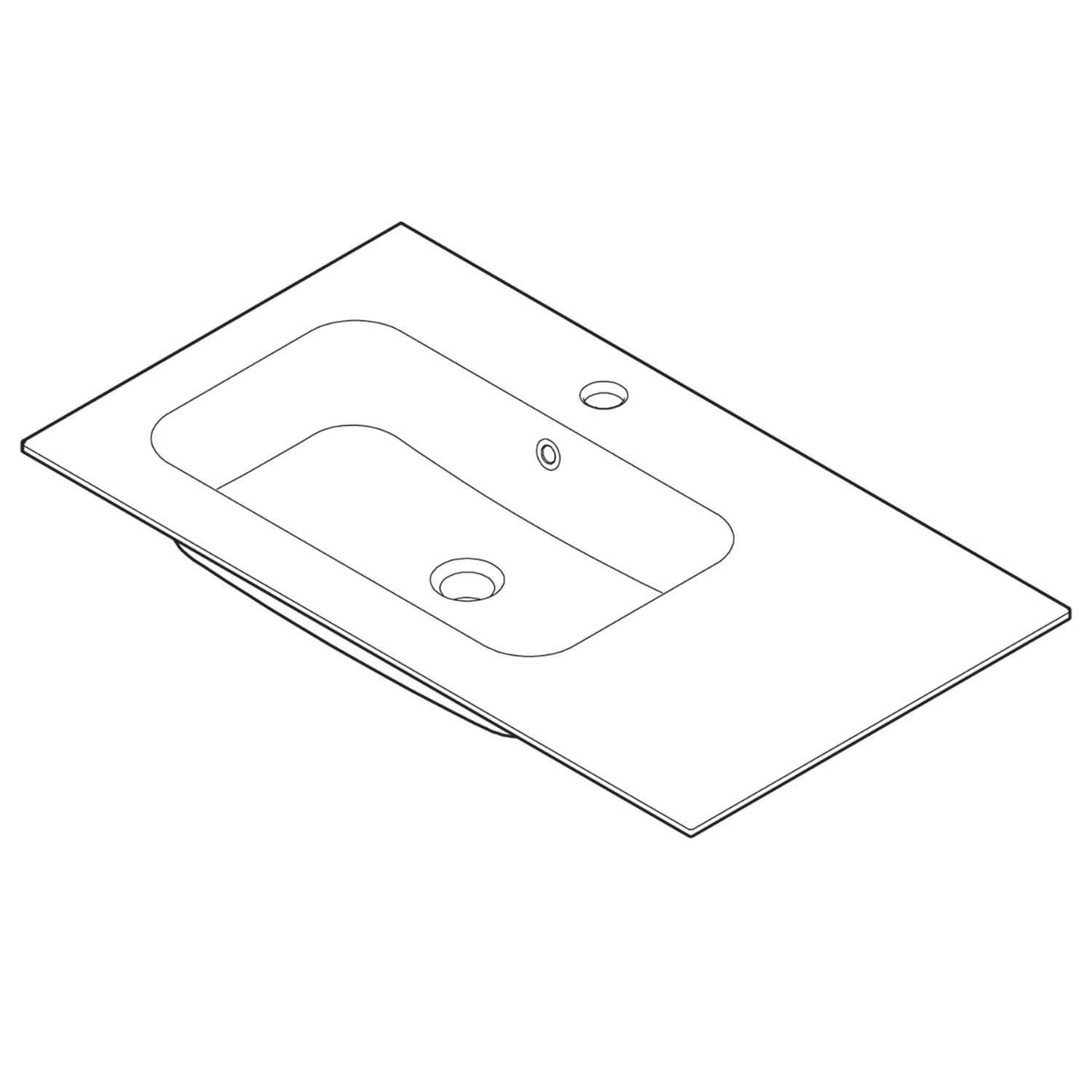

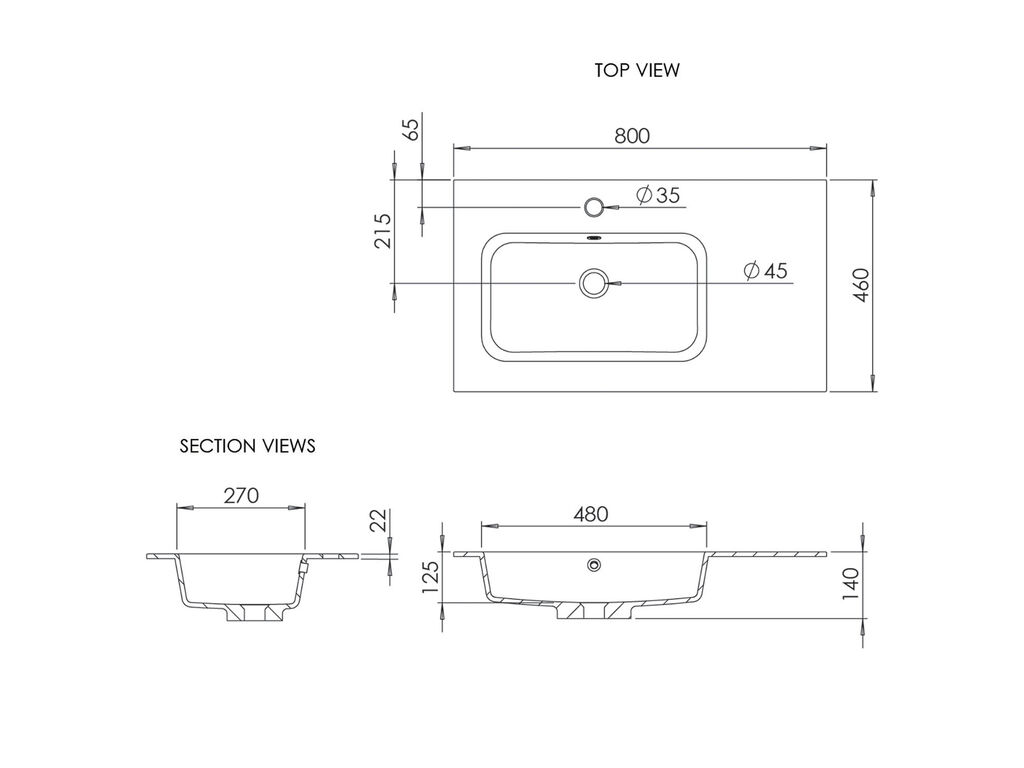

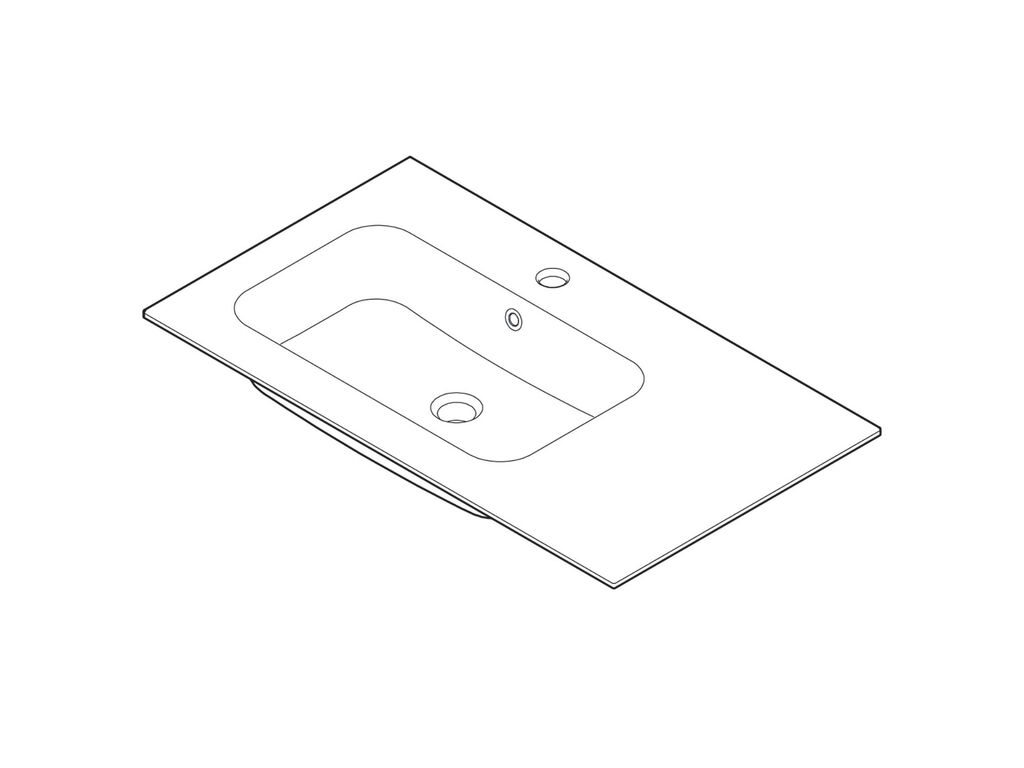

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
800 x 460 x 140mm
Weight:
12.98 kg
Basin Type:
Vanity Wing Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Rectangular
Bowl Shape:
Rectangular with Rounded Corners
Configuration:
Left Hand Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
480 x 270 x 125mm
Depth at Centre:
460mm
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Tap Hole Position:
Left Rear of Top Surface
Max Water Temperature:
65°C
Overflow Type:
External Overflow
Supplied Overflow Ring Colour:
Chrome,Black,White
Interchangeable Overflow Ring Type:
Type 1
Waste Hole Diameter:
45 mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Idro Cast Vanity Wing Basin 800 Left Bowl 1TH Gloss White
Fitting kit
