Technical Data Sheet
Bowland Drawer Unit 300 Two Drawer Standard
8421BL

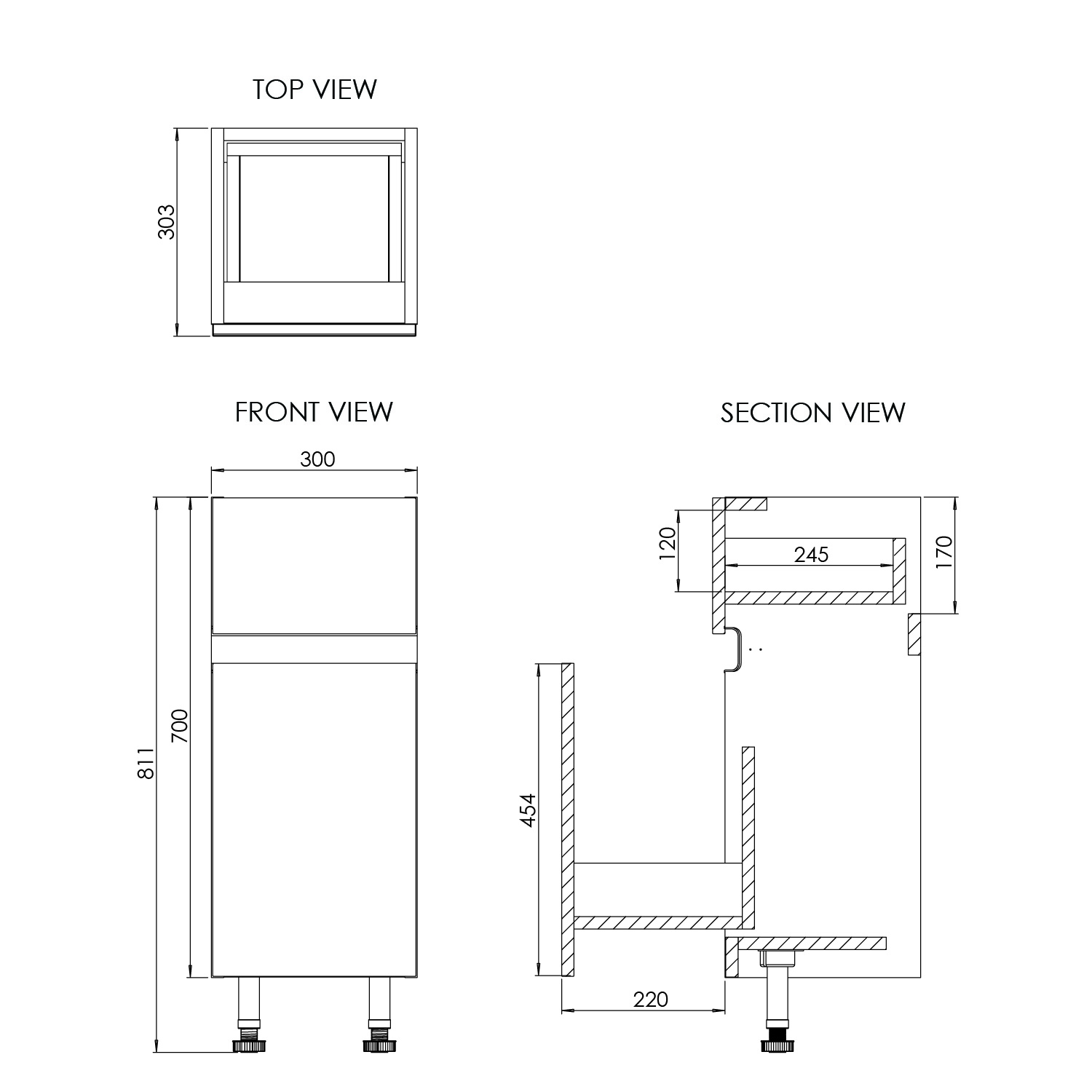

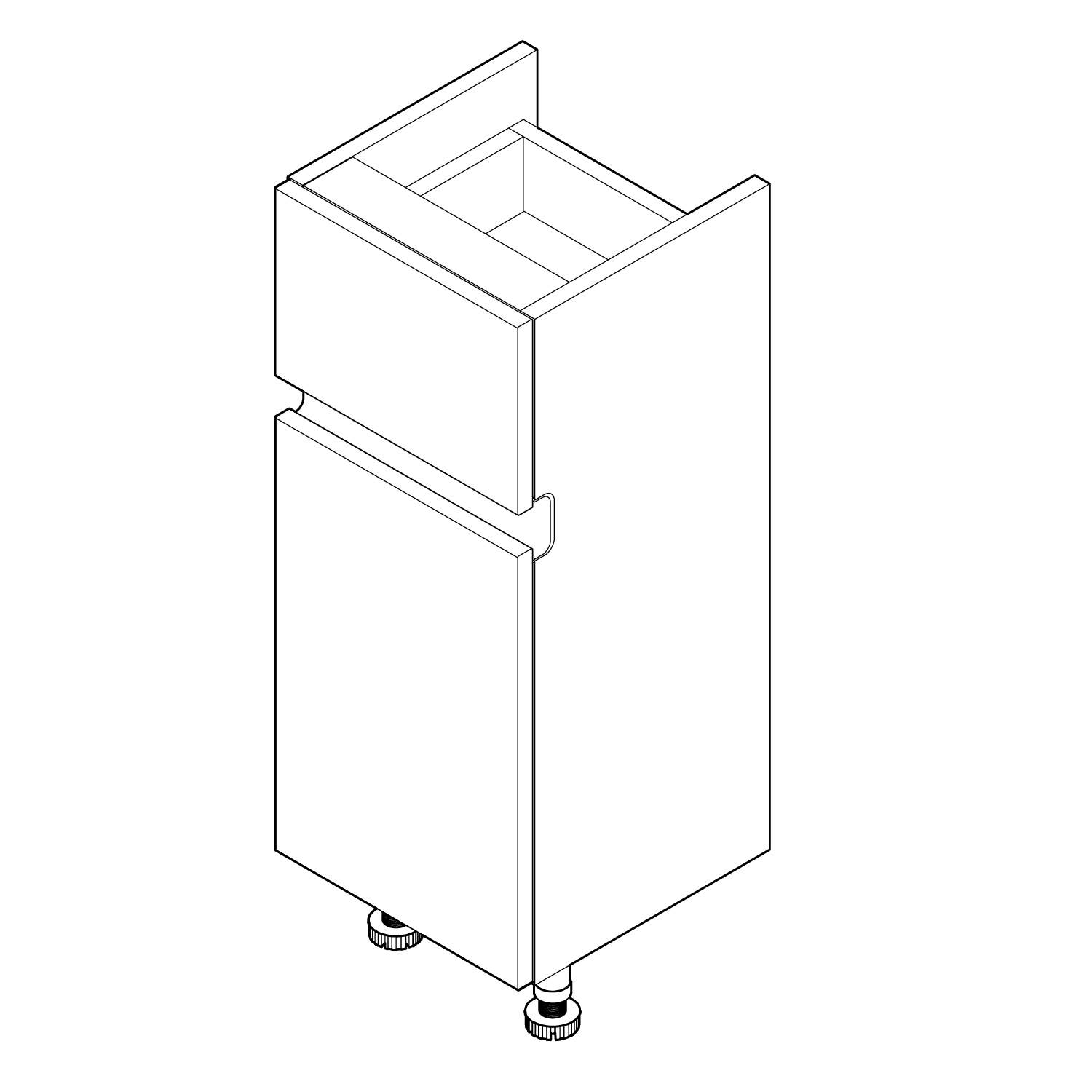

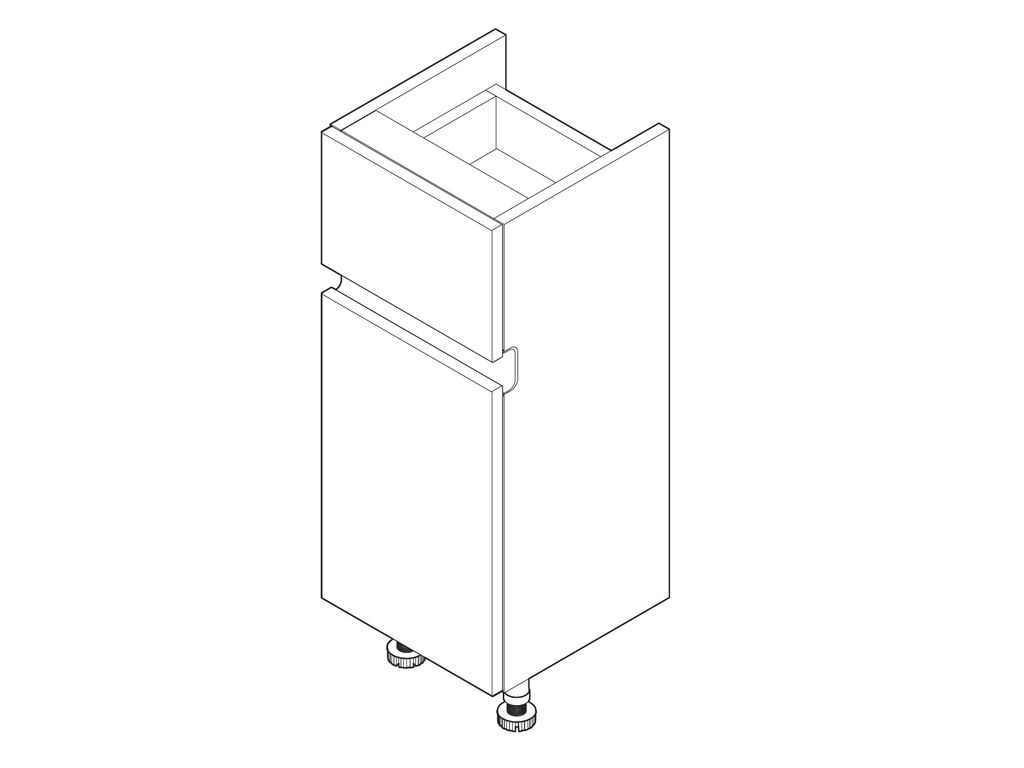

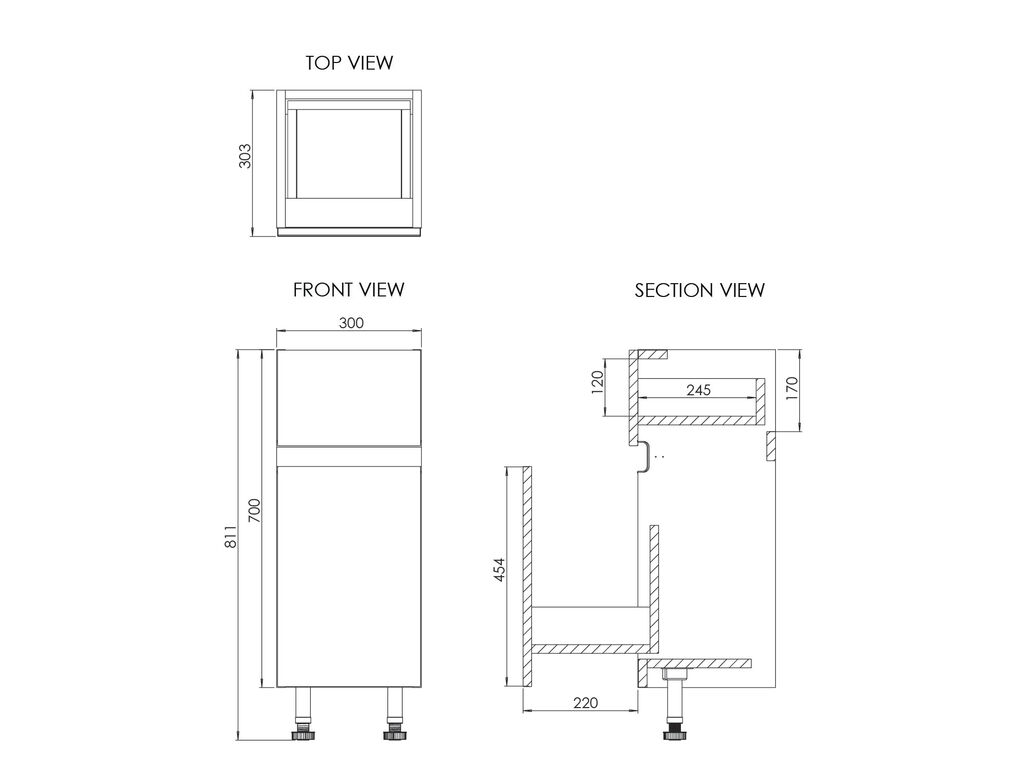

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Drawer Unit
Dimensions (WxDxH):
300 x 303 x 811mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Open back
Fascia Style:
MDF 18mm Slab
Handle Type:
Integrated Handle
Drawers:
2 drawers, Emuca Soft Close, 270mm runners
Fixation Method:
Adjustable Metal Wall Brackets @ 235mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Bowland Drawer Unit 300 Two Drawer Standard
Instructions
Fitting kit
