Technical Data Sheet
Bowland Drawerline Unit 600 Two Door Standard
8419BL

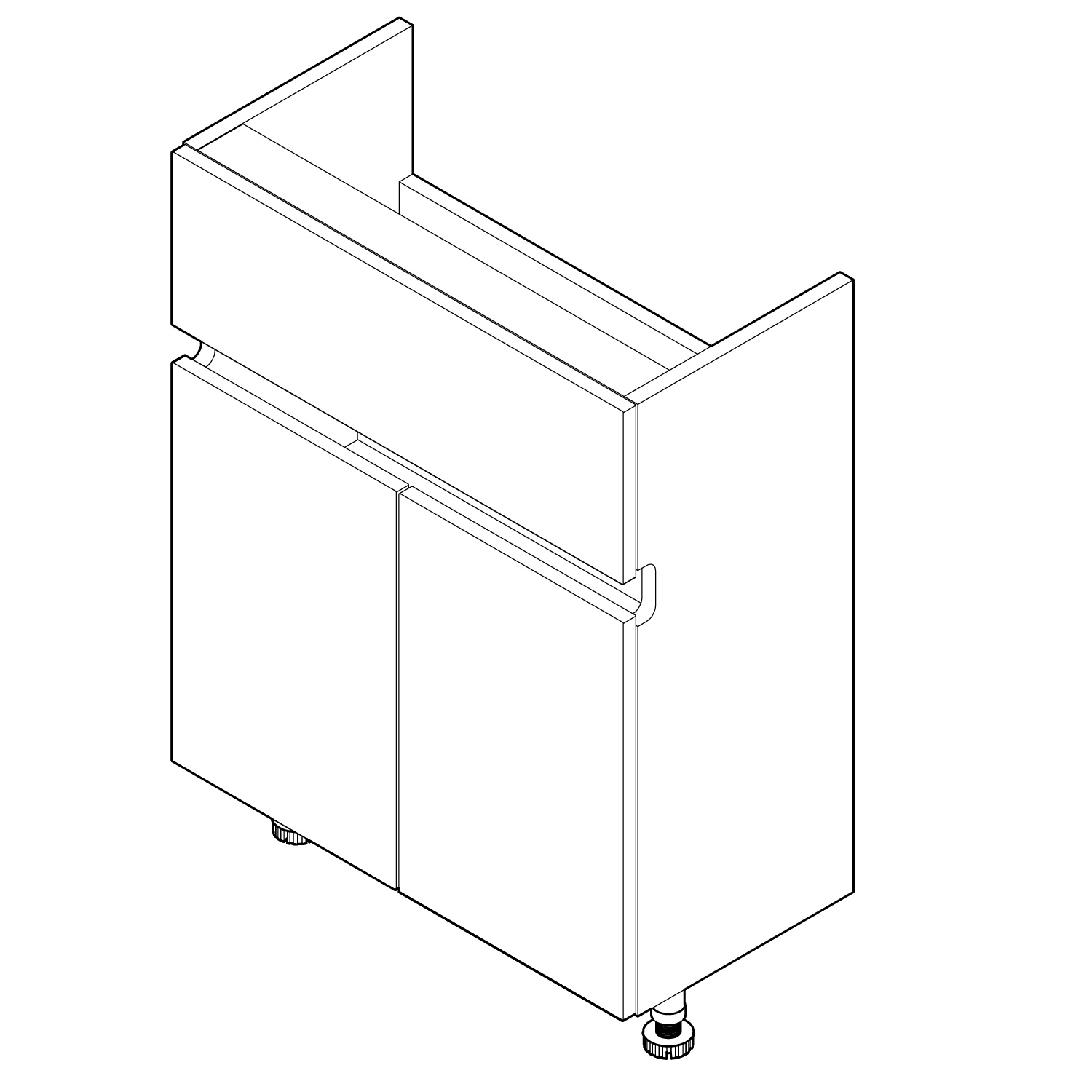

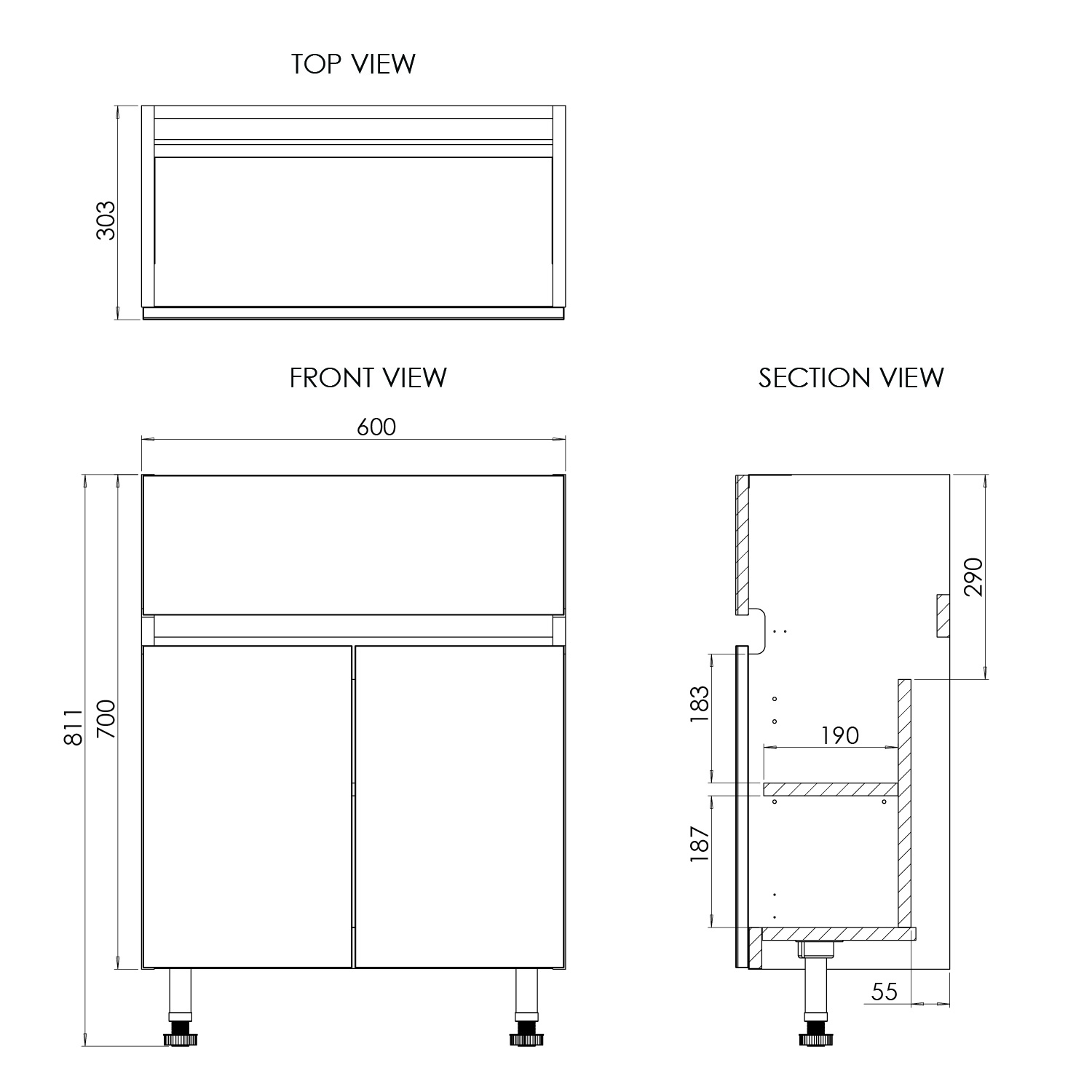

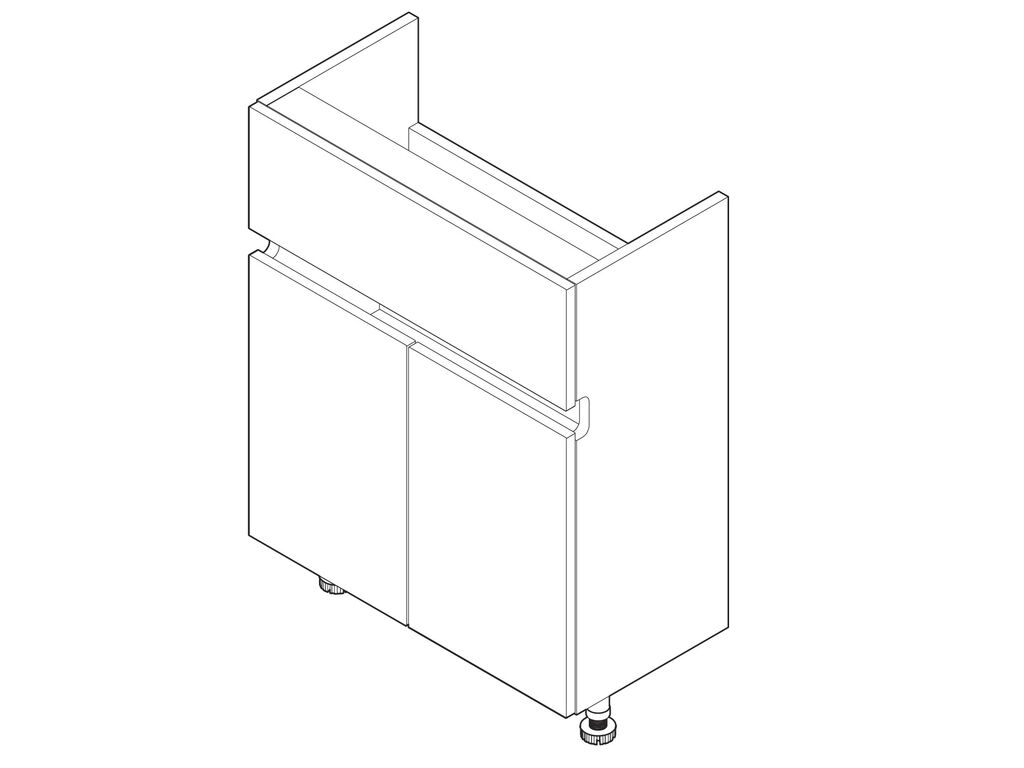

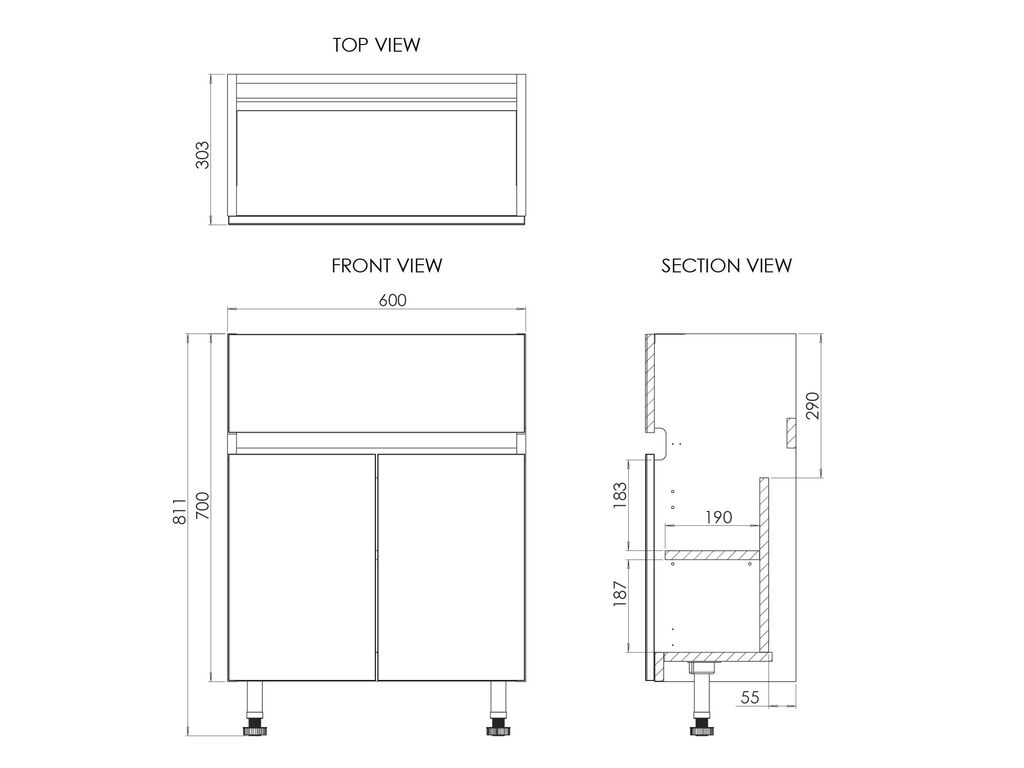

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Drawerline Unit
Dimensions (WxDxH):
600 x 303 x 811mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open Back
Fascia Style:
MDF 18mm Slab
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Yes
Handle Type:
Integrated Handle
Drawers:
1 drawer, Emuca Soft Close, 270mm runners
Shelves:
1 removable - MFC 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Adjustable Metal Wall Brackets @ 535mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Door Open Unit Depth:
585mm
Service Void Depth:
55mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Bowland Drawerline Unit 600 Two Door Standard
Instructions
Fitting kit
