Technical Data Sheet
Bowland Drawerline Unit 200 One Door Standard Left Hinged
8411BL

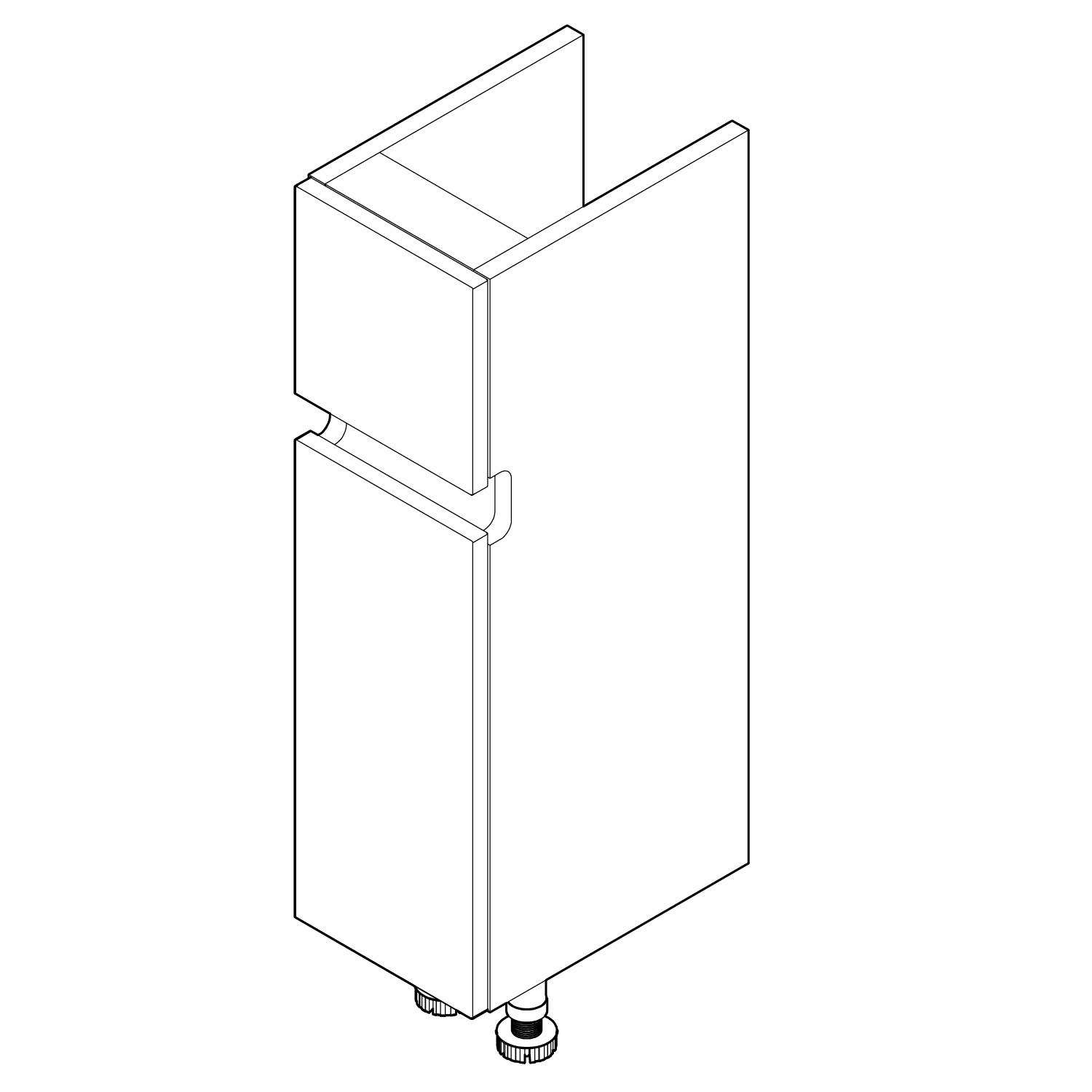

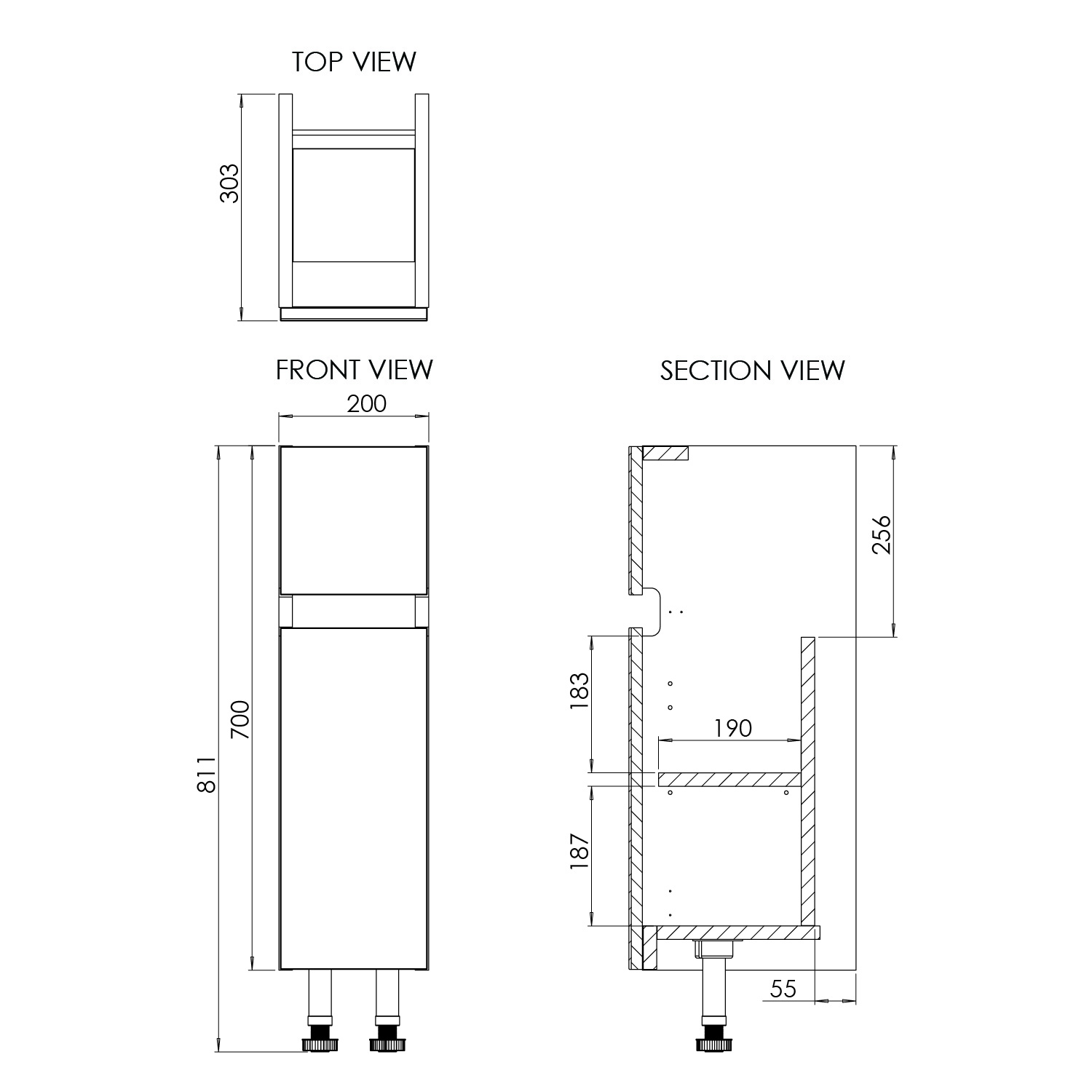

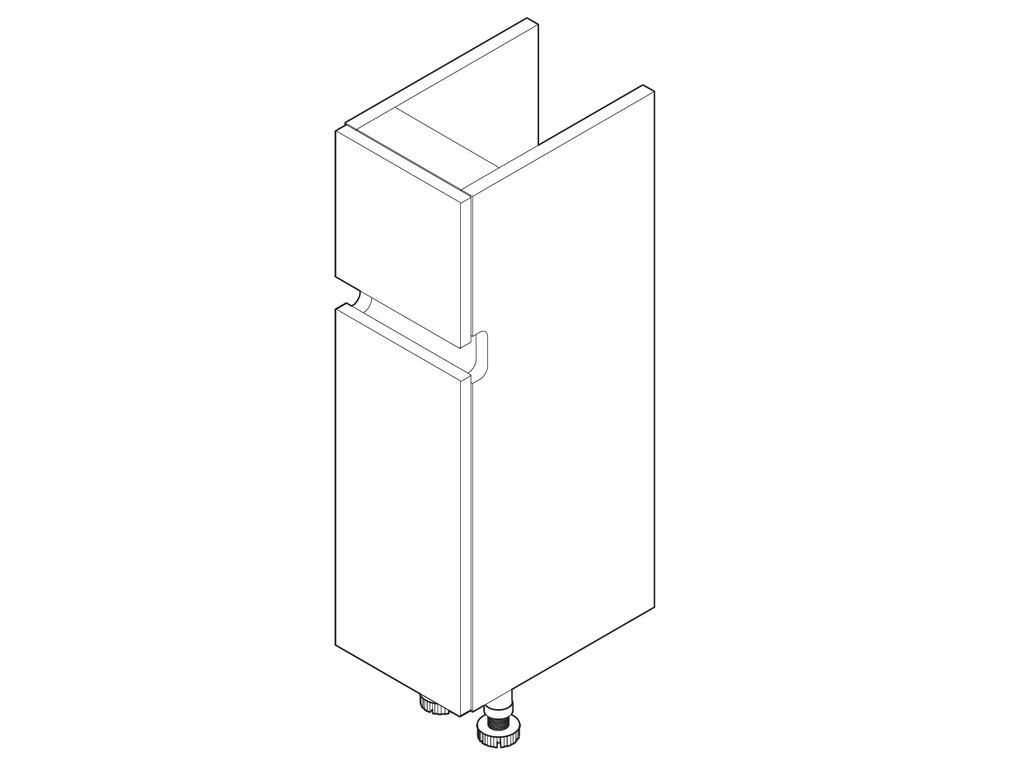

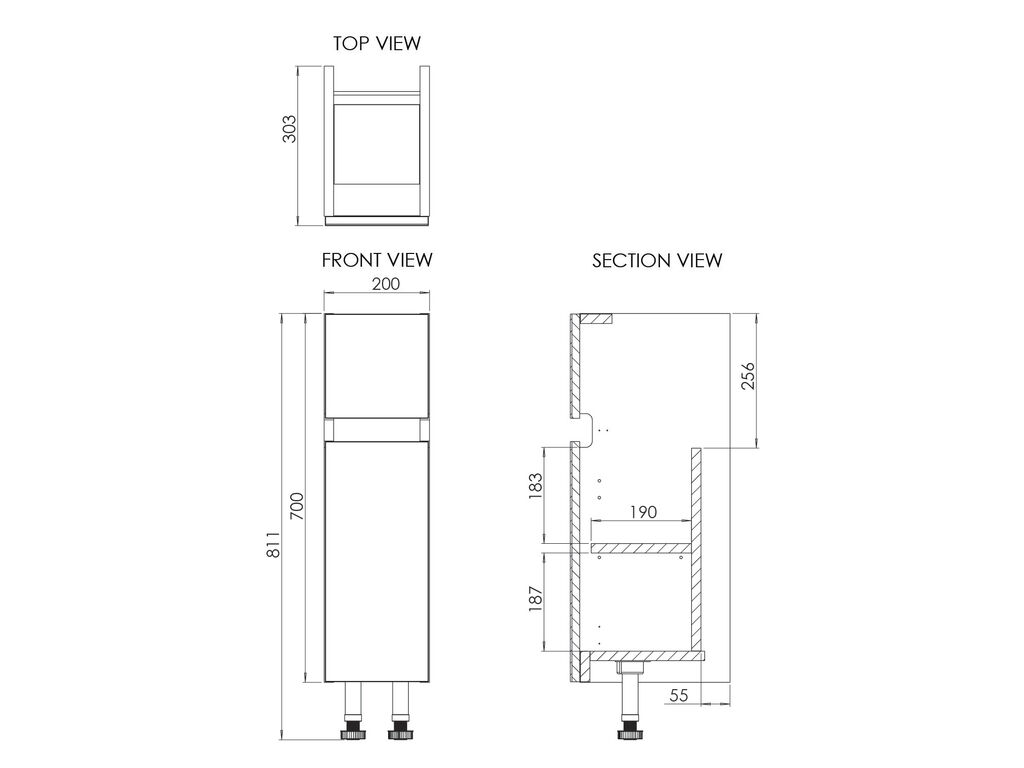

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Drawerline Unit
Dimensions (WxDxH):
200 x 303 x 811mm
Carcass Material:
MFC 18mm
Fascia Style:
MDF 18mm Slab
Drawers:
1 drawer, Emuca Soft Close, 270mm runners
Door Openings:
1
Door(s) Hinge Side:
Left Hinged
Shelves:
1 removable - MFC 18mm
Leg / Foot Type:
Leg Sockets, Legs Included
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Bowland Drawerline Unit 200 One Door Standard Left Hinged
Instructions
Fitting kit
