Technical Data Sheet
Bowland Wall Unit 300 One Door Standard Mirrored
8364BL

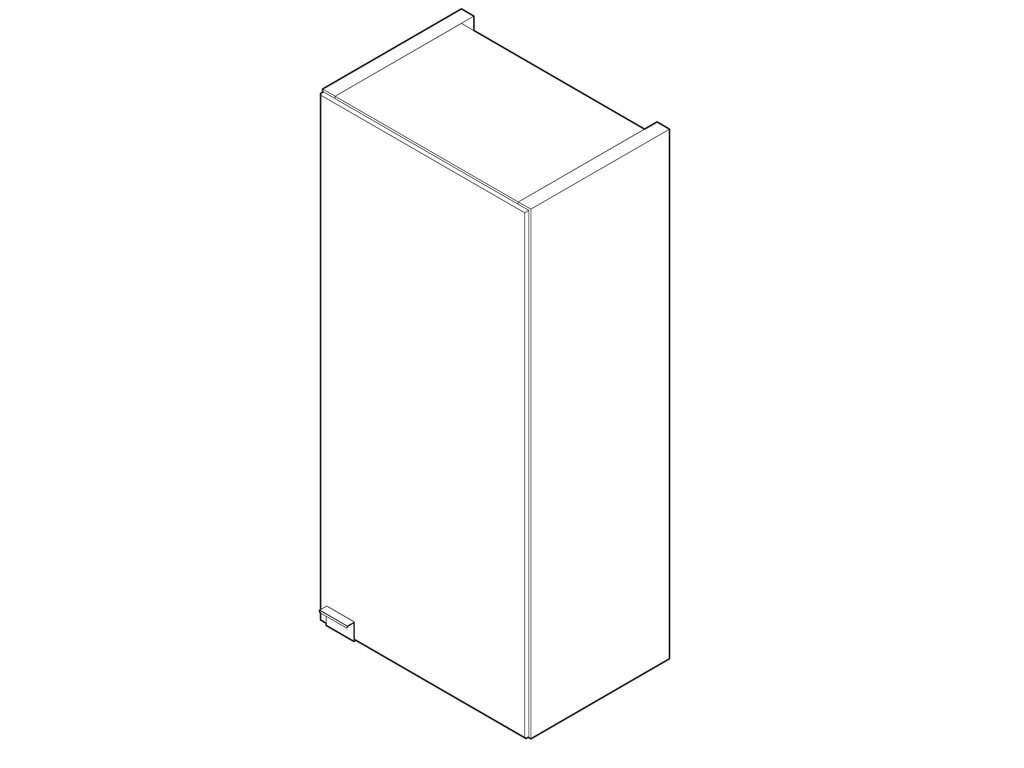

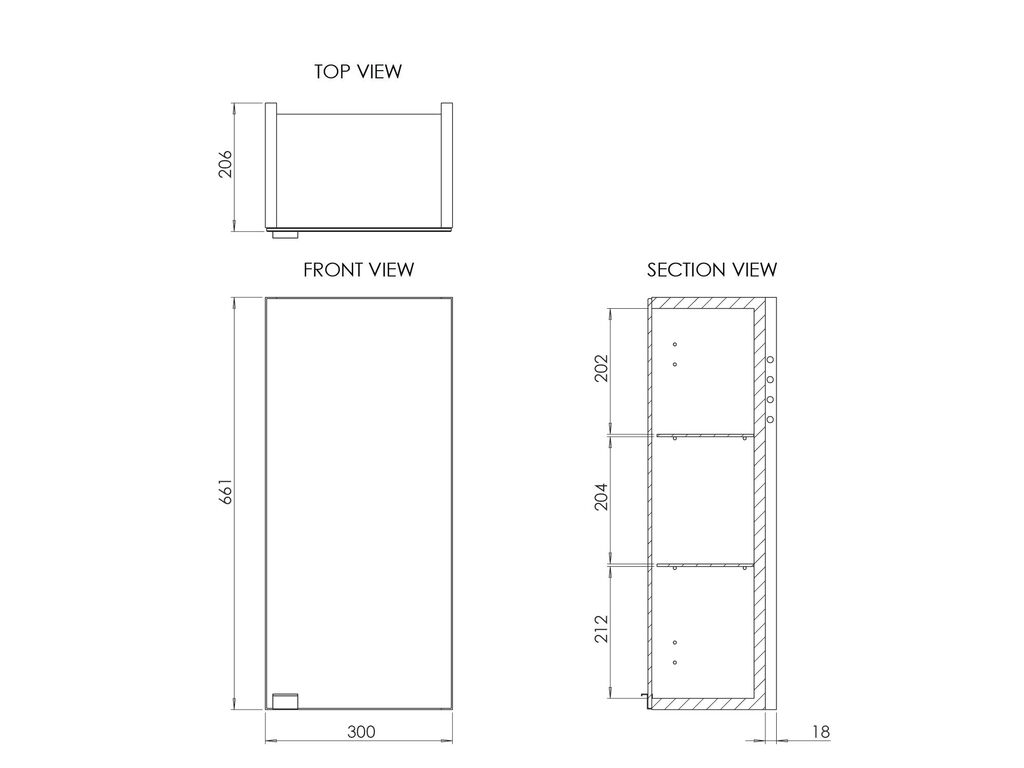

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Unit
Dimensions (WxDxH):
300 x 206 x 658mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 18mm Slab
Door Openings:
1
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Integrated Handle
Shelves:
2 removable - Glass 5mm
Removable Shelf Supports:
Clamps
Fixation Method:
Adjustable Metal Wall Brackets, 80mm from top @ 235mm centres
Door Open Unit Depth:
500mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Bowland Wall Unit 300 One Door Standard Mirrored
Instructions
Fitting kit
