Technical Data Sheet
Bowland Tall Wall Unit 600 Four Door Standard
8359BL

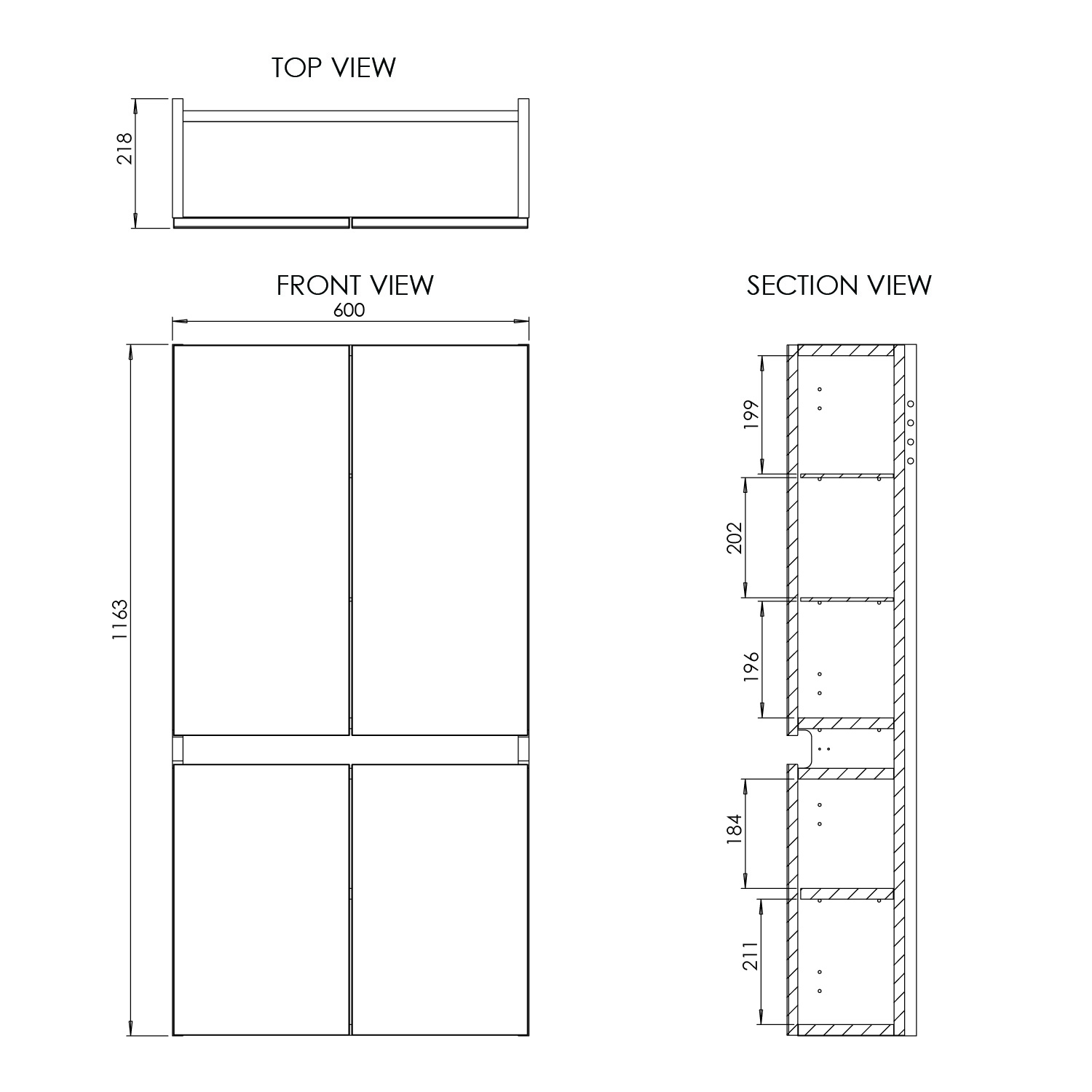

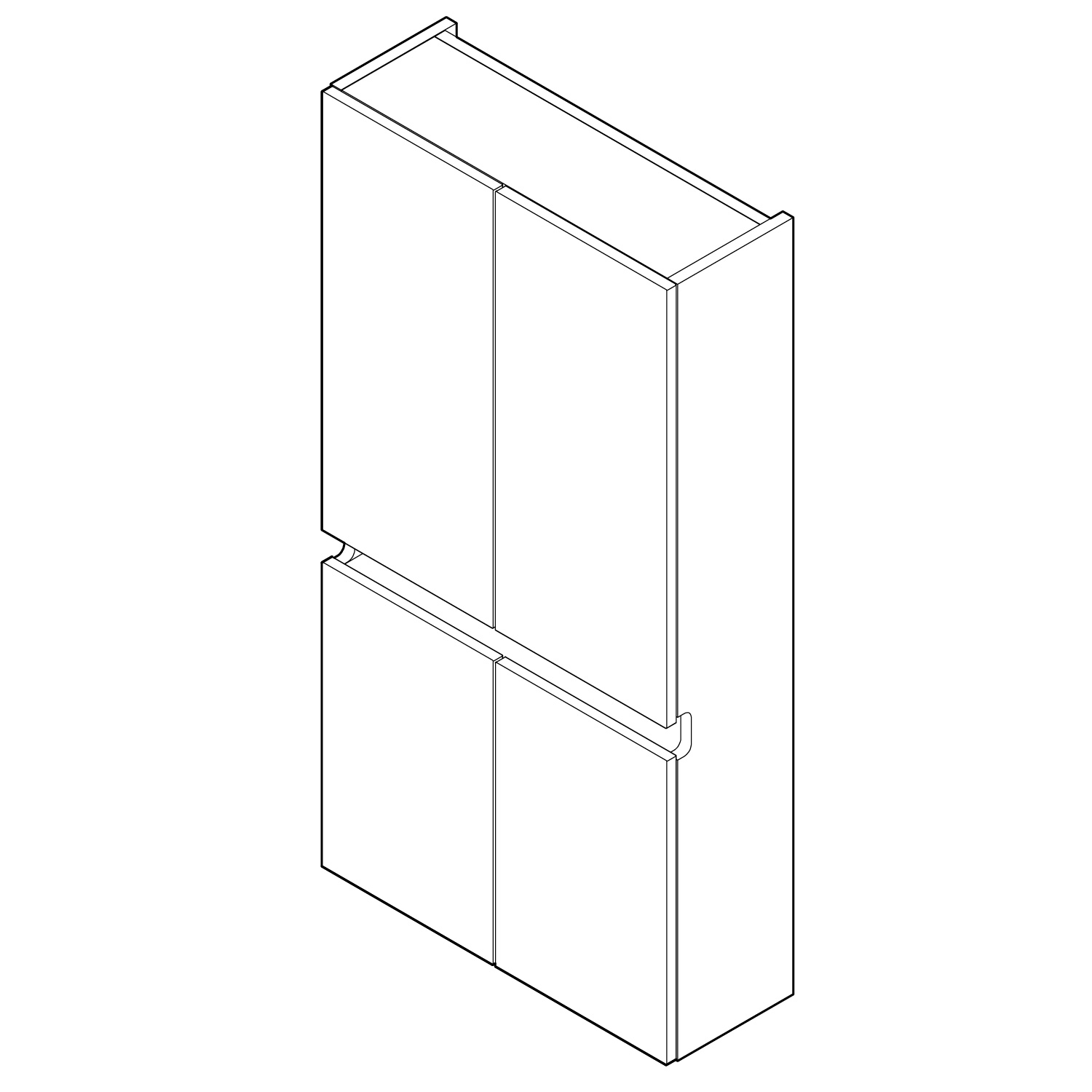

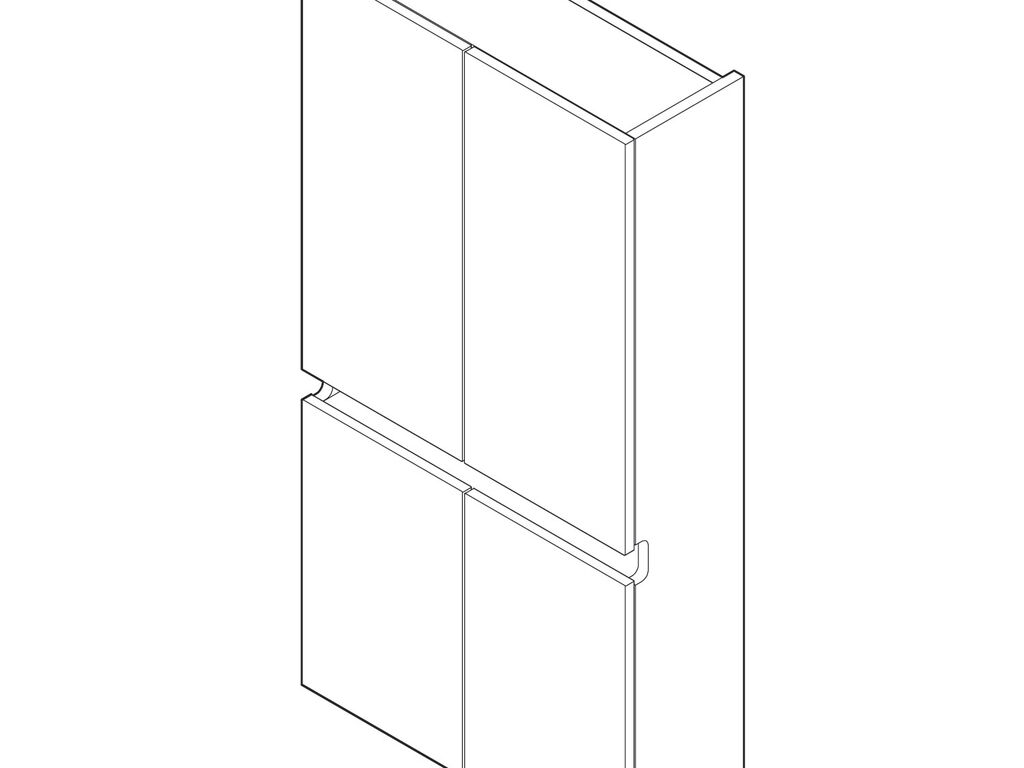

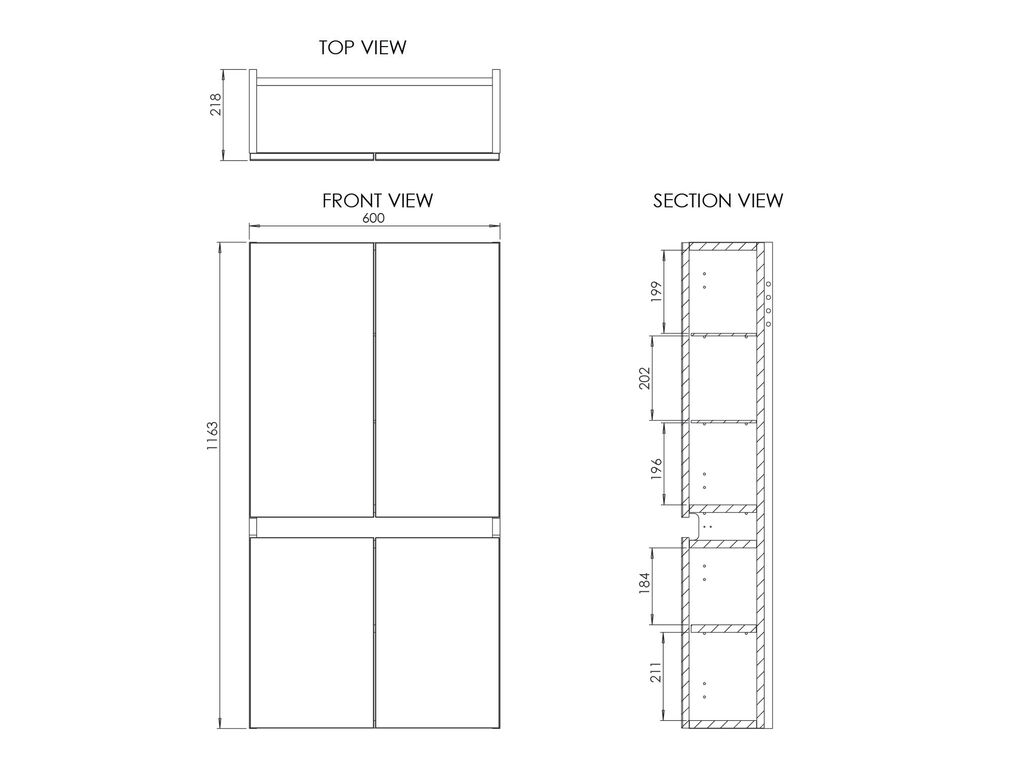

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Tall Wall Unit
Dimensions (WxDxH):
600 x 218 x 1163mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 18mm Slab
Door Openings:
4
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Integrated Handle
Shelves:
1 fixed, 3 removable - Glass 5mm,MFC 18mm
Removable Shelf Supports:
Clamps
Fixation Method:
Adjustable Metal Wall Brackets, 80mm from top @ 535mm centres
Door Open Unit Depth:
500mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Bowland Tall Wall Unit 600 Four Door Standard
Instructions
Fitting kit
