Technical Data Sheet
Bowland Base Unit 300 One Door Dummy Drawer Slim Left Hinged
8313BL

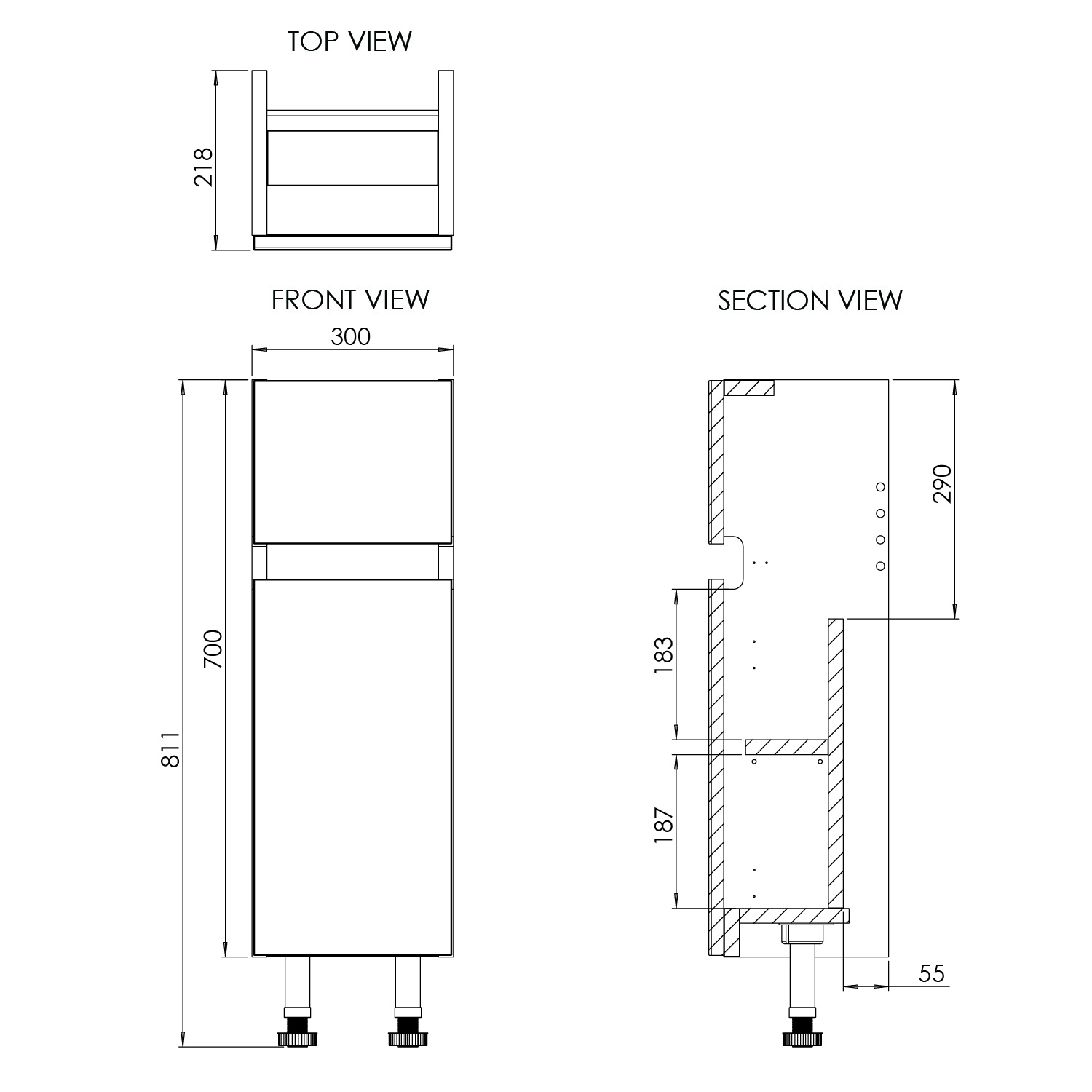

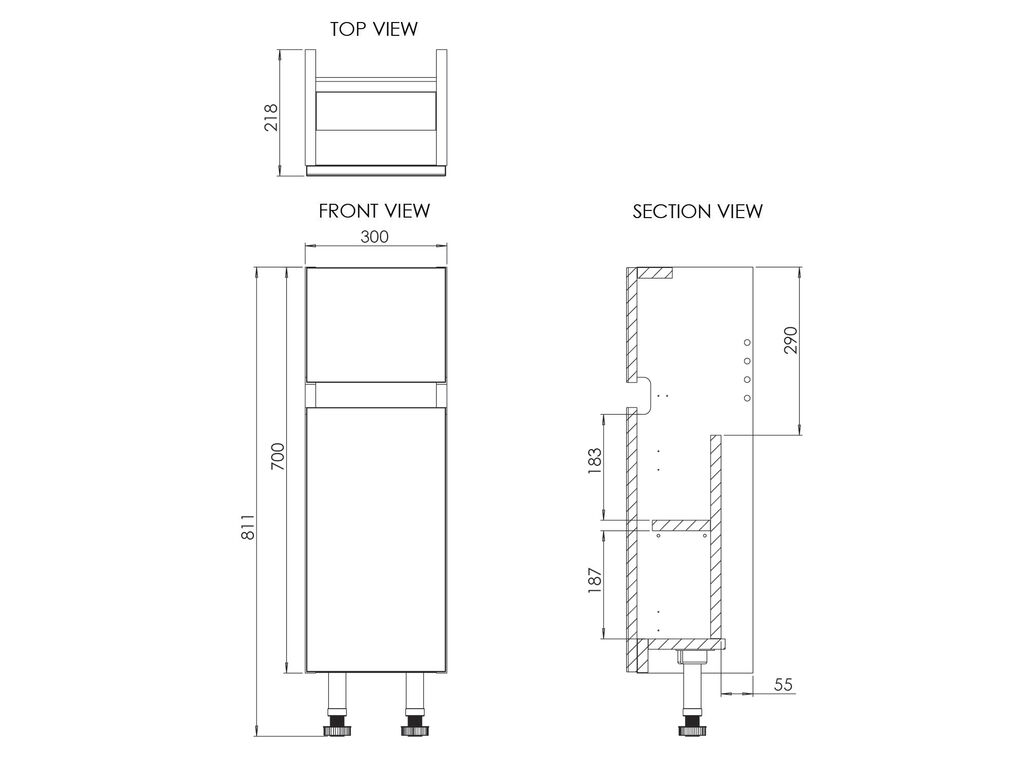

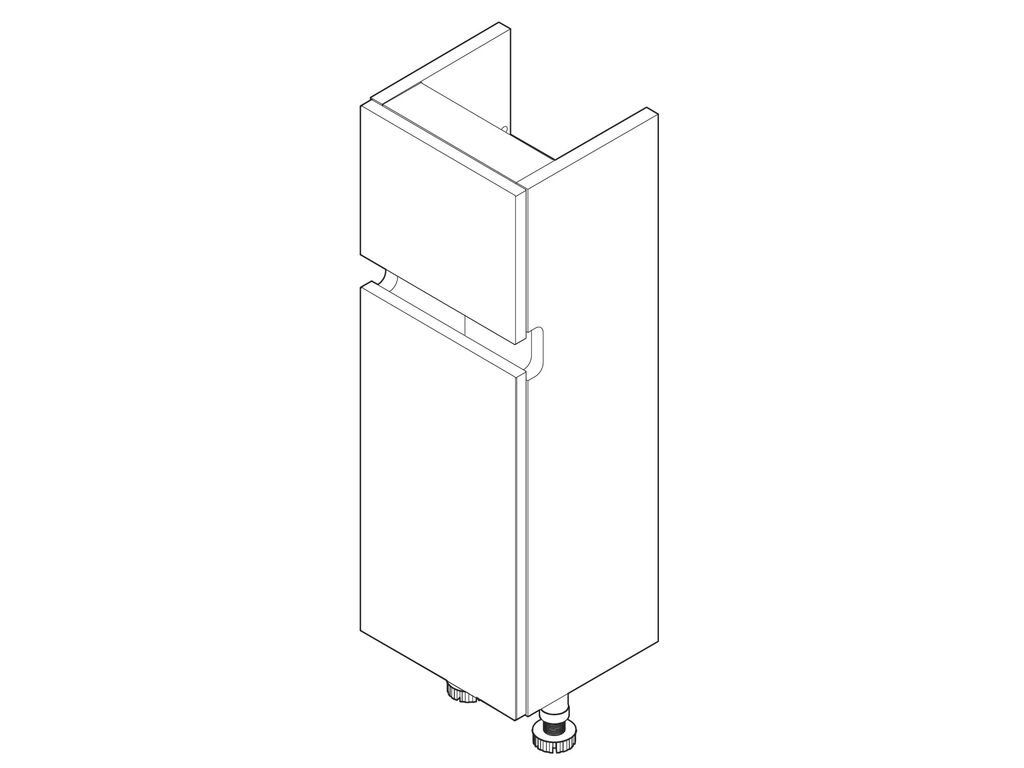

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Drawerline Unit
Dimensions (WxDxH):
300 x 218 x 811mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open back
Fascia Style:
MDF 18mm Slab
Door Openings:
1
Door(s) Hinge Side:
Left Hinged
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Yes
Handle Type:
Integrated Handle
Shelves:
1 removable - MFC 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Adjustable Metal Wall Brackets, 55mm from top @ 235mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Door Open Unit Depth:
500mm
Service Void Depth:
55mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Bowland Base Unit 300 One Door Dummy Drawer Slim Left Hinged
Instructions
Fitting kit
