Technical Data Sheet
Forino Tall Wall Unit 300 Two Door
7830

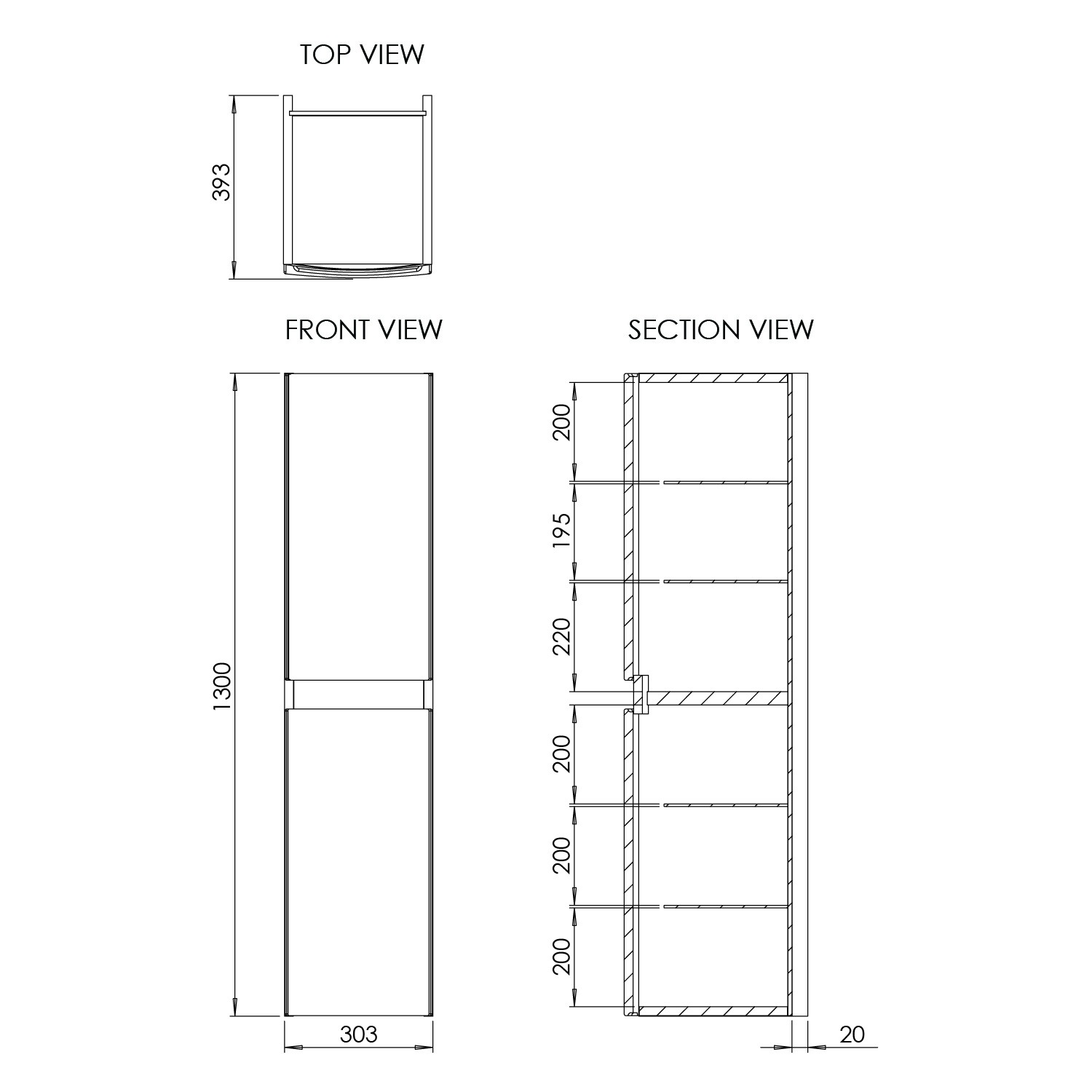

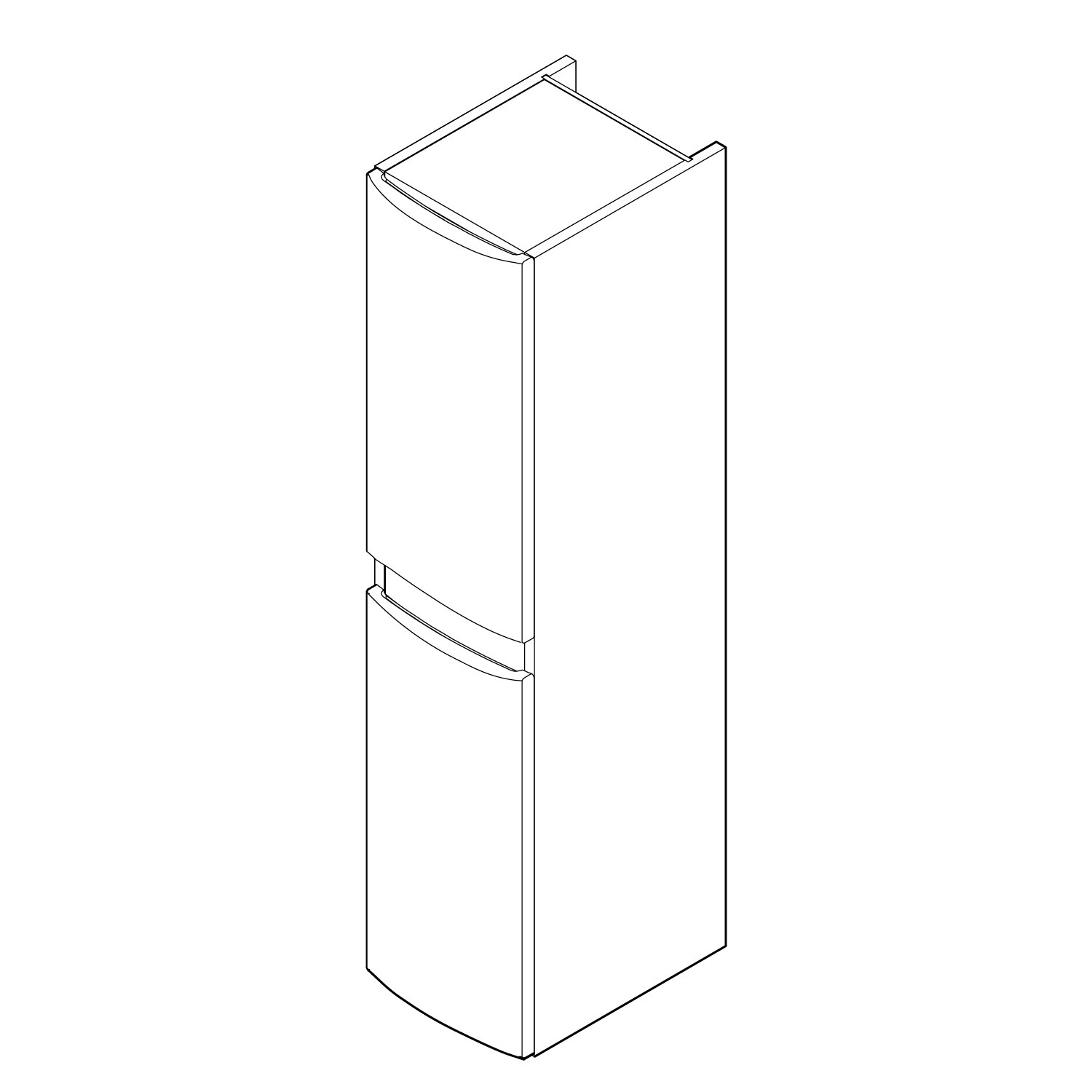

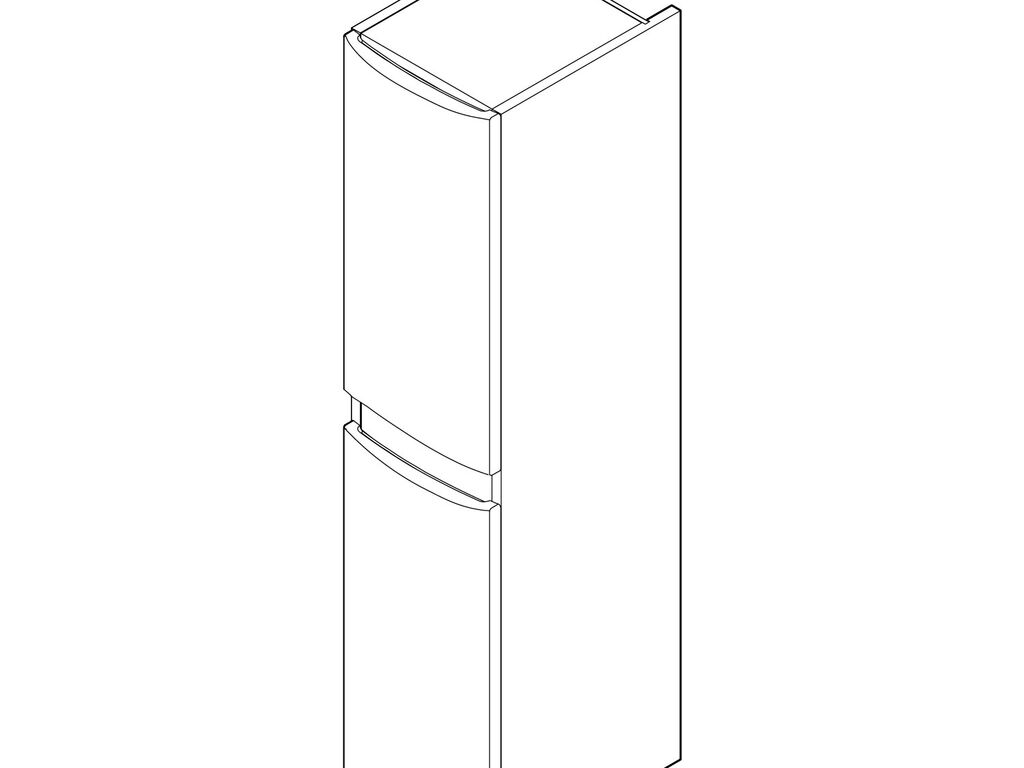

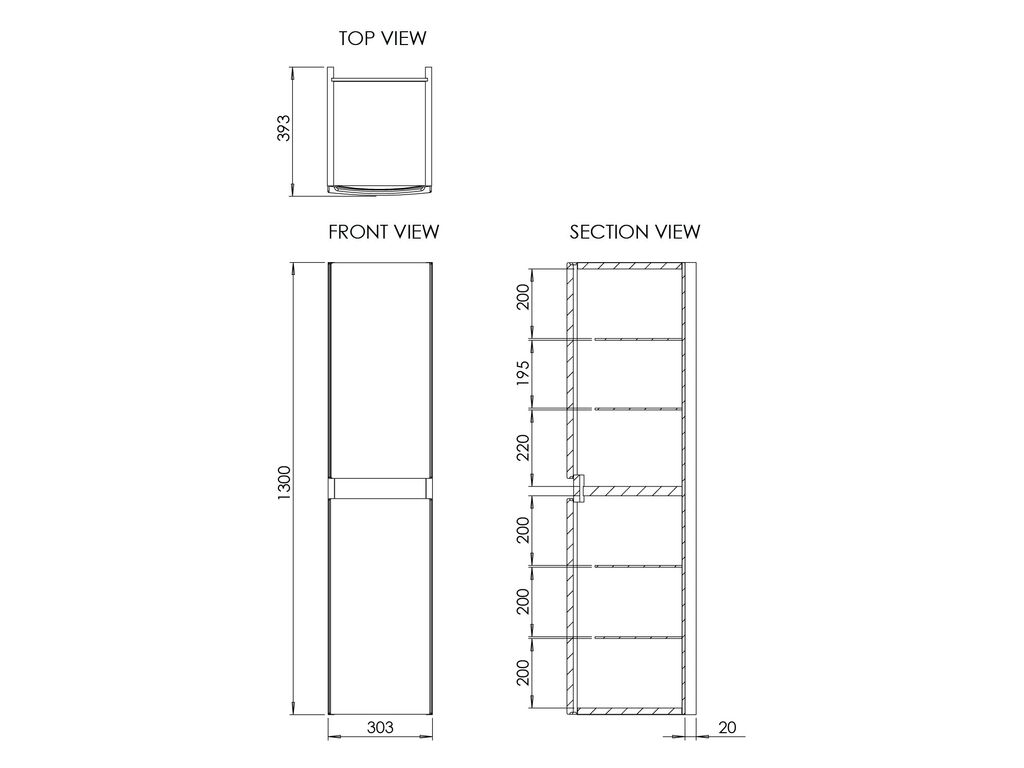

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Tall Wall Unit
Dimensions (WxDxH):
300 x 393 x 1300mm
Carcass Material:
MDF 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 19mm Slab
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft Close
Handle Type:
Integrated Handle
Shelves:
4 removable - Glass 5mm
Removable Shelf Supports:
Clamps
In The Box:
Forino Tall Wall Unit 300 Two Door
