Technical Data Sheet
Eleni Tall Wall Unit 350 One Door
7826

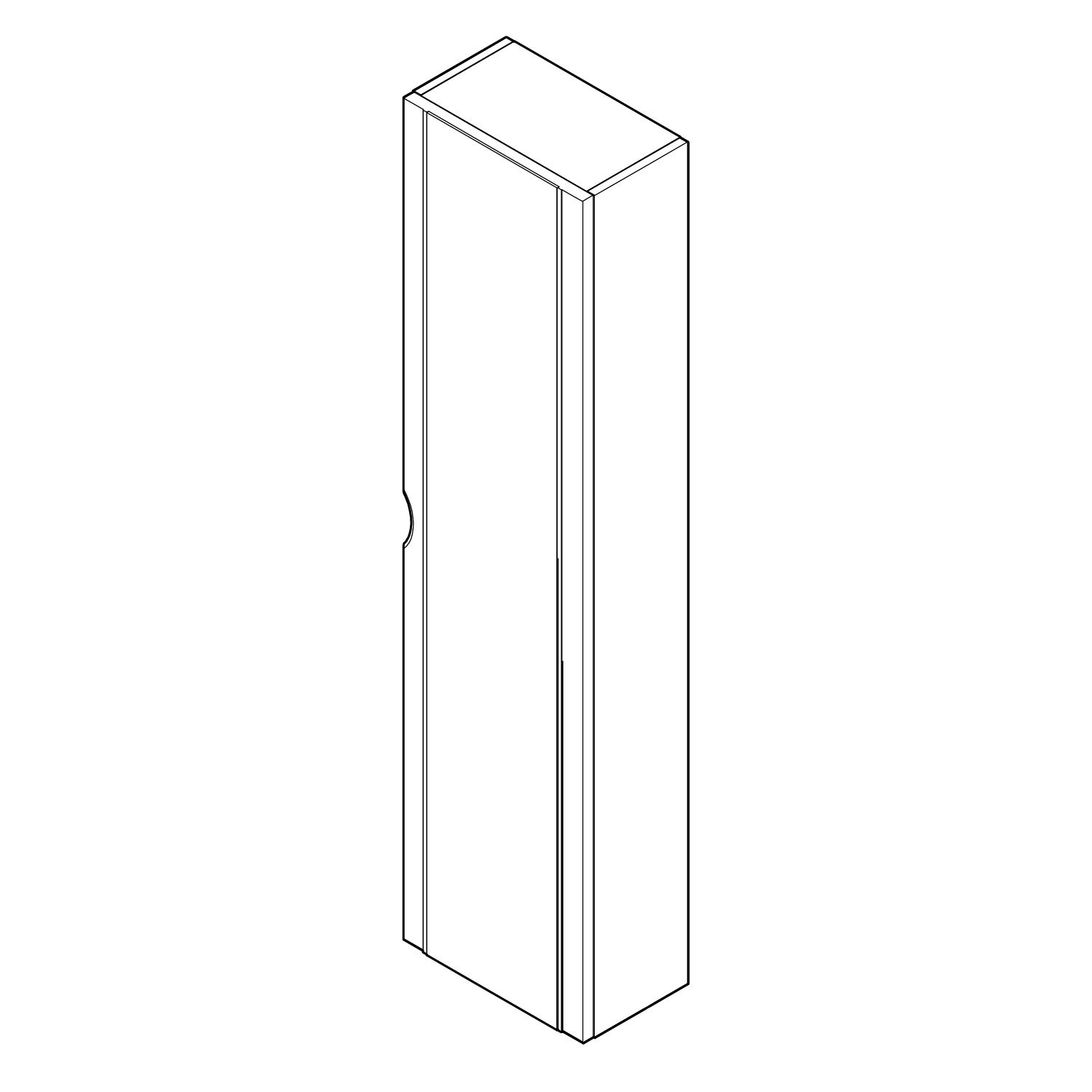

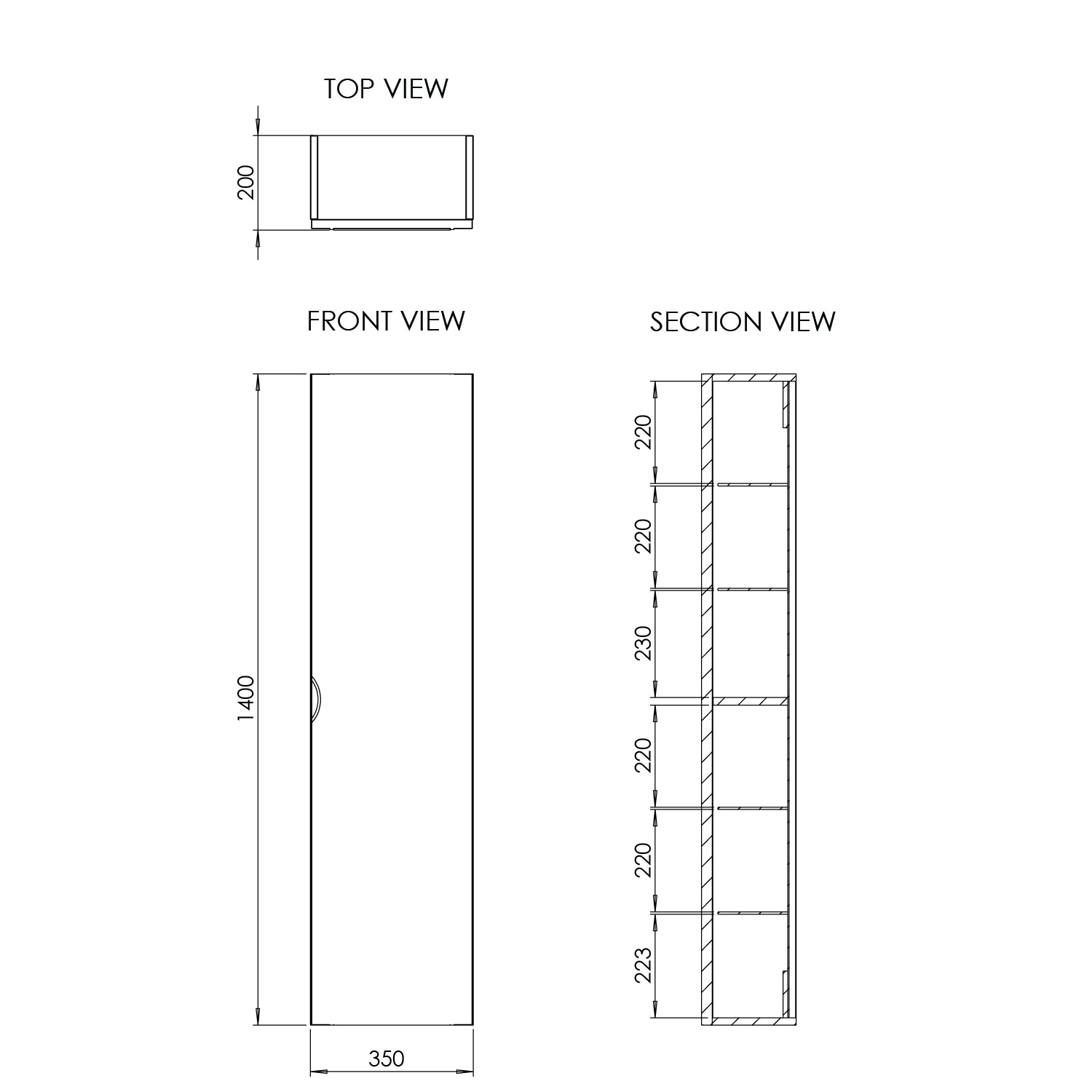

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Tall Wall Unit
Dimensions (WxDxH):
350 x 200 x 1400mm
Weight:
20.68 kg
Carcass Material:
MDF 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 19mm Slab
End Panel Material:
MDF 16mm
End Panel Detail:
Slab
Door Openings:
1
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Integrated Handle
Shelves:
1 fixed - MDF 16mm, 4 removable - Glass 5mm
Removable Shelf Supports:
Studs
Fixation Method:
Fixed through rear rail, 72mm from top @ 215mm centres
Door Open Unit Depth:
532mm
In The Box:
Eleni Tall Wall Unit 350 One Door
