Technical Data Sheet
Ultimo Wall Hung Vanity Unit 1200 Two Drawer Two Door
7803

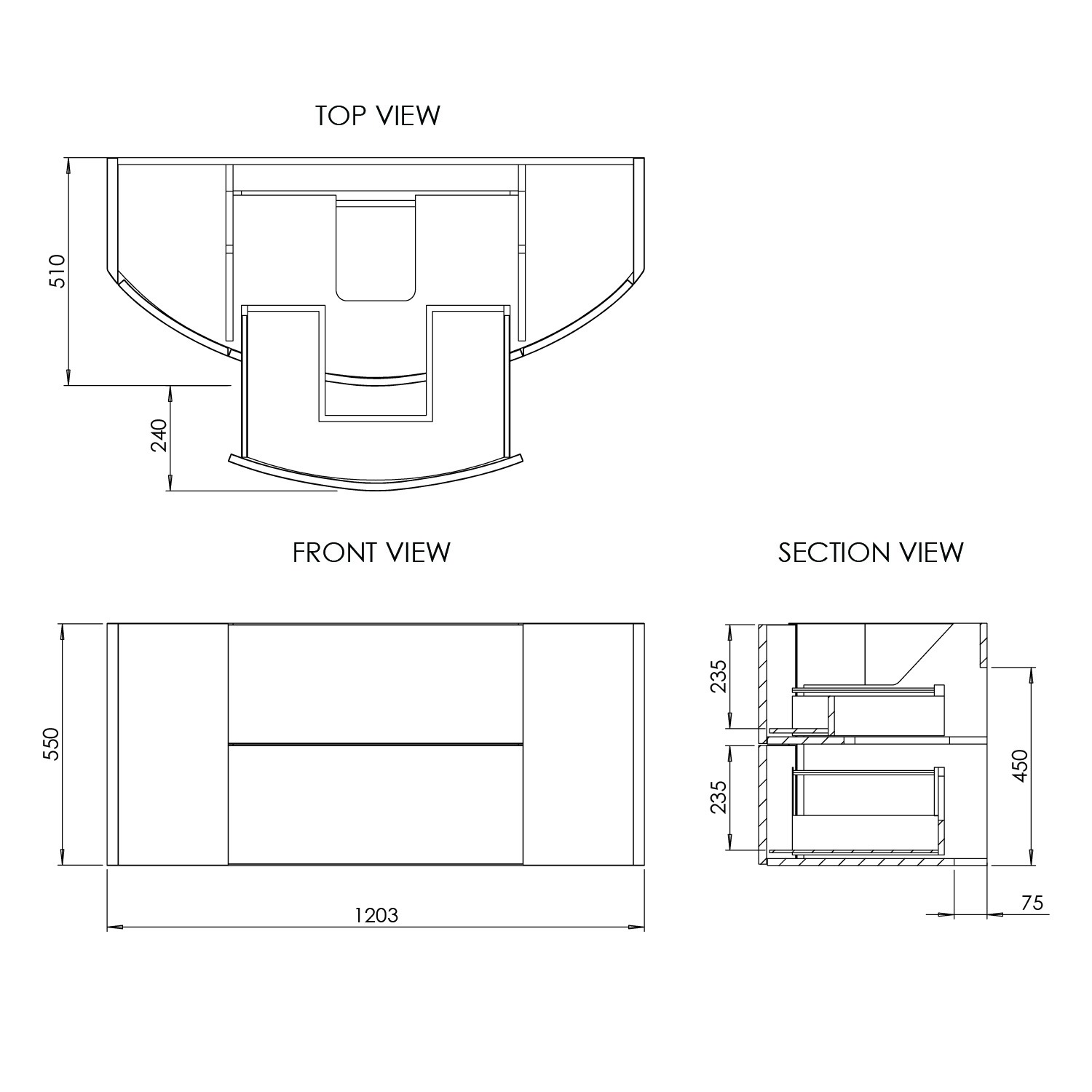

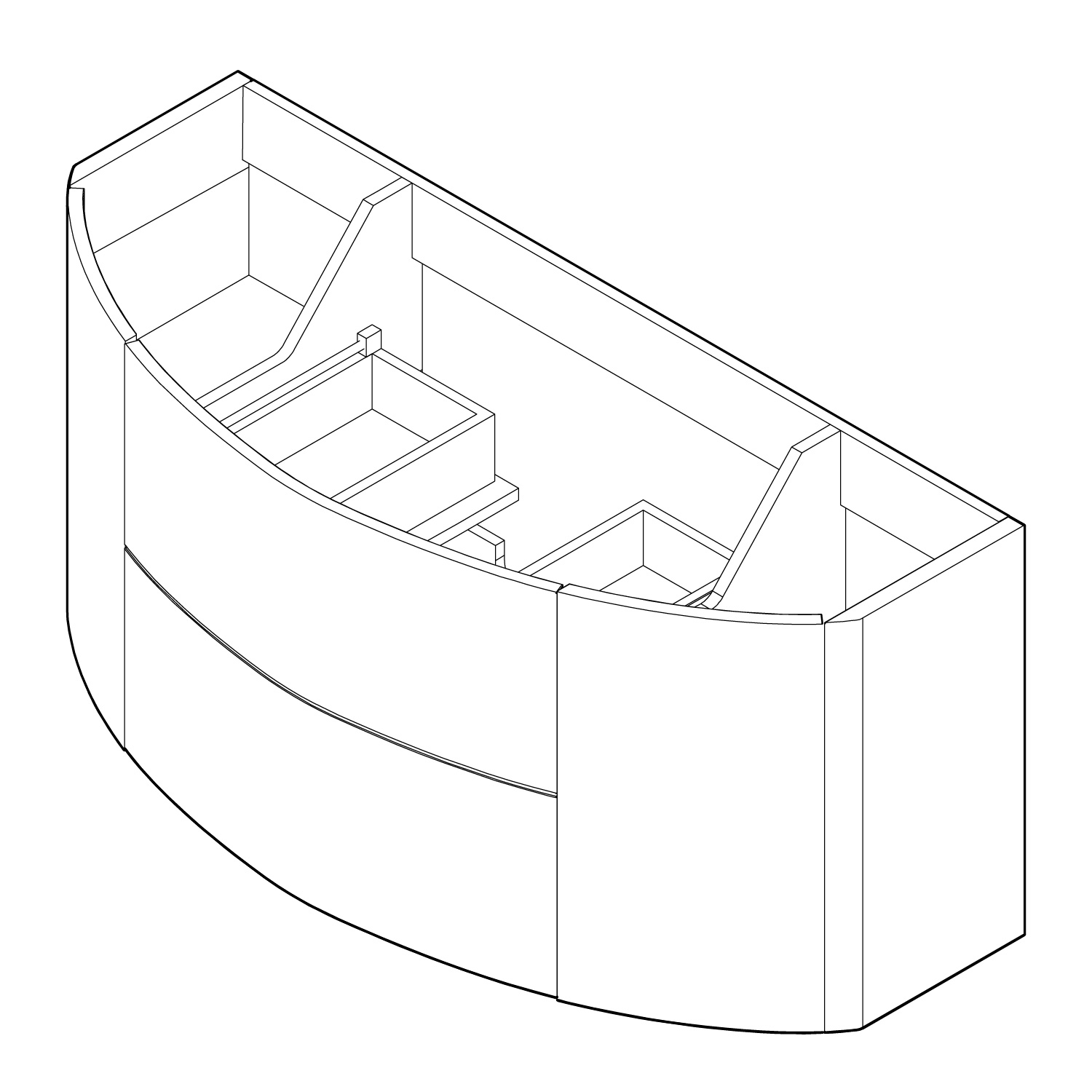

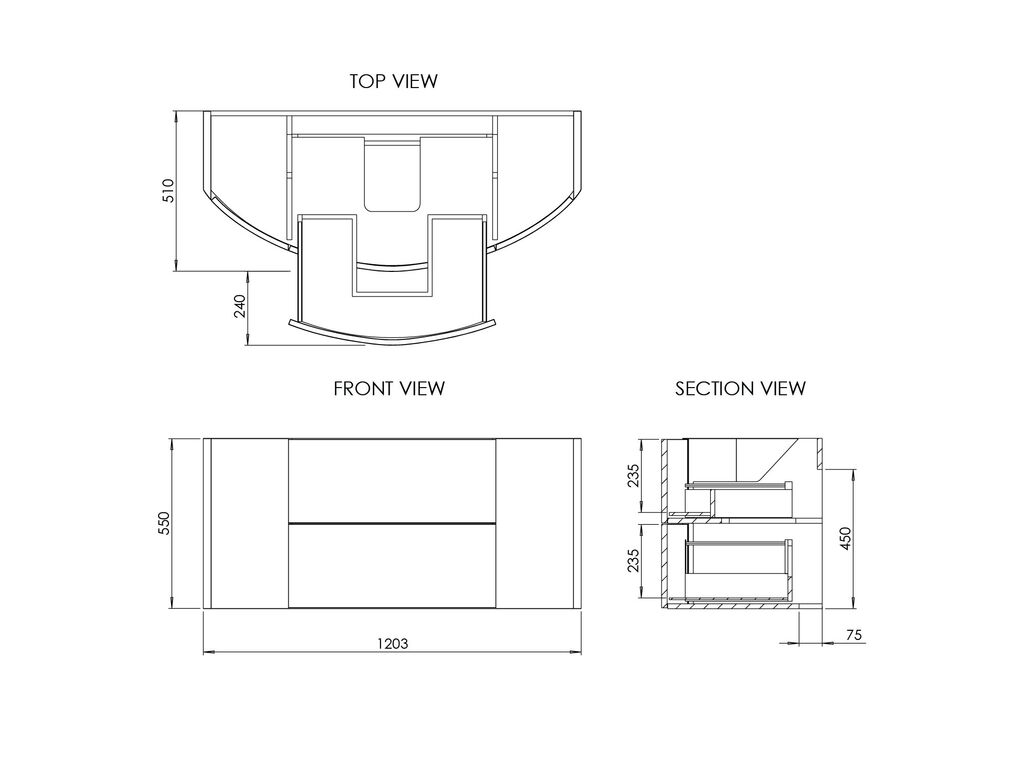

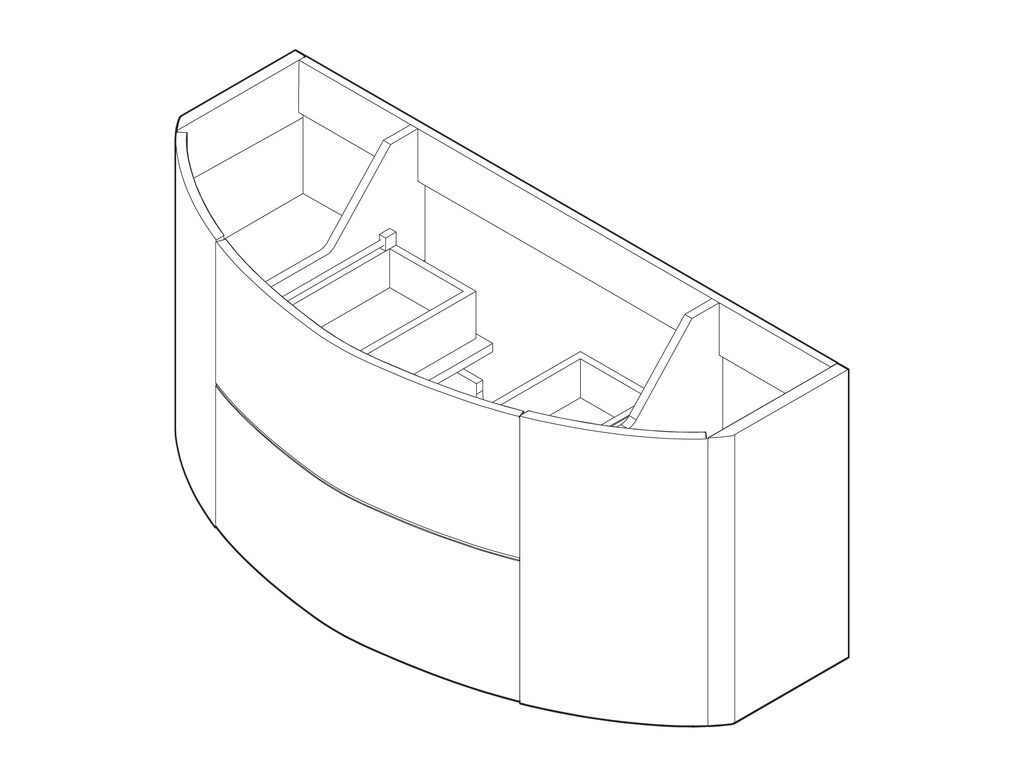

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
1200 x 510 x 570mm
Weight:
48.84 kg
Carcass Material:
MDF 16mm
Carcass Edging:
Foil Wrapped
Carcass Service Area:
Open back
Fascia Style:
MDF 18mm Slab
End Panel Material:
MDF 25mm
End Panel Detail:
Slab
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft Close
Hinge Bracket Cover Plates:
Yes
Handle Type:
Push to Open
Drawers:
2 drawers, Push To Open, 350mm runners
Shelves:
2 fixed - MDF 16mm
Fixation Method:
Fixed Through Rear Rail, 50mm from top @ 910mm centres
Door Open Unit Depth:
585mm
Compatible Basins:
In The Box:
Ultimo Wall Hung Vanity Unit 1200 Two Drawer Two Door
