Technical Data Sheet
Ultimo Wall Hung Vanity Unit 910 Two Drawer Two Door
7802

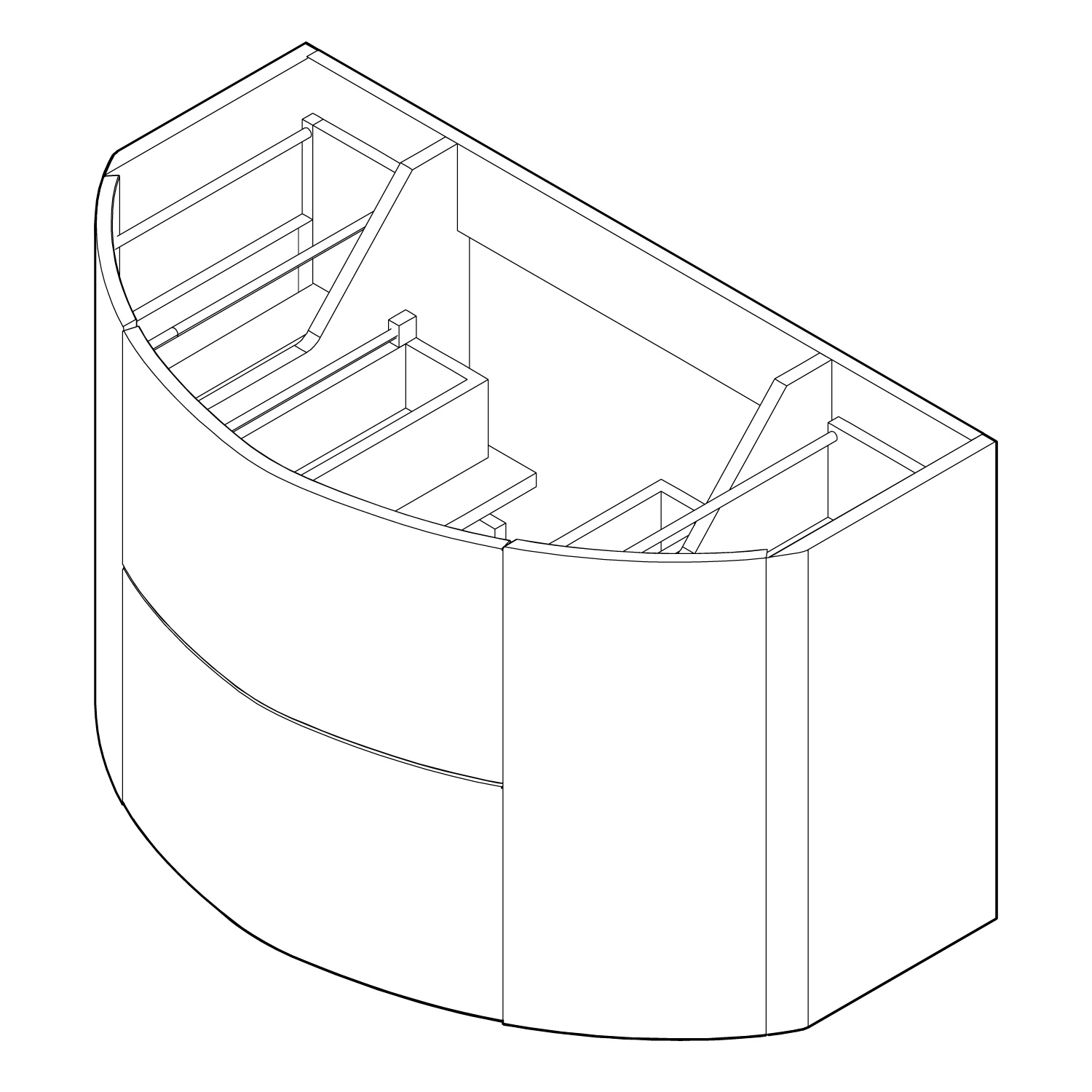

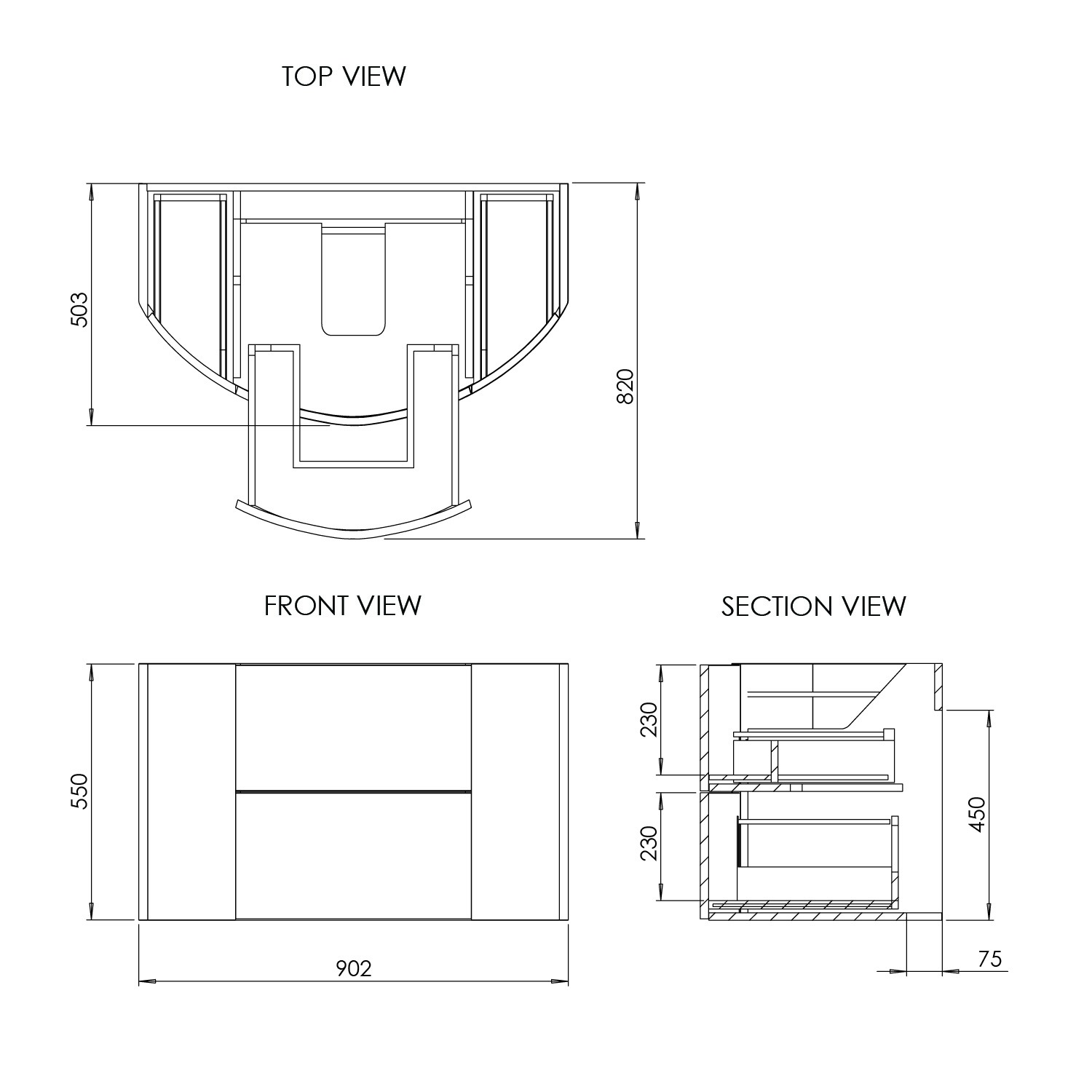

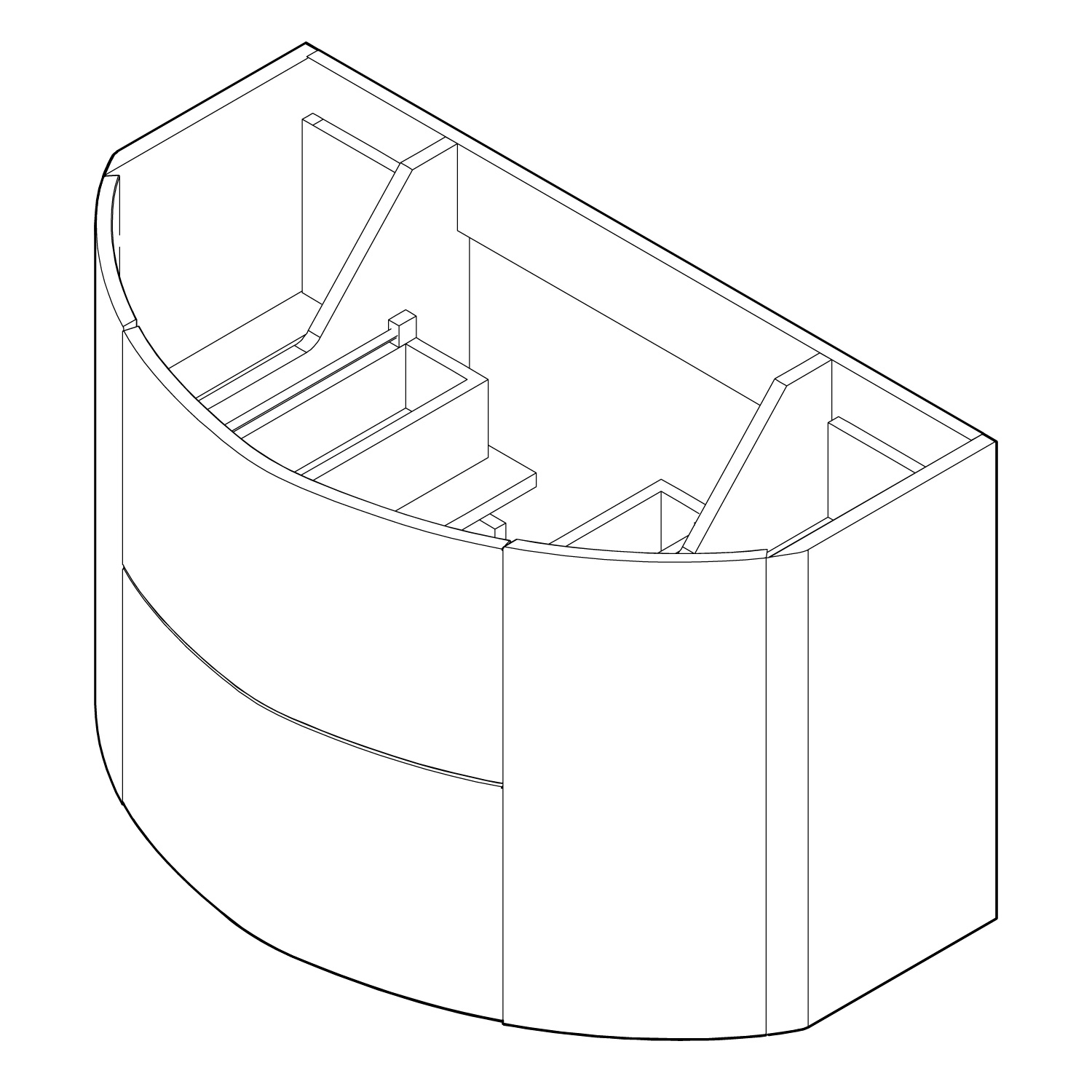

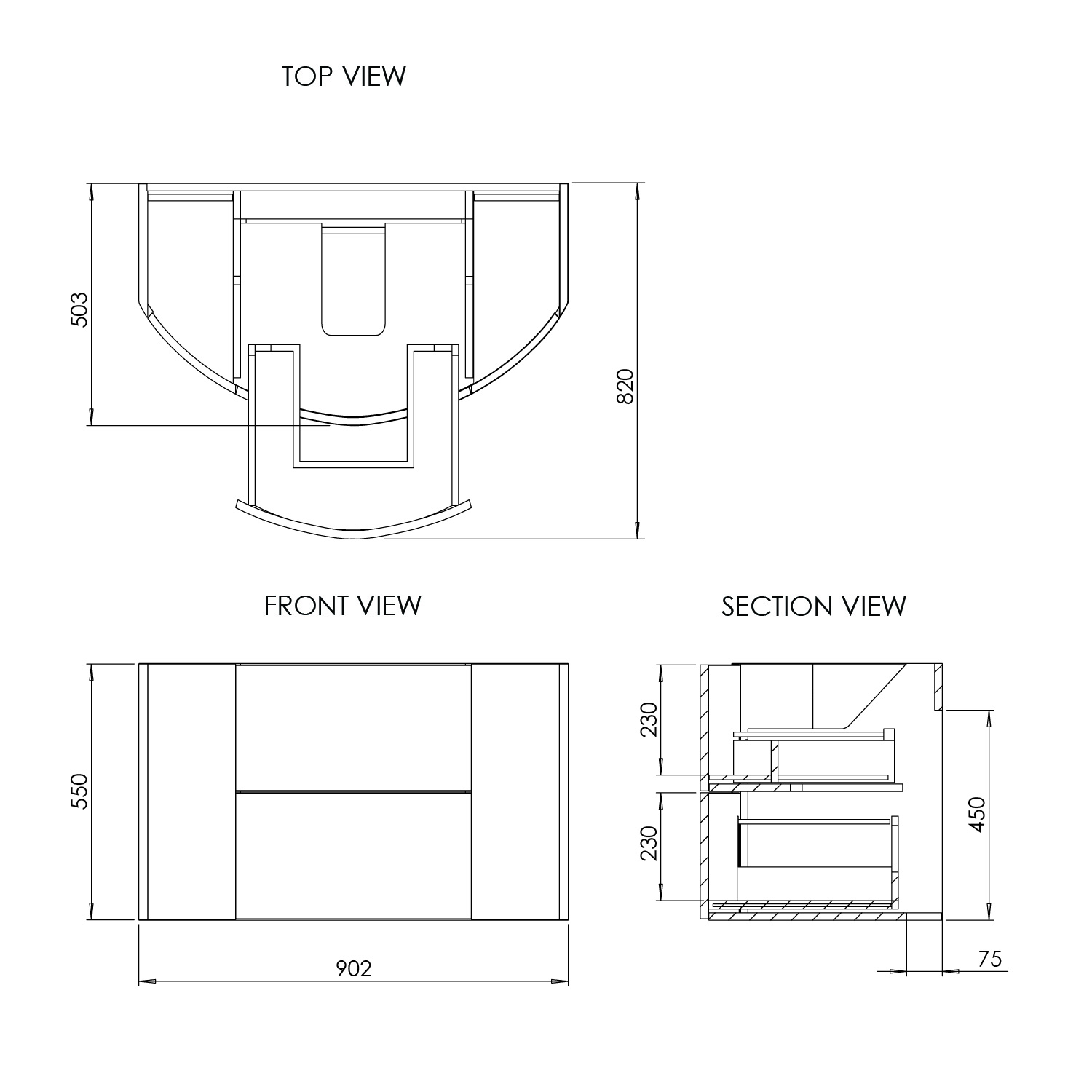

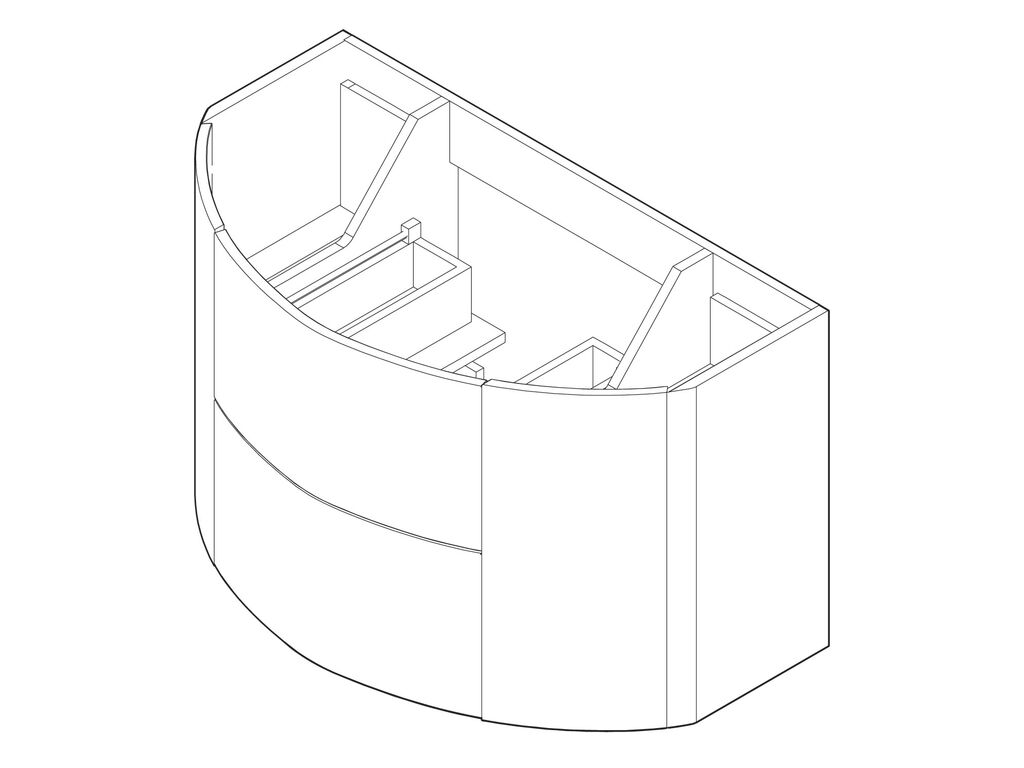

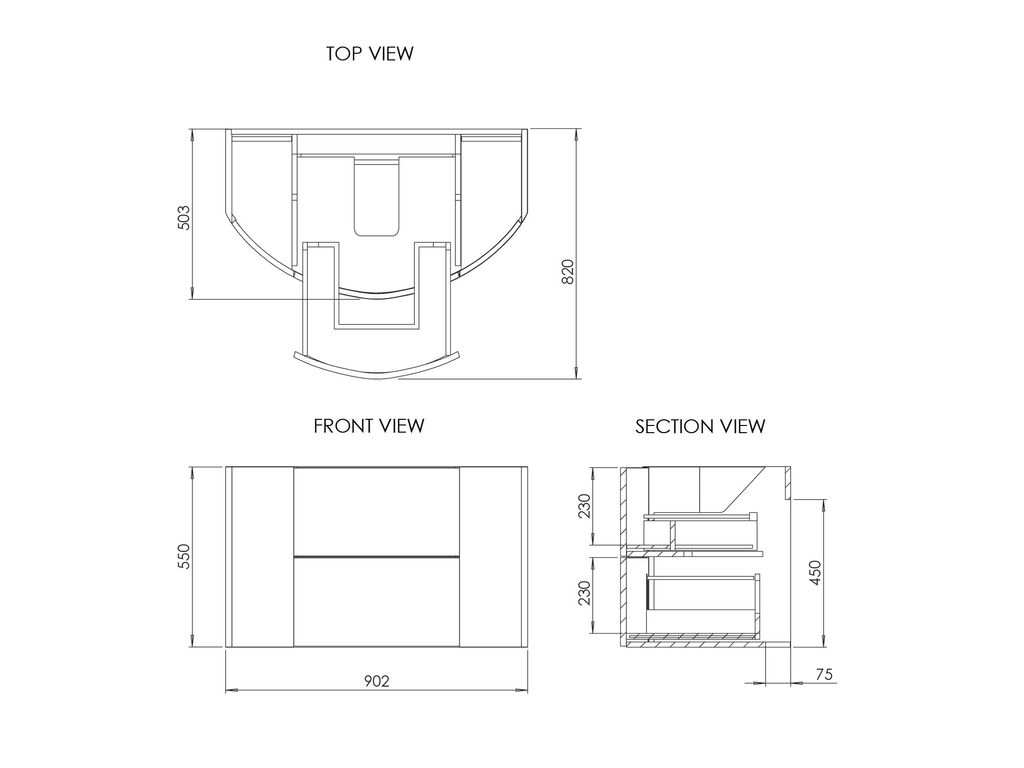

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
902 x 503 x 550mm
Carcass Material:
MDF 16mm
Carcass Edging:
Foil Wrapped
Carcass Service Area:
Part Open back
Fascia Style:
MDF 18mm Slab
End Panel Material:
MDF 18mm
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft Close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Push to Open
Drawers:
2 drawers, Push To Open, 335mm runners
Shelves:
2 fixed - MDF 16mm
Fixation Method:
Fixed Through Rear Rail, 50mm from top @ 650mm centres
Door Open Unit Depth:
555mm
Compatible Basins:
In The Box:
Ultimo Wall Hung Vanity Unit 910 Two Drawer Two Door
