Technical Data Sheet
Veneto Vanity Set 1010 Two Door Right Hand Basin
6953

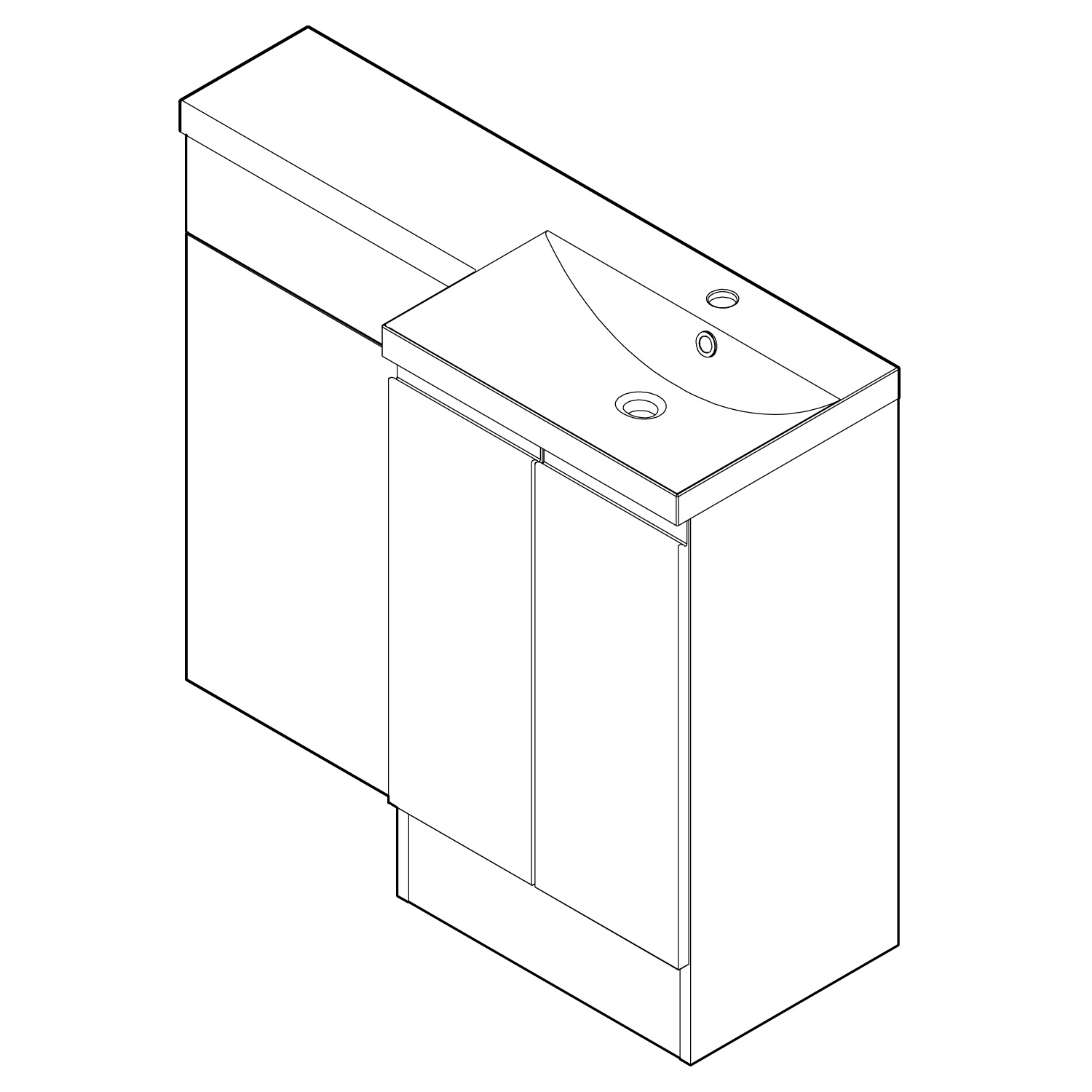

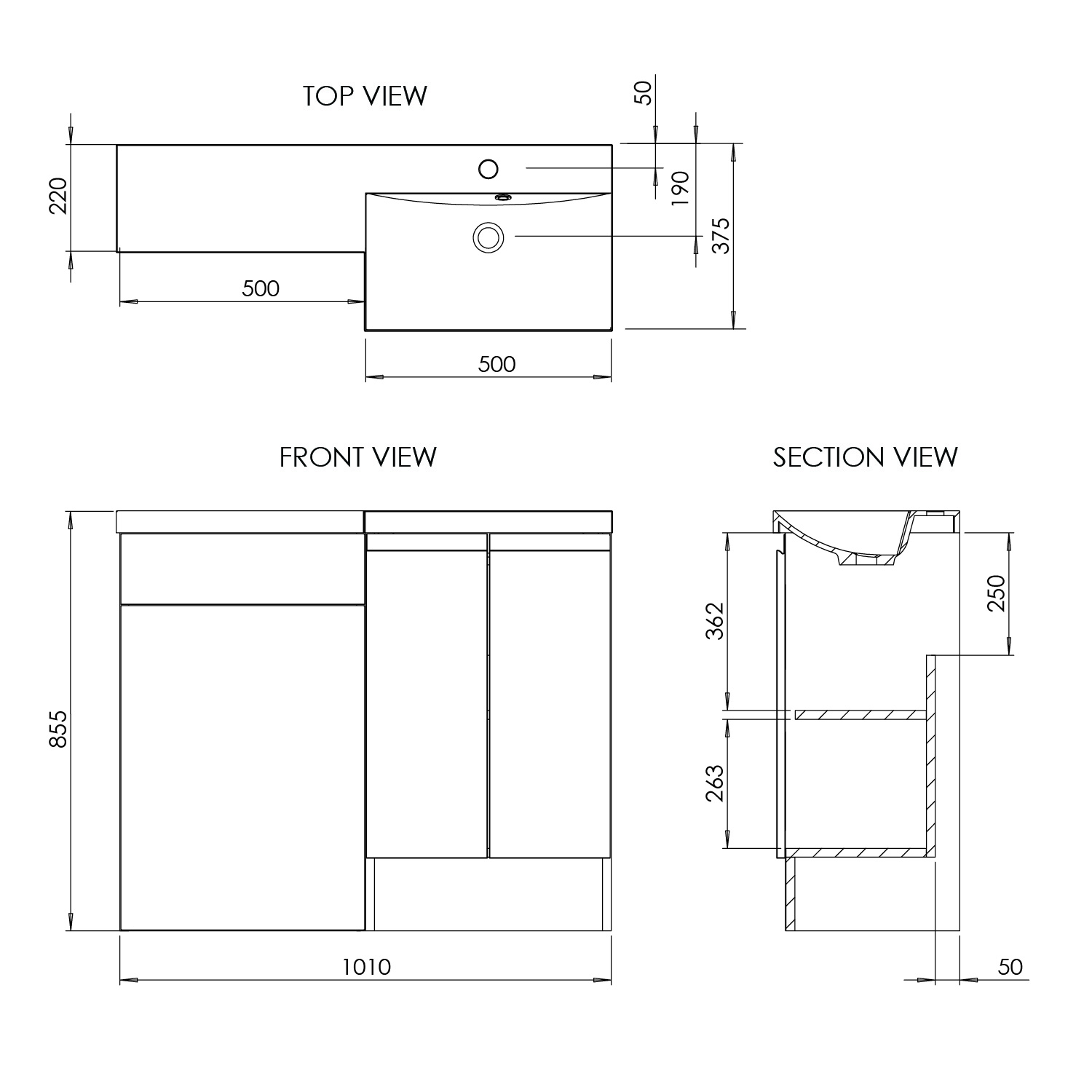

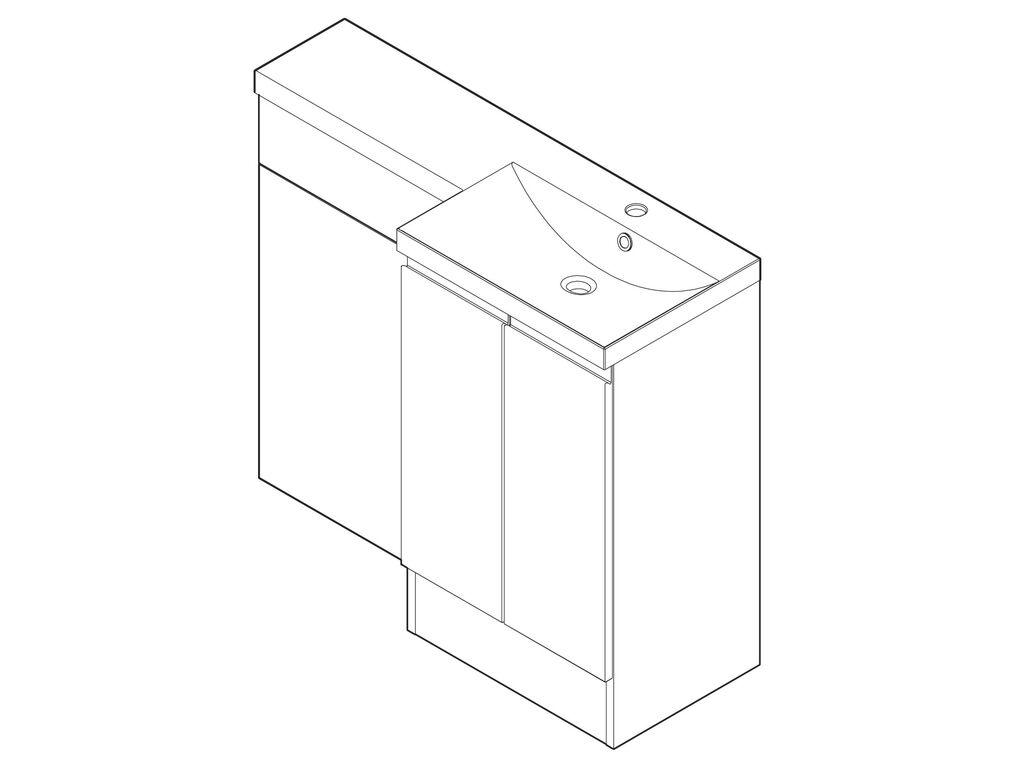

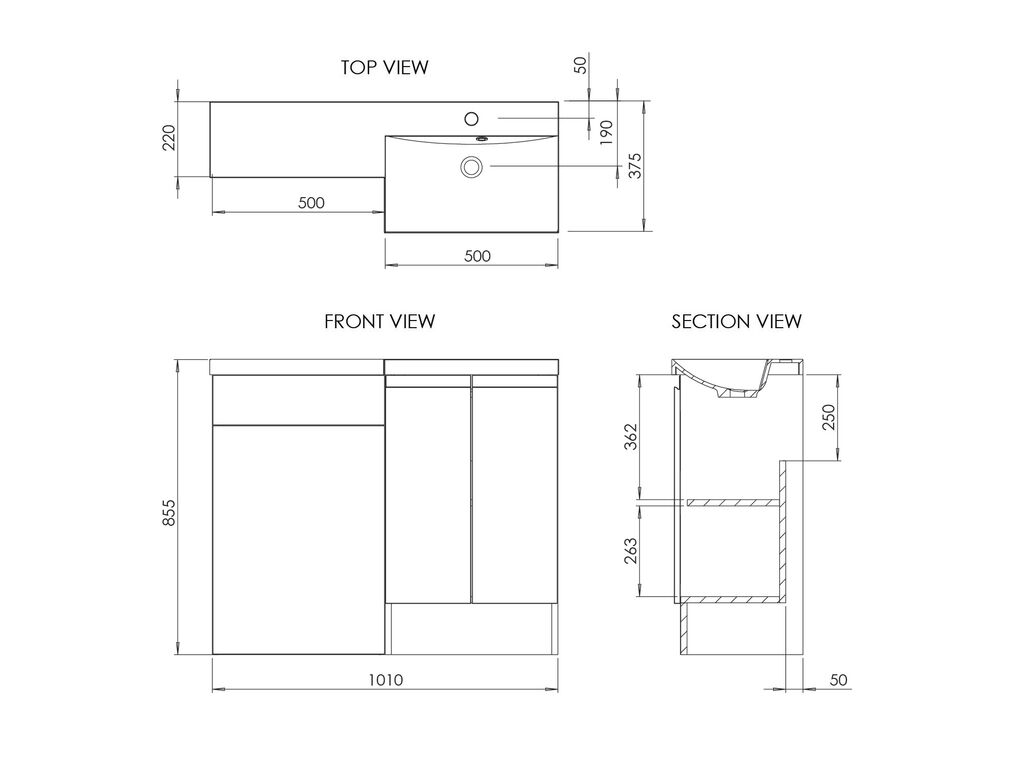

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Vanity Set
Dimensions (WxDxH):
1010 x 375 x 855mm
Carcass Material:
MFC 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open back
Fascia Style:
MDF 19mm Slab
End Panel Material:
MDF 19mm
End Panel Detail:
Slab
Door Openings:
2
Hinges Detail:
Soft Close
Handle Type:
Integrated Handle
Shelves:
1 fixed - MFC 16mm
Fixation Method:
Fixed Through Rear Rail
Leg / Foot Type:
Pre-attached, Glides Included
Door Open Unit Depth:
620mm
Service Void Depth:
48mm
Compatible Basins:
In The Box:
Veneto Vanity Set 1010 Two Door Right Hand Basin
