Technical Data Sheet
Plinth and Pelmet Two Piece Set 300 x 127mm
6022

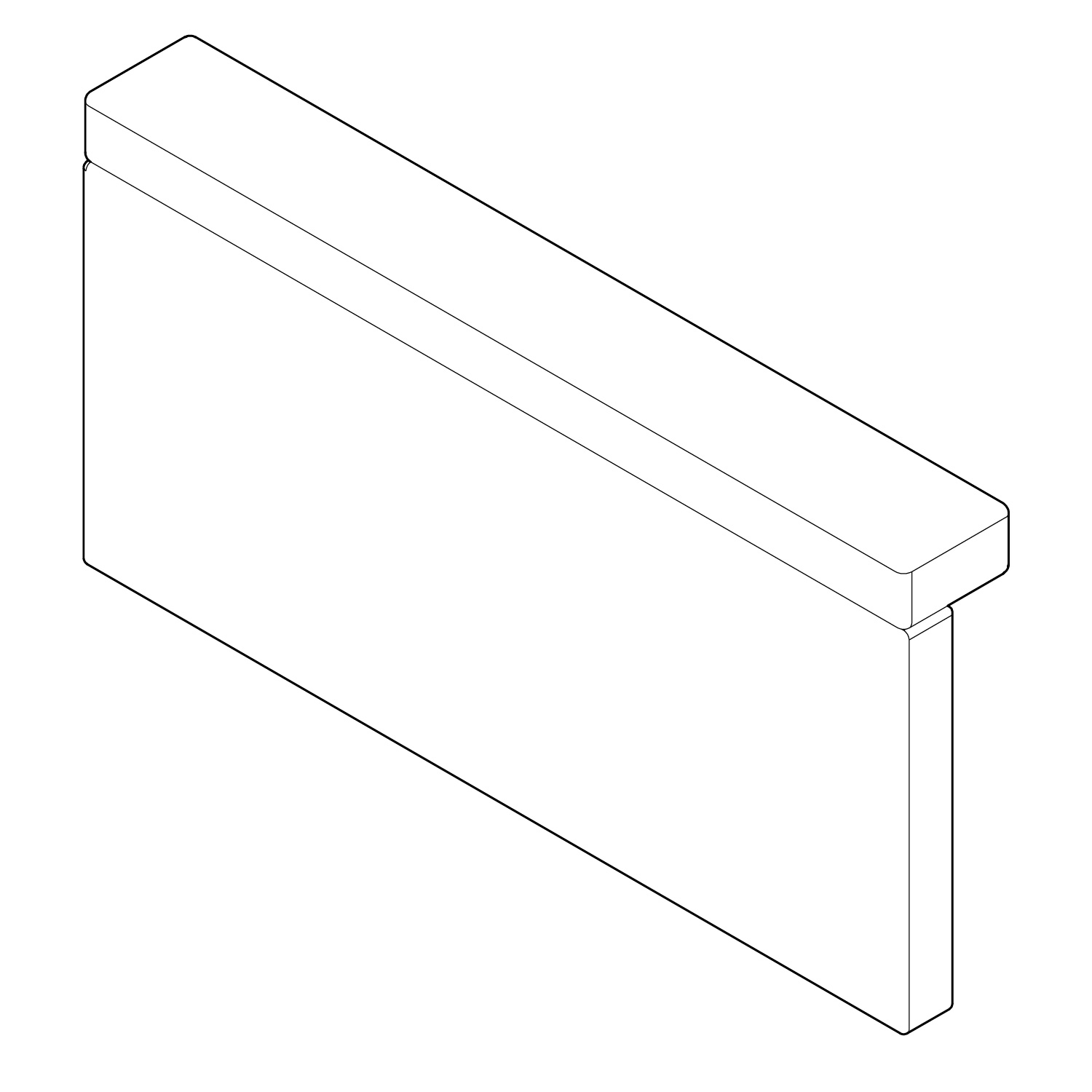

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
300 x 19 x 127mm
Weight:
0.86 kg
Fascia Type:
Plinth and Pelmet
Main Construction Material:
Wood
Fascia Material:
MDF 19mm
Fascia Style:
Slab
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
Bowing Tolerance:
2mm
In The Box:
Plinth and Pelmet Two Piece Set 300 x 127mm
Fitting kit
