Technical Data Sheet
Firova Wall hung Vanity Unit 510 Two Drawer Fluted
5966

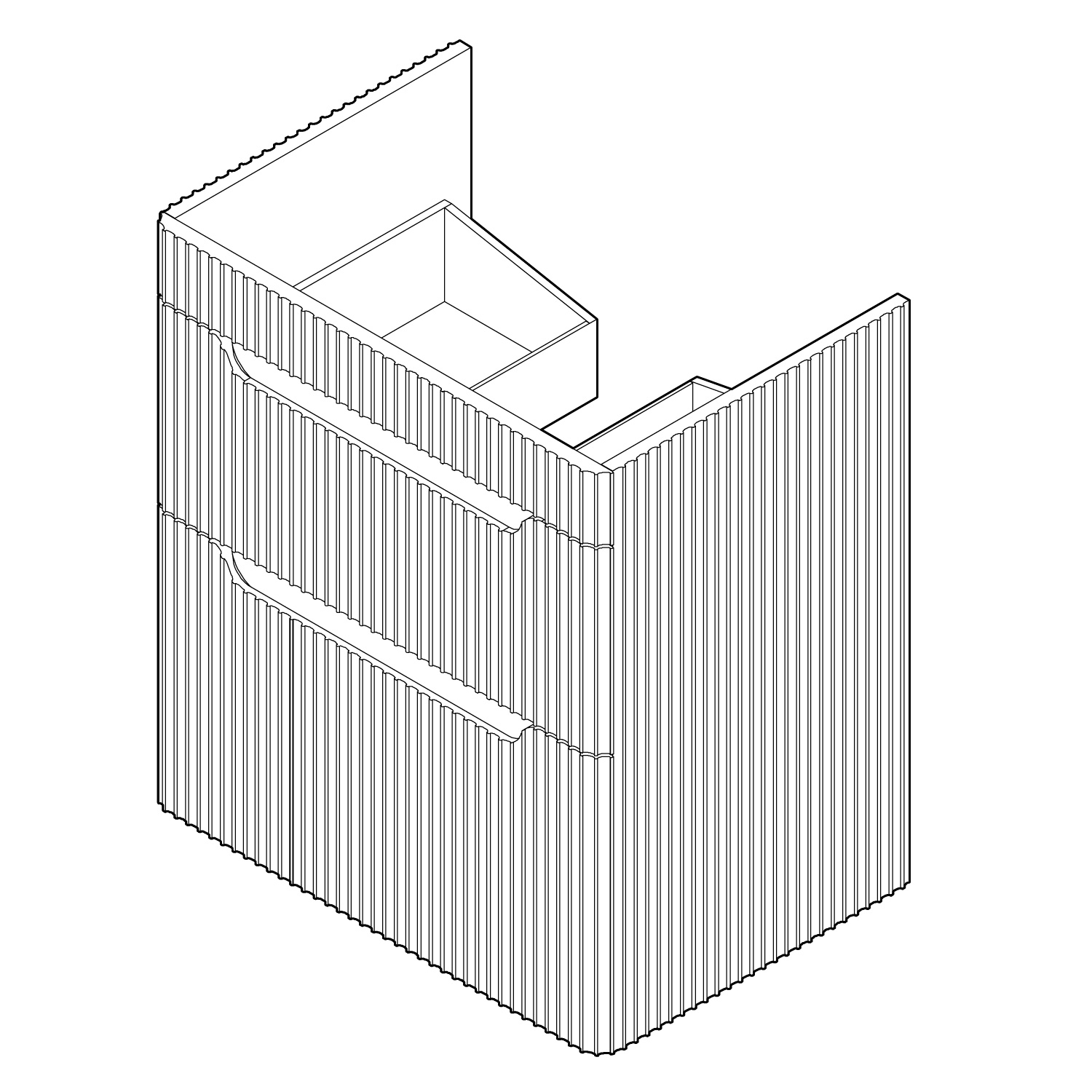

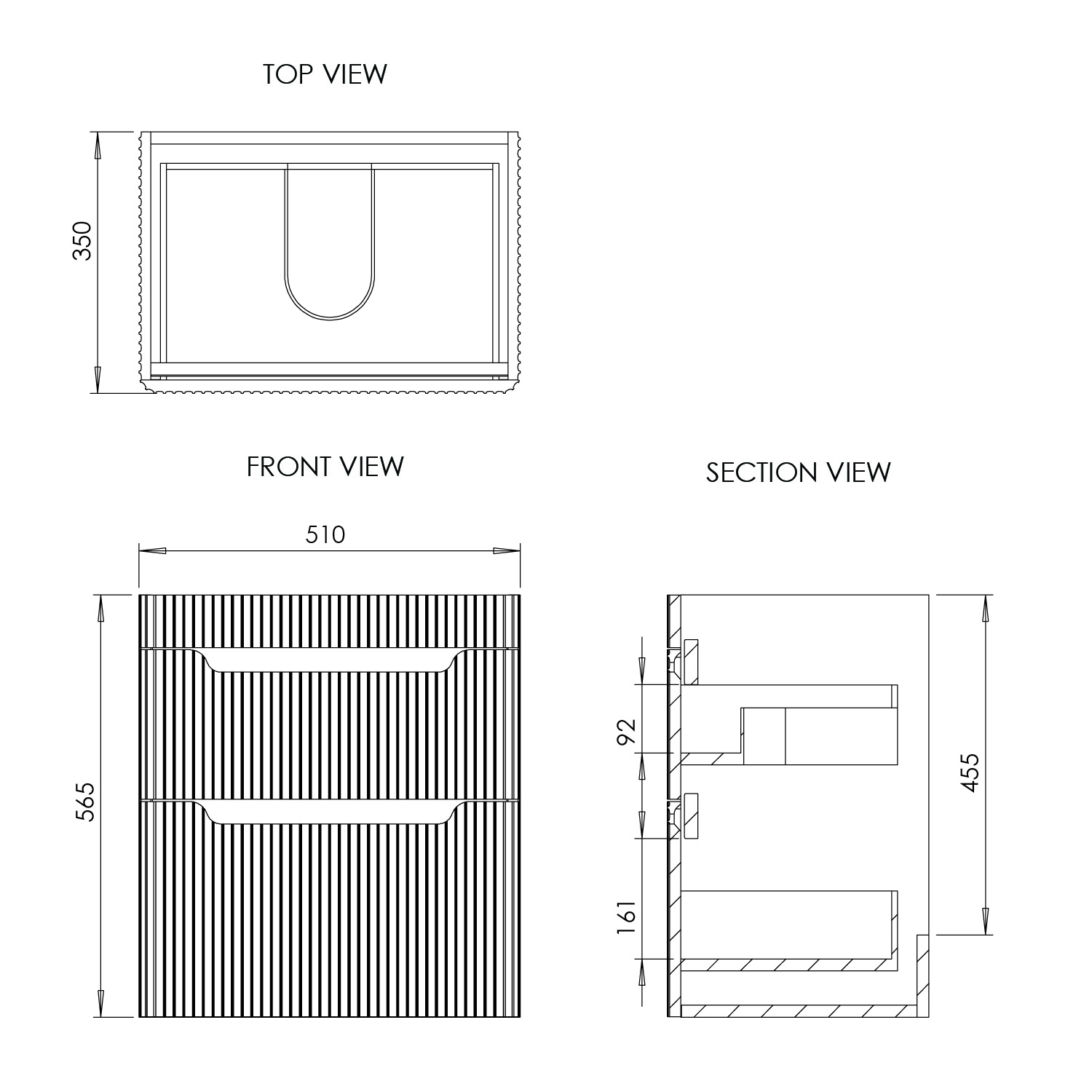

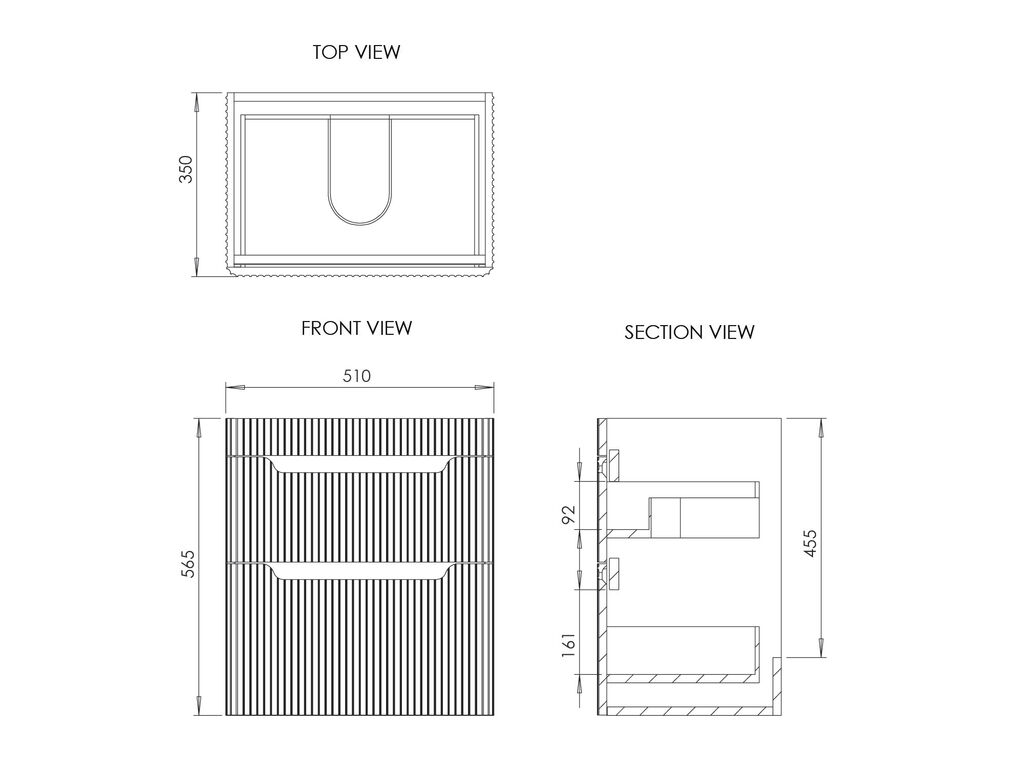

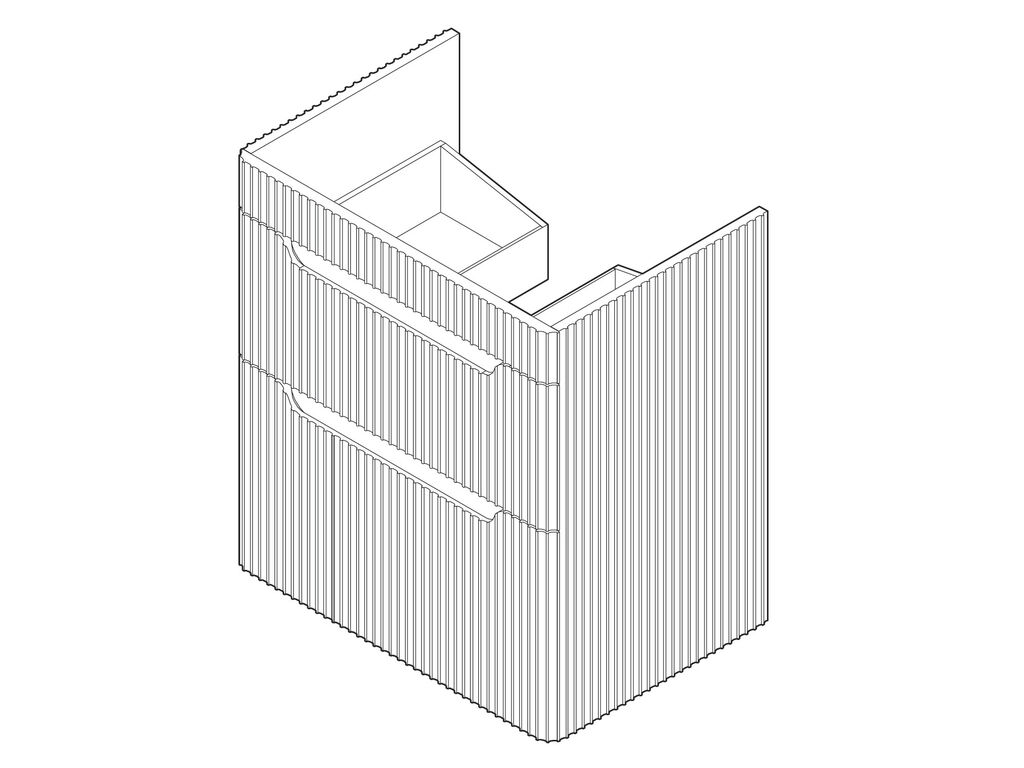

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
510 x 350 x 565mm
Carcass Material:
MDF 18mm
Carcass Service Area:
Part Open Back
End Panel Material:
MDF 18mm
End Panel Detail:
Fluted
Handle Type:
Integrated Handle
Drawers:
2 drawers, 270mm runners
Compatible Basins:
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Firova Wall hung Vanity Unit 510 Two Drawer Fluted
