Technical Data Sheet
Charlbury Floor Standing Vanity Unit 778 Two Door
5918

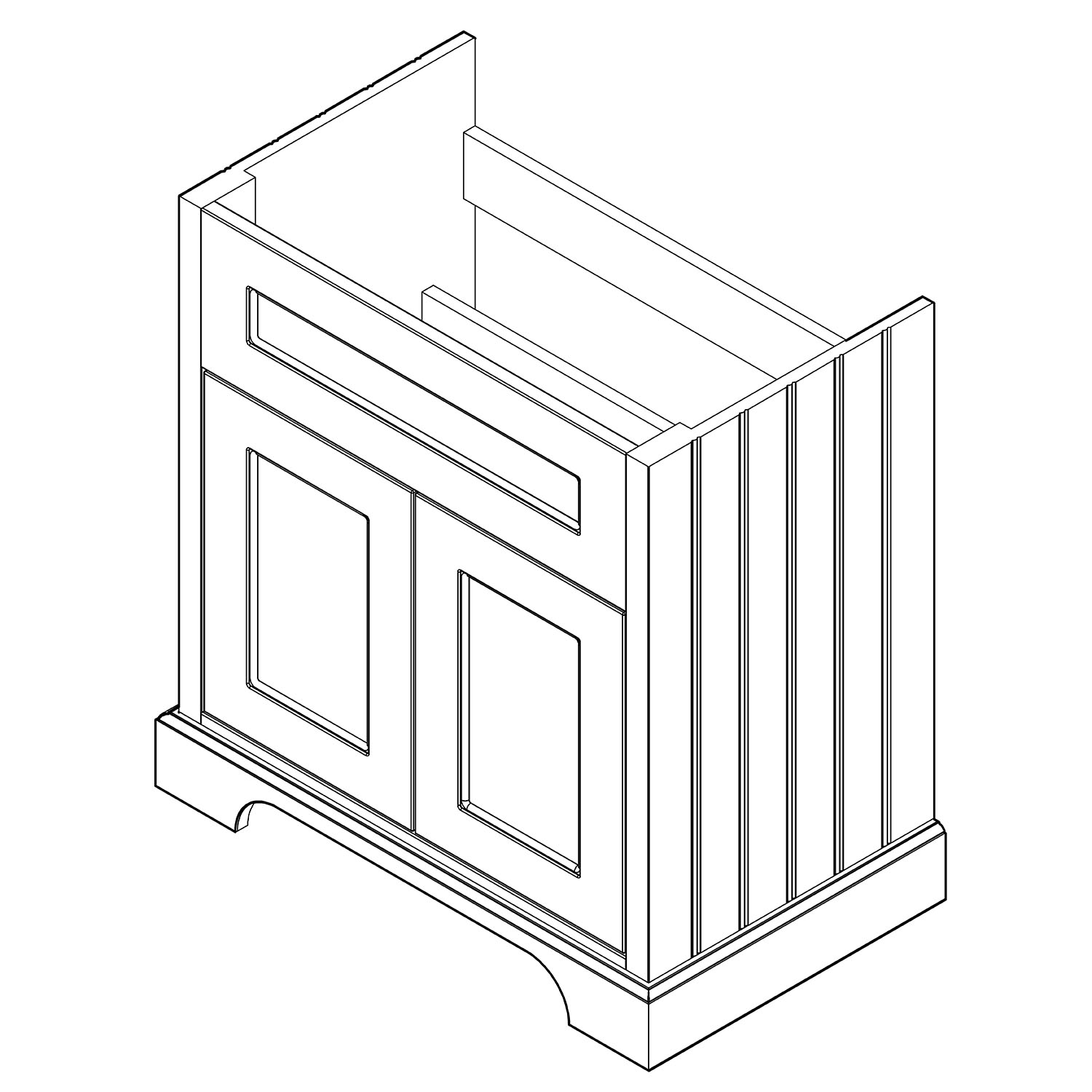

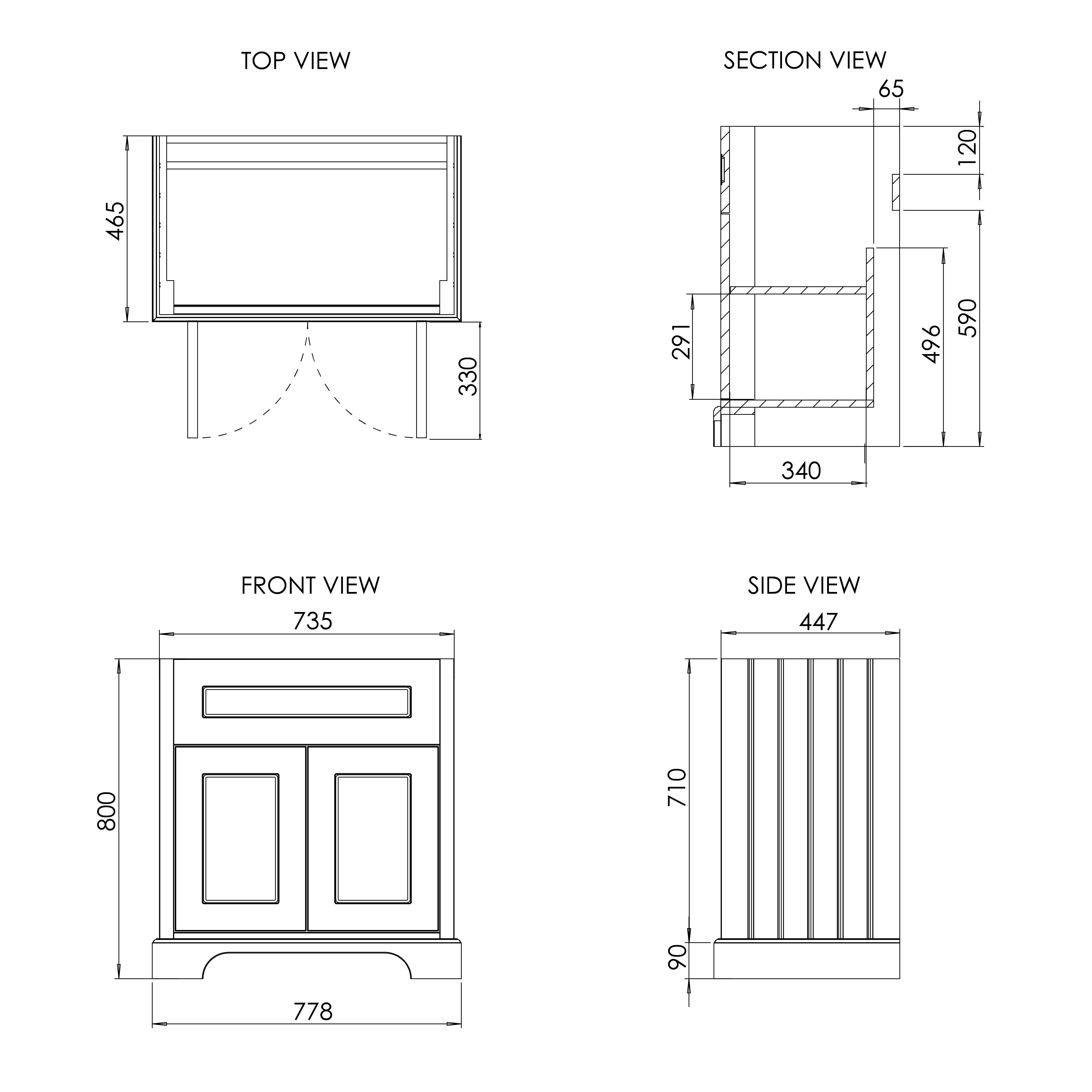

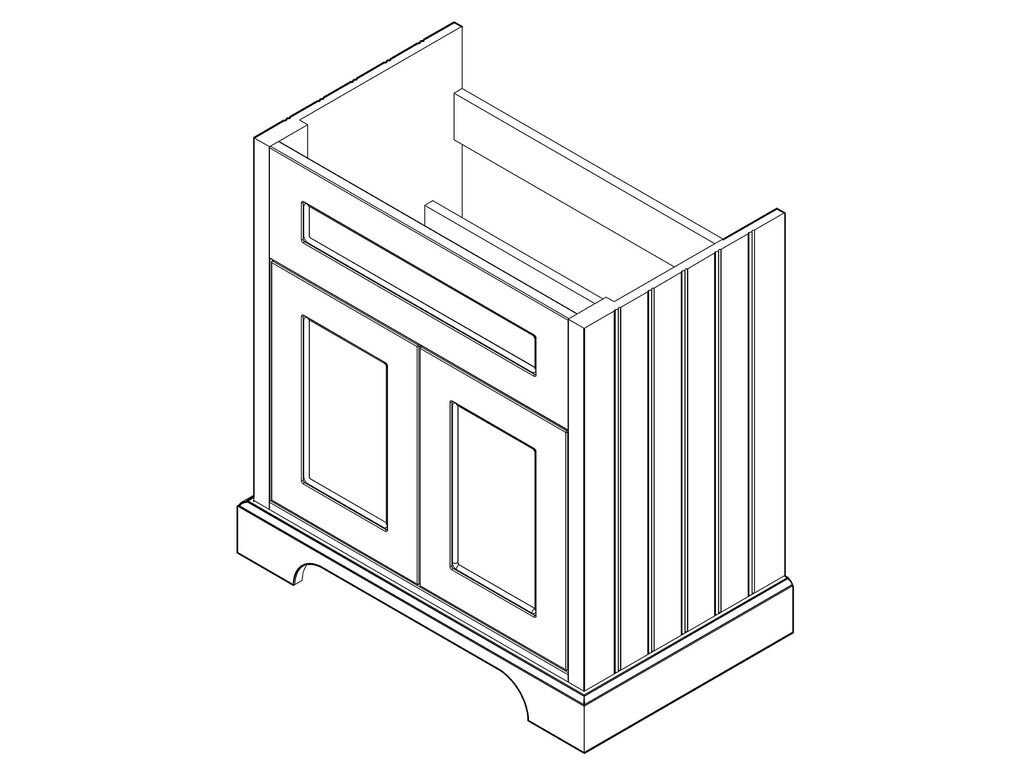

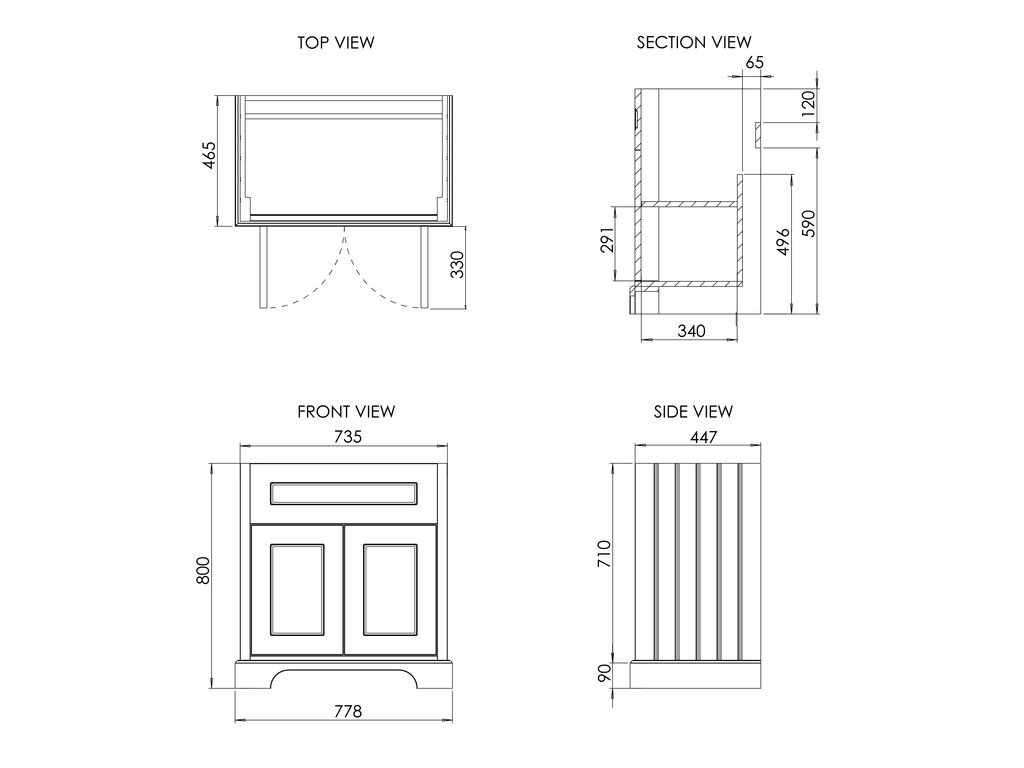

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Floor Standing Vanity Unit
Dimensions (WxDxH):
778 x 465 x 800mm
Weight:
34.71 kg
Carcass Material:
MDF 18mm
Carcass Edging:
Matched Edging
Carcass Colour:
Matched to Fascia
Carcass Service Area:
Open Back
Fascia Style:
MDF 22mm Shaker
Fascia Detail:
Shaker frame
End Panel Material:
MDF 19mm
End Panel Detail:
Tongue & Groove
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft Close,Inset
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Handle Not Included
Shelves:
1 removable - MDF 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Fixed Through Rear Rail, 170mm from top @ 497mm centres
Leg / Foot Type:
Pre-attached, Feet Included
Door Open Unit Depth:
765mm
Service Void Depth:
65mm
Compatible Basins:
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Charlbury Floor Standing Vanity Unit 778 Two Door
Instructions
