Technical Data Sheet
Charlbury Floor Standing Vanity Unit 962 Three Door Left Hand Curve
5915

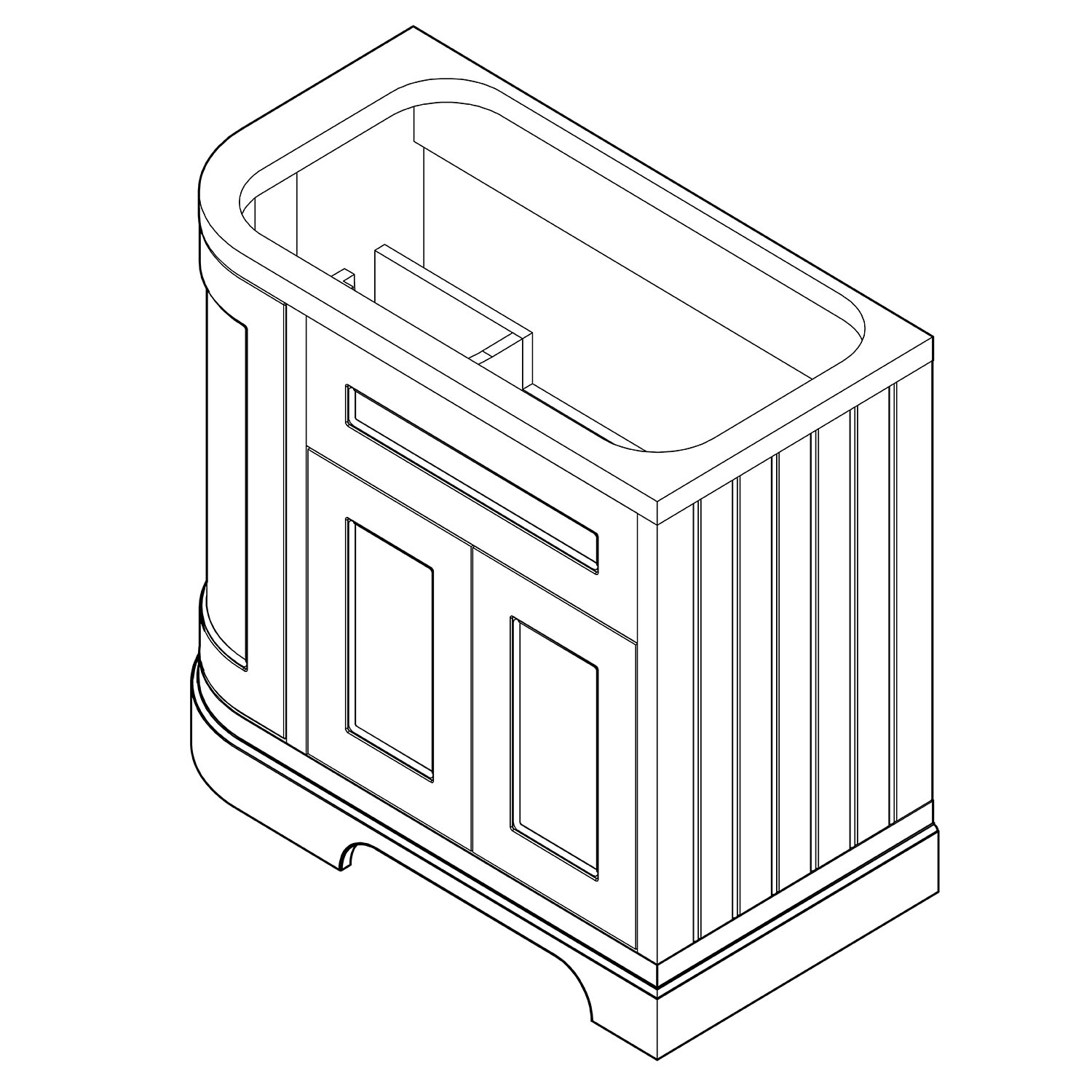

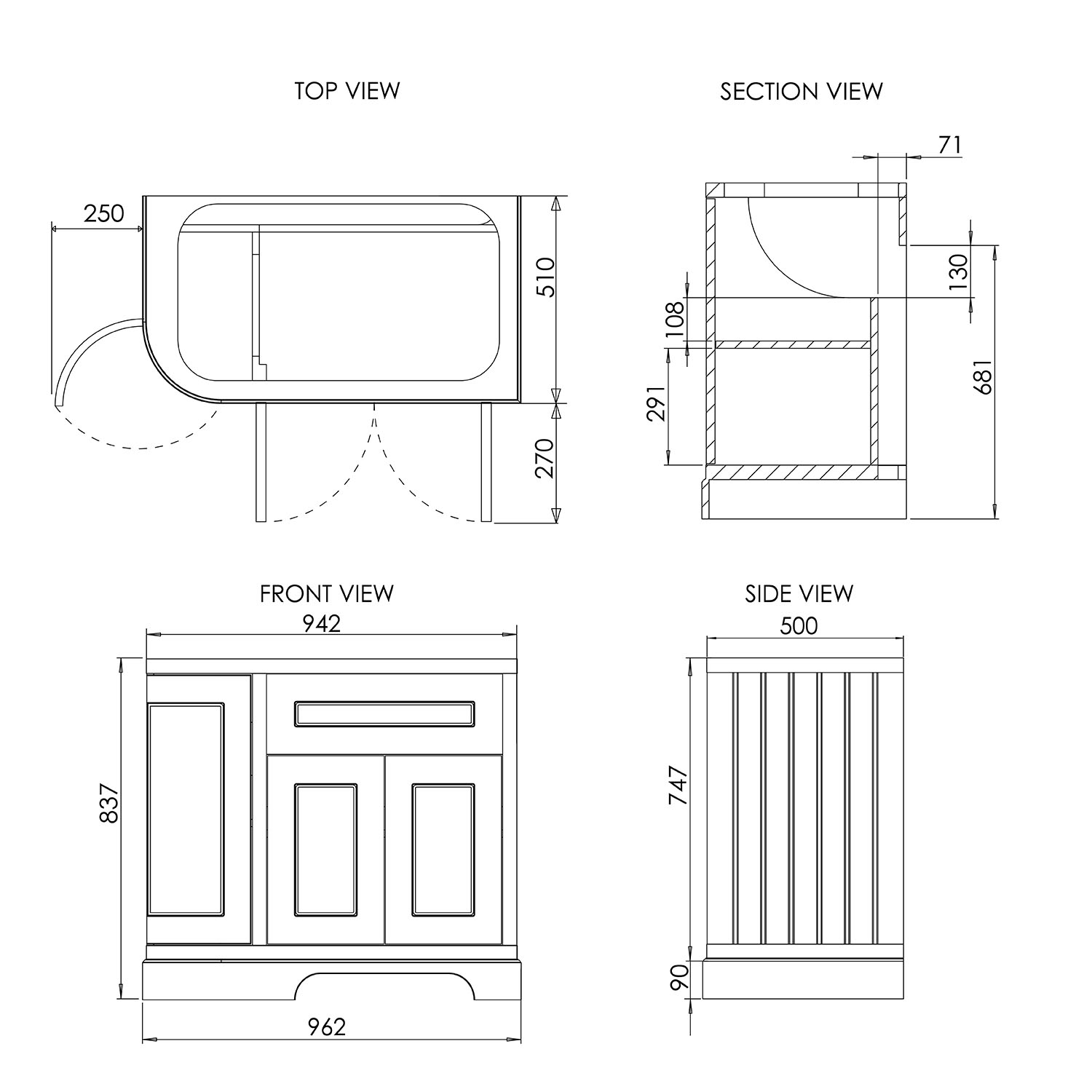

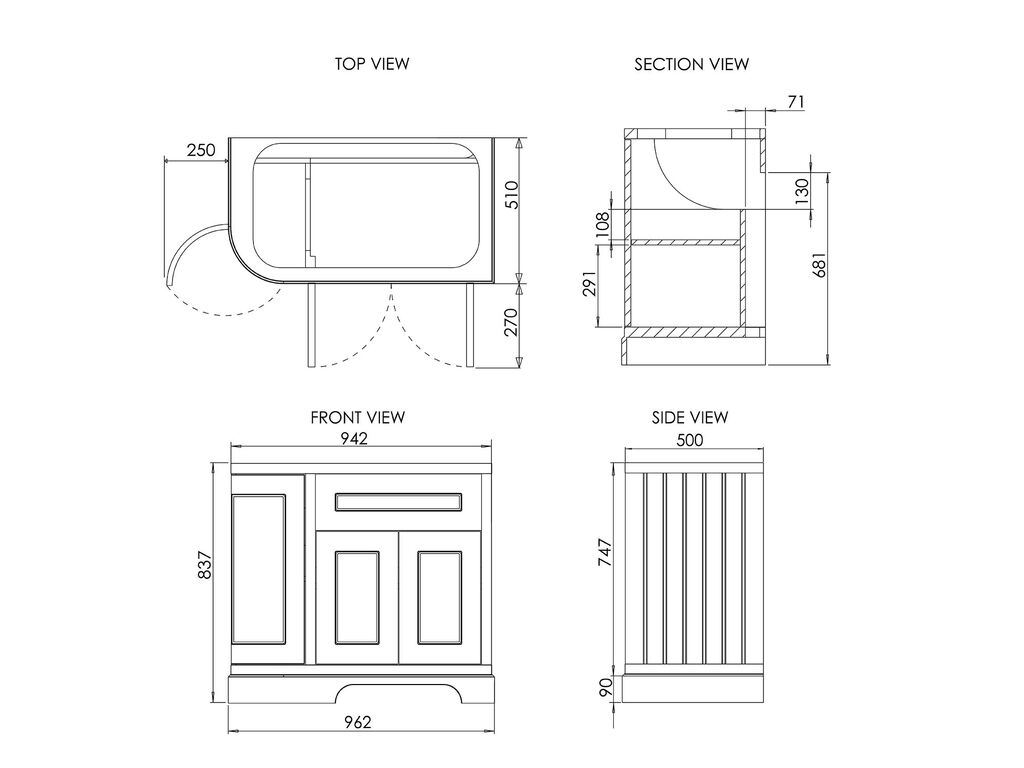

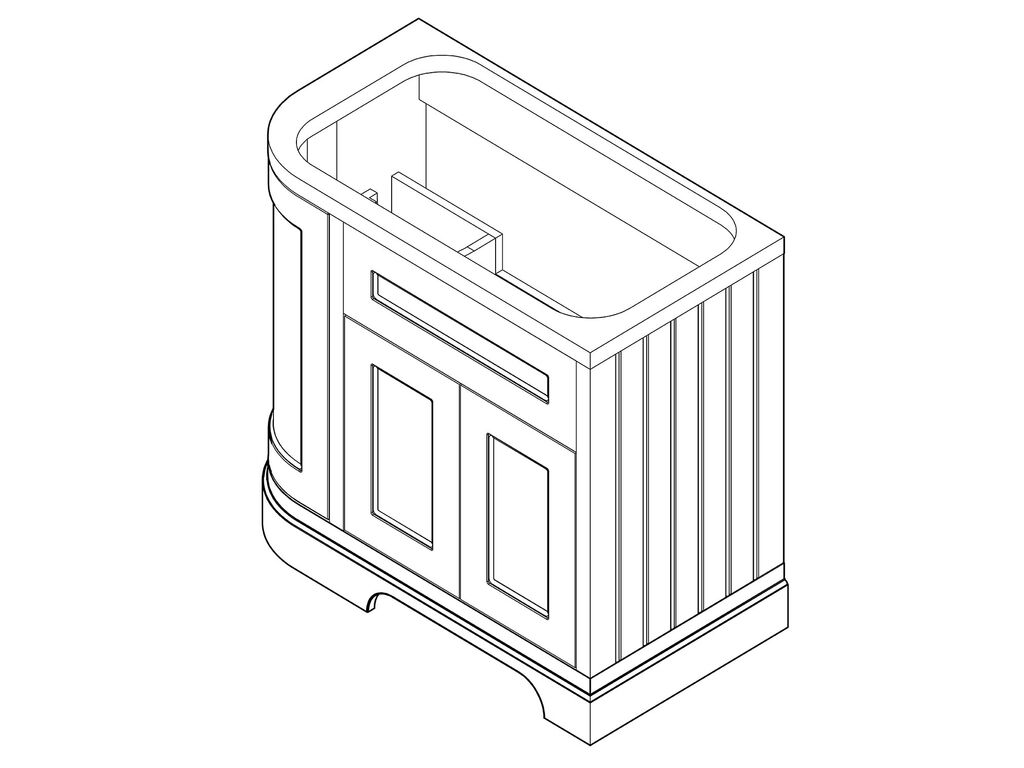

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Floor Standing Vanity Unit
Dimensions (WxDxH):
962 x 510 x 837mm
Weight:
55.28 kg
Carcass Material:
MDF 18mm
Carcass Edging:
Matched Edging
Carcass Colour:
Matched to Fascia
Carcass Service Area:
Open Back
Fascia Style:
MDF 22mm Shaker
Fascia Detail:
Shaker frame
End Panel Material:
MDF 20mm
End Panel Detail:
Shaker
Door Openings:
3
Door(s) Hinge Side:
Both
Hinges Detail:
Full Overlay,Inset,Soft Close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Handle Not Included
Shelves:
1 fixed - MDF 18mm, 1 removable - MDF 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Fixed Through Rear Rail, 97mm from top @ 610mm centres
Leg / Foot Type:
Pre-attached, Feet Included
Door Open Unit Depth:
780mm
Service Void Depth:
71mm
Compatible Basins:
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Charlbury Floor Standing Vanity Unit 962 Three Door Left Hand Curve
Instructions
