Technical Data Sheet
Charlbury Floor Standing Vanity Unit 1230 Four Door Double Curve
5914

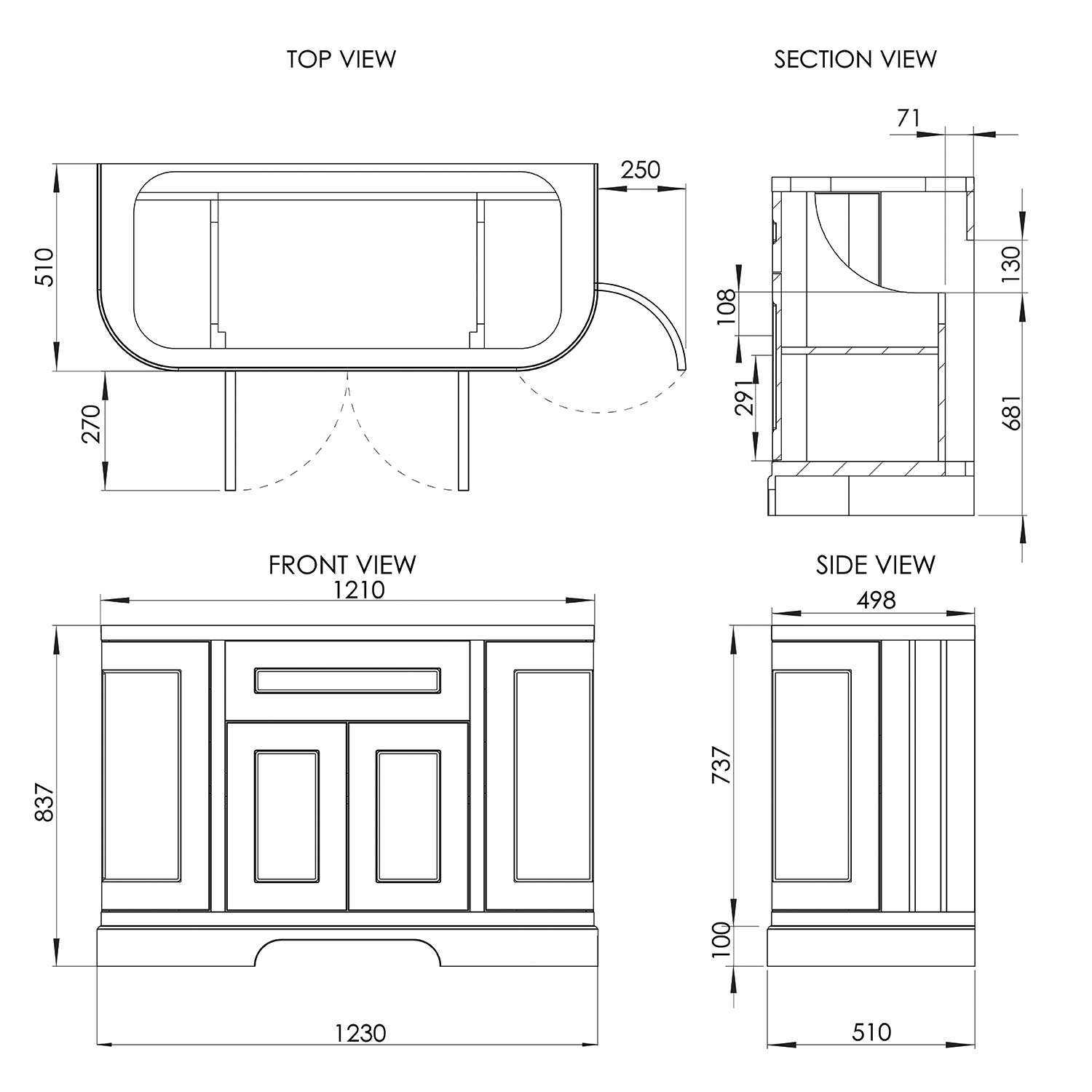

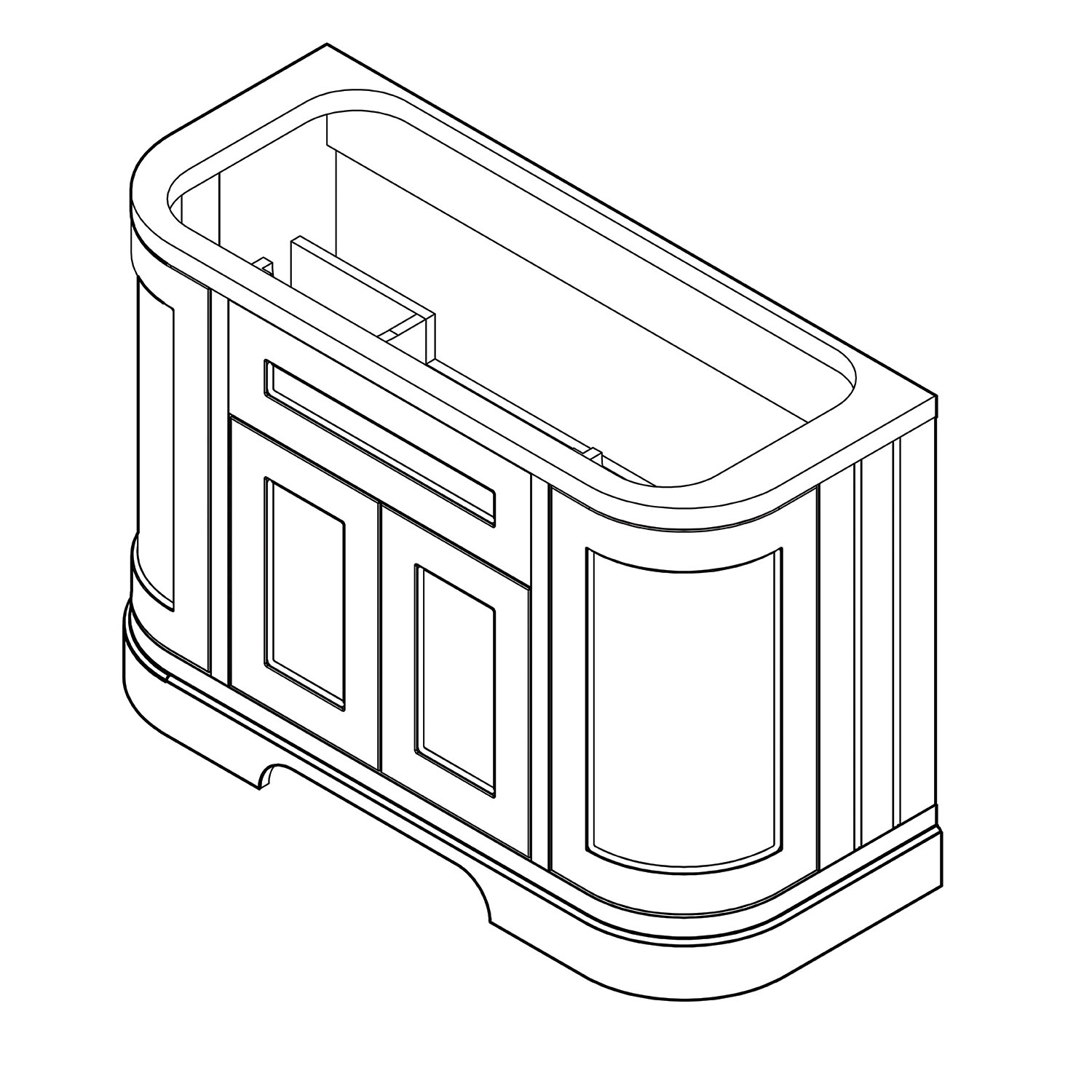

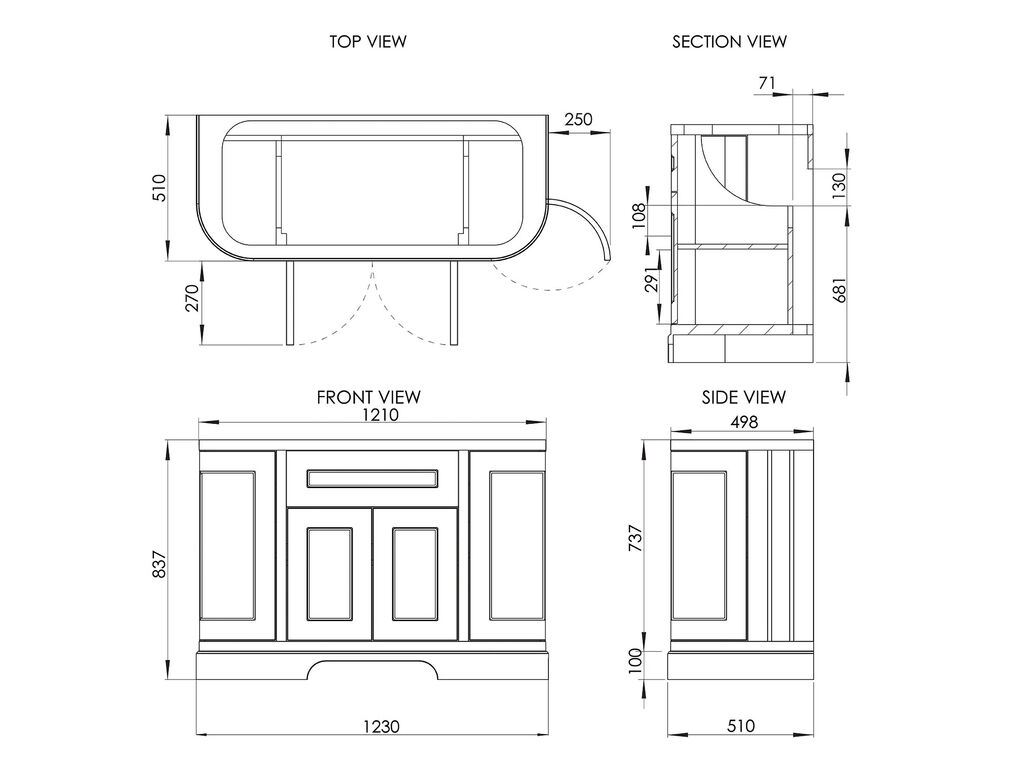

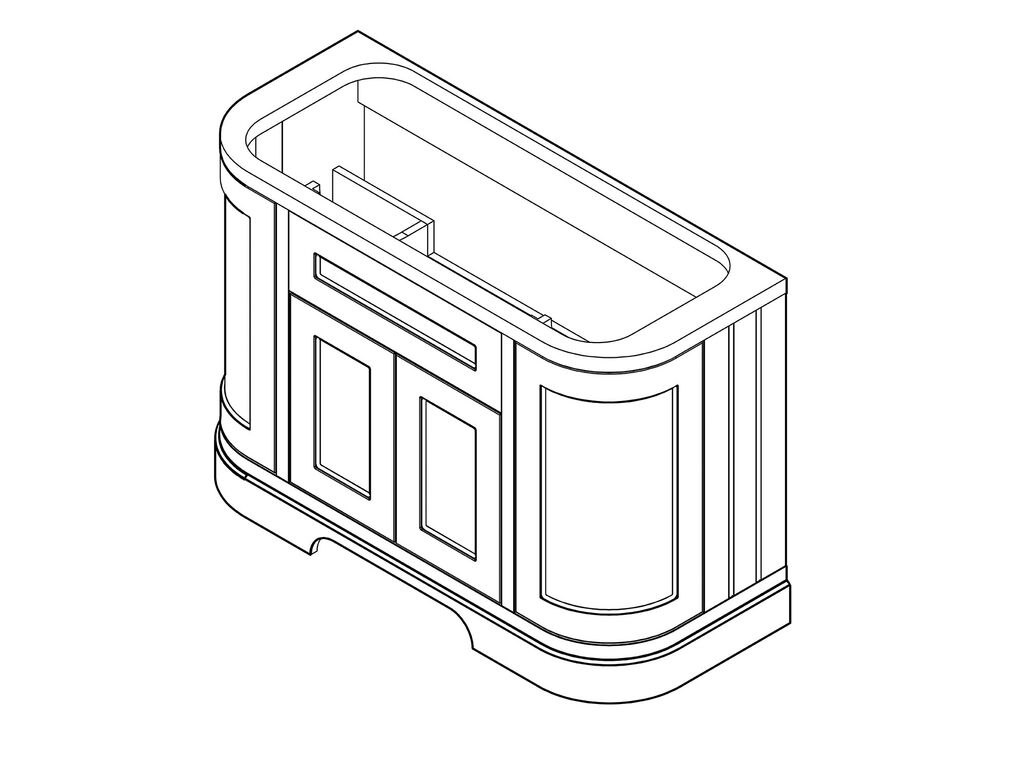

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Floor Standing Vanity Unit
Dimensions (WxDxH):
1230 x 510 x 837mm
Weight:
69.34 kg
Carcass Material:
MDF 18mm
Carcass Edging:
Matched Edging
Carcass Colour:
Matched to Fascia
Carcass Service Area:
Open Back
Fascia Style:
MDF 22mm Shaker
Fascia Detail:
Shaker frame
End Panel Material:
MDF 20mm
End Panel Detail:
Shaker
Door Openings:
4
Door(s) Hinge Side:
Both
Hinges Detail:
Full Overlay,Inset,Soft Close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Handle Not Included
Shelves:
2 fixed - MDF 18mm, 1 removable - MDF 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Fixed Through Rear Rail, 97mm from top @ 610mm centres
Leg / Foot Type:
Pre-attached, Feet Included
Door Open Unit Depth:
775mm
Service Void Depth:
70mm
Compatible Basins:
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Charlbury Floor Standing Vanity Unit 1230 Four Door Double Curve
Instructions
