Technical Data Sheet
Aurelia Floor Standing Vanity Unit 600 Two Drawer
5866

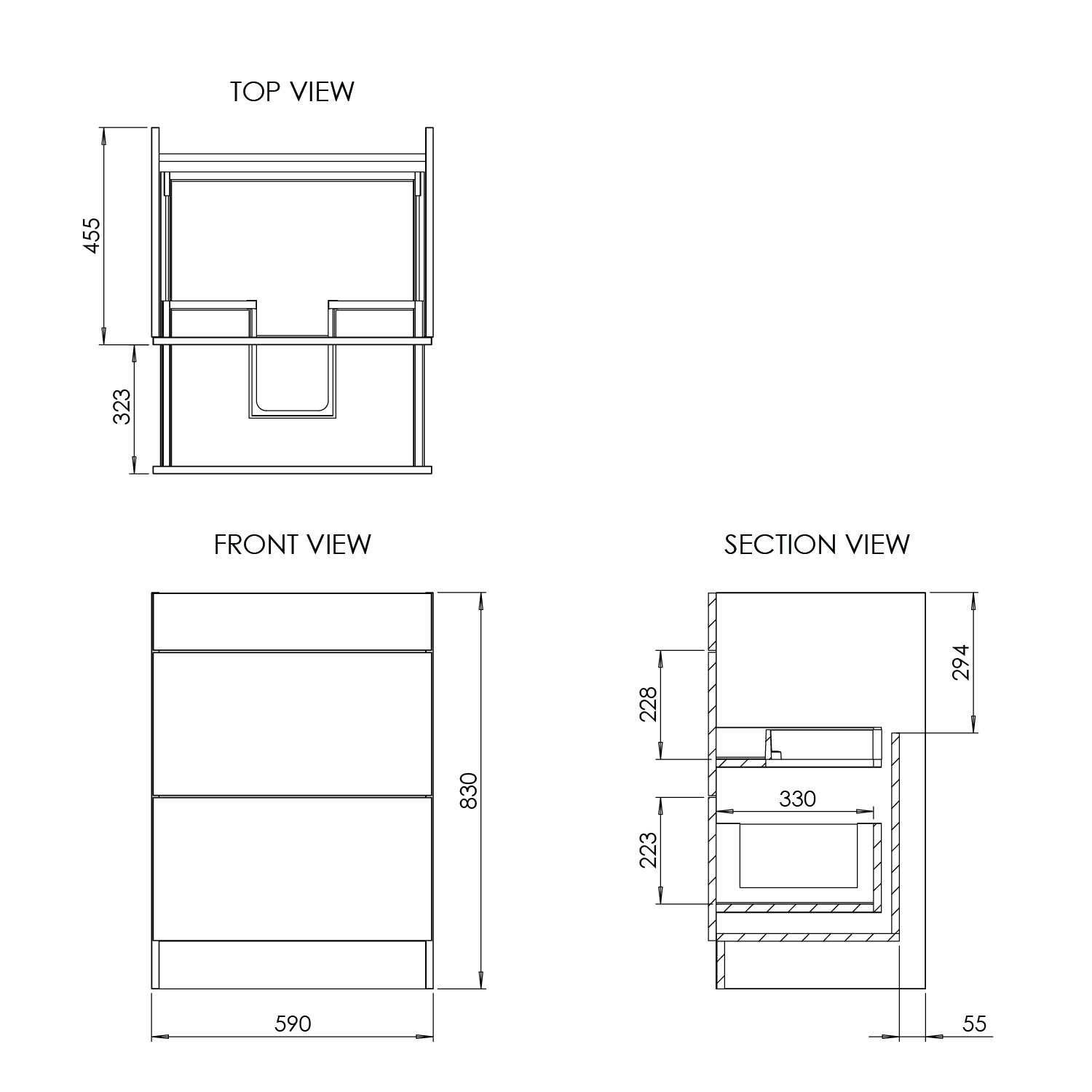

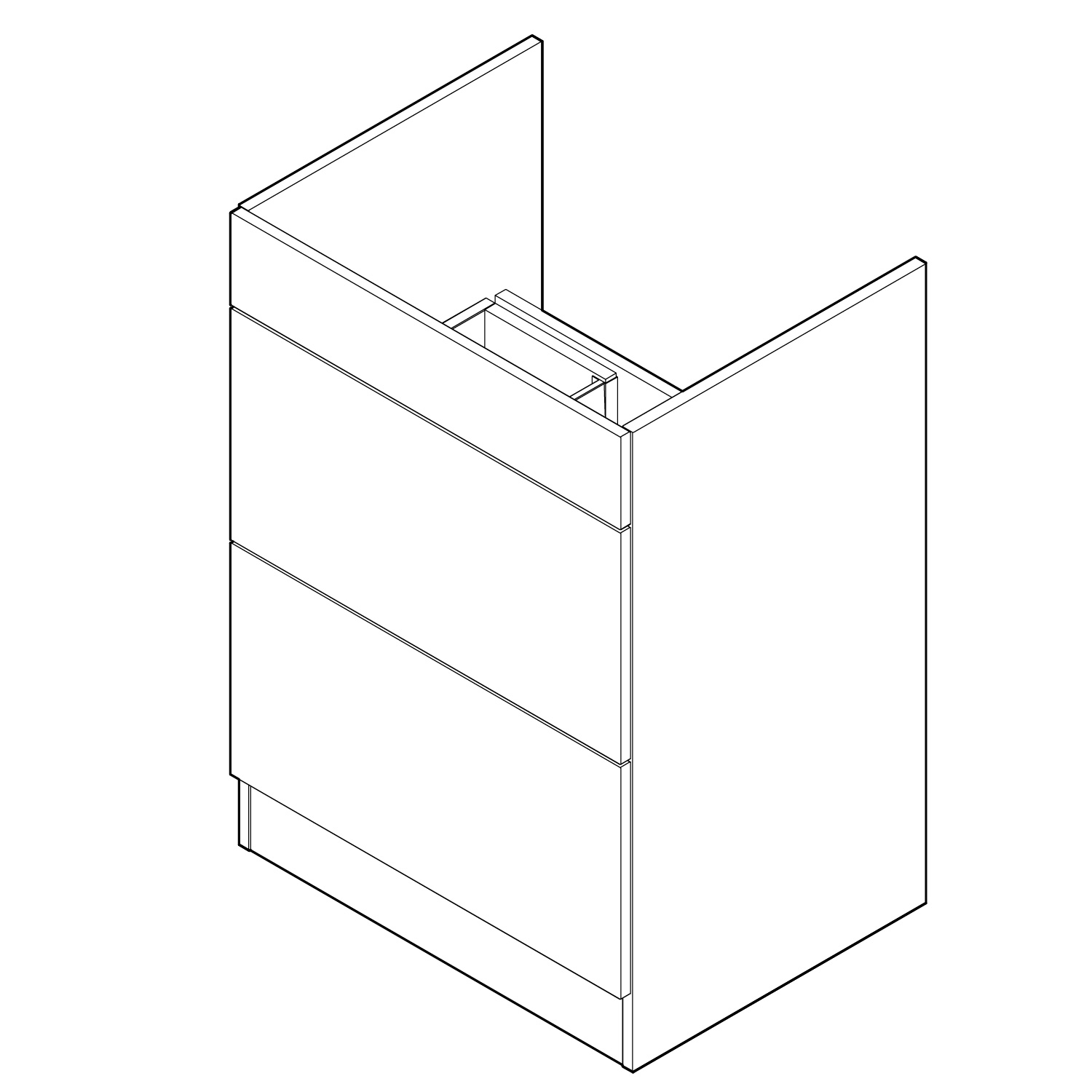

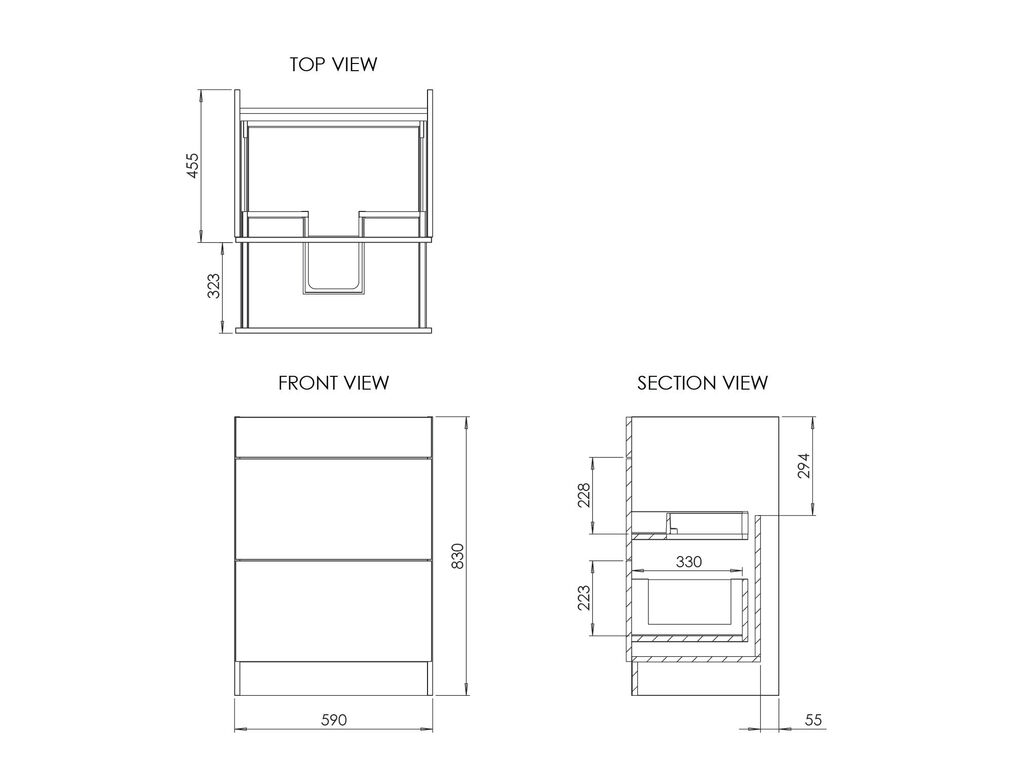

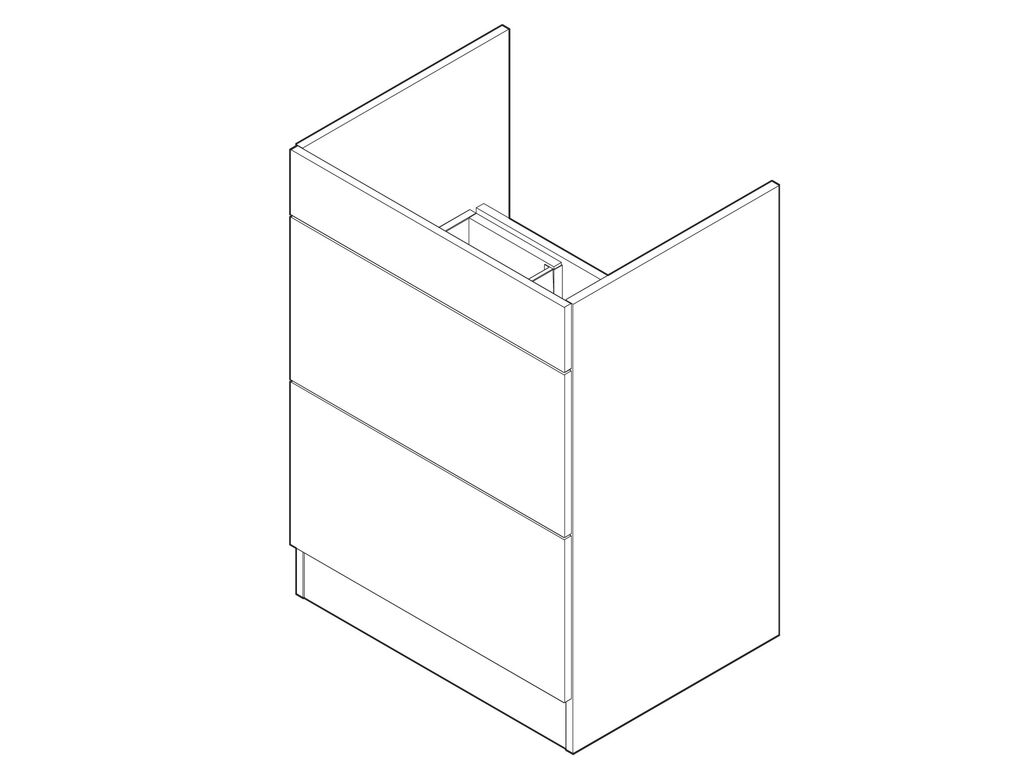

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Floor Standing Vanity Unit
Dimensions (WxDxH):
590 x 455 x 830mm
Weight:
31 kg
Carcass Material:
MDF 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open back
Fascia Style:
MDF 16mm Slab
End Panel Material:
MDF 20mm
End Panel Detail:
Slab
Handle Type:
Handle Not Included
Drawers:
2 drawers, Soft Close, 340mm runners
Fixation Method:
Adjustable Metal Wall Brackets, 100mm from top @ 525mm centres
Leg / Foot Type:
Pre-attached, Glides Included
Service Void Depth:
55mm
Compatible Basins:
In The Box:
Aurelia Floor Standing Vanity Unit 600 Two Drawer
