Technical Data Sheet
Petra Tall Wall Unit 470 One Door
5852

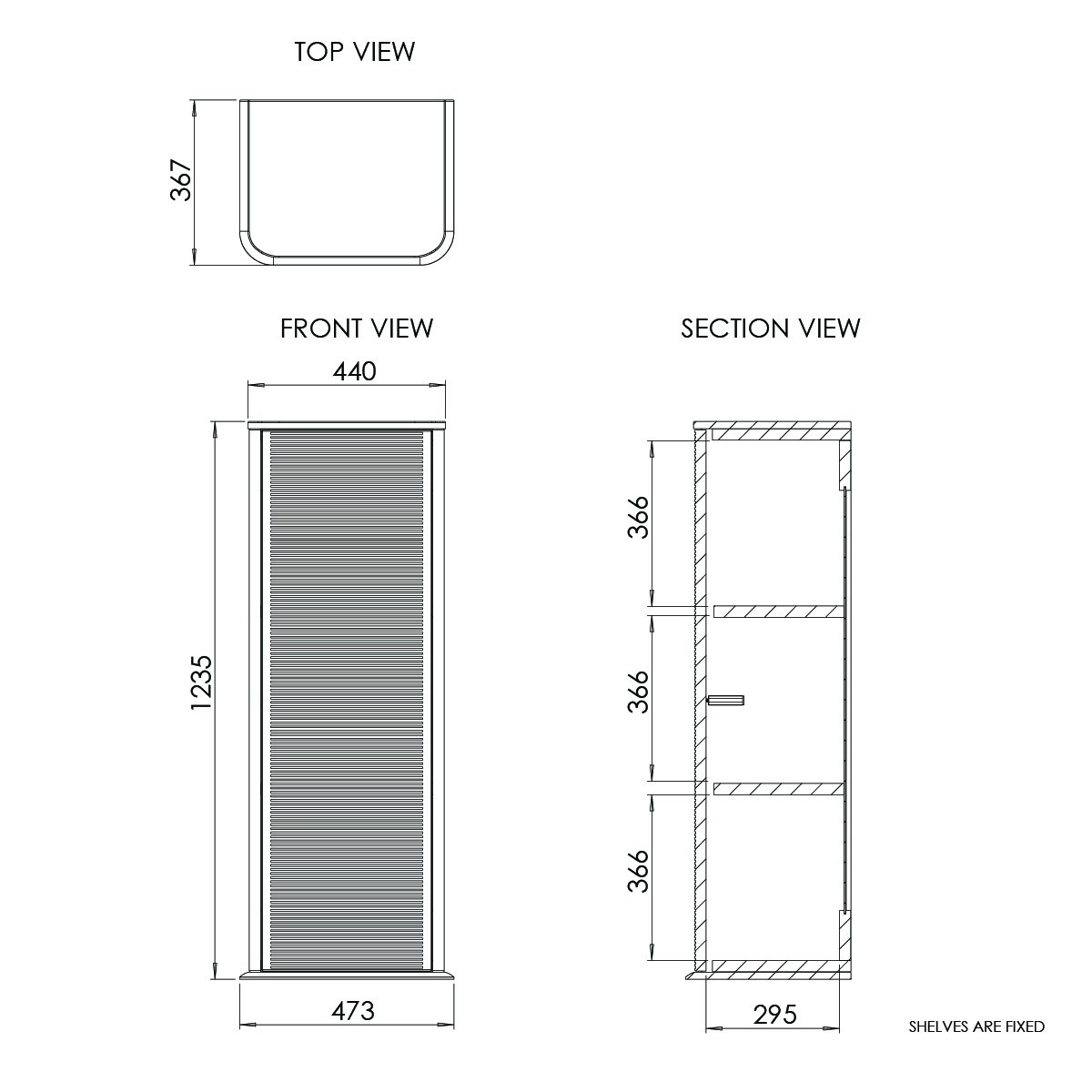

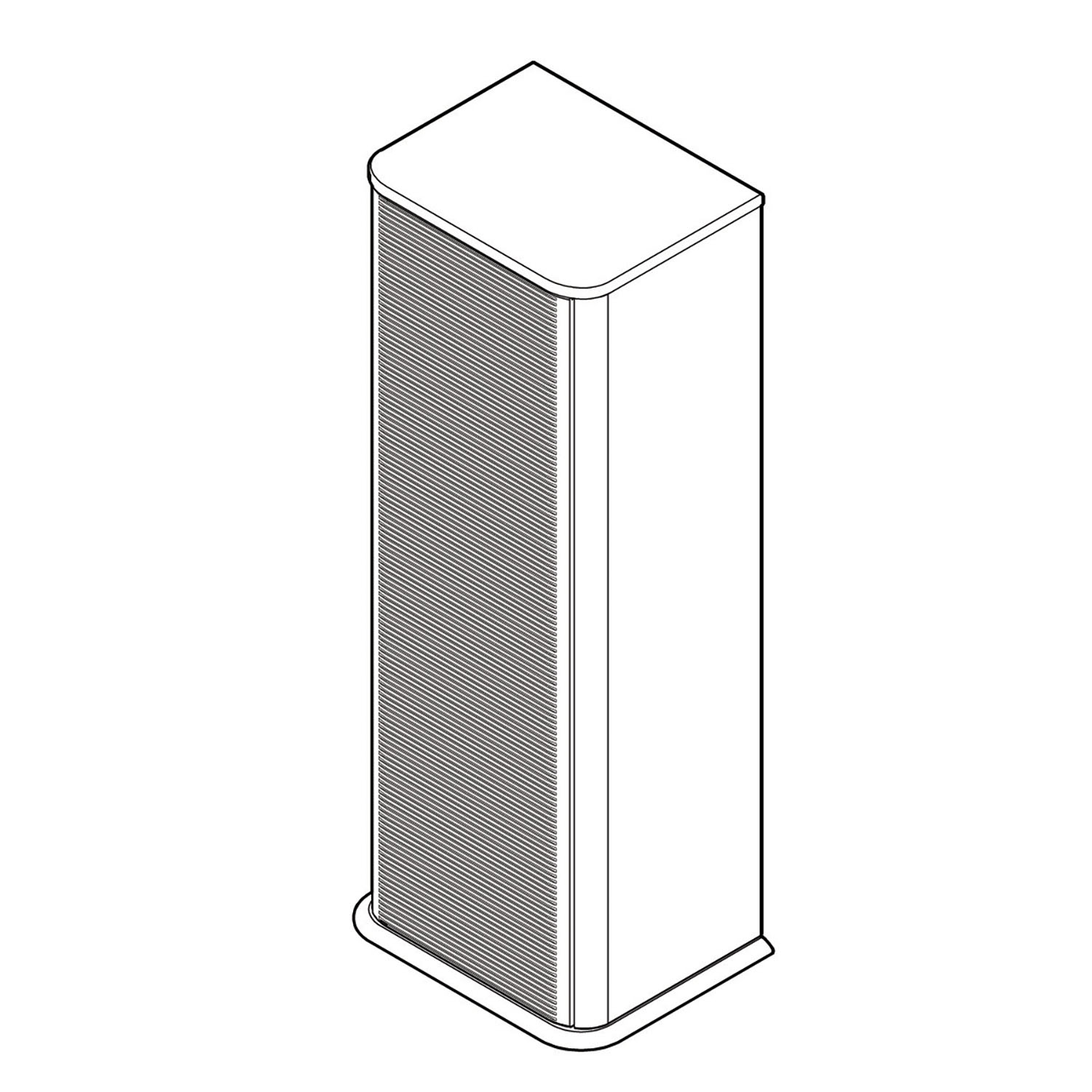

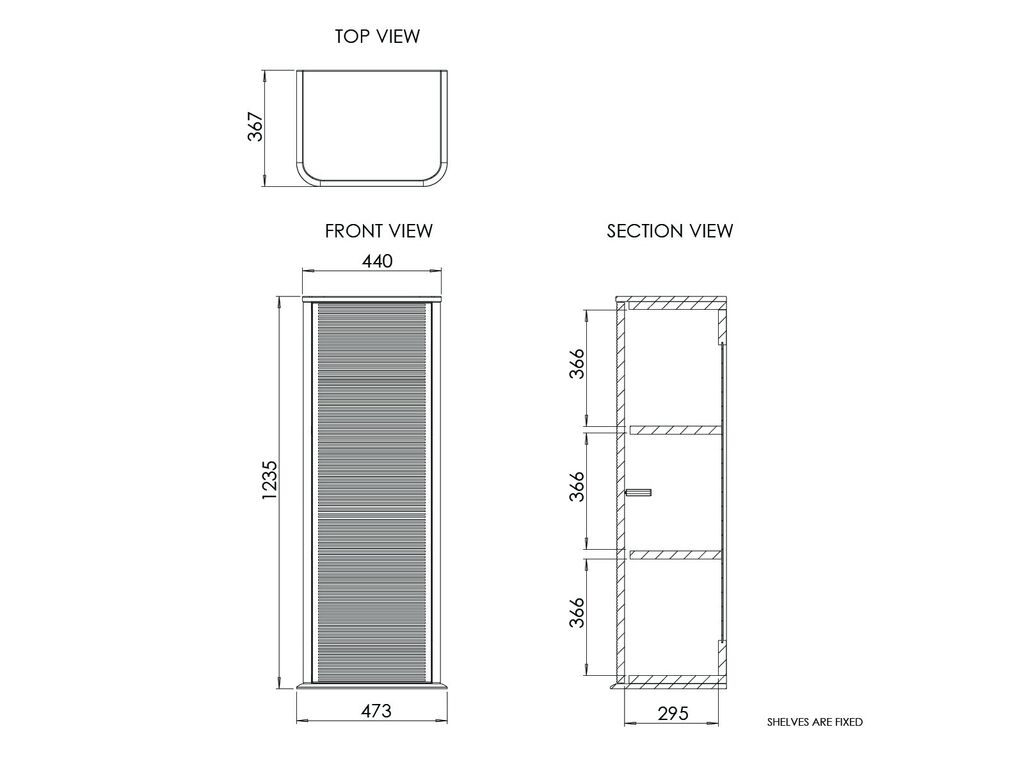

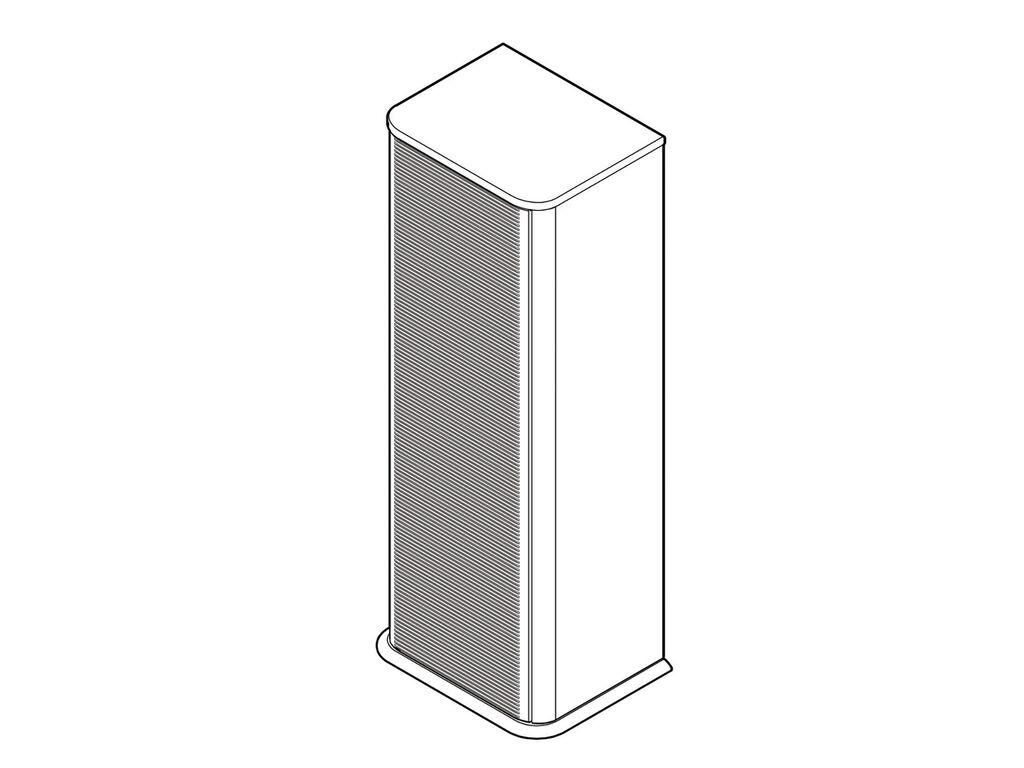

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Tall Wall Unit
Dimensions (WxDxH):
473 x 367 x 1235mm
Weight:
38 kg
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 18mm Fluted
Fascia Detail:
Bow Fronted
End Panel Material:
MDF 18mm
End Panel Detail:
Fluted
Door Openings:
1
Door(s) Hinge Side:
Both
Hinges Detail:
Soft Close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Handle Not Included
Shelves:
2 fixed - MFC 16mm
Fixation Method:
Fixed through rear rail, 100mm from top @ 225mm centres
Door Open Unit Depth:
840mm
In The Box:
Petra Tall Wall Unit 470 One Door
