Technical Data Sheet
Forino Fluted Tall Wall Unit 300 Two Door
5841

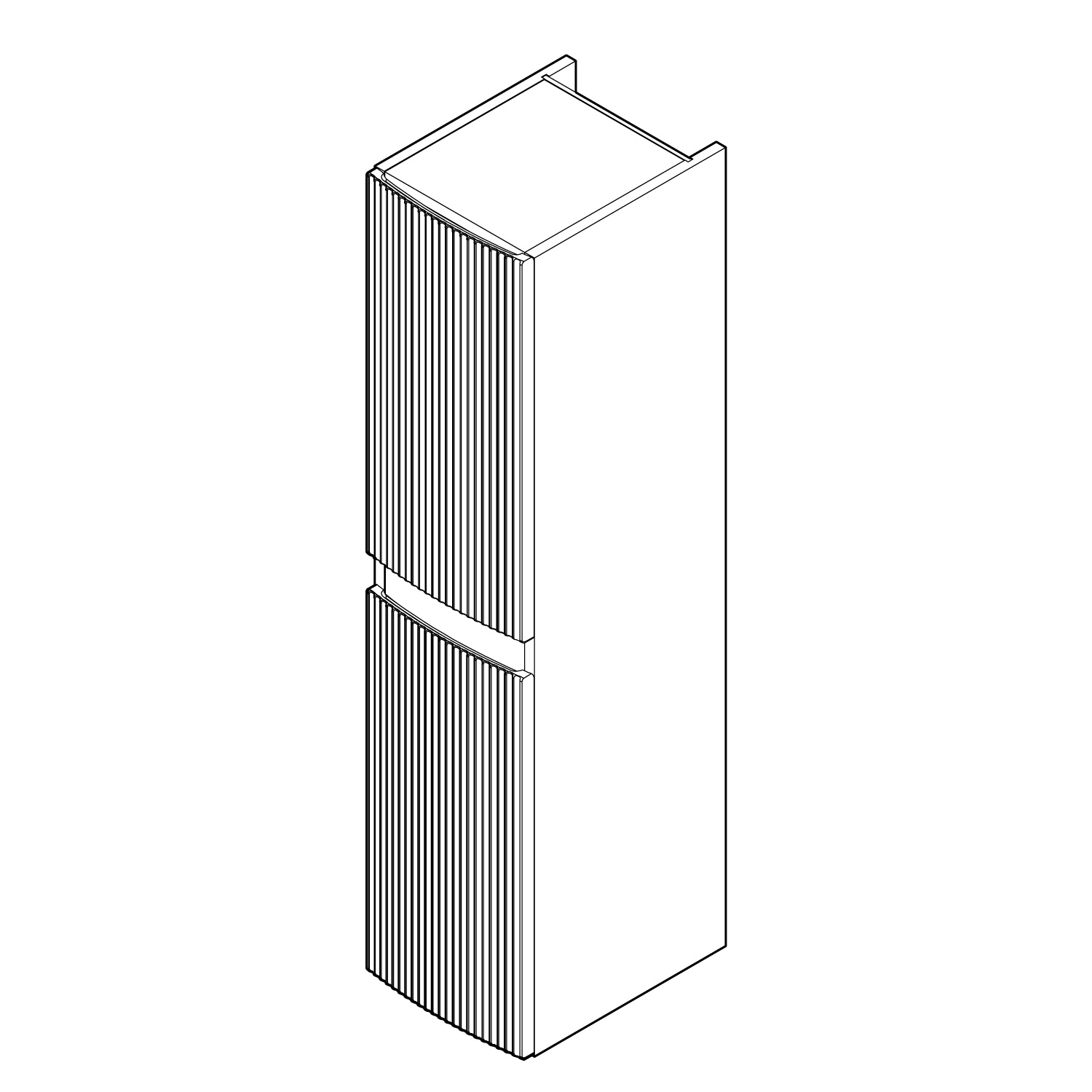

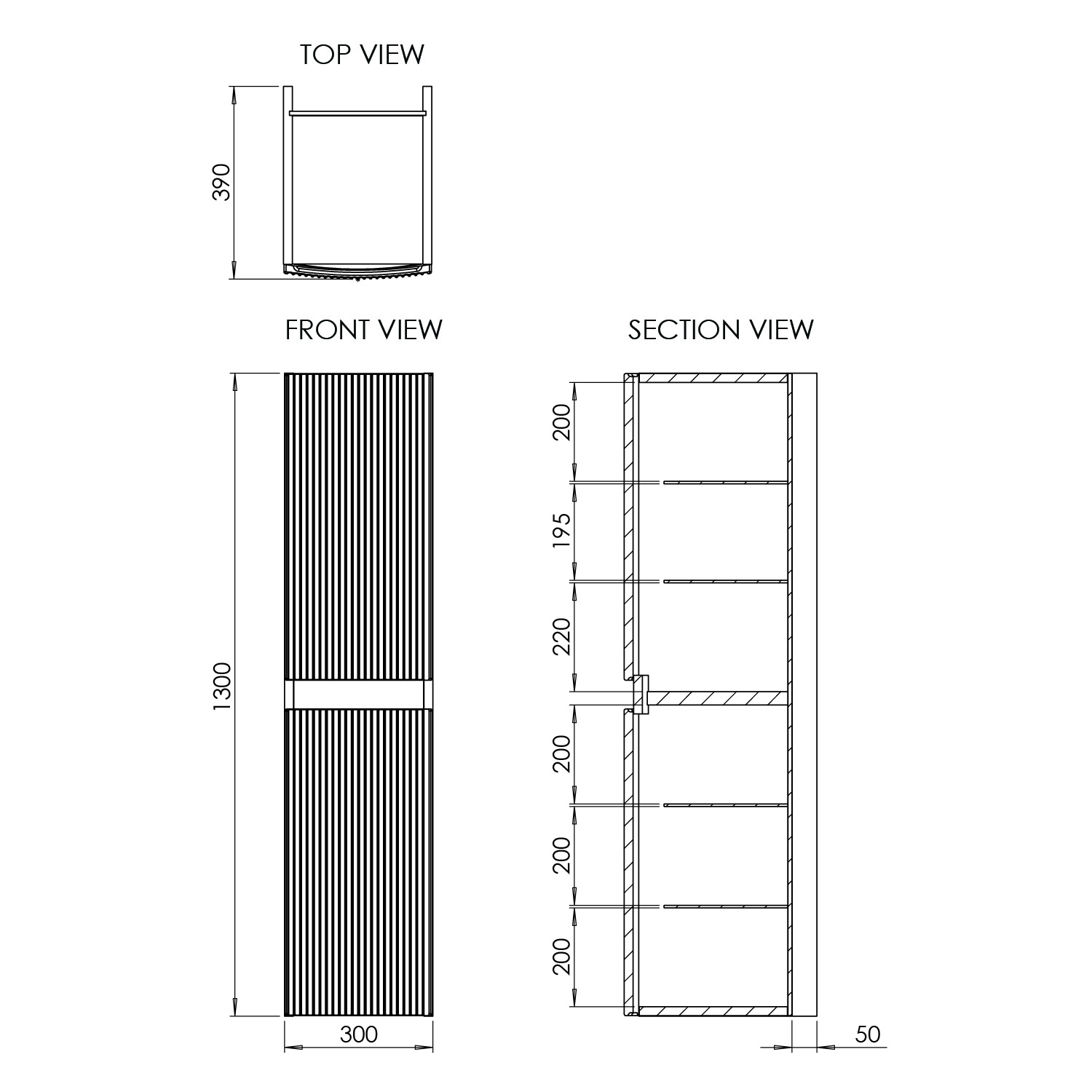

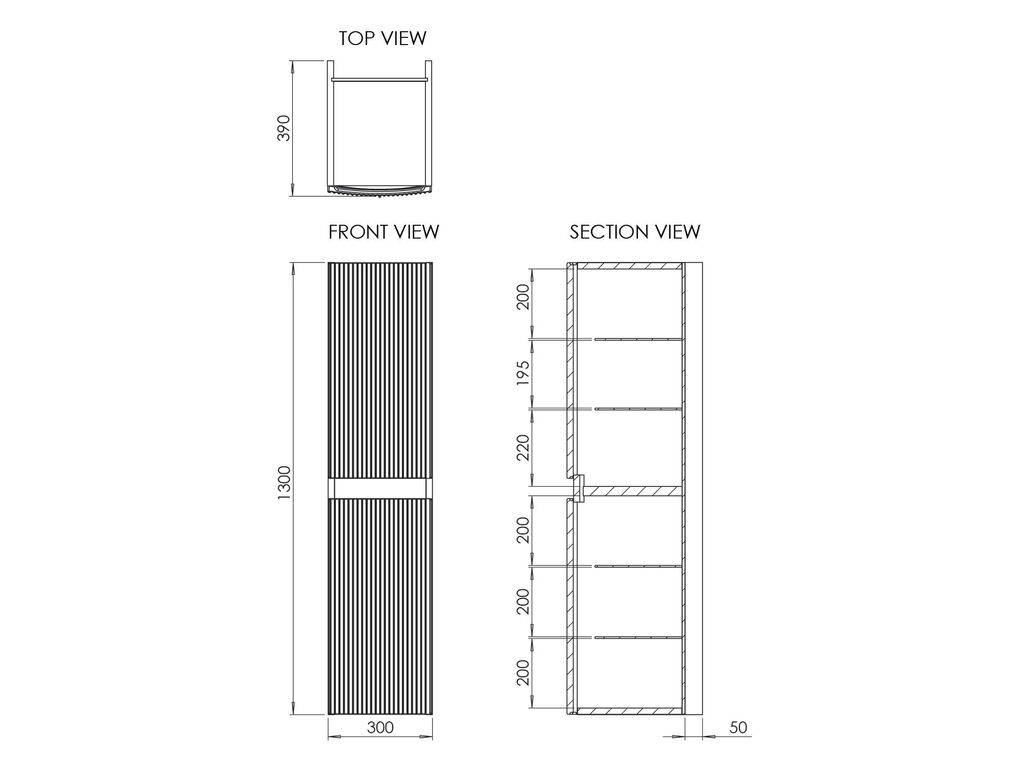

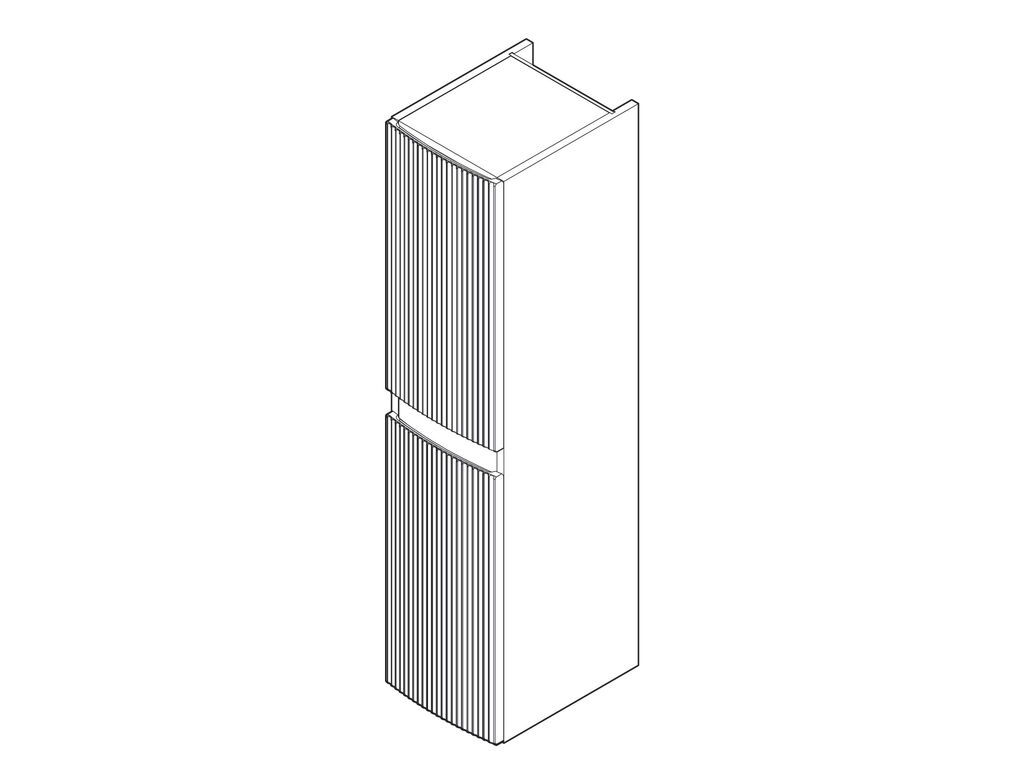

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Tall Wall Unit
Dimensions (WxDxH):
300 x 390 x 1300mm
Weight:
31 kg
Carcass Material:
MDF 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 19mm Fluted
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft Close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Integrated Handle
Shelves:
4 removable - Glass 5mm
Removable Shelf Supports:
Clamps
Fixation Method:
Fixed Through Rear Rail, 65mm from top @ 160mm centres
Door Open Unit Depth:
690mm
In The Box:
Forino Fluted Tall Wall Unit 300 Two Door
