Technical Data Sheet
Rivas Tall Wall Unit 350 Two Door
5810

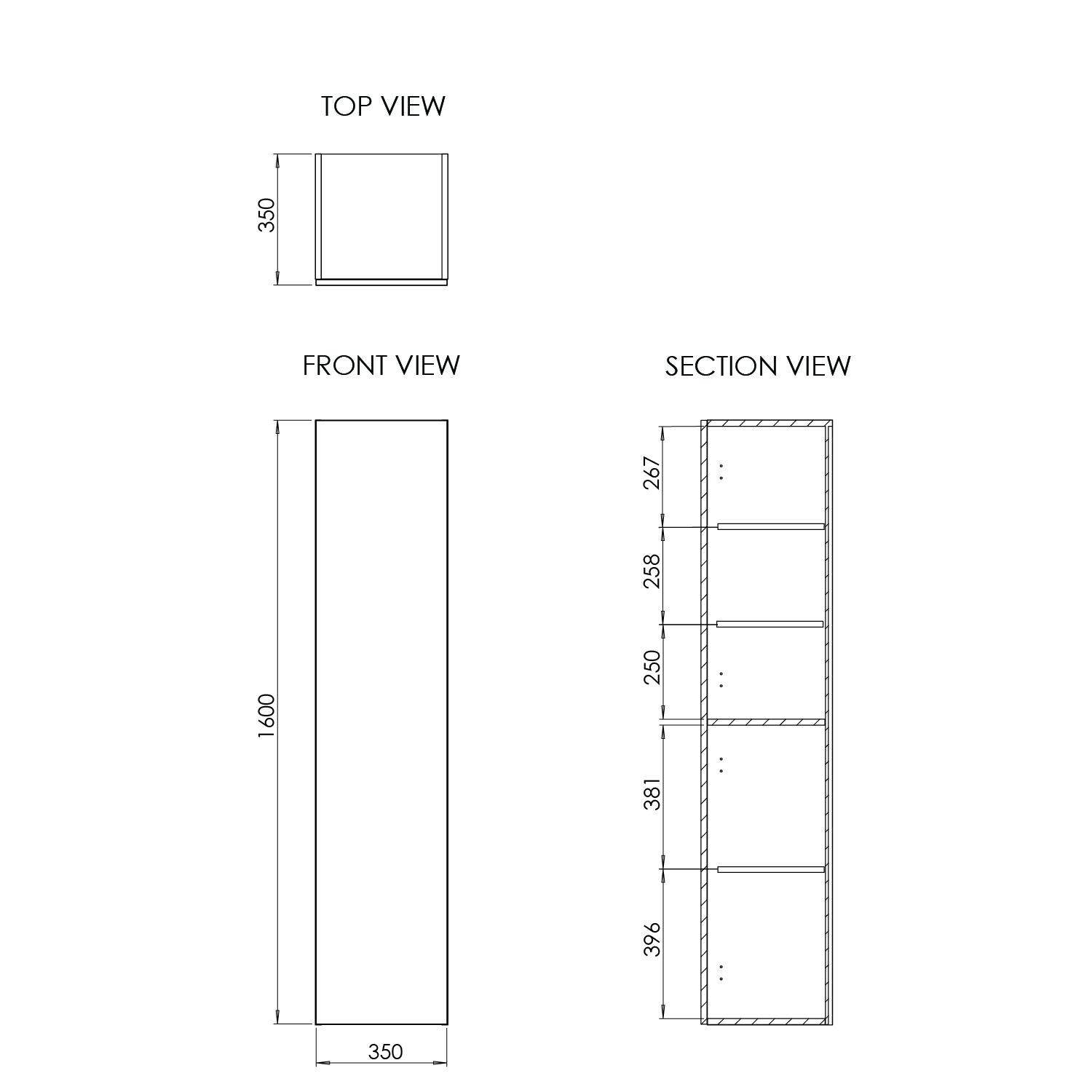

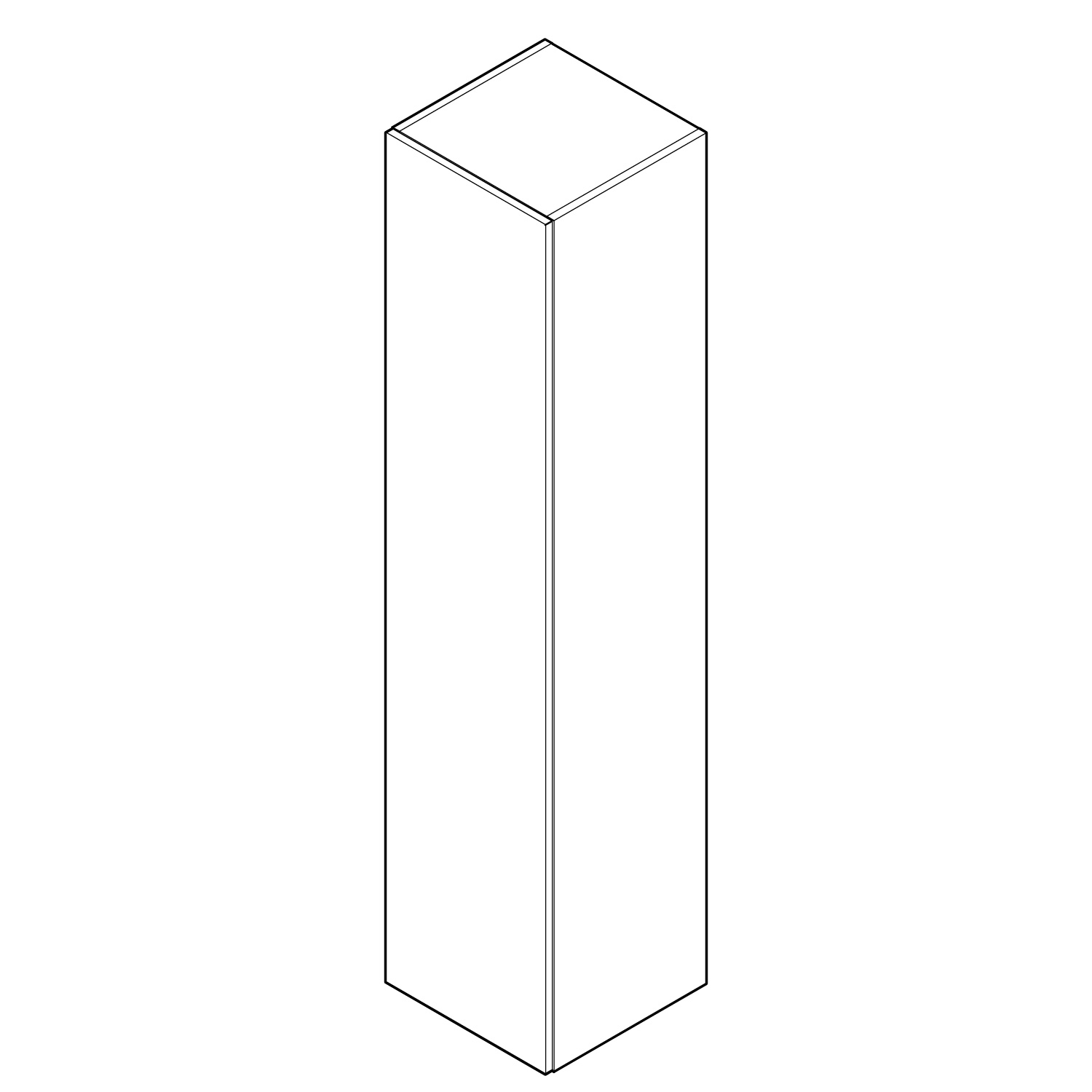

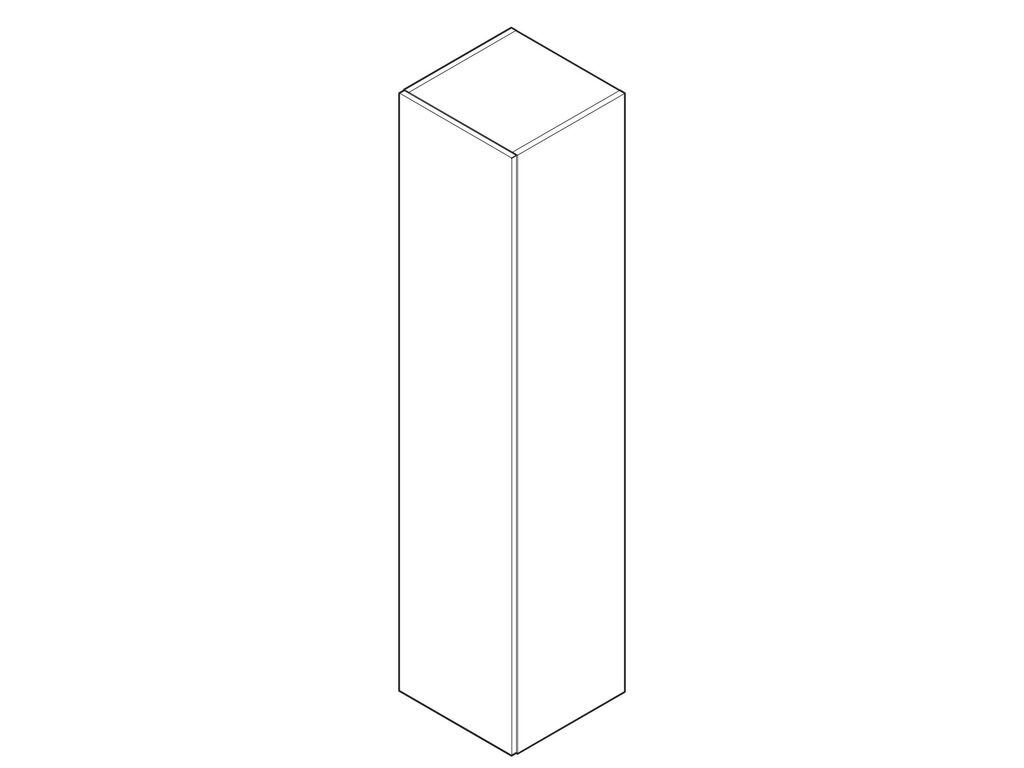

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Tall Wall Unit
Dimensions (WxDxH):
350 x 350 x 1600mm
Weight:
27.84 kg
Carcass Material:
MFC 16mm
Carcass Edging:
PVC edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 18mm Slab
End Panel Material:
MFC 16mm
End Panel Detail:
Slab
Door Openings:
1
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Handle not included
Shelves:
1 fixed - MFC 16mm, 3 removable - Glass 5mm
Removable Shelf Supports:
Studs
Fixation Method:
Adjustable Metal Wall Brackets, 35mm from top @ 285mm centres
Door Open Unit Depth:
680mm
In The Box:
Rivas Tall Wall Unit 350 Two Door
