Technical Data Sheet
Farnese Mirrored Cabinet 750
5710

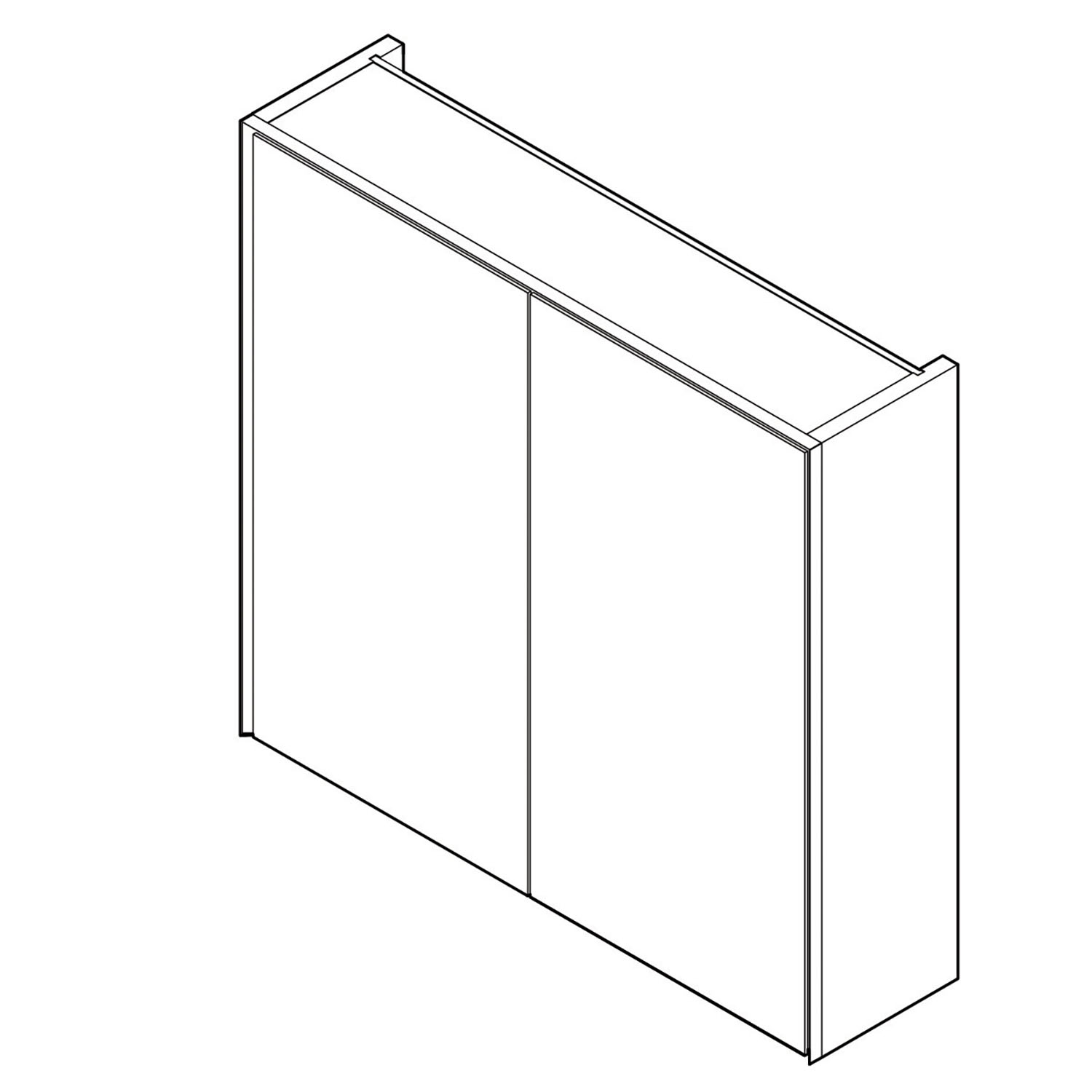

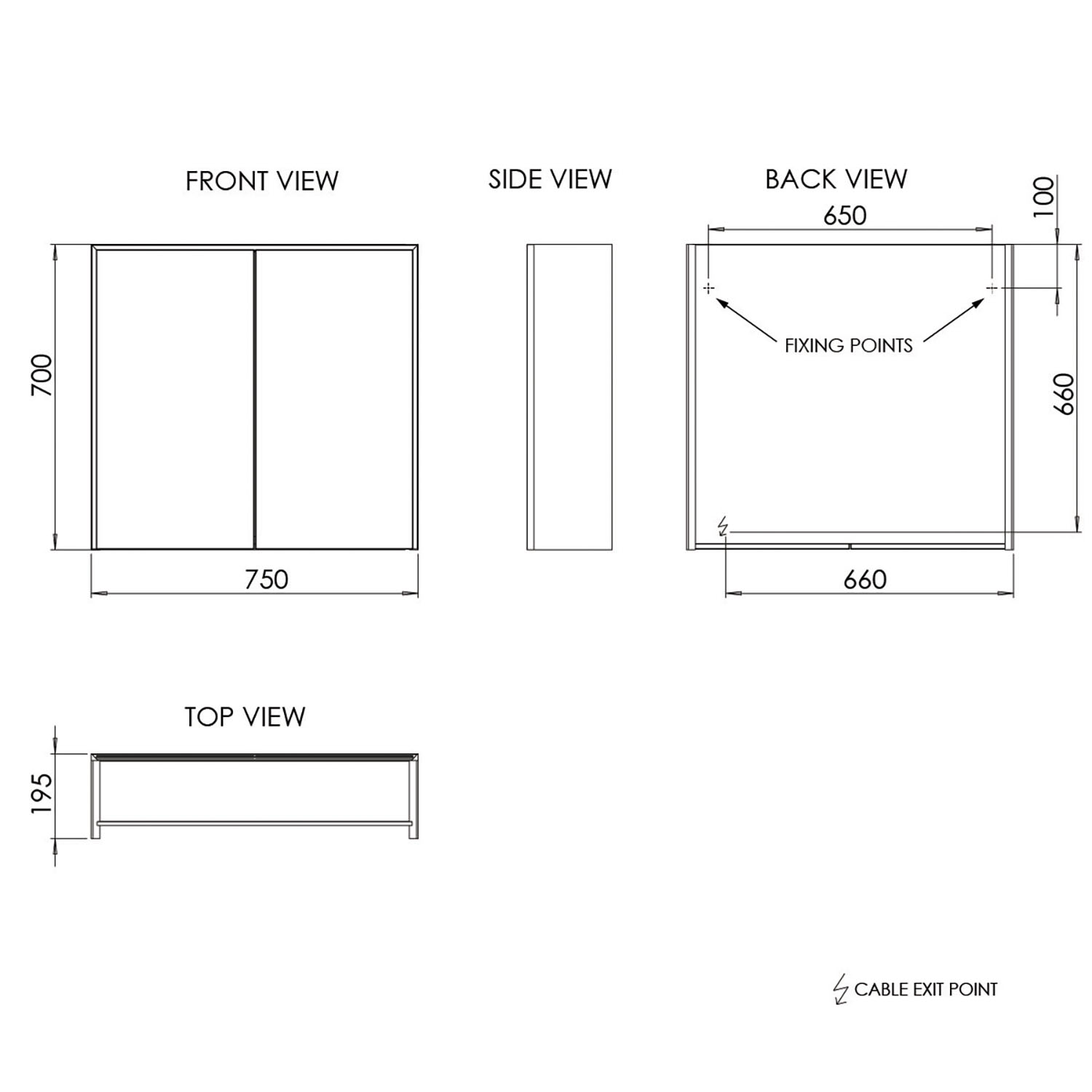

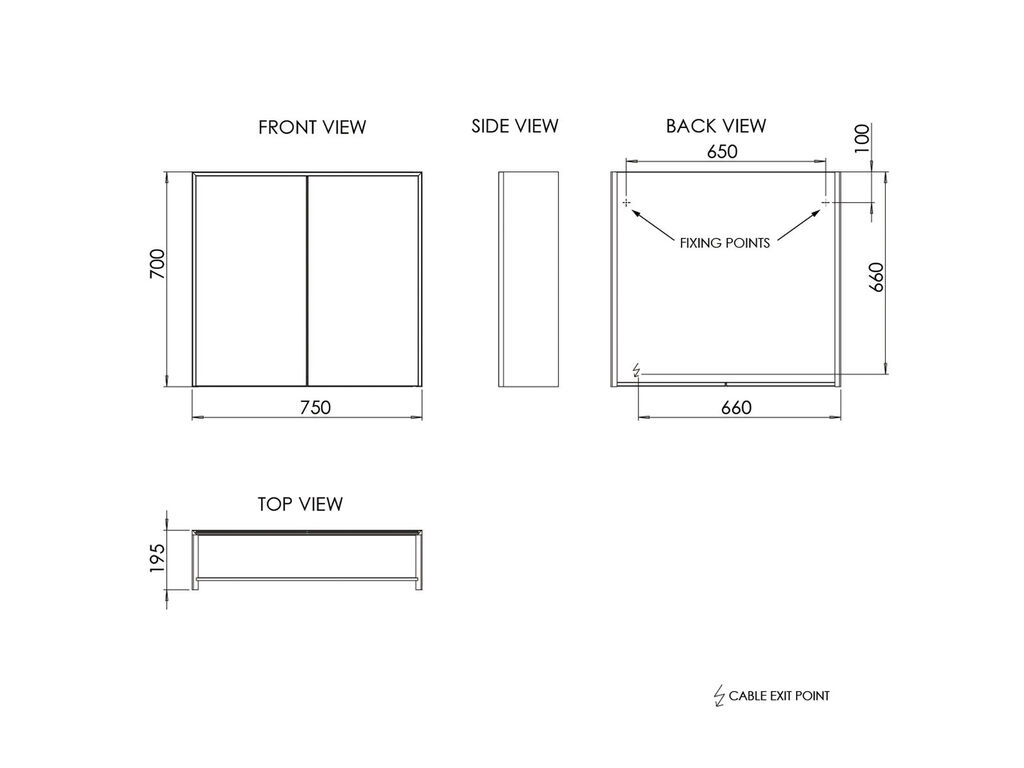

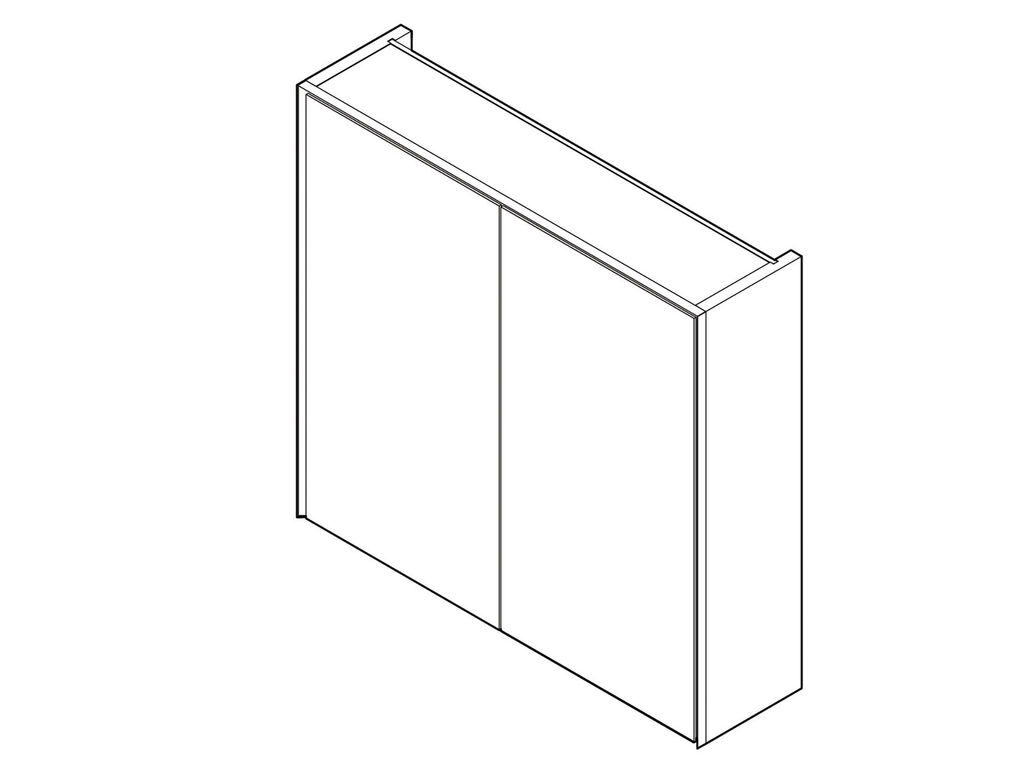

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
750 x 195 x 700mm
Weight:
28.80 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 33W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
x mm
Cable Length:
1200mm
Earth Connection Required:
No
Hanging Orientation:
Landscape
Switching Method:
Infrared Sensor
Light Colour Temperature:
Cool White
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Farnese Mirrored Cabinet 750
Instructions
Fitting kit
Expansion plugs
Screws
Wall brackets
