Technical Data Sheet
Farnese Mirrored Cabinet 500
5709

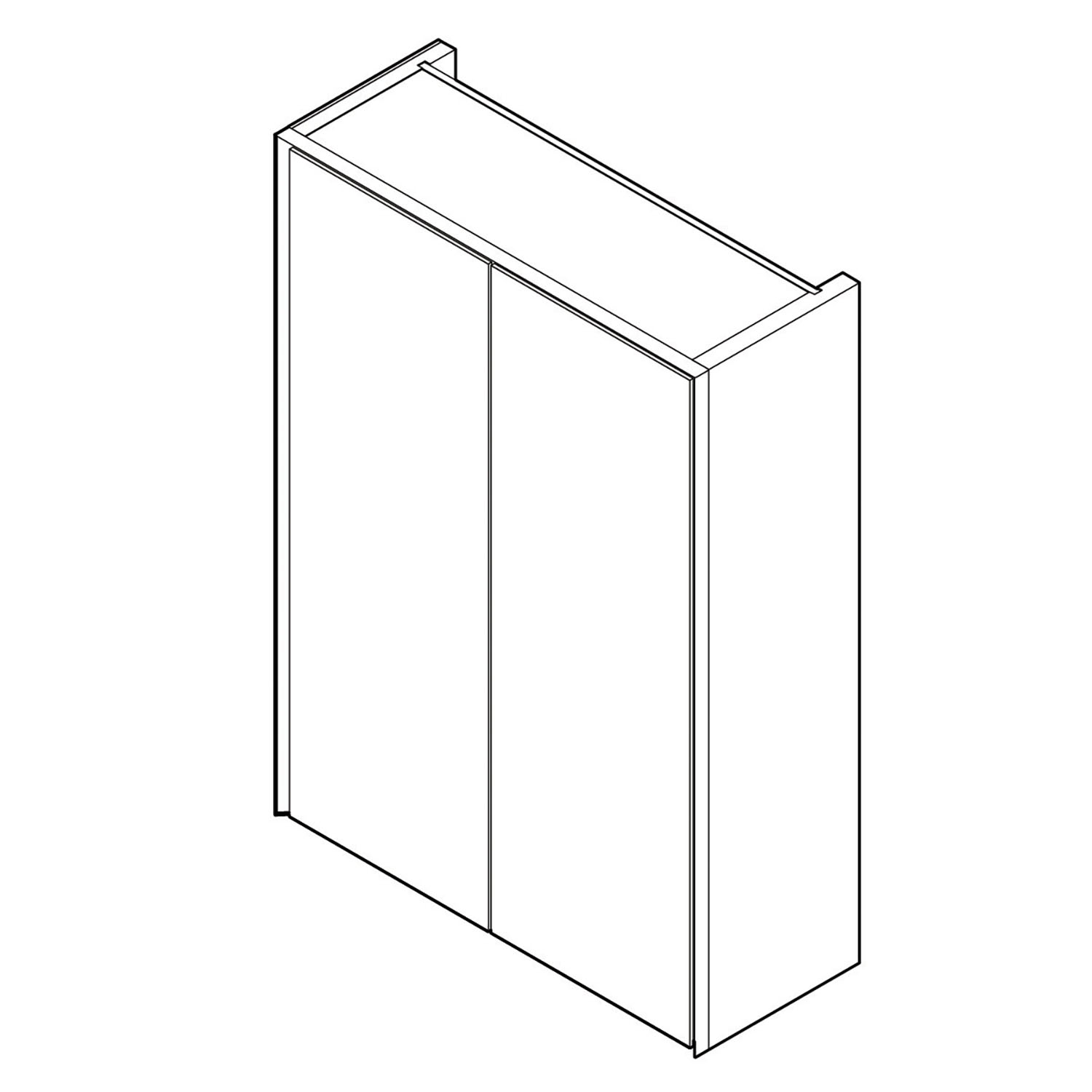

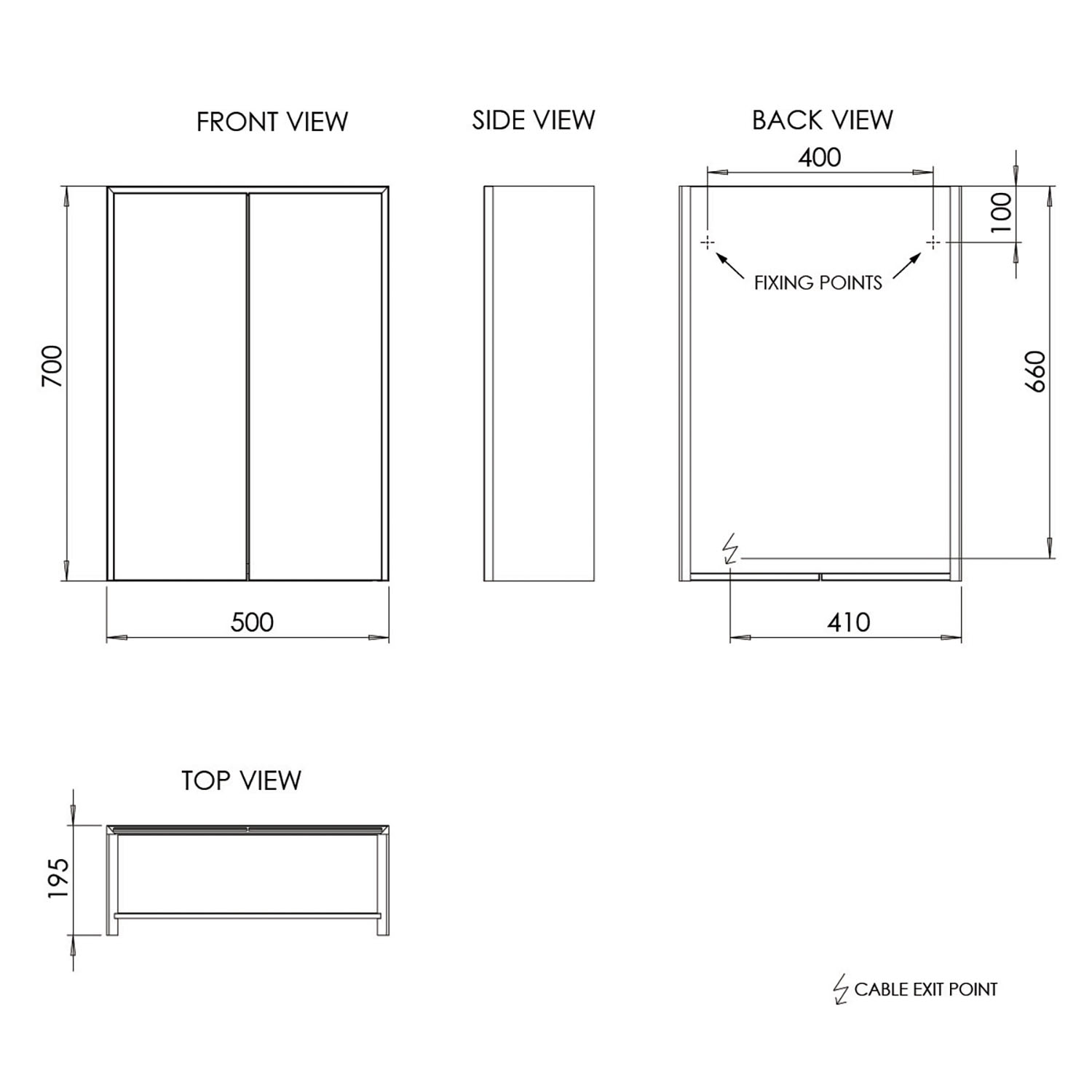

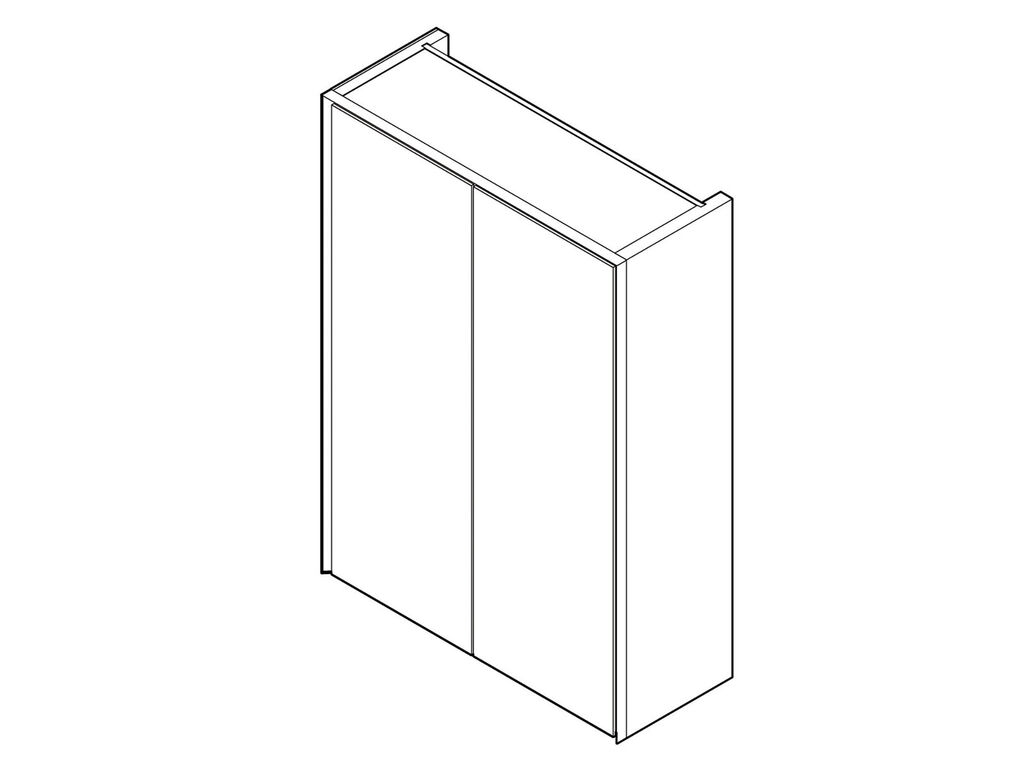

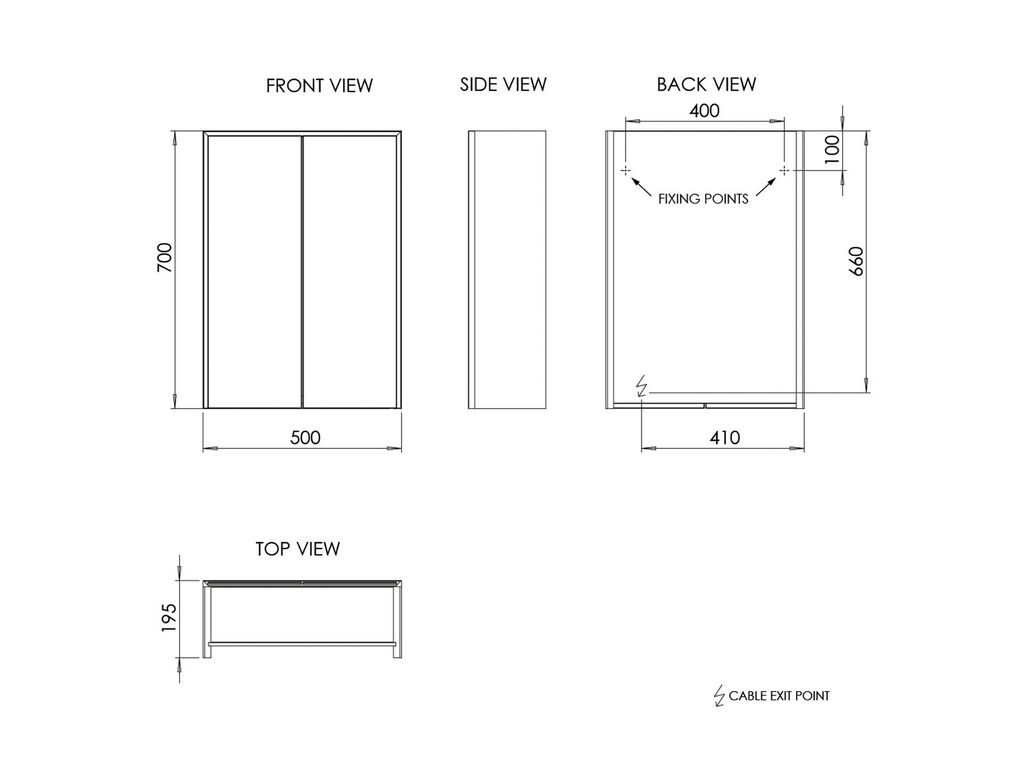

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
500 x 195 x 700mm
Weight:
21.22 kg
Power Input Voltage:
240v / 50hz
Total Power Outputs:
Light 30W
IP Rating:
IP44
Bathroom Zone Rating:
Zone 2
Demister Pad Dimensions (WxH):
x mm
Cable Length:
1200mm
Earth Connection Required:
No
Switching Method:
Infrared Sensor
Light Colour Temperature:
Cool White
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Farnese Mirrored Cabinet 500
Instructions
Fitting kit
Expansion plugs
Wall brackets
Screws
