Technical Data Sheet
Tesima Tall Wall Unit 350 One Door One Drawer
5688

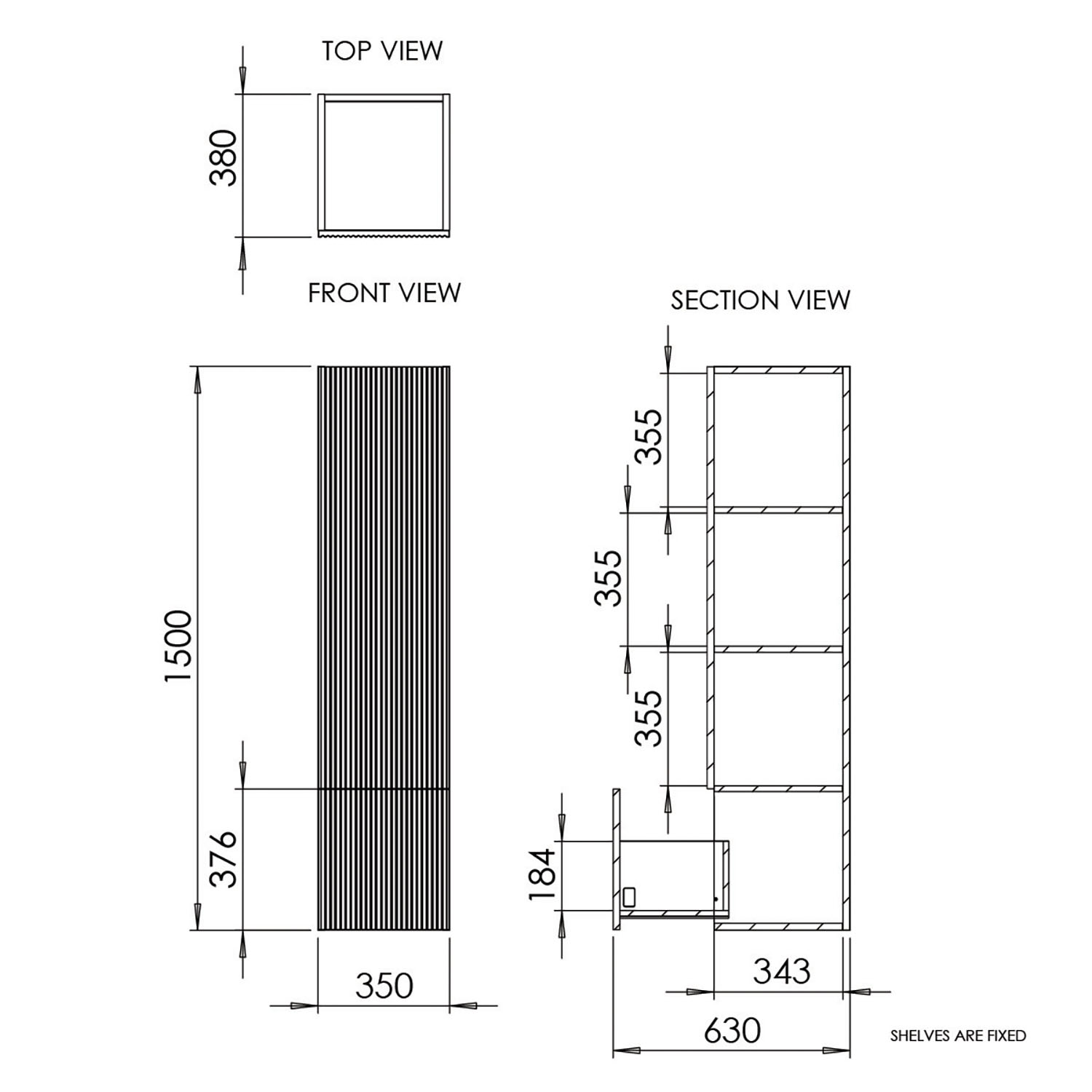

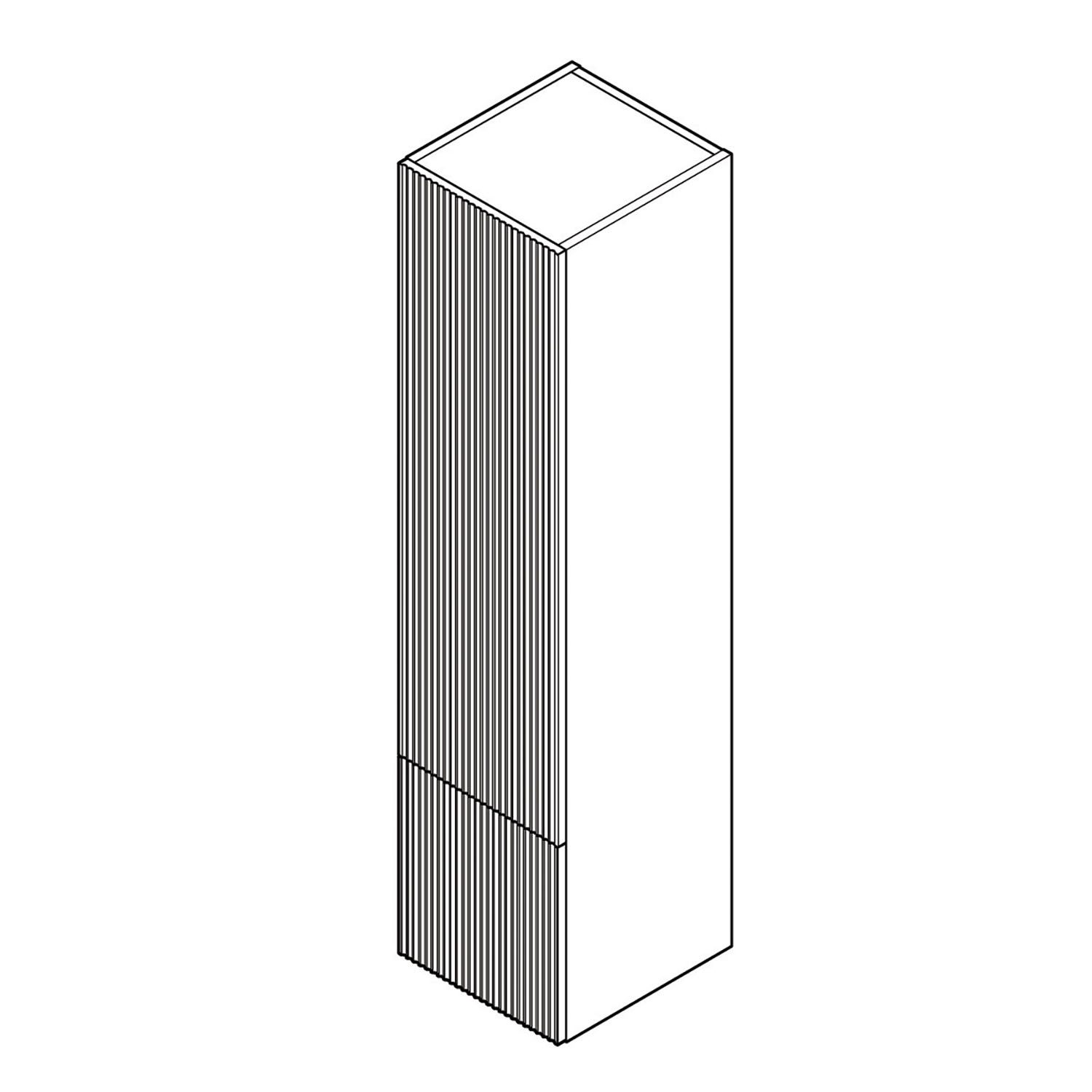

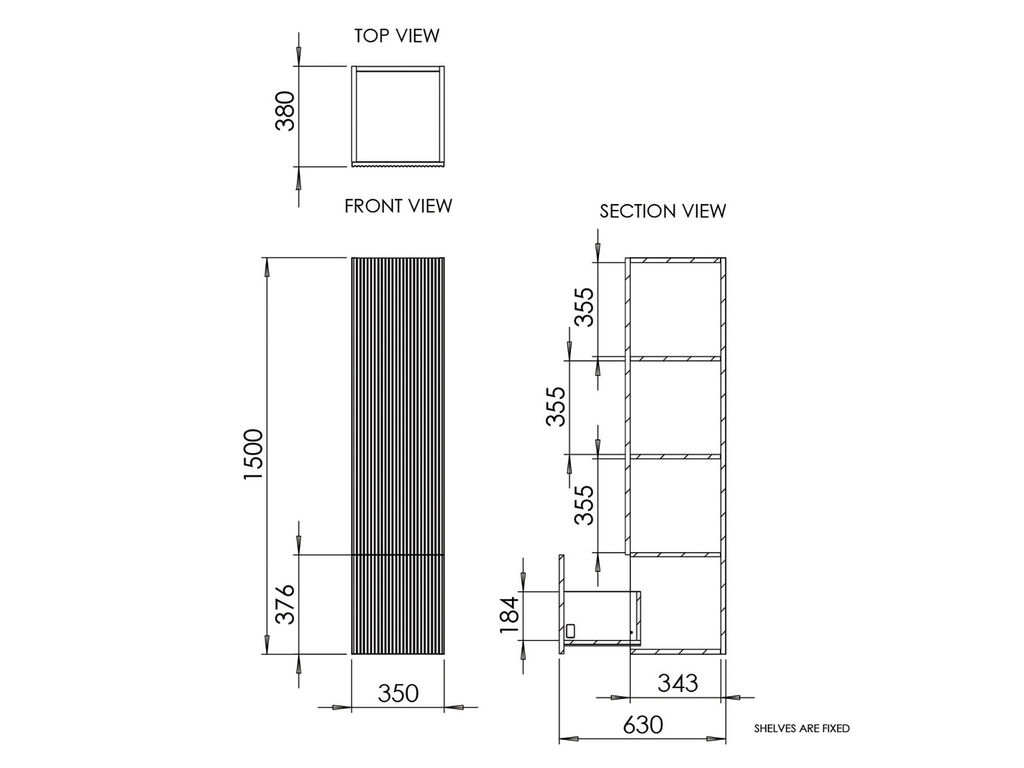

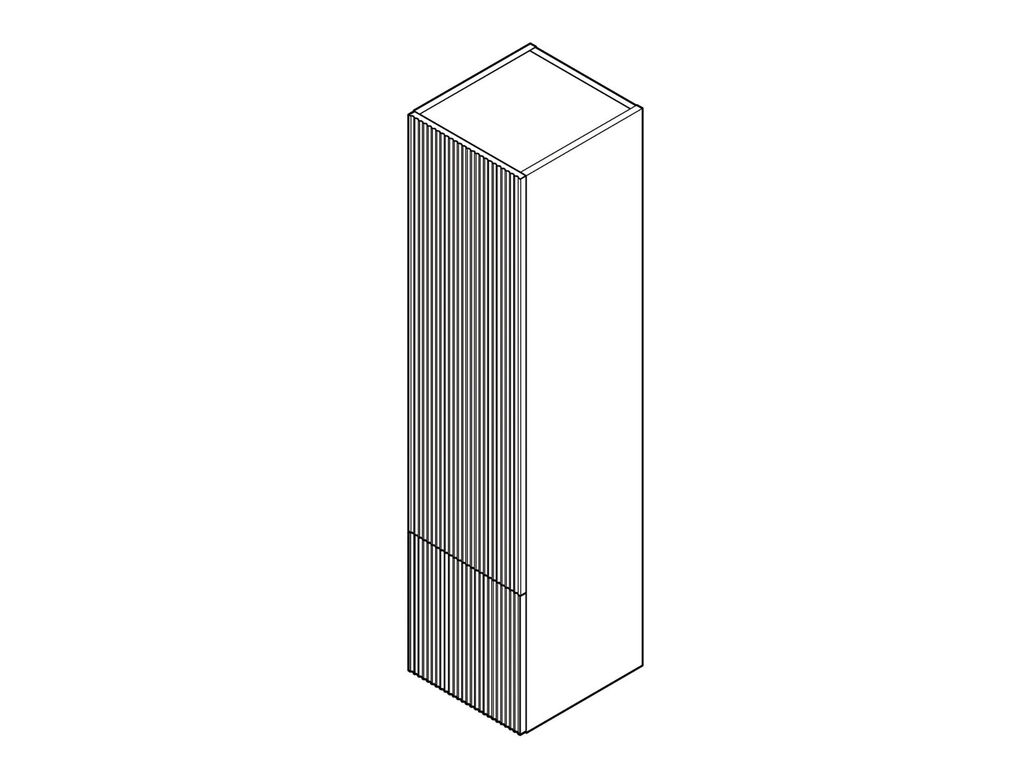

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Tall Wall Unit
Dimensions (WxDxH):
350 x 380 x 1500mm
Weight:
41.12 kg
Carcass Material:
MDF 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 19mm Fluted
End Panel Material:
MDF 19mm
End Panel Detail:
Slab
Door Openings:
1
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Handle Not Included
Drawers:
1 drawer, Soft Close, 350mm runners
Shelves:
2 removable - MDF 16mm
Removable Shelf Supports:
Studs
Fixation Method:
Fixed angle brackets, 365mm from top @ 217mm centres
Door Open Unit Depth:
730mm
In The Box:
Tesima Tall Wall Unit 350 One Door One Drawer
