Technical Data Sheet
Diamante Tall Wall Unit 450 One Door Two Drawer
5670

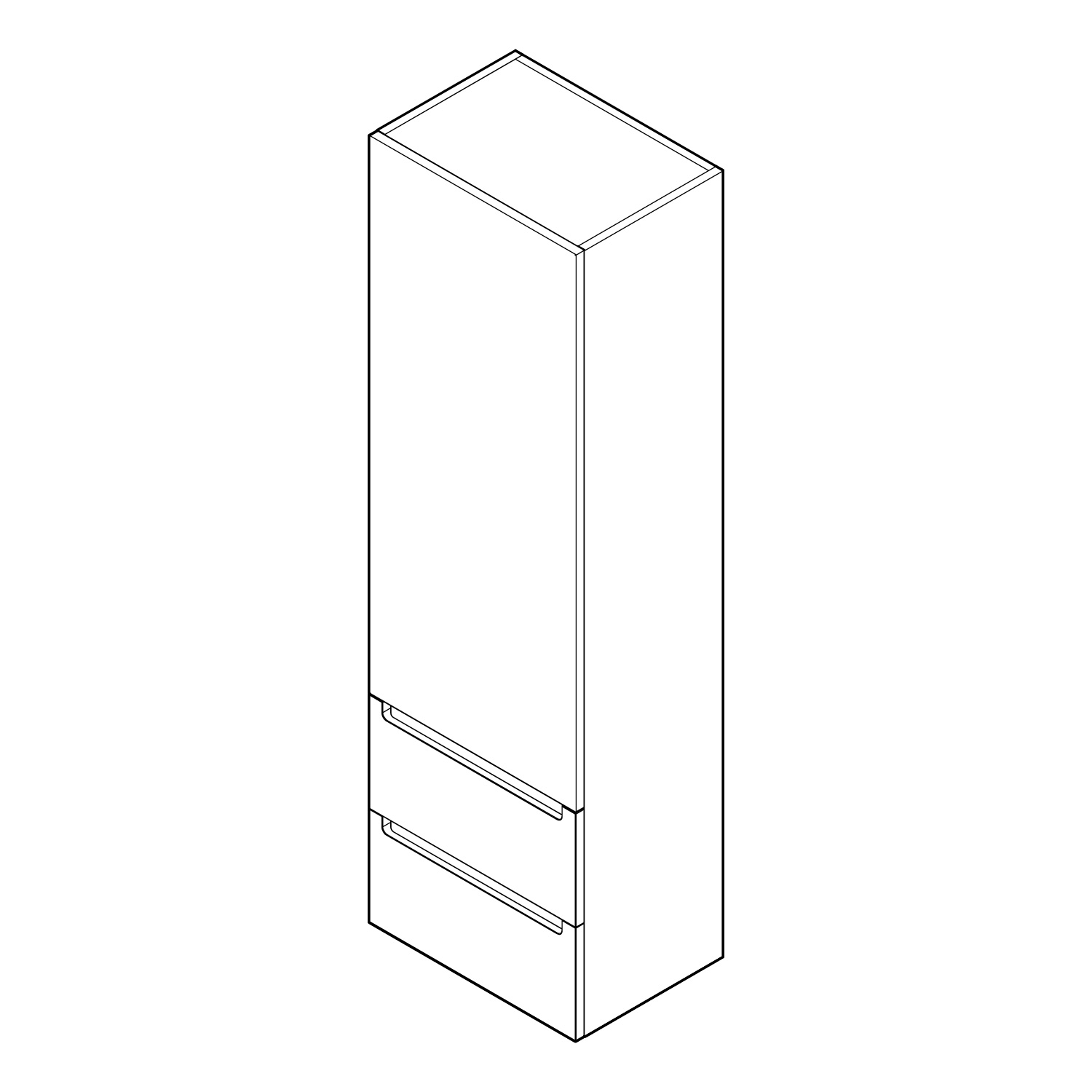

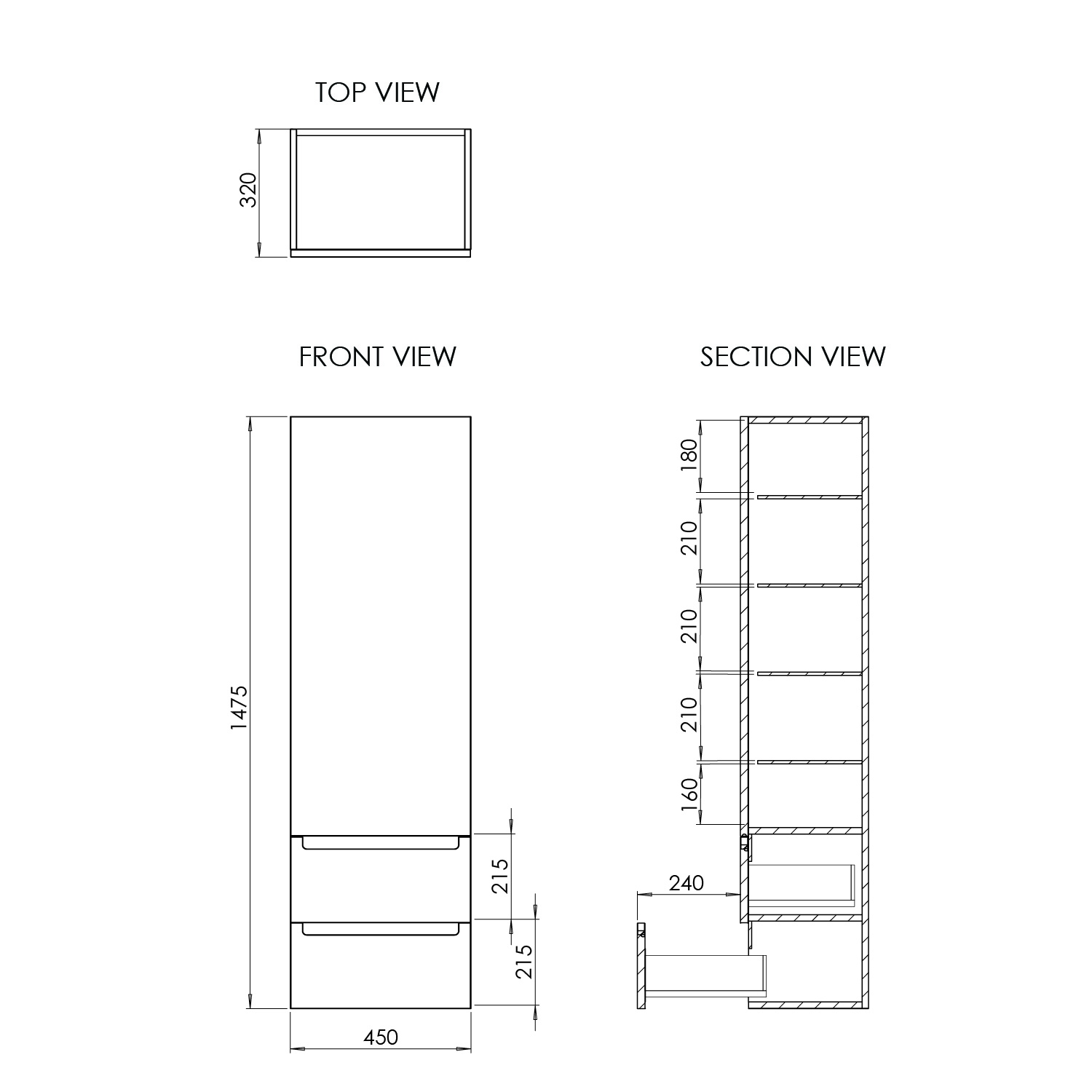

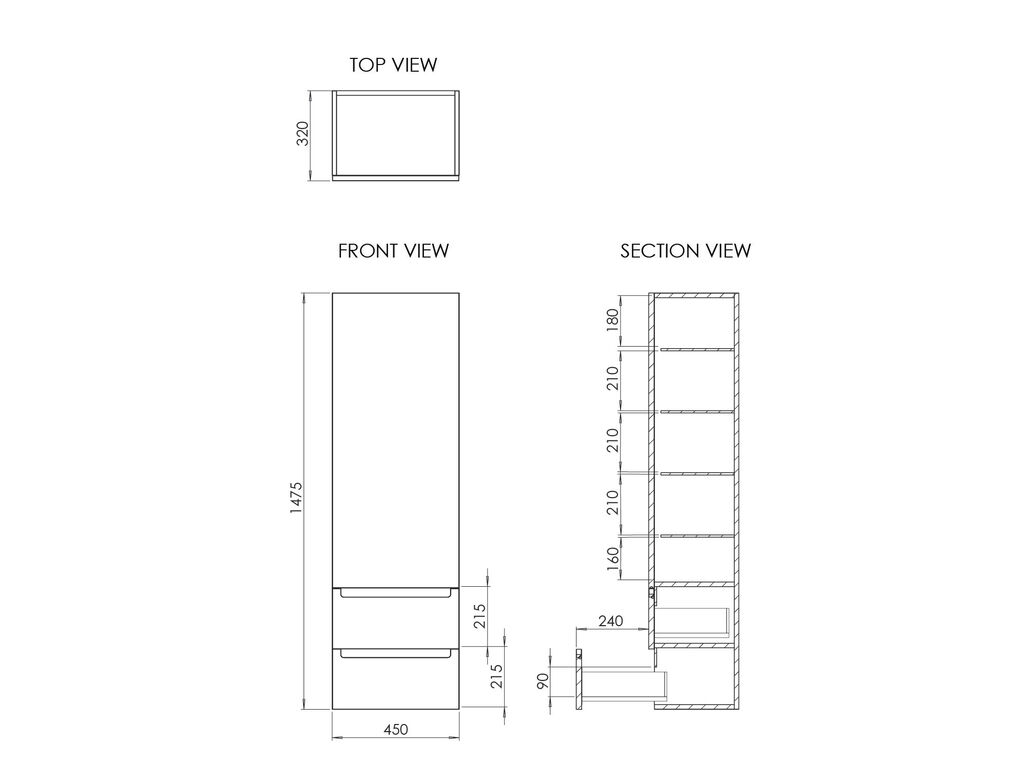

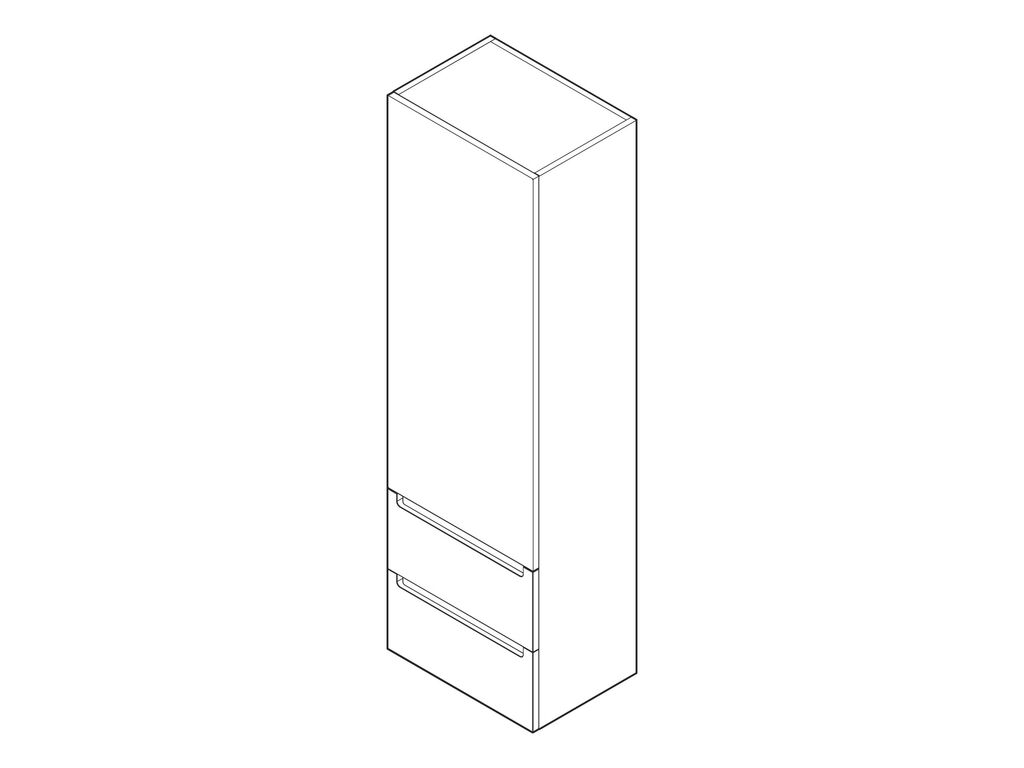

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Tall Wall Unit
Dimensions (WxDxH):
450 x 320 x 1475mm
Weight:
38 kg
Carcass Material:
MFC 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
ABS 18mm Slab
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Door Openings:
1
Door(s) Hinge Side:
Both
Hinges Detail:
Soft Close
Hinge Bracket Cover Plates:
Yes
Handle Type:
Integrated Handle
Drawers:
2 drawers, Soft Close, 270mm runners
Shelves:
3 removable - MFC 16mm
Removable Shelf Supports:
Studs
Fixation Method:
Adjustable Metal Wall Brackets, 45mm from top @ 185mm centres
Door Open Unit Depth:
769mm
In The Box:
Diamante Tall Wall Unit 450 One Door Two Drawer
