Technical Data Sheet
Diamante Wall Hung Vanity Unit 1000 Two Drawer
5668

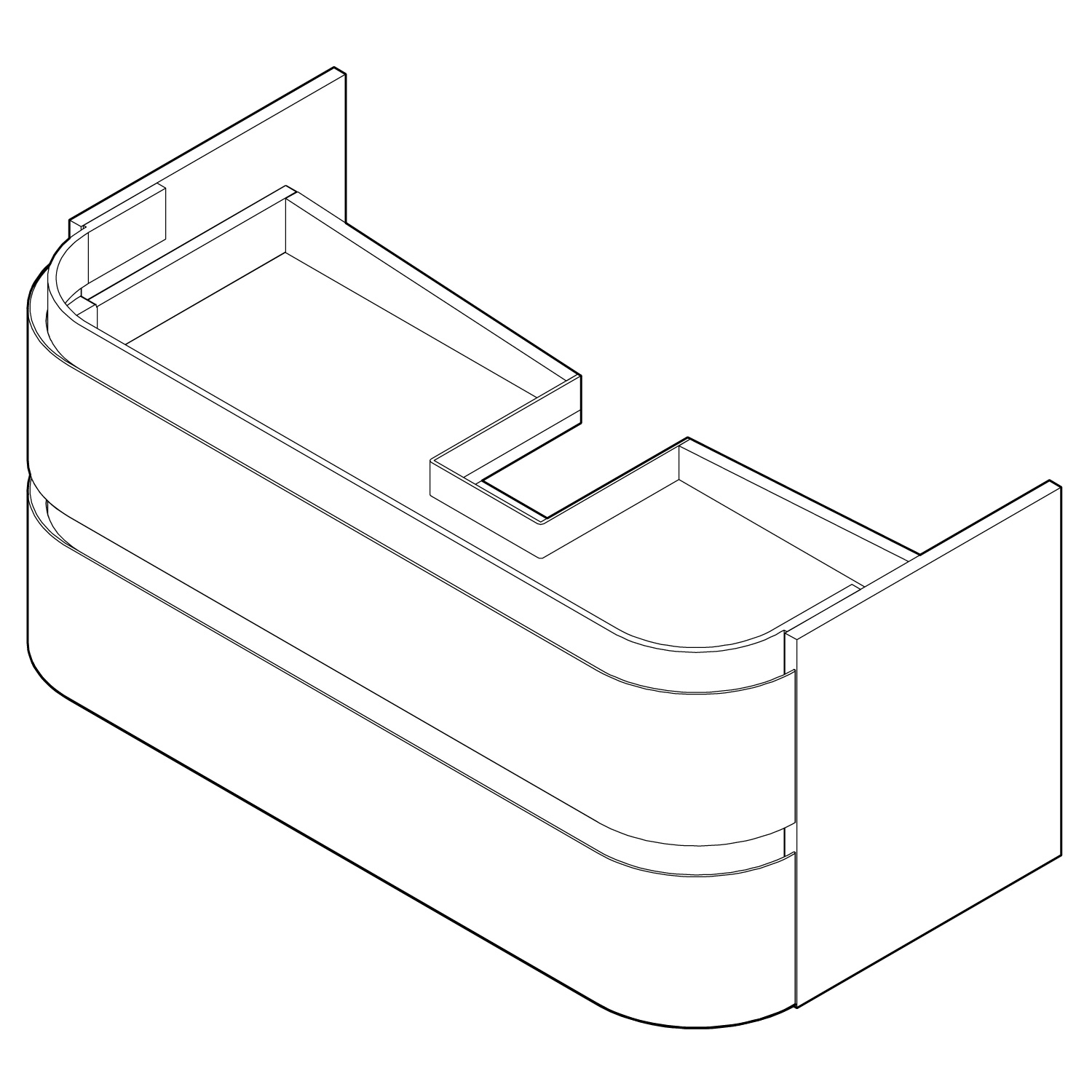

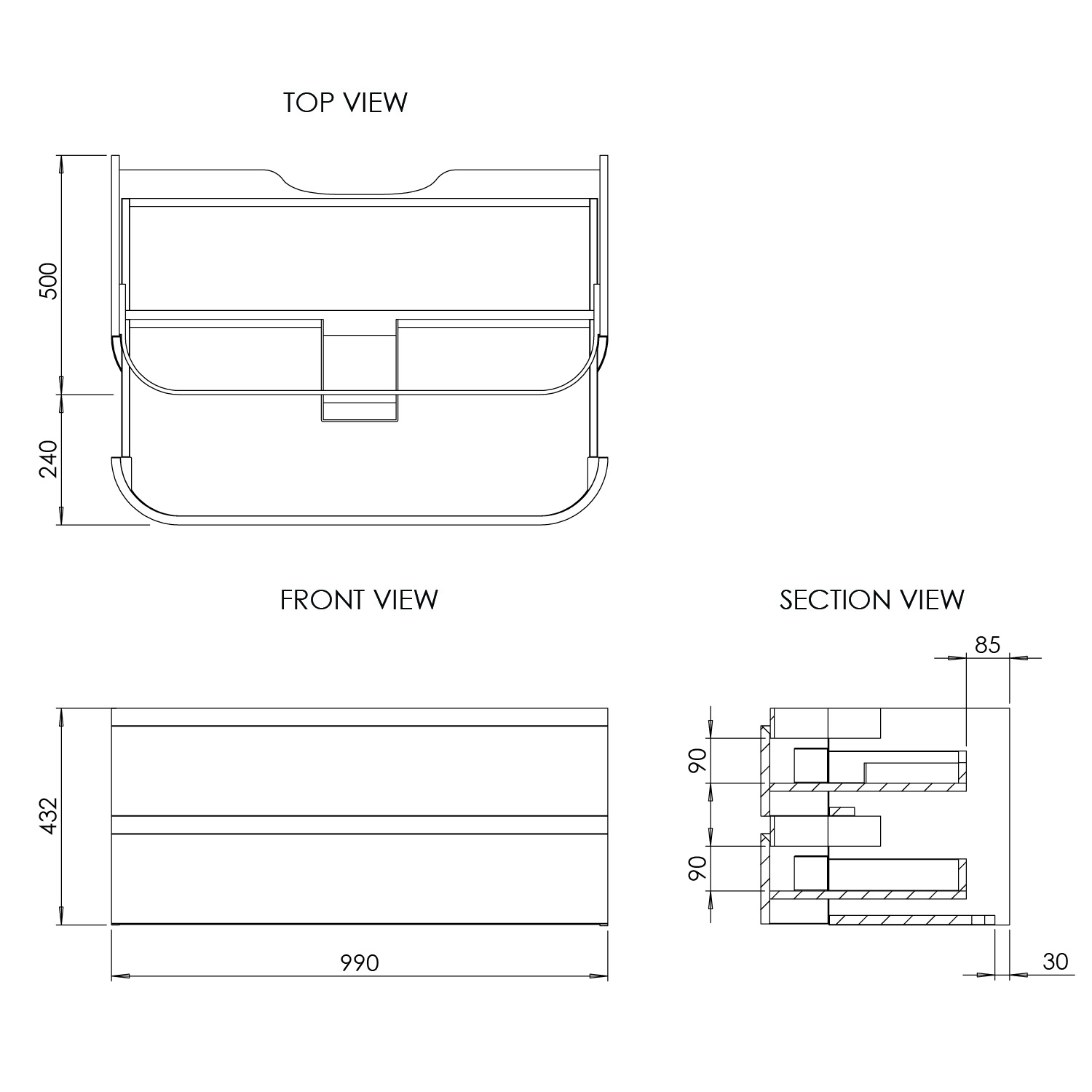

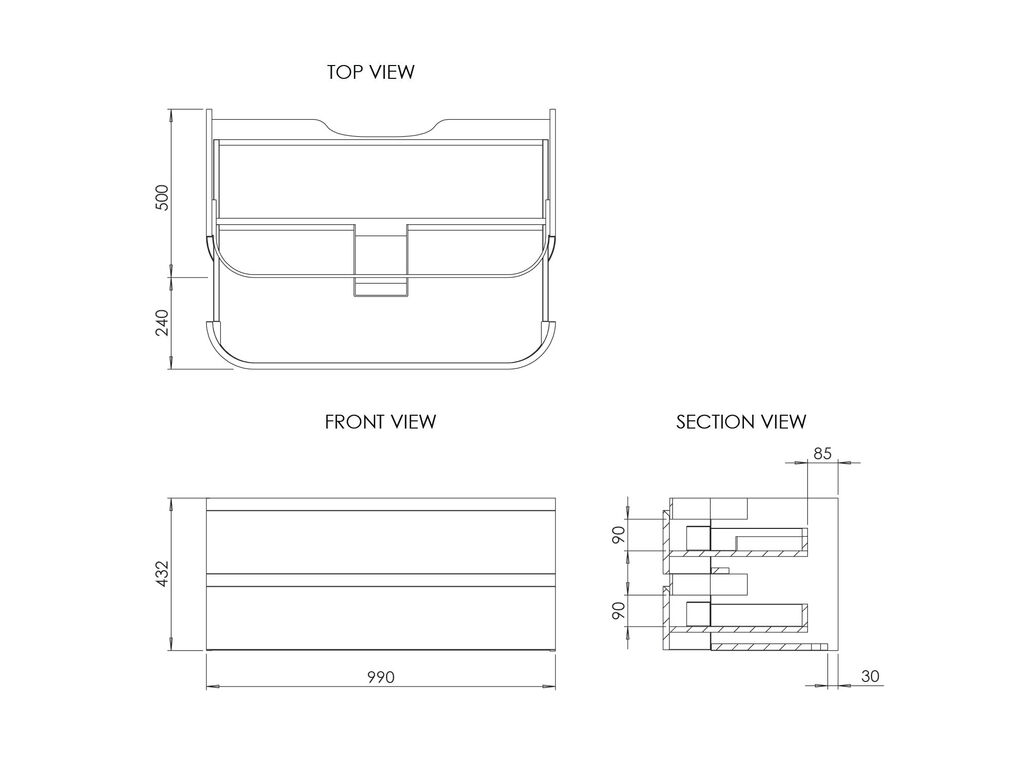

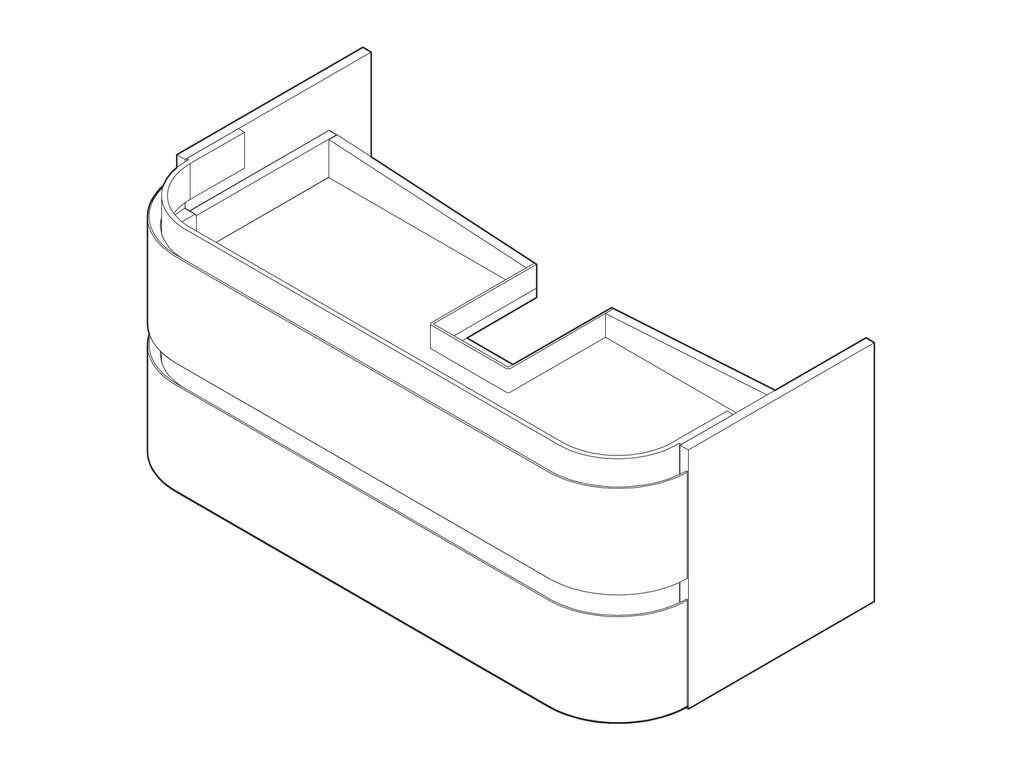

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
990 x 500 x 432mm
Weight:
29.32 kg
Carcass Material:
MFC 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Open Back
Fascia Style:
ABS 18mm Slab
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Handle Type:
Integrated Handle
Drawers:
2 drawers, Soft Close, 270mm runners
Fixation Method:
Adjustable Metal Wall Brackets, 40mm from top @ 935mm centres
Compatible Basins:
In The Box:
Diamante Wall Hung Vanity Unit 1000 Two Drawer
