Technical Data Sheet

Oriana Leg Frame 800 - 230mm

5134

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

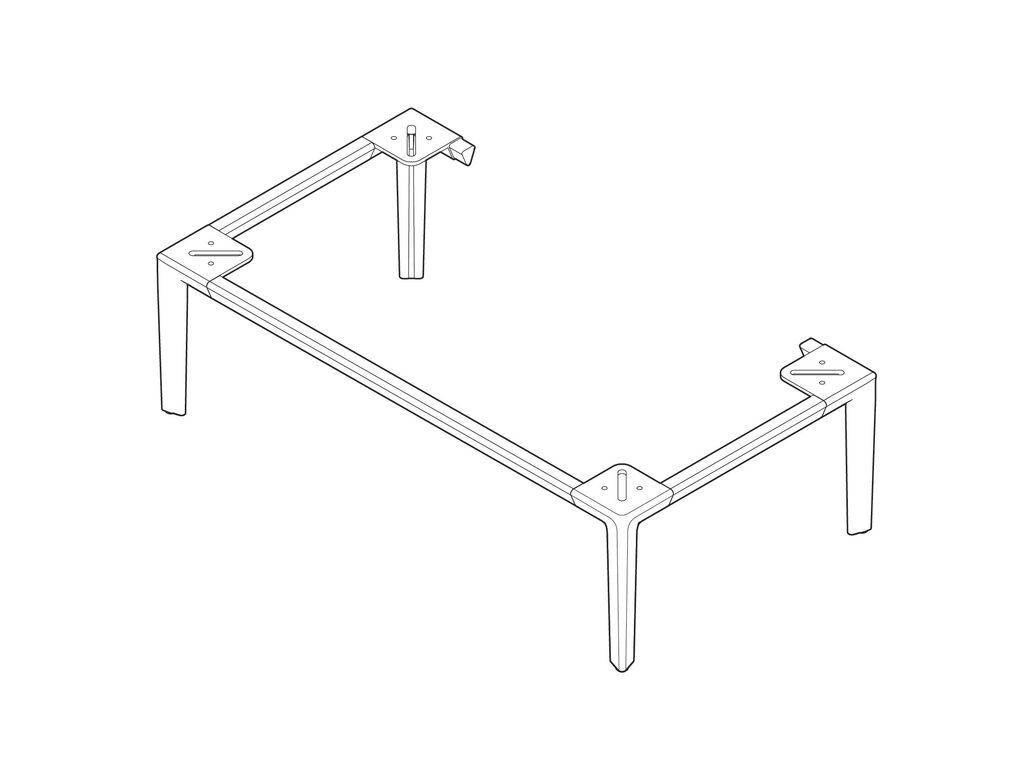

3D Line Drawing

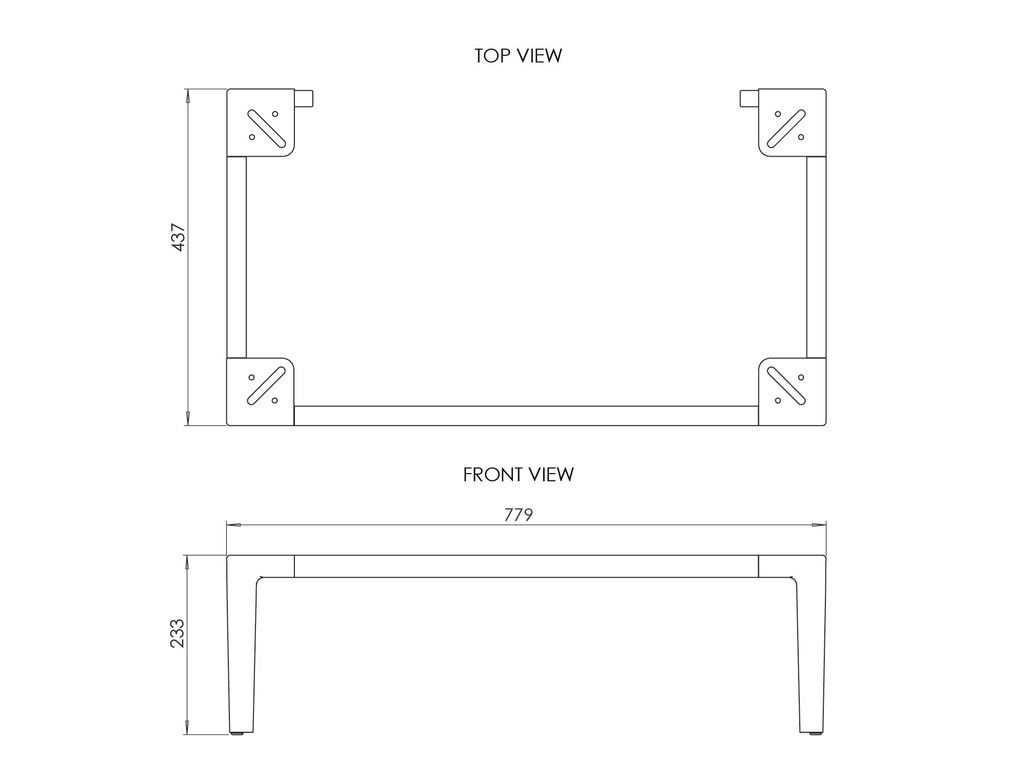

2D Line Drawing

Technical Details

Dimensions (WxDxH):

779 x 437 x 233mm

In The Box:

Oriana Leg Frame 800 - 230mm
