Technical Data Sheet
Chelworth Floor Standing Vanity Unit 800 Two Drawer
4984

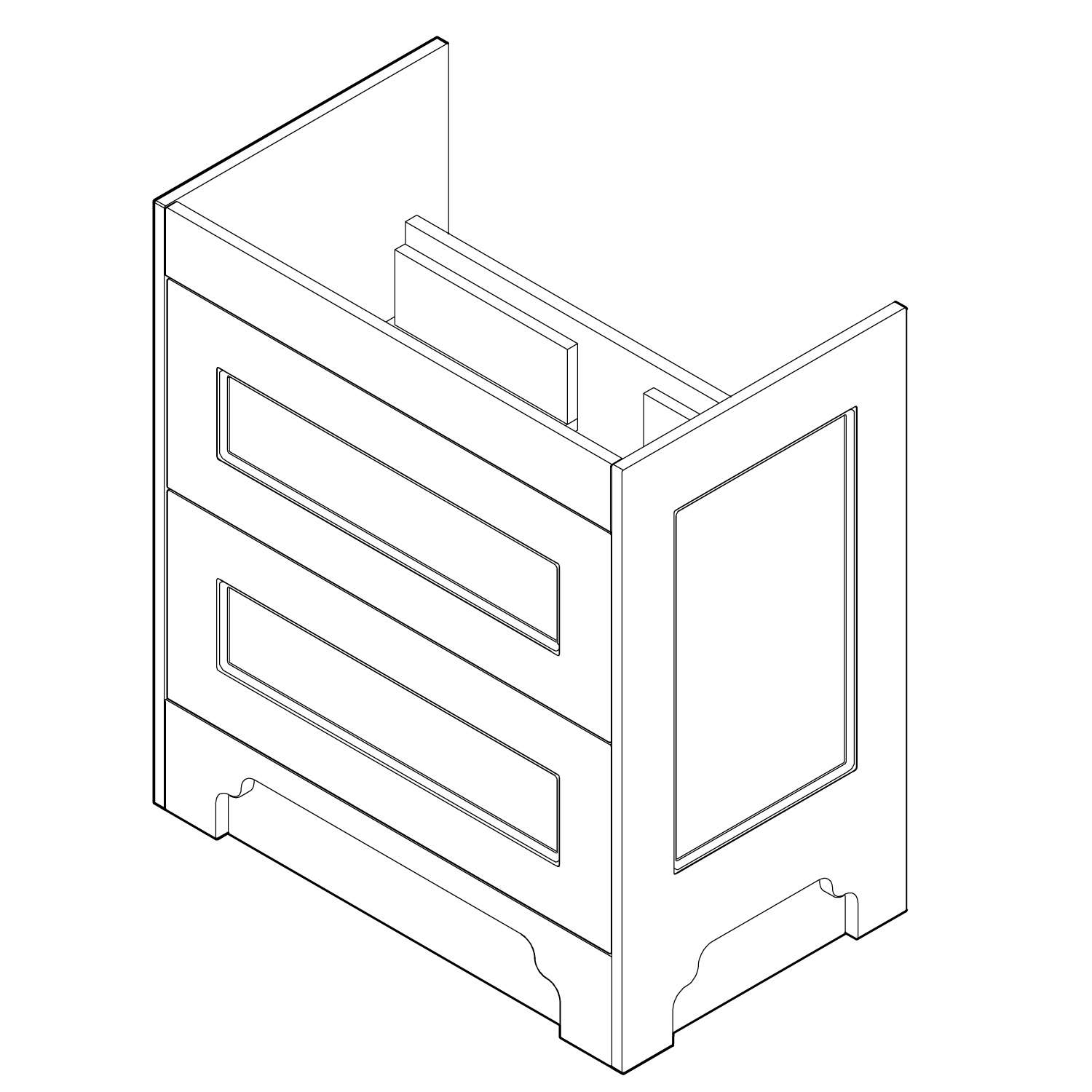

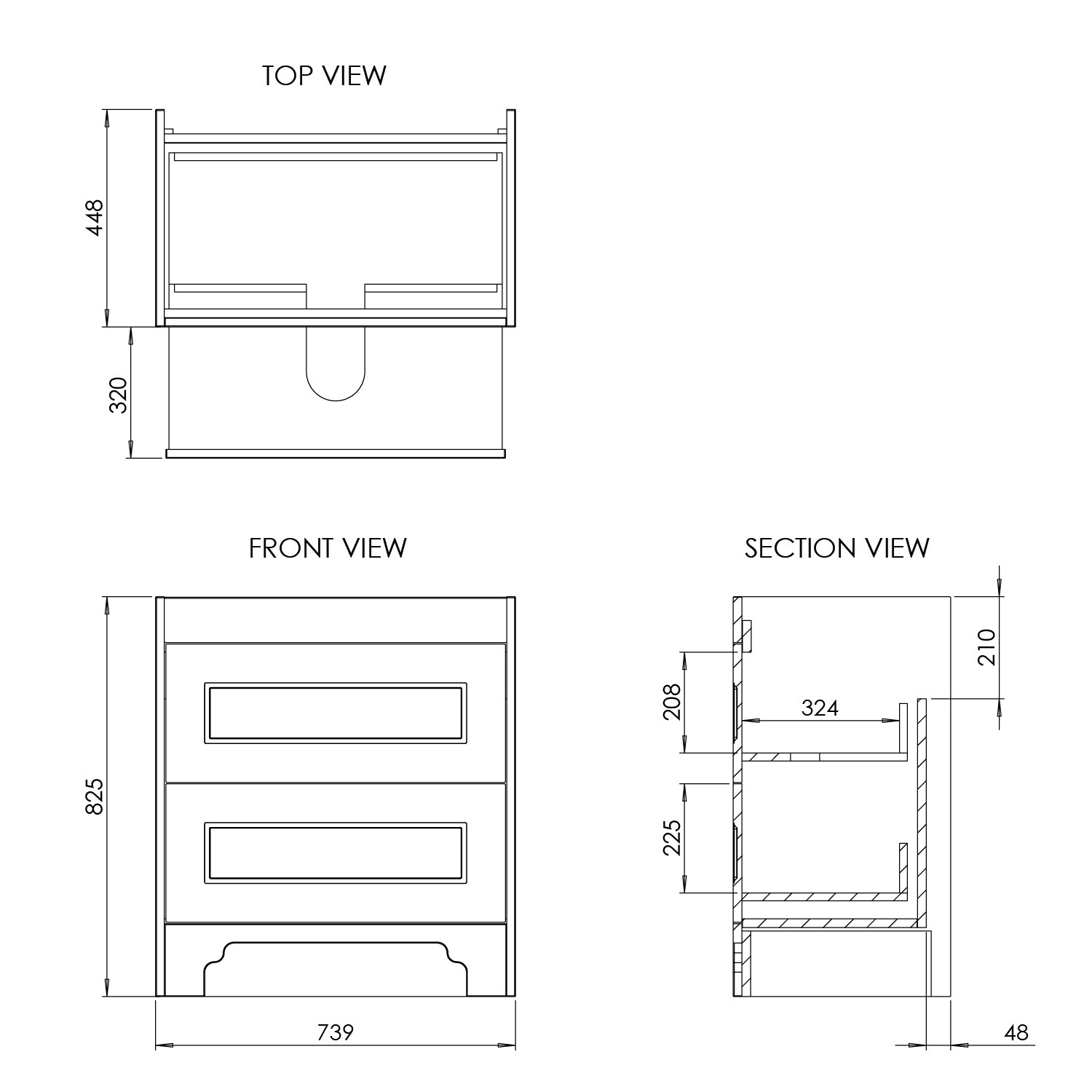

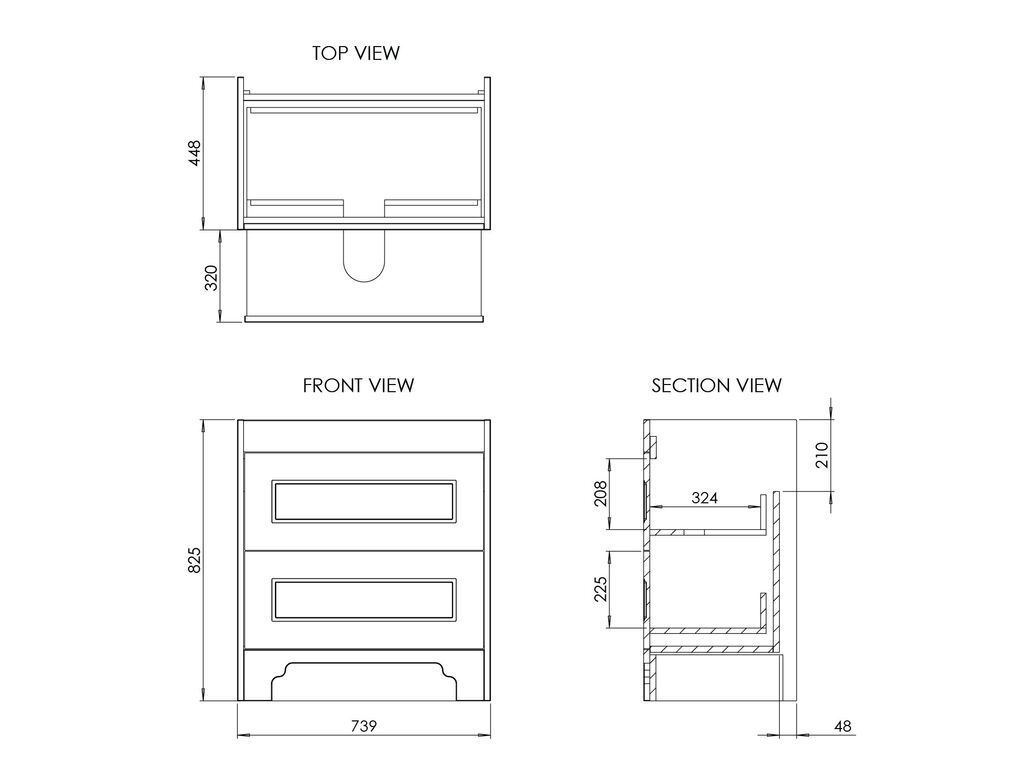

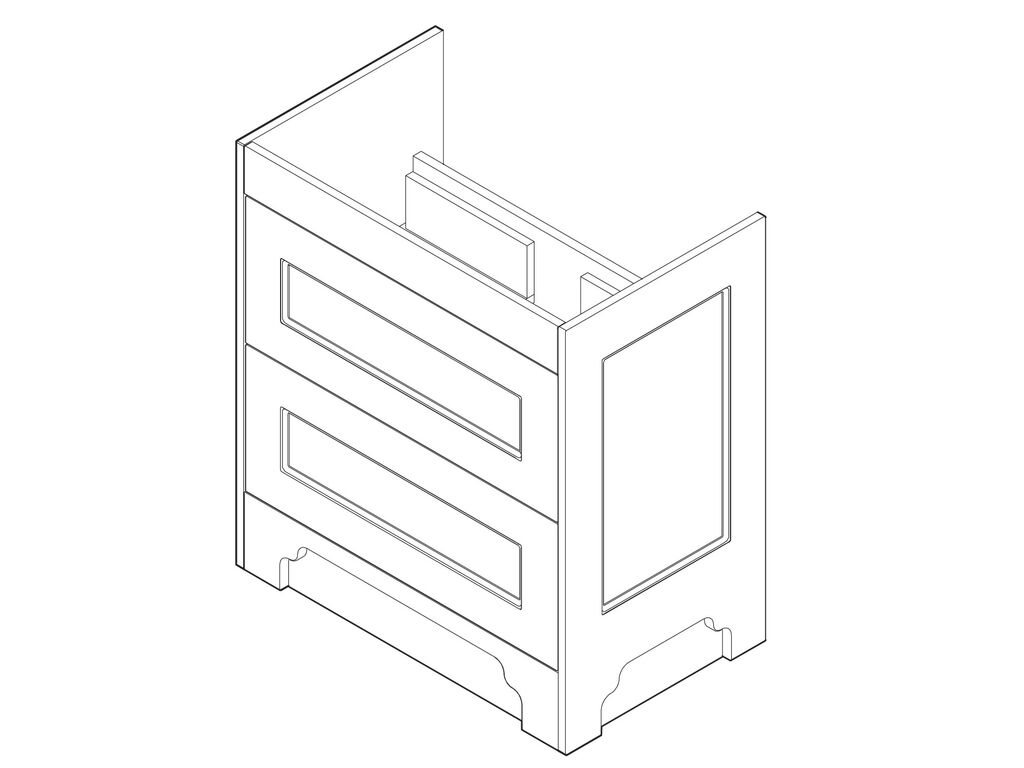

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Floor Standing Vanity Unit
Dimensions (WxDxH):
739 x 448 x 825mm
Weight:
39.5 kg
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open back
Fascia Style:
MDF 18mm Shaker
Fascia Detail:
Shaker Frame
End Panel Material:
MDF 18mm
End Panel Detail:
Shaker
Handle Type:
Handle Not Included
Drawers:
2 drawers, Soft Close, 350mm runners
Fixation Method:
Fixed angle brackets, 180mm from top @ 675mm centres
Leg / Foot Type:
Pre-attached, Glides Included
Service Void Depth:
48mm
Compatible Basins:
In The Box:
Chelworth Floor Standing Vanity Unit 800 Two Drawer
