Technical Data Sheet
Chelworth Floor Standing Vanity Unit 650 Two Door
4980

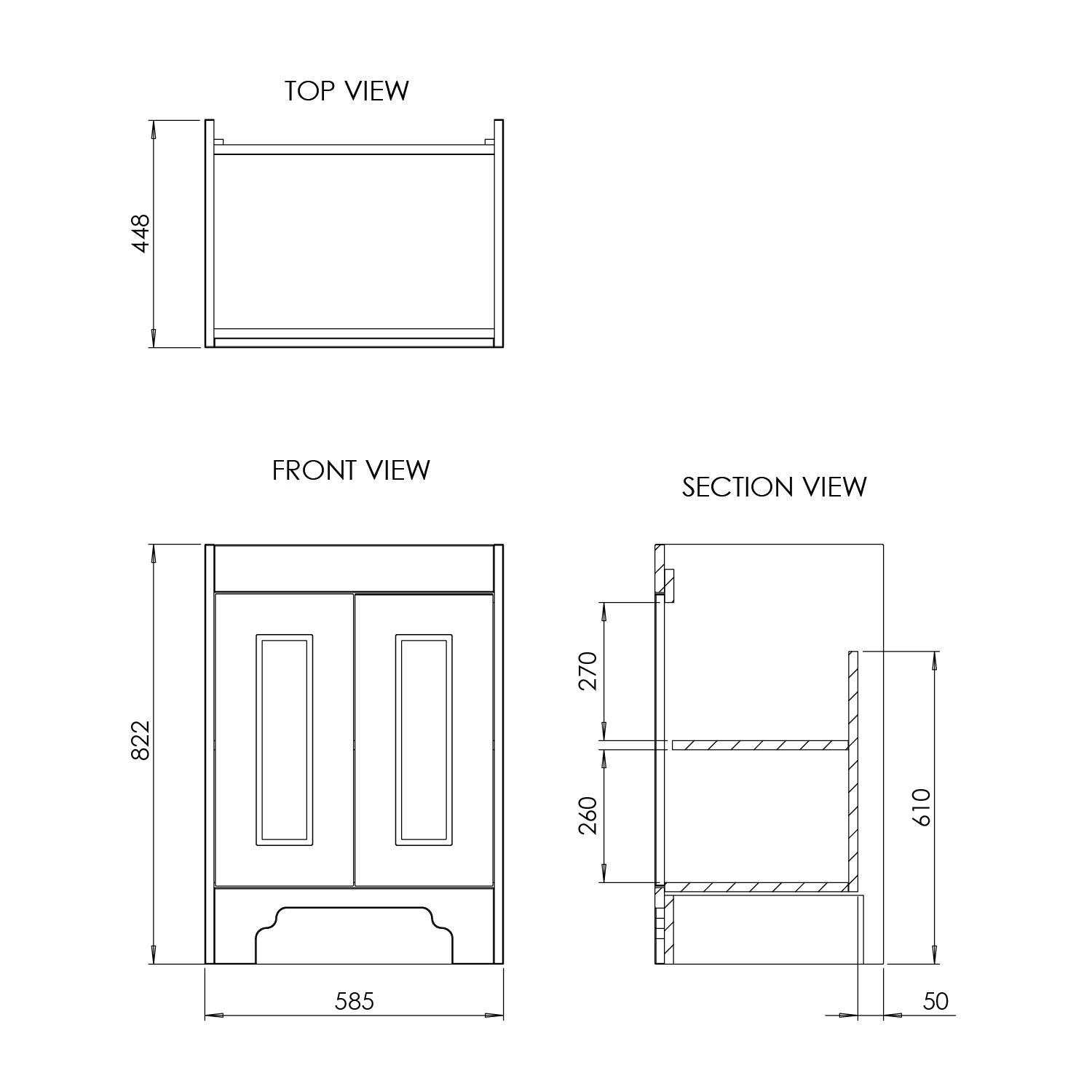

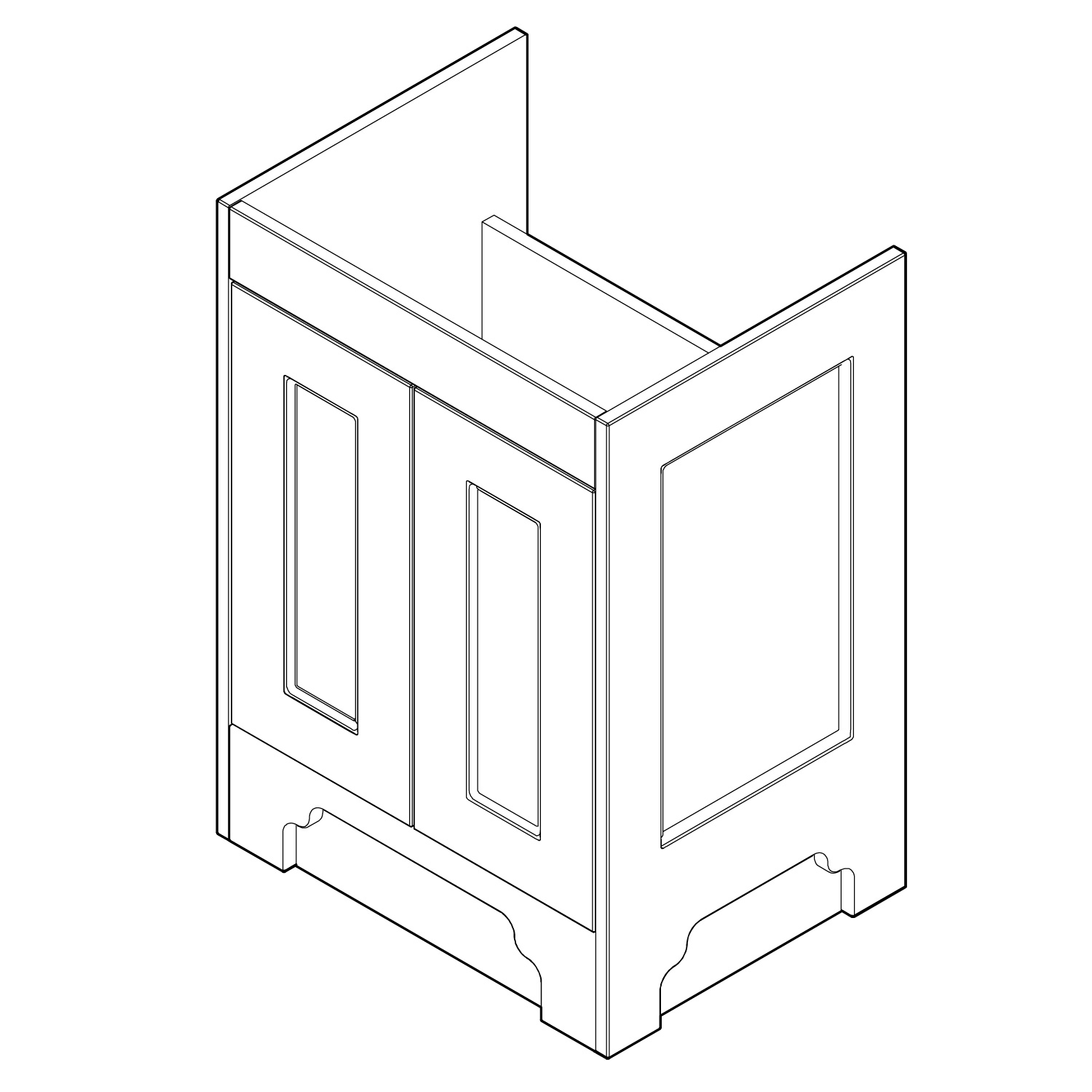

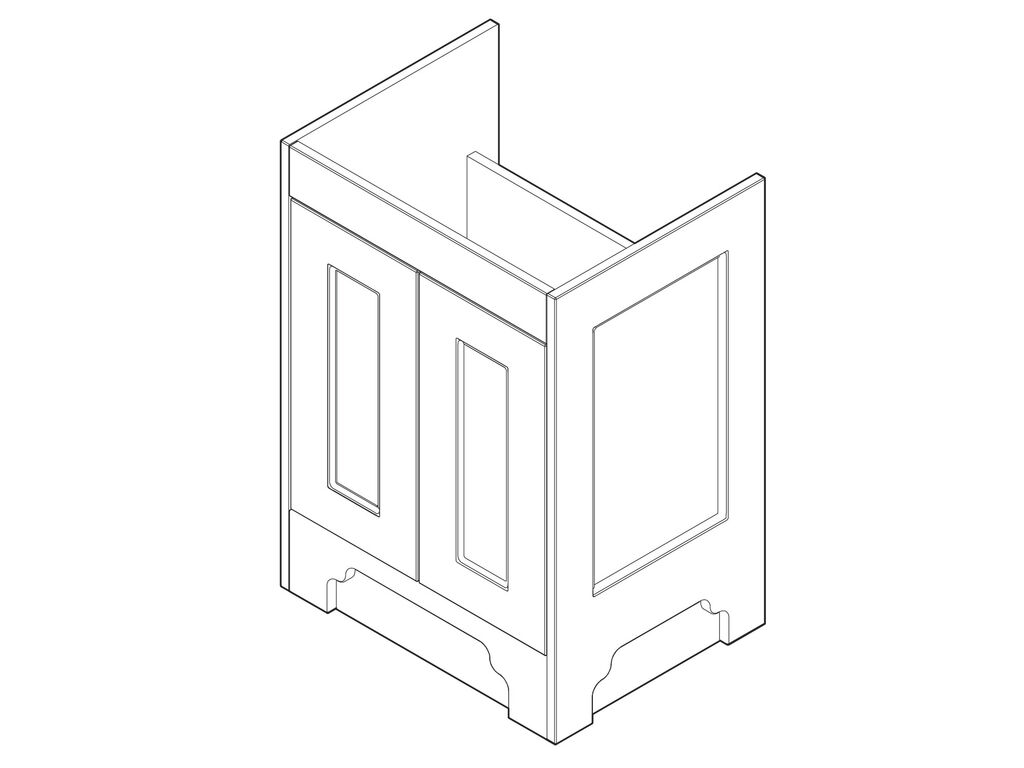

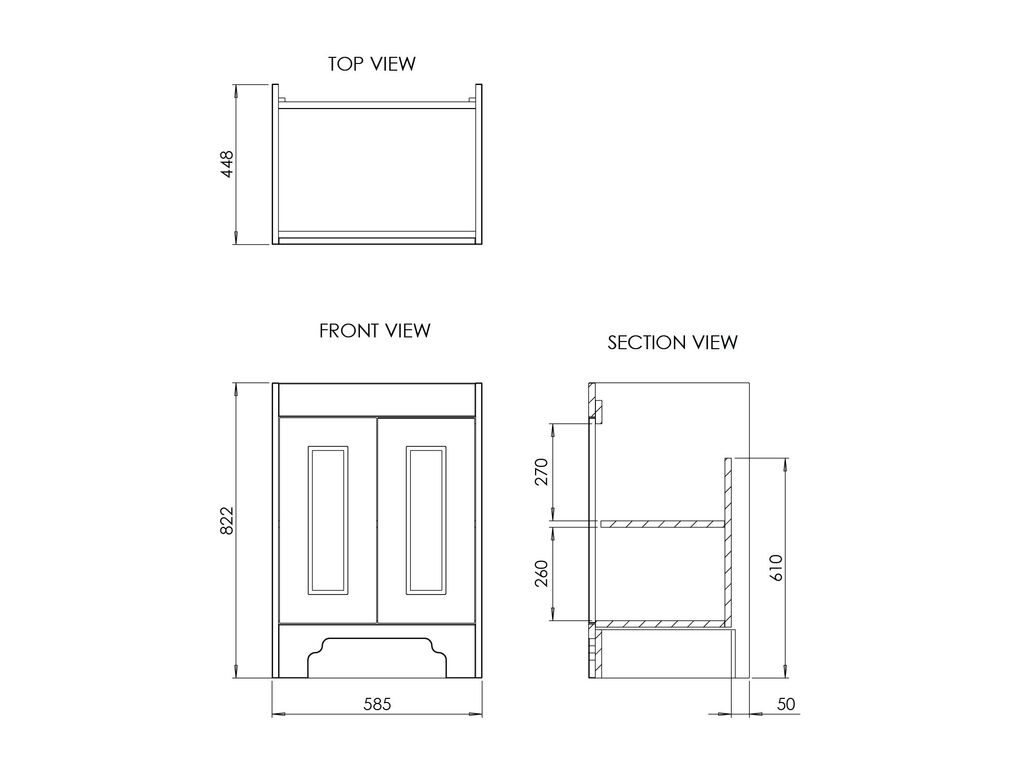

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Floor Standing Vanity Unit
Dimensions (WxDxH):
585 x 448 x 822mm
Weight:
25.78 kg
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open back
Fascia Style:
MDF 18mm Shaker
Fascia Detail:
Shaker Frame
End Panel Material:
MDF 18mm
End Panel Detail:
Shaker
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Inset,Soft Close
Hinge Bracket Cover Plates:
Yes
Handle Type:
Handle Not Included
Shelves:
1 removable - MFC 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Fixed angle brackets, 180mm from top @ 520mm centres
Leg / Foot Type:
Pre-attached, Glides Included
Door Open Unit Depth:
740mm
Service Void Depth:
48mm
Compatible Basins:
In The Box:
Chelworth Floor Standing Vanity Unit 650 Two Door
