Technical Data Sheet
Brenta Tall Wall Unit 350 Two Door
4724

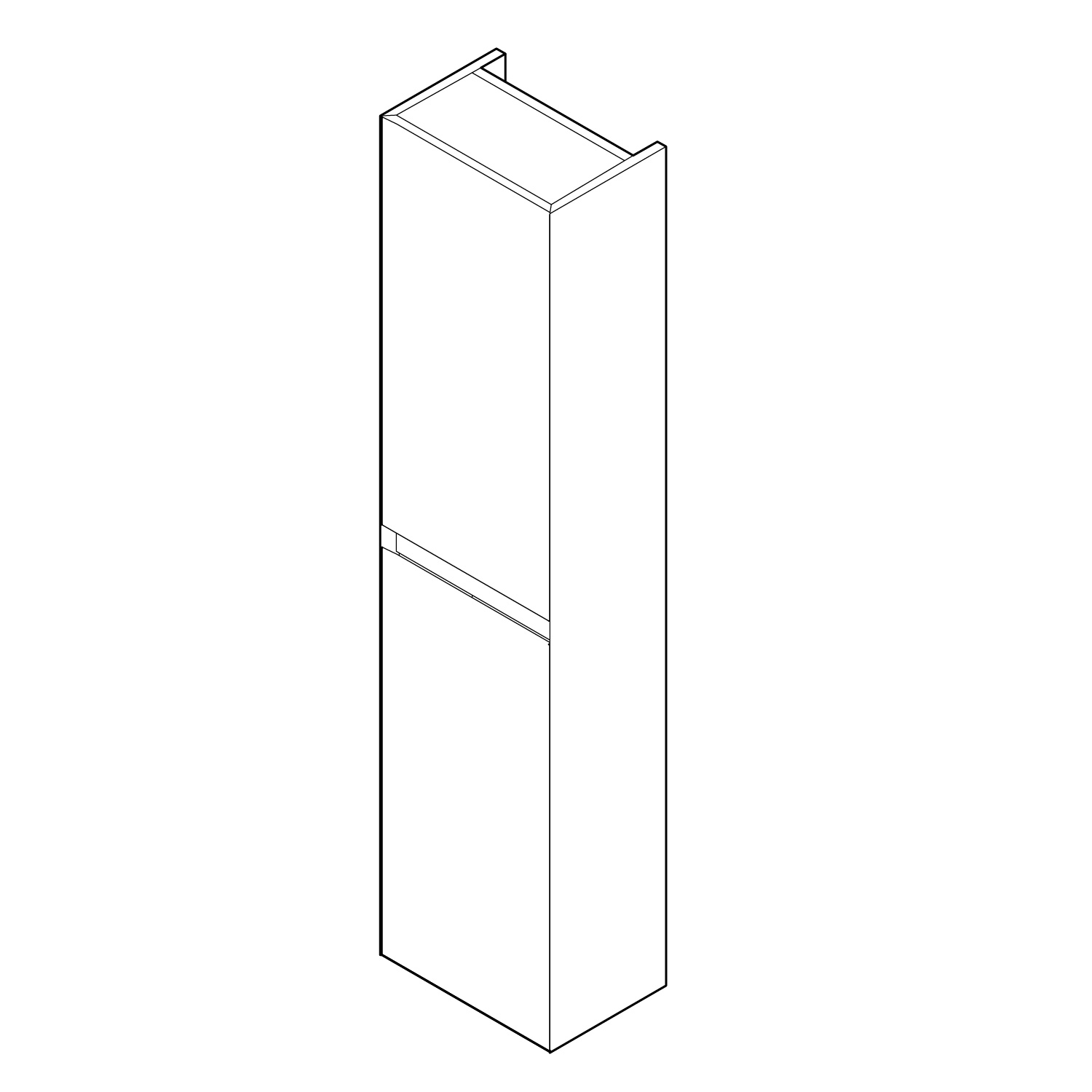

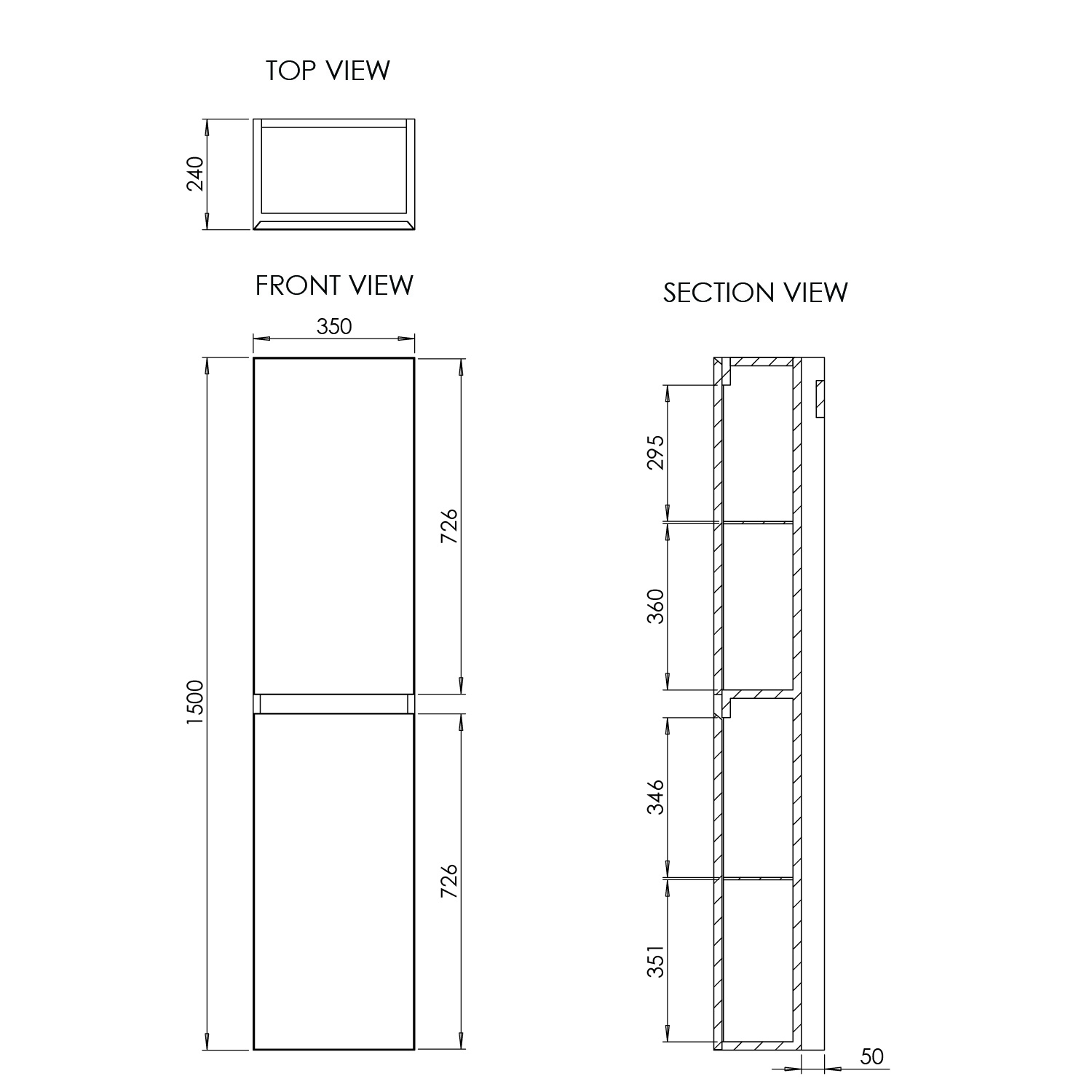

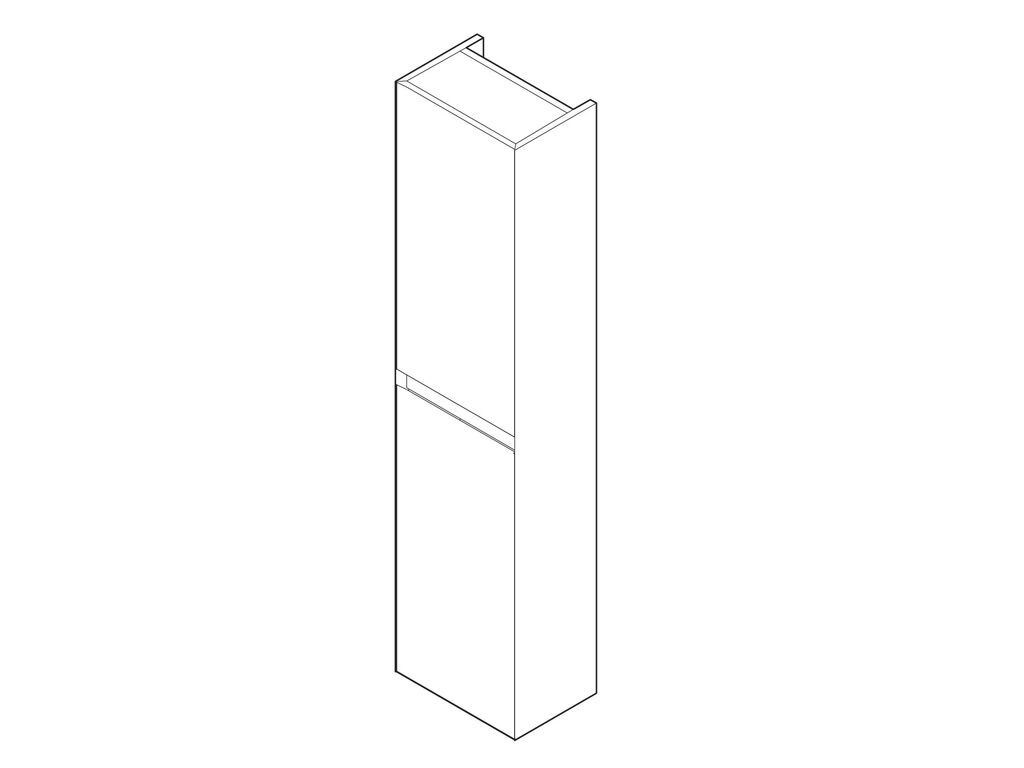

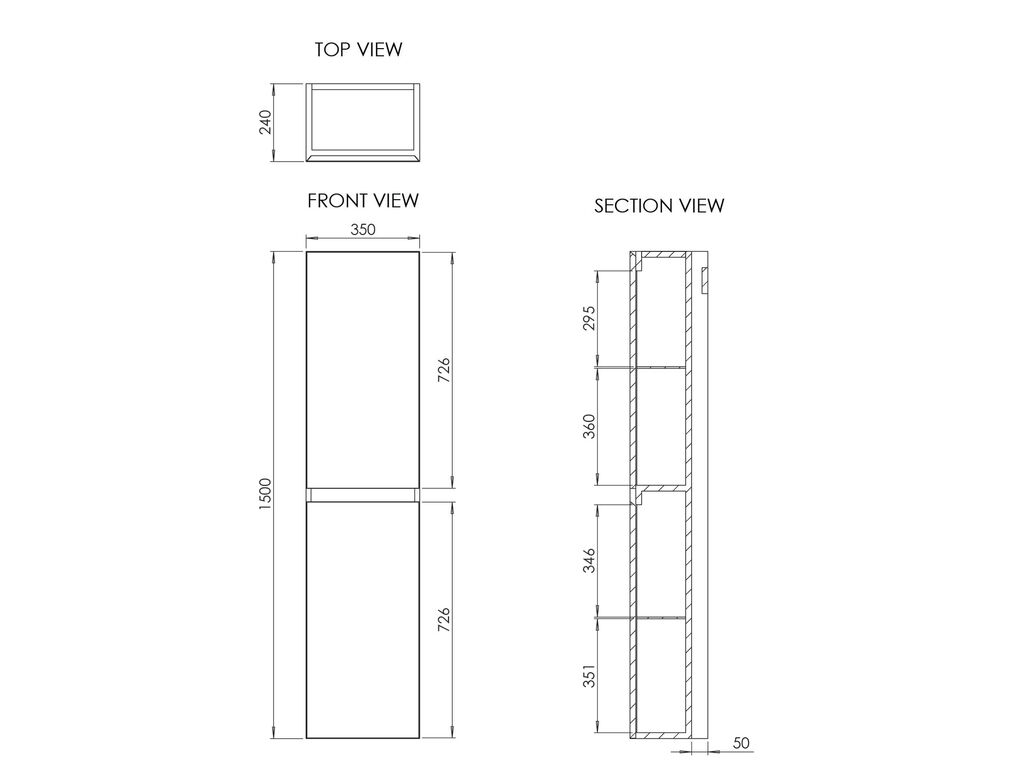

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Tall Wall Unit
Dimensions (WxDxH):
350 x 240 x 1500mm
Weight:
26 kg
Carcass Material:
MDF 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 18mm Slab
End Panel Material:
MDF 19mm
End Panel Detail:
Slab
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft Close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Integrated Handle
Shelves:
2 removable - Glass 5mm
Removable Shelf Supports:
Clamps
Fixation Method:
Split Batten, 300mm from top @ 285mm centres
Door Open Unit Depth:
590mm
In The Box:
Brenta Tall Wall Unit 350 Two Door
