Technical Data Sheet
Chelworth Tall Wall Unit 400 One Door
4602

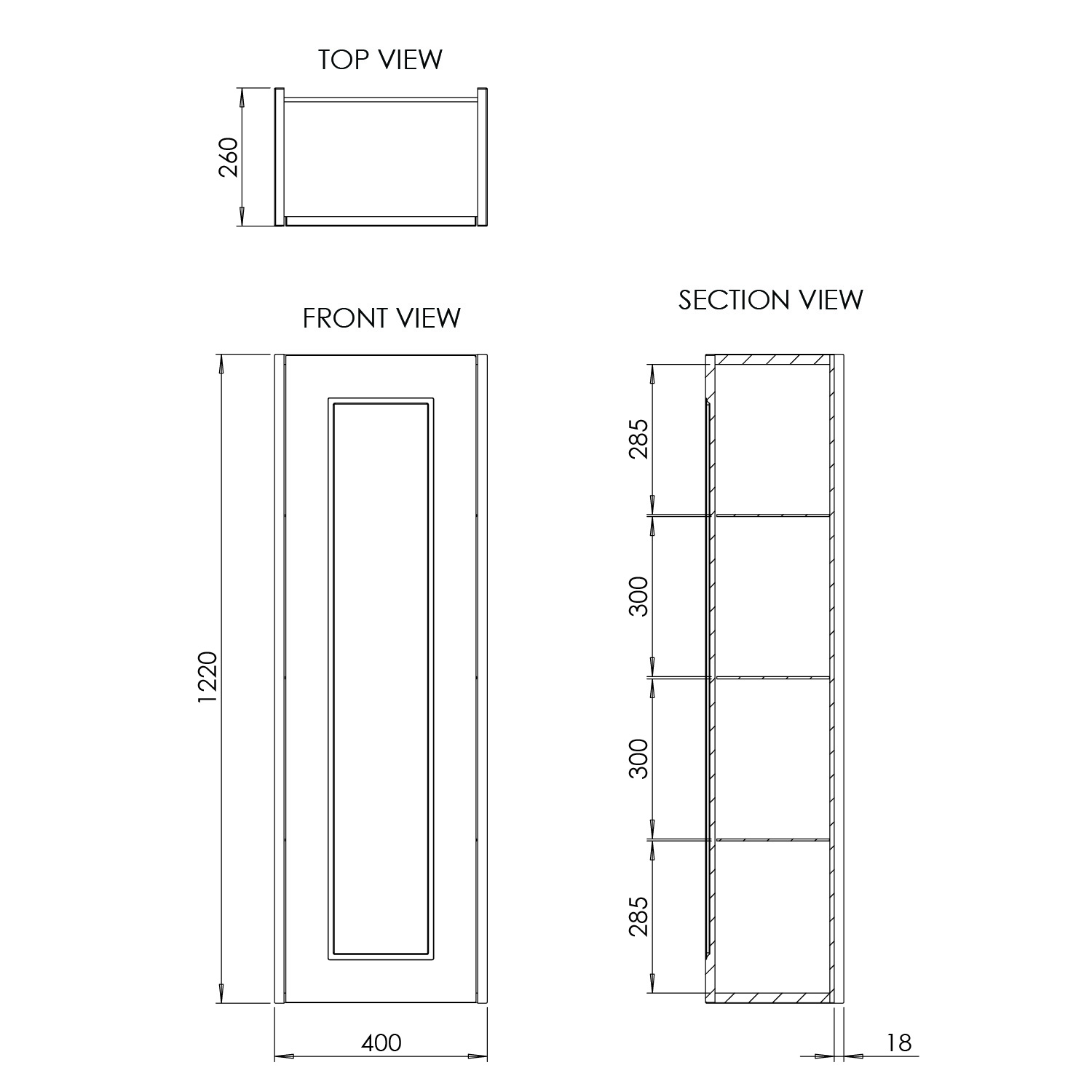

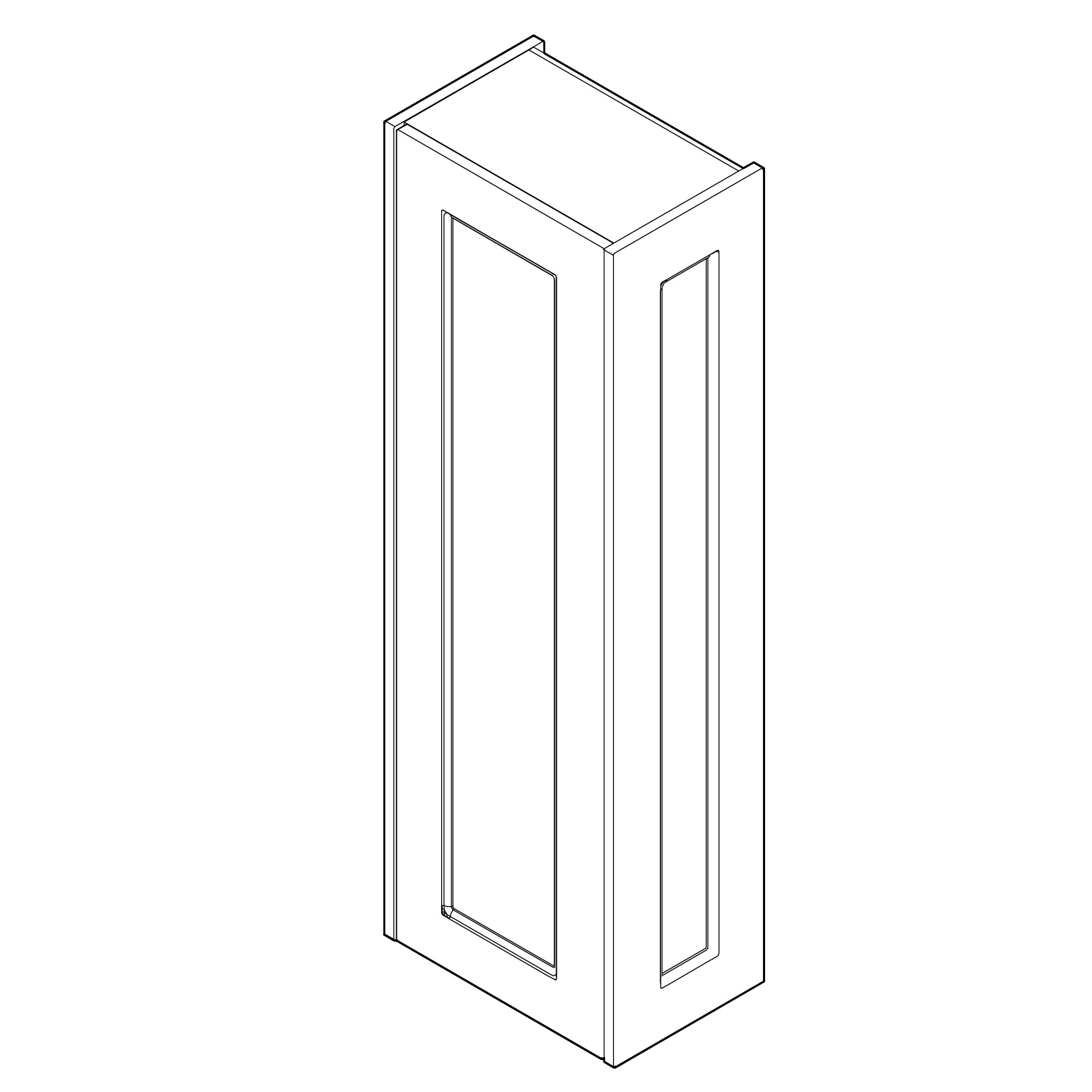

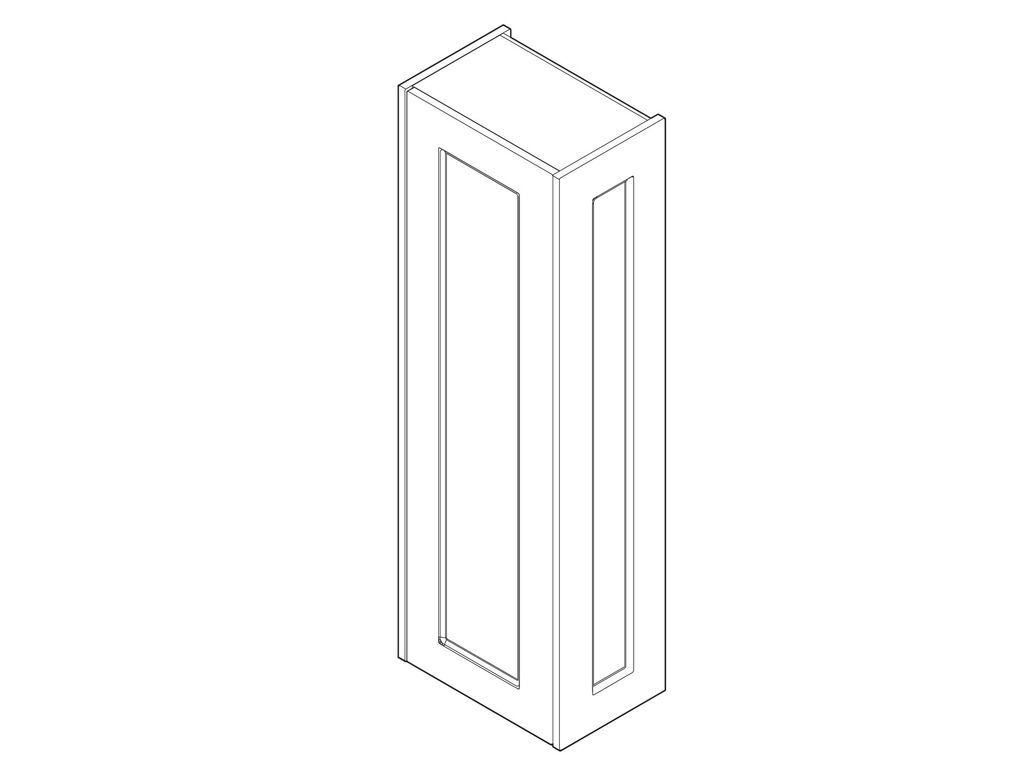

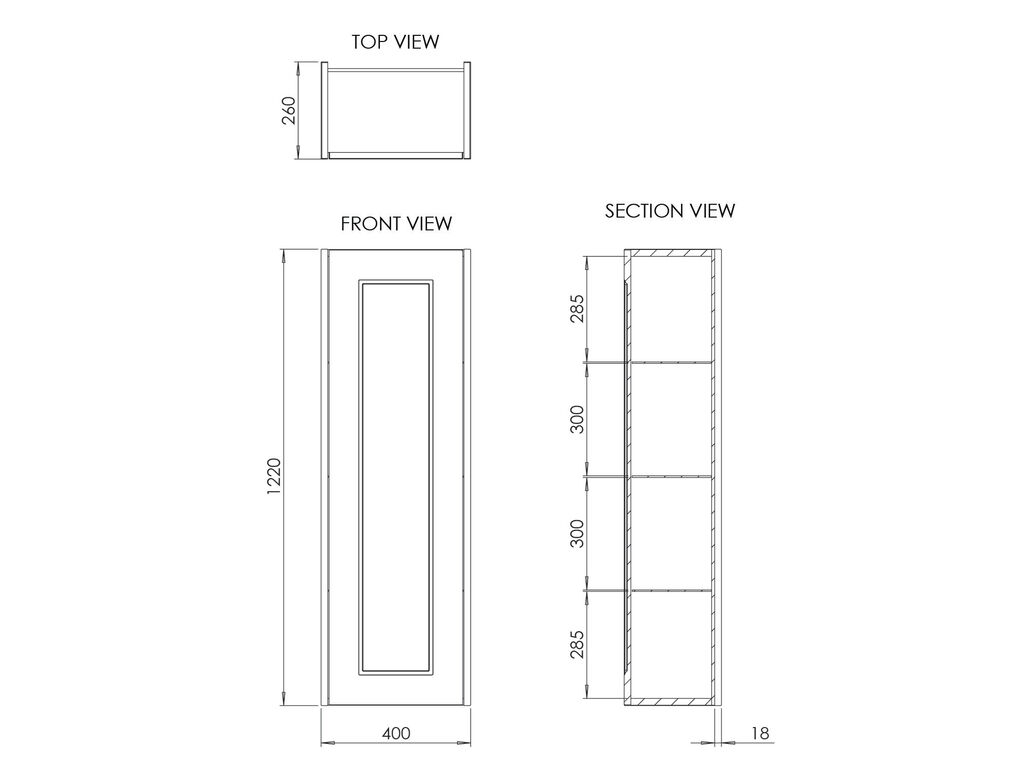

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Tall Wall Unit
Dimensions (WxDxH):
400 x 260 x 1220mm
Weight:
23.58 kg
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 18mm Shaker
Fascia Detail:
Shaker Frame
End Panel Material:
MDF 18mm
End Panel Detail:
Shaker
Door Openings:
1
Door(s) Hinge Side:
Both
Hinges Detail:
Soft Close,Inset
Hinge Bracket Cover Plates:
Yes
Handle Type:
Handle Not Included
Shelves:
3 removable - Glass 5mm
Removable Shelf Supports:
Clamps
Fixation Method:
Adjustable metal wall brackets, 65mm from top @ 320mm centres
Door Open Unit Depth:
660mm
In The Box:
Chelworth Tall Wall Unit 400 One Door
