Technical Data Sheet
Chelworth Floor Standing Storage Unit 400 One Door
4601

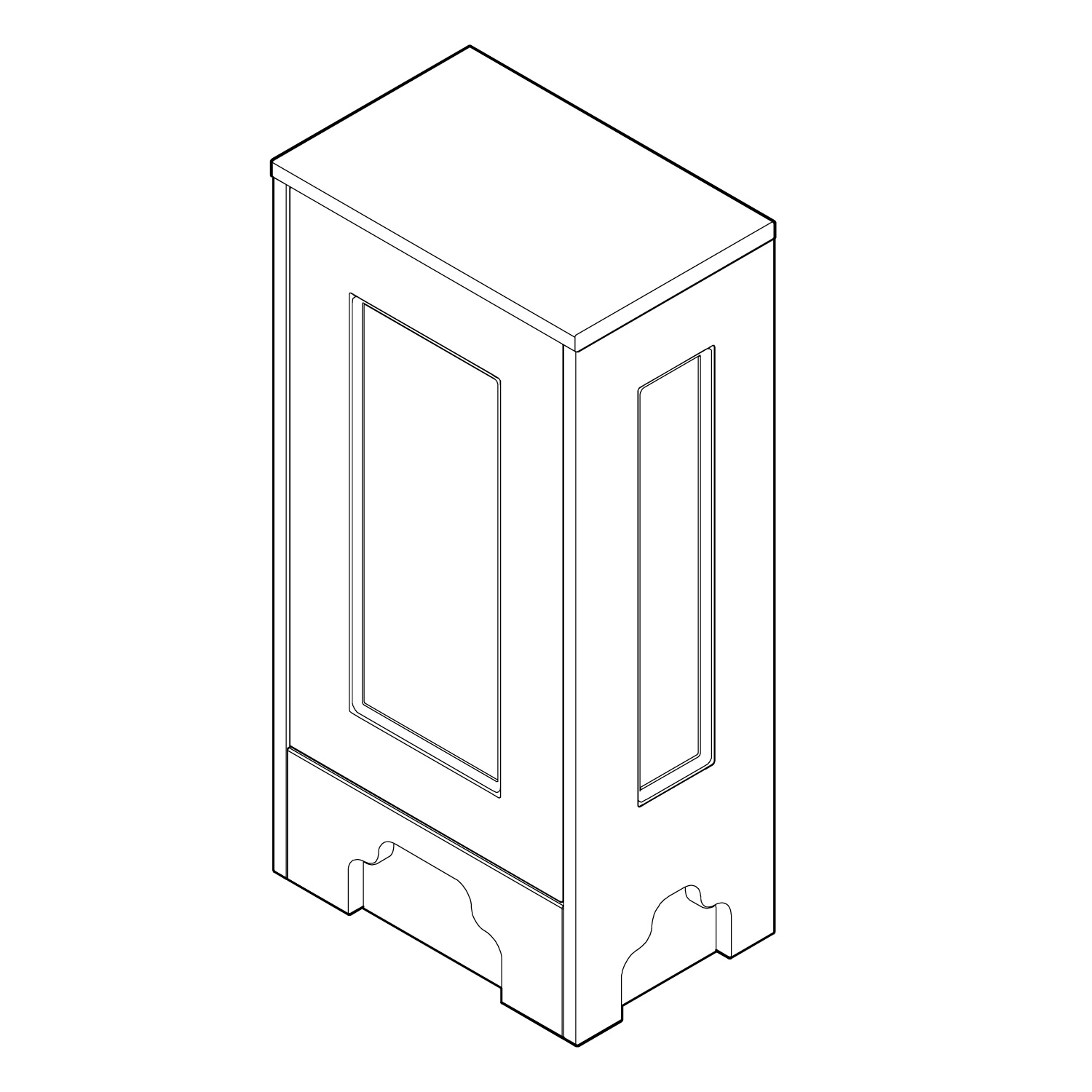

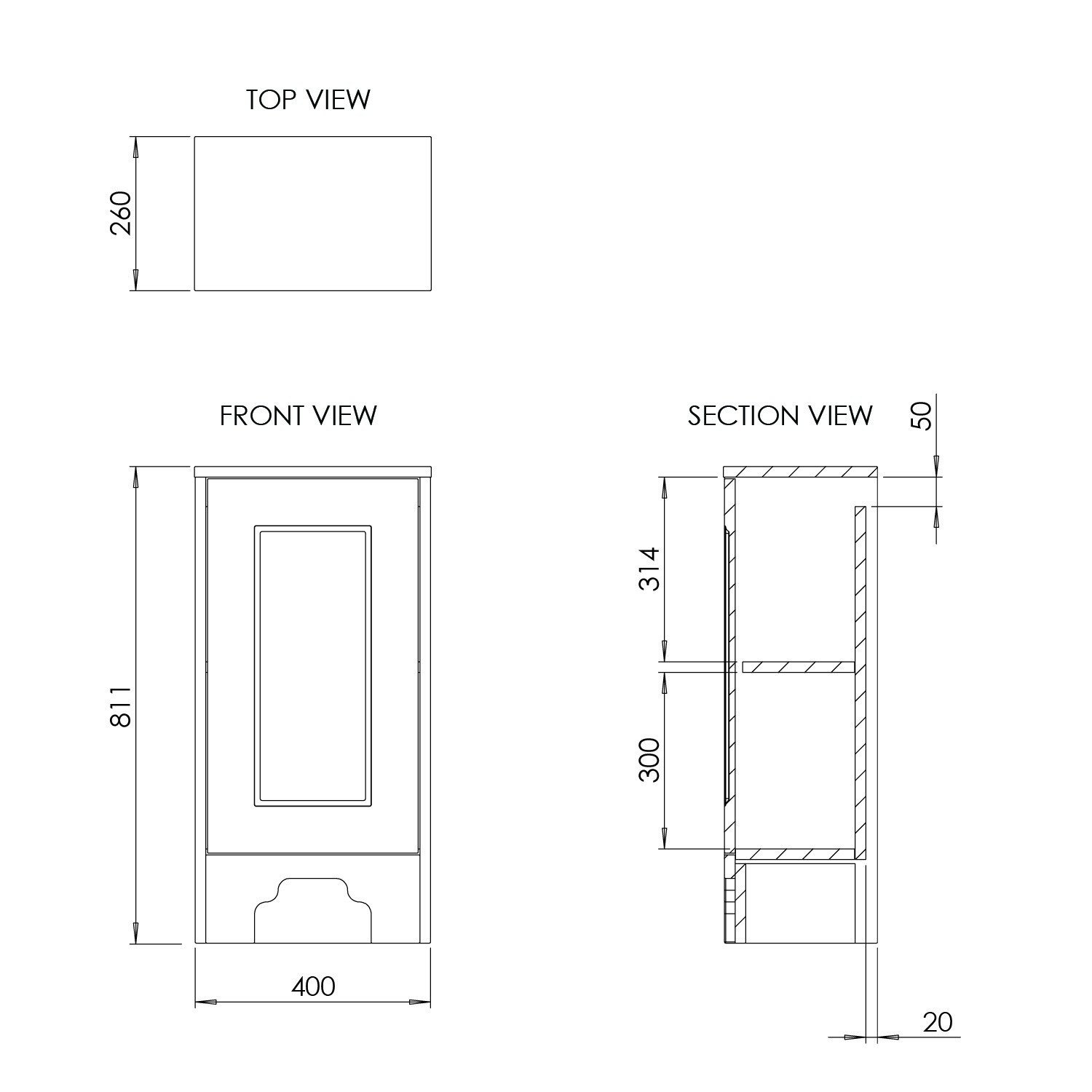

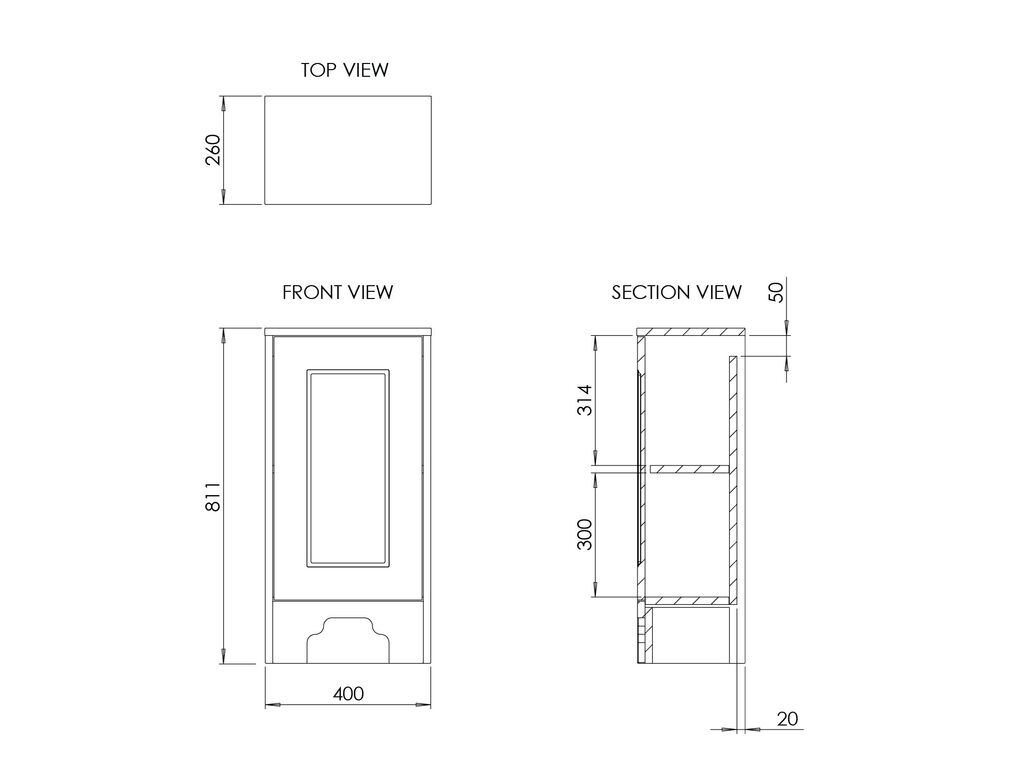

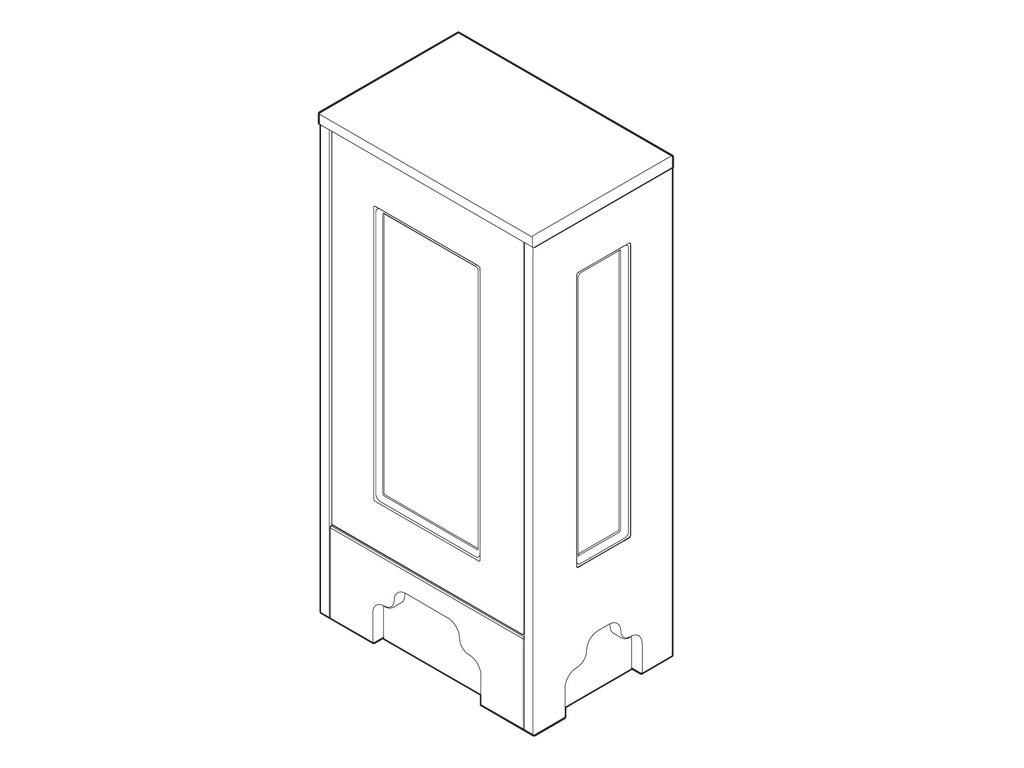

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Storage Unit
Dimensions (WxDxH):
400 x 260 x 811mm
Weight:
16.86 kg
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open back
Fascia Style:
MDF 18mm Shaker
Fascia Detail:
Shaker Frame
End Panel Material:
MDF 18mm
End Panel Detail:
Shaker
Door Openings:
1
Door(s) Hinge Side:
Both
Hinges Detail:
Inset,Soft Close
Hinge Bracket Cover Plates:
Yes
Handle Type:
Handle Not Included
Shelves:
1 removable - MFC 18mm
Removable Shelf Supports:
Studs
Fixation Method:
Fixed angle brackets, 180mm from top @ 335mm centres
Leg / Foot Type:
Pre-attached, Glides Included
Door Open Unit Depth:
660mm
Service Void Depth:
20mm
In The Box:
Chelworth Floor Standing Storage Unit 400 One Door
