Technical Data Sheet
Cheviot Laundry Unit 300 Standard
4468CT

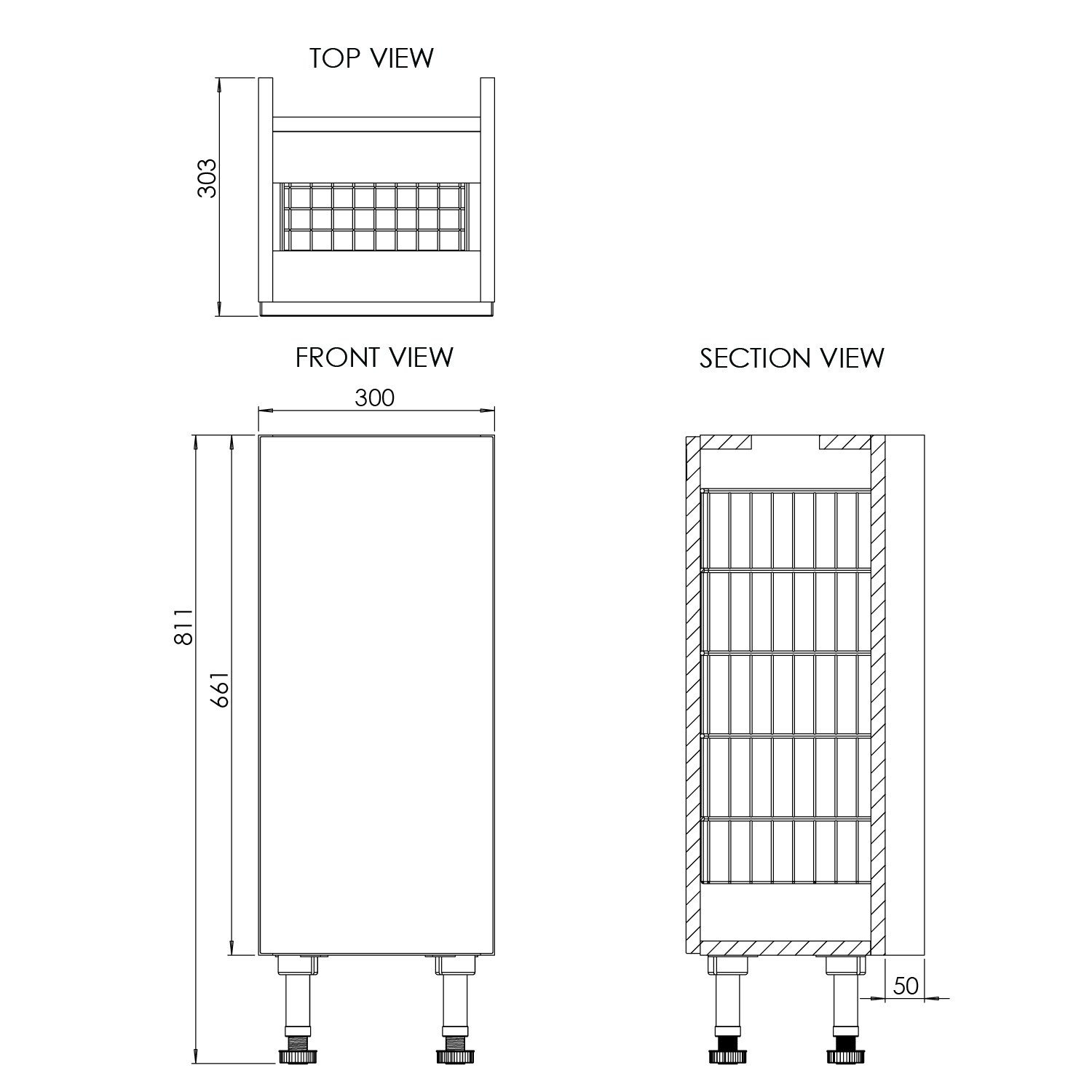

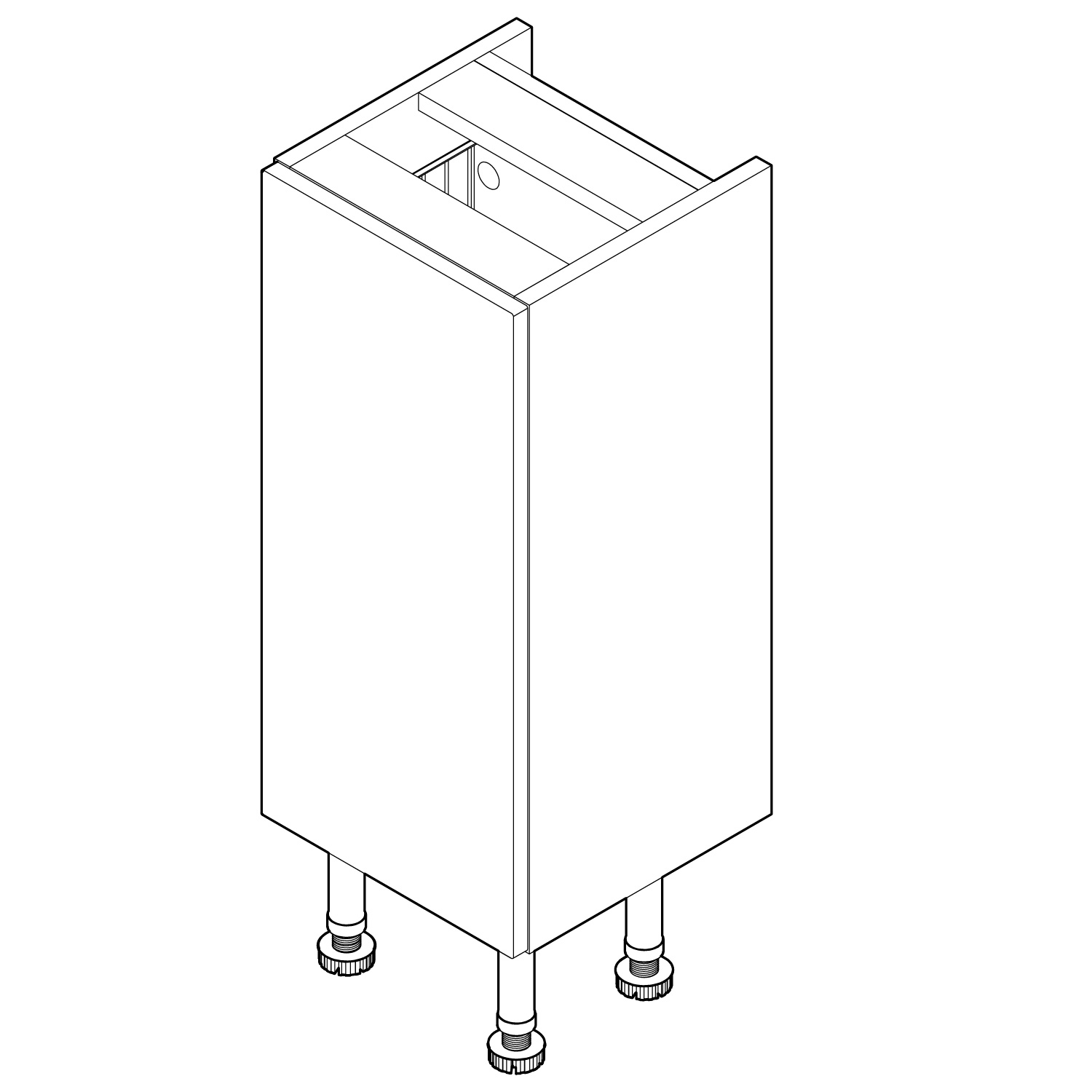

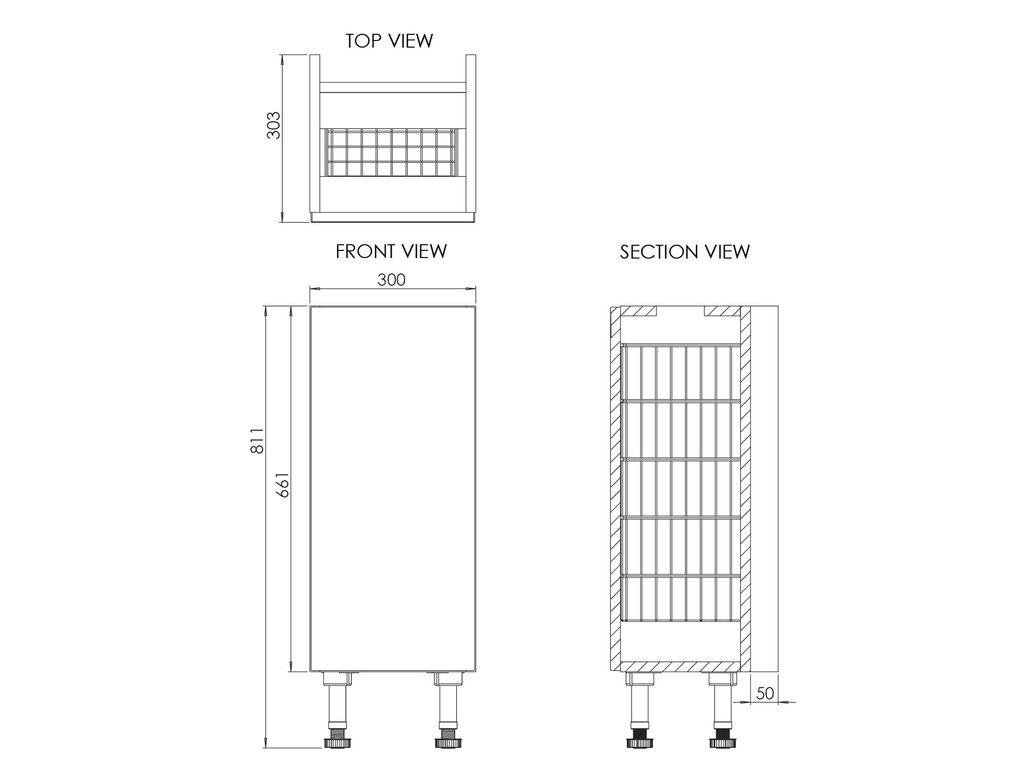

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Laundry Unit
Dimensions (WxDxH):
300 x 303 x 811mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Closed Back
Fascia Style:
MDF 18mm Slab
Door Openings:
1
Door(s) Hinge Side:
Bottom Hinged
Hinges Detail:
Soft close
Handle Type:
Handle Not Included
Fixation Method:
Adjustable Metal Wall Brackets, 80mm from top @ 235mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Service Void Depth:
50mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Cheviot Laundry Unit 300 Standard
Instructions
Fitting kit
