Technical Data Sheet
Selter Toilet Roll Unit 200 Pull Out Standard
4464ST

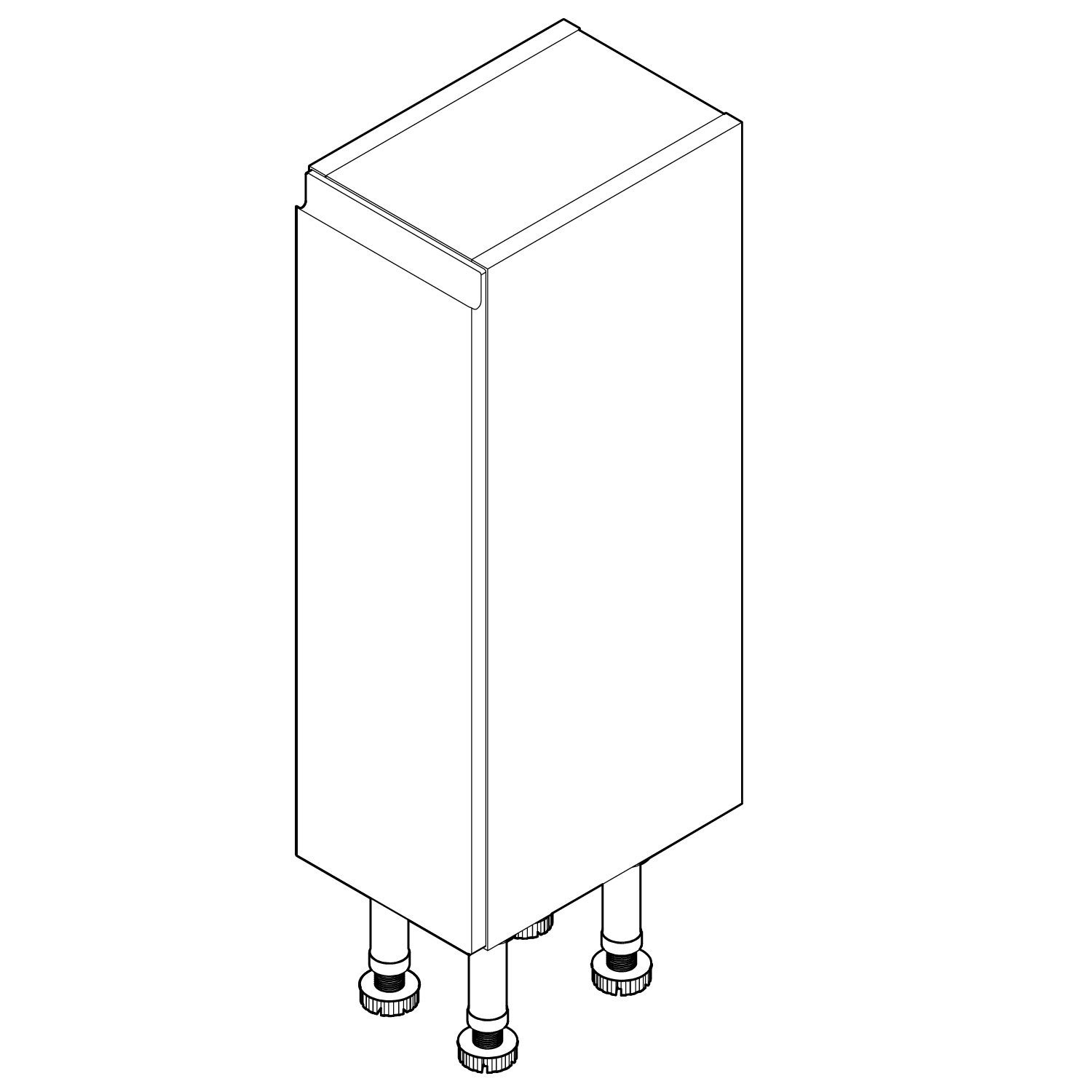

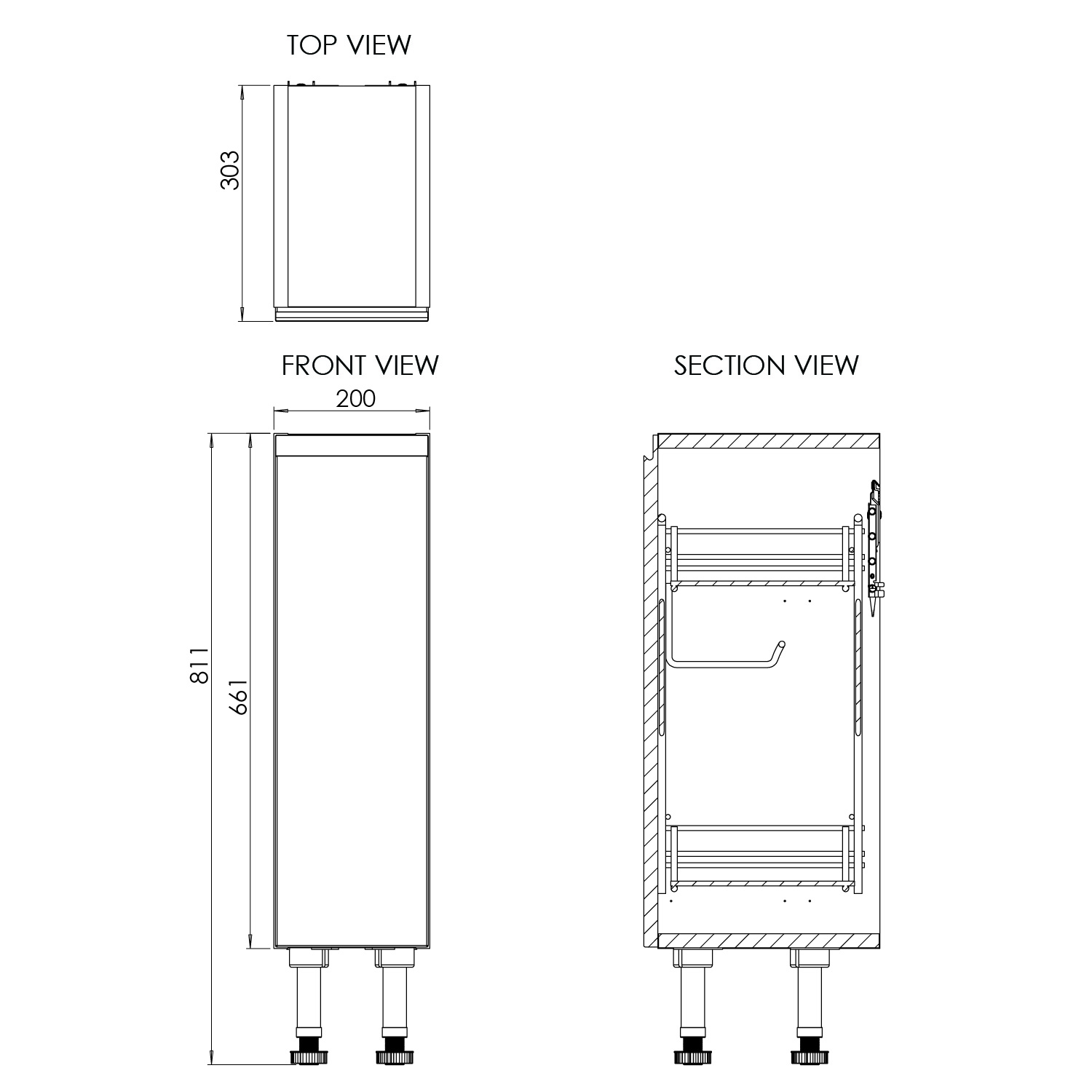

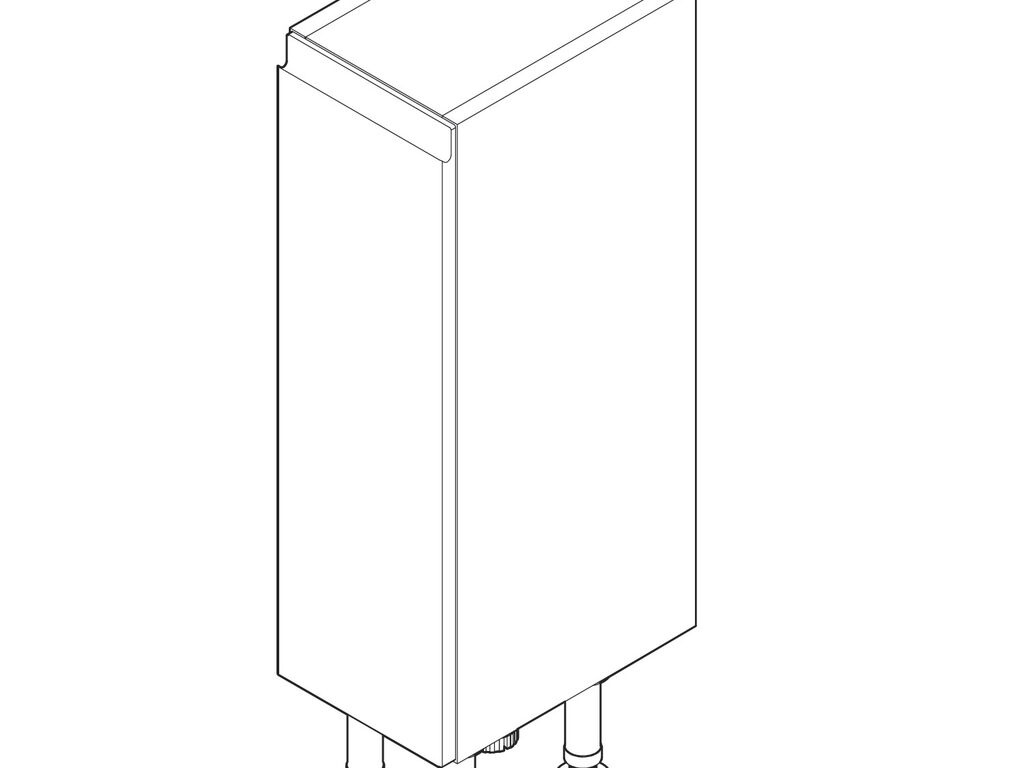

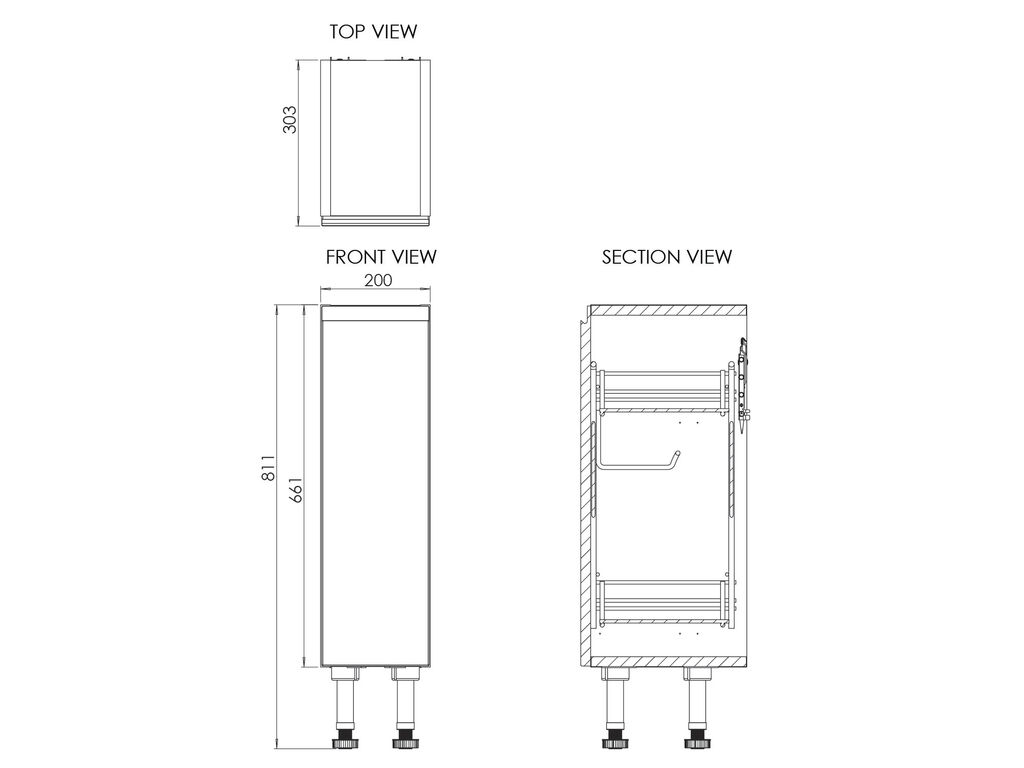

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Toilet Roll Unit
Dimensions (WxDxH):
200 x 303 x 811mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Open back
Fascia Style:
MDF 18mm Slab
Handle Type:
Integrated Handle
Drawers:
1 drawer, Emuca Soft Close, 270mm runners
Fixation Method:
Adjustable Metal Wall Brackets, 80mm from top @ 135mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Selter Toilet Roll Unit 200 Pull Out Standard
Instructions
Fitting kit
